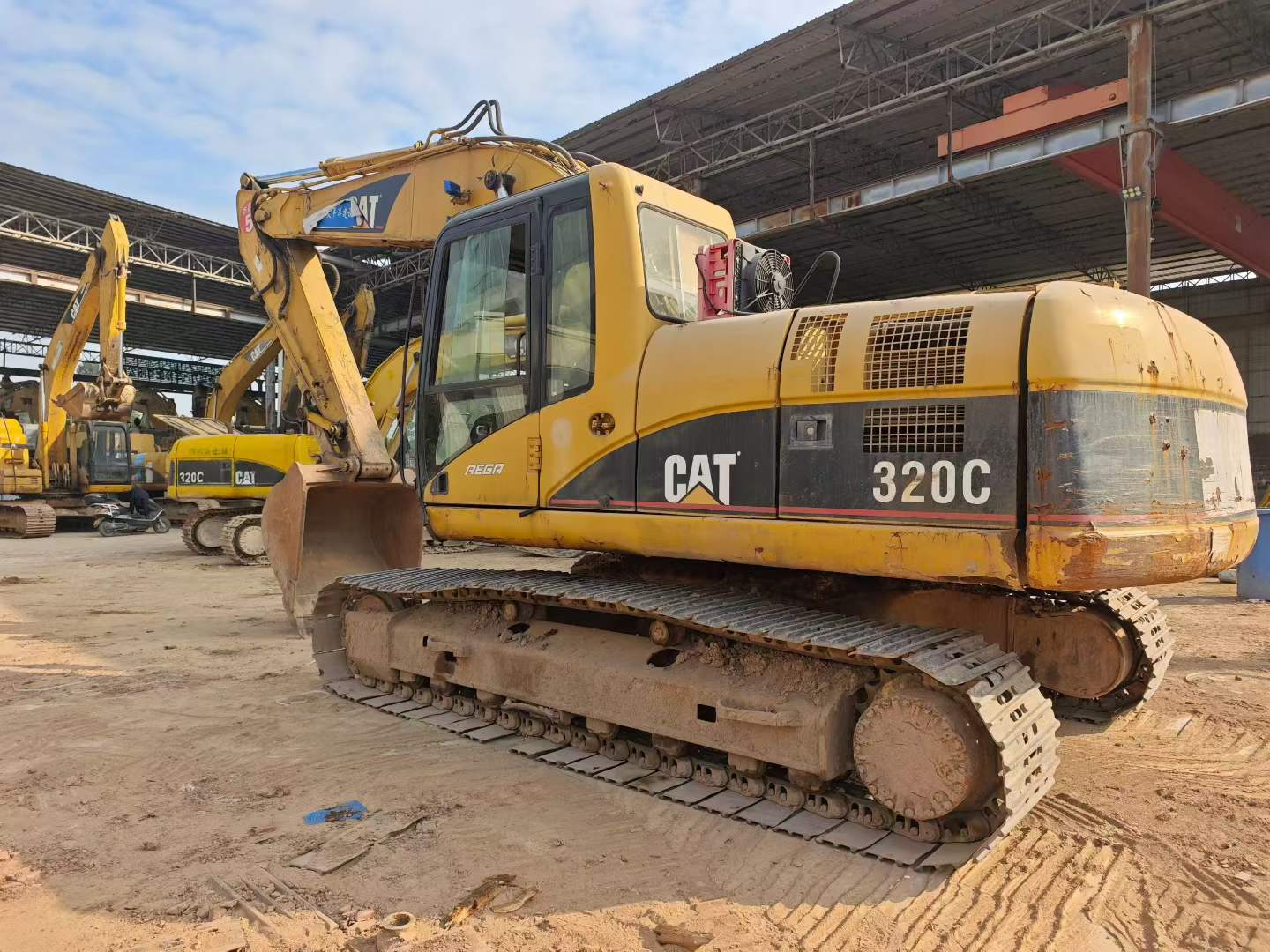

2016 Caterpillar 320CL
Product Description
Powered by Caterpillar's proven CAT 3066ATAAC engine delivering 110kW at 1800 rpm, this 2016 320CL excavator combines robust hydraulic performance with exceptional reliability. Advanced hydraulic systems generate 205 l/min main pump flow and 34.3 MPa working pressure, enabling precise control across demanding applications.
Engineering excellence defines this 20-ton machine through its optimized design specifications:
- Maximum digging depth of 6,550mm with 132kN bucket digging force
- 0.8m³ bucket capacity for efficient material handling
- Ground-specific pressure of just 44.1 KPa minimizes surface damage
- Dual-speed travel capability (3.4/5.5 km/h) enhances operational flexibility
Built with Caterpillar's renowned durability standards, this 320CL features a 6.4L displacement engine, 320L fuel capacity, and comprehensive hydraulic system designed for extended service intervals. Currently located in Guangdong Maoming, this machine represents proven technology from one of construction's most trusted manufacturers, ready for immediate deployment in your operations.
| Specifications | Value |
|---|---|
| No. | 982949 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21415 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Xuzhou/Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4450 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
| Maximum effective digging depth (mm) | 6370 |
Overview
No.982949
Brand Name：
CaterpillarModel Number：
320CLYear：
2016
Location：
Guangdong China
