2014 Caterpillar 323D2L

1/9
Used Caterpillar 323D2L Excavator 2014 Model / 1

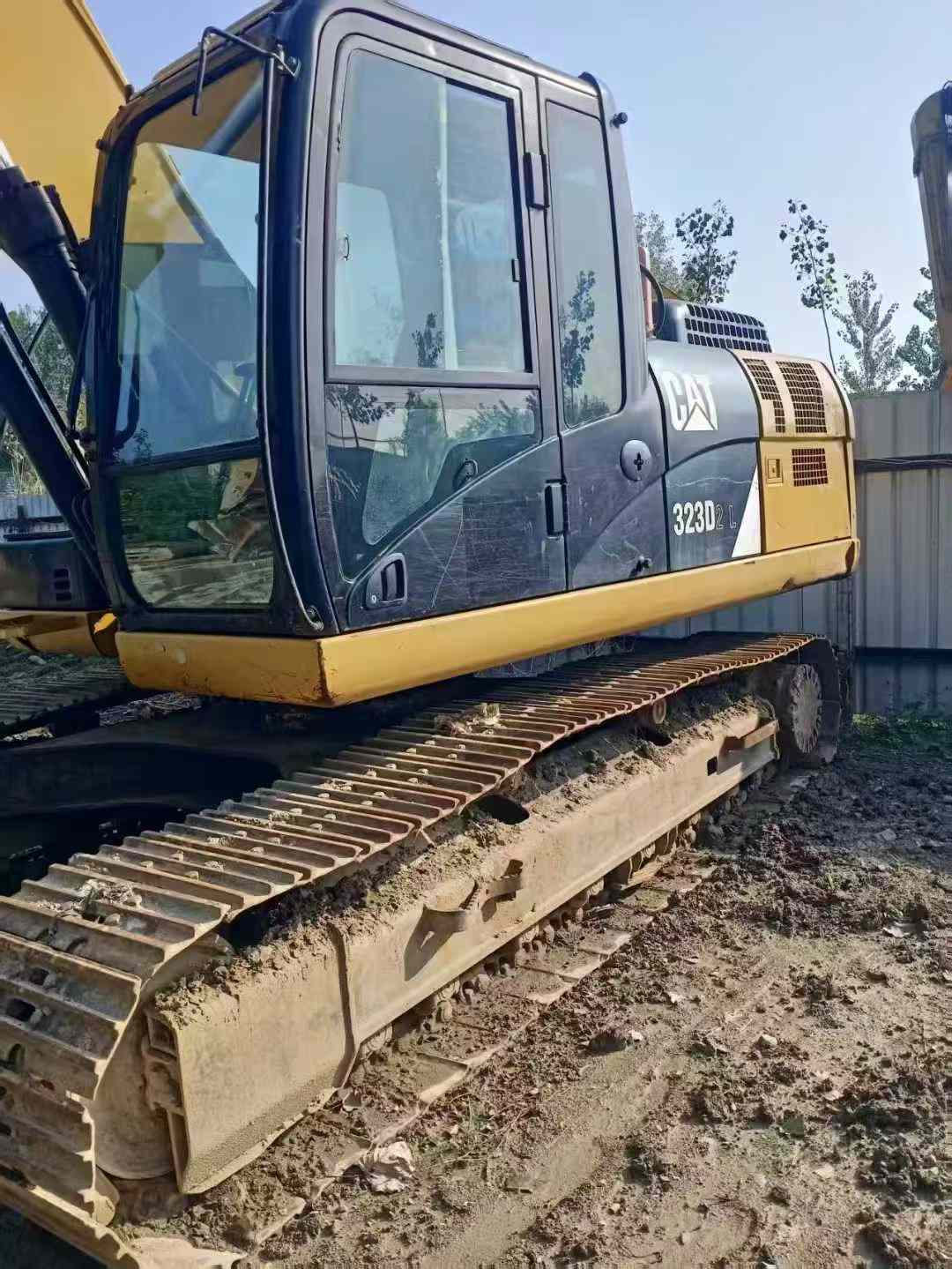

Used Caterpillar 323D2L Excavator 2014 Model / 2

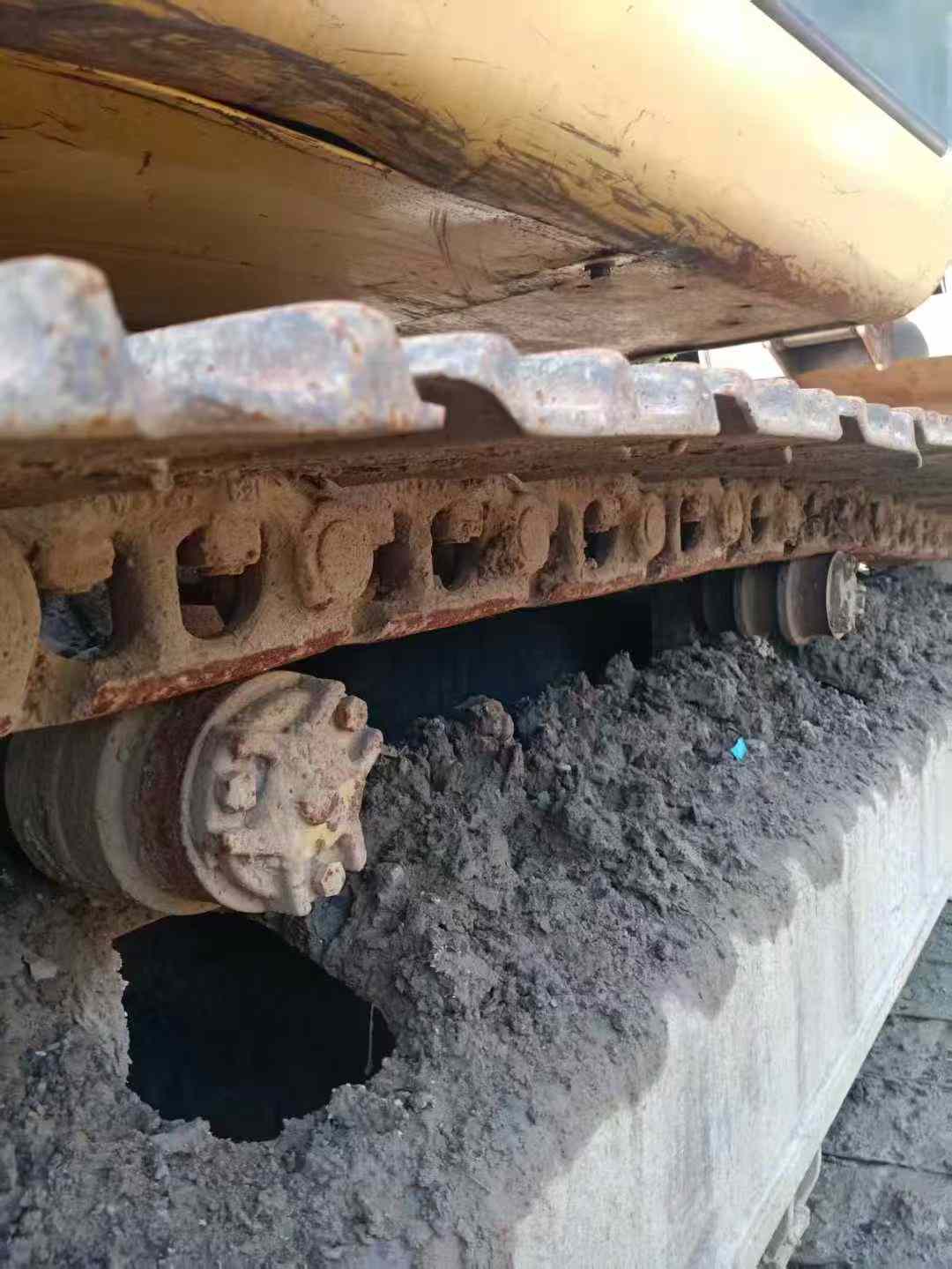

Used Caterpillar 323D2L Excavator 2014 Model / 3

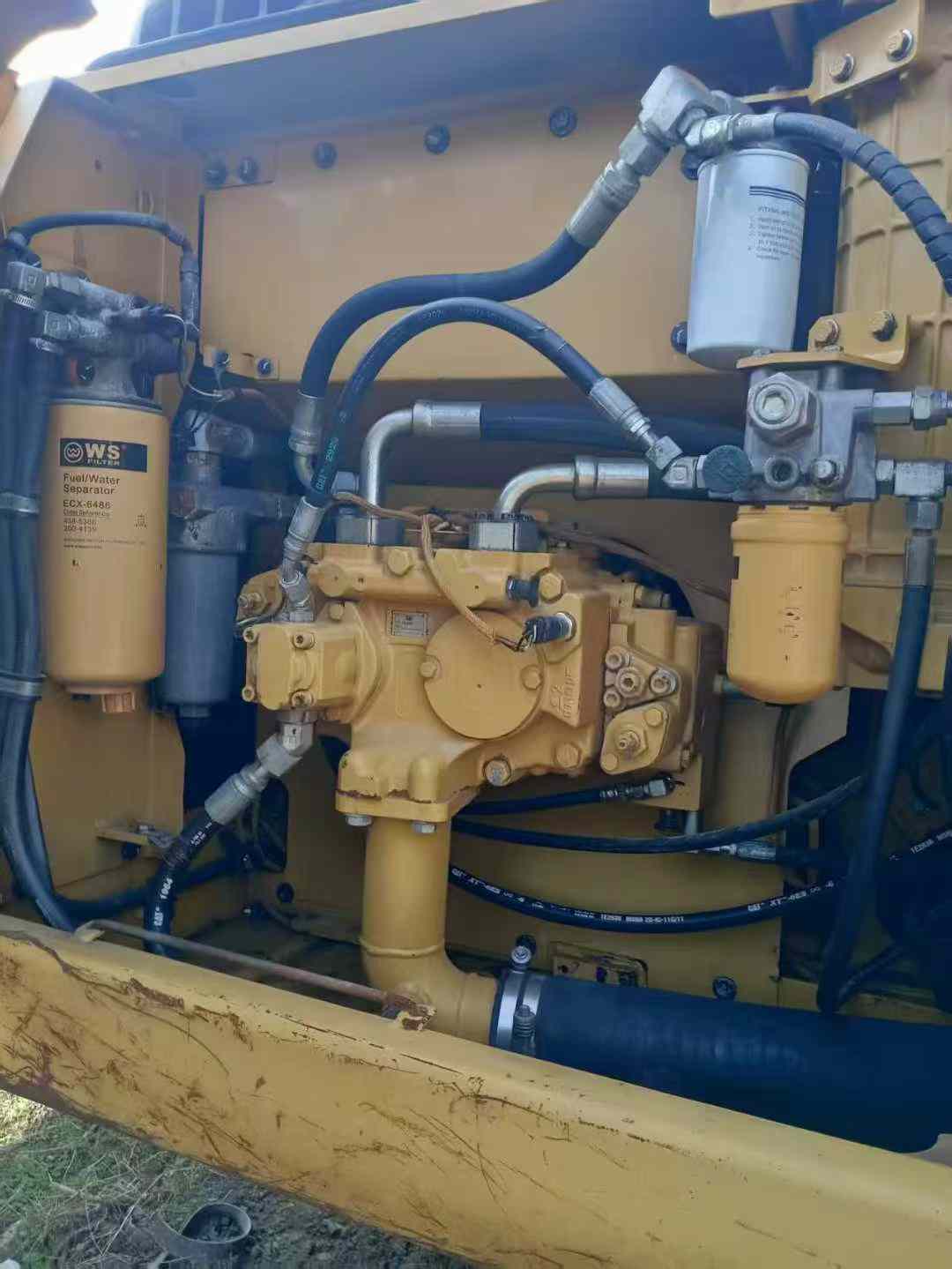

Used Caterpillar 323D2L Excavator 2014 Model / 4

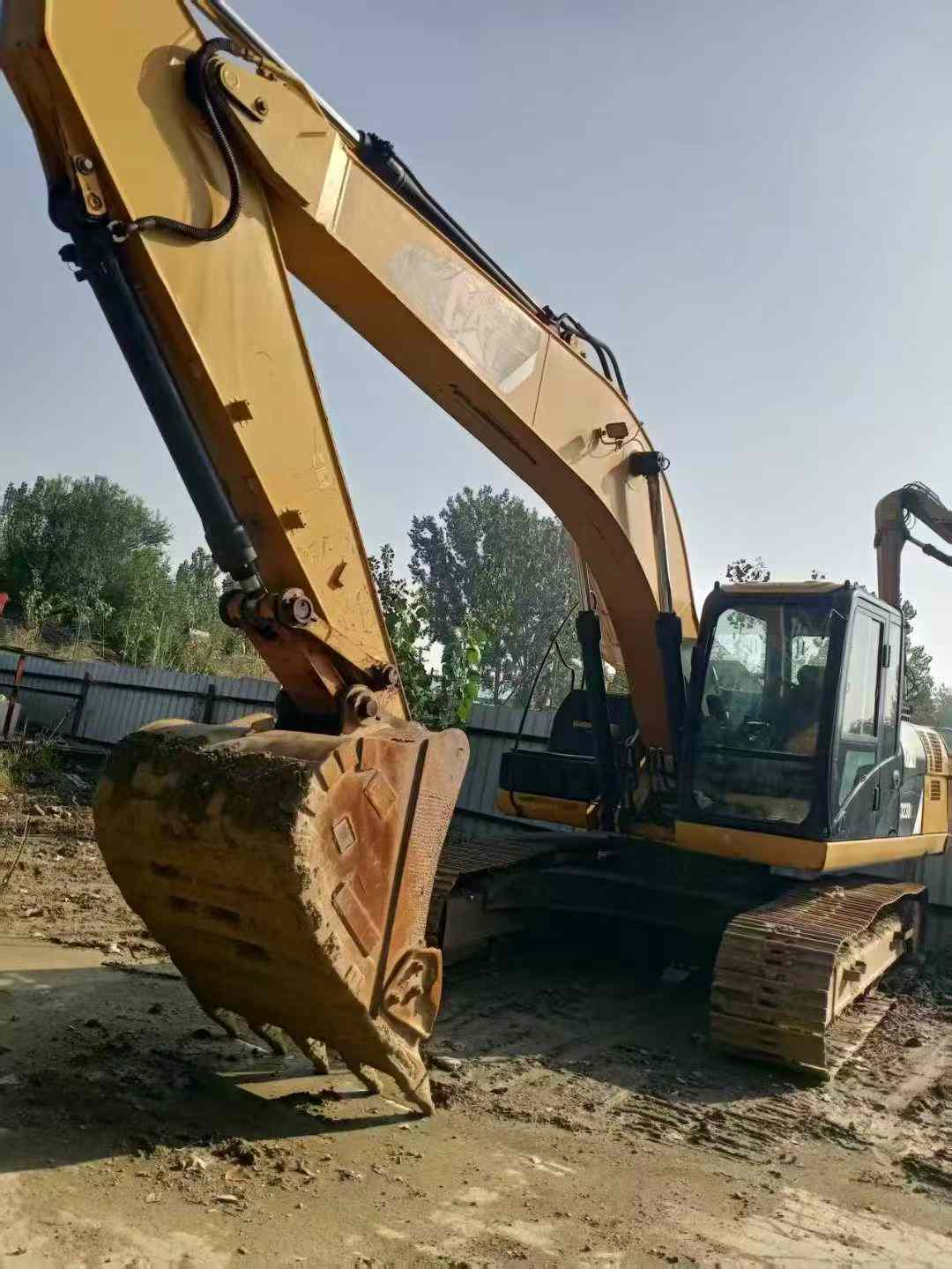

Used Caterpillar 323D2L Excavator 2014 Model / 5

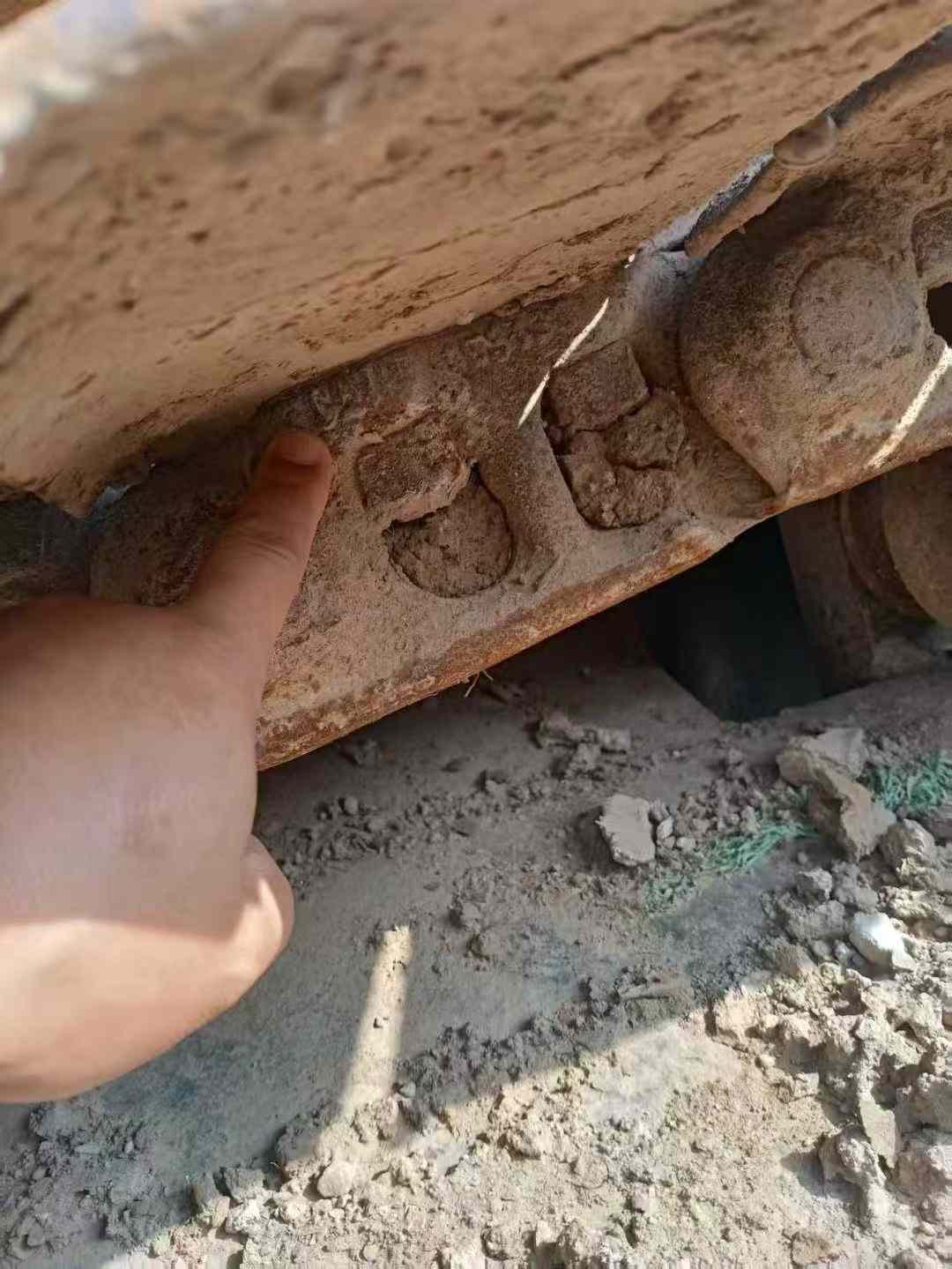

Used Caterpillar 323D2L Excavator 2014 Model / 6

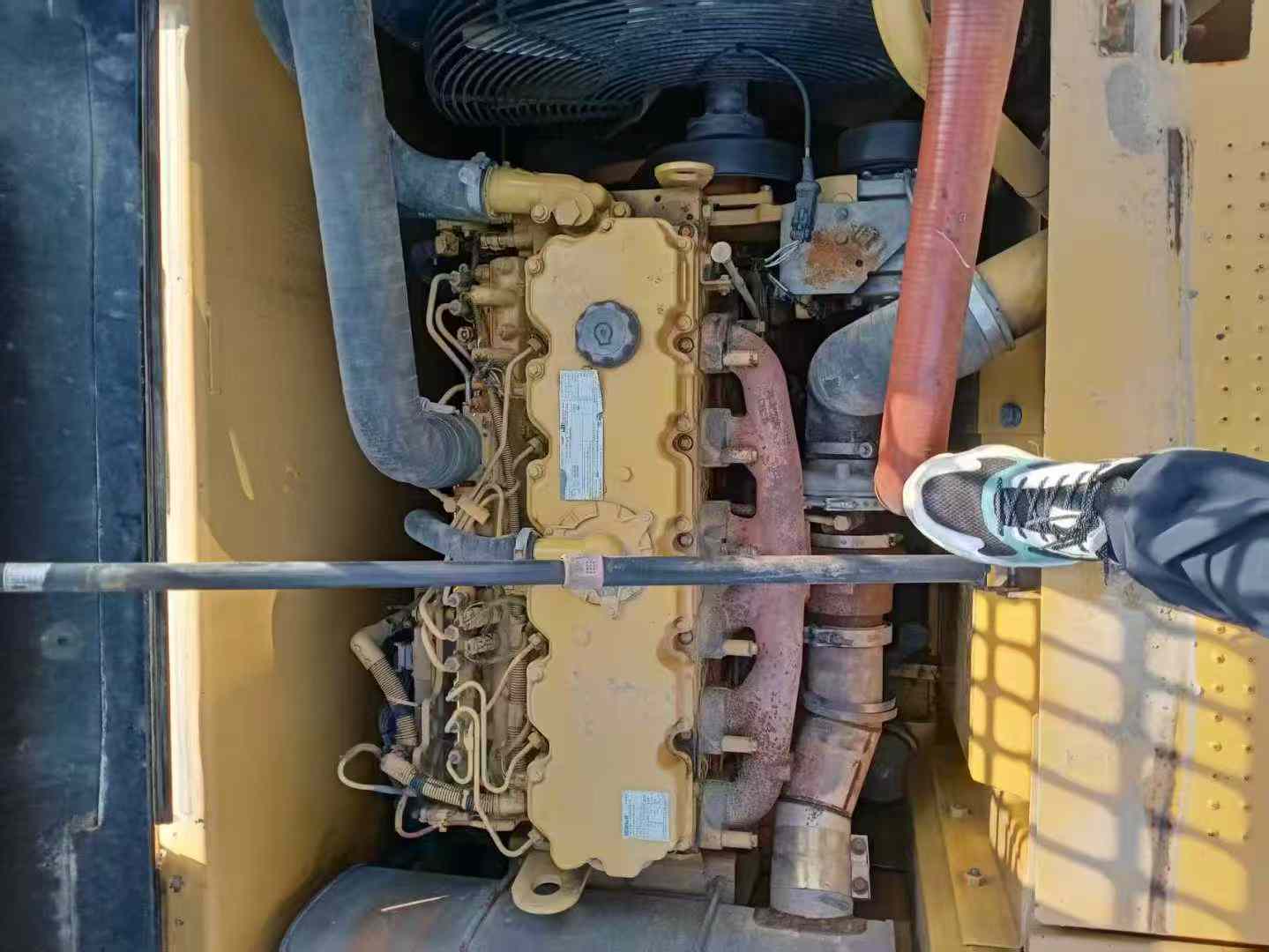

Used Caterpillar 323D2L Excavator 2014 Model / 7

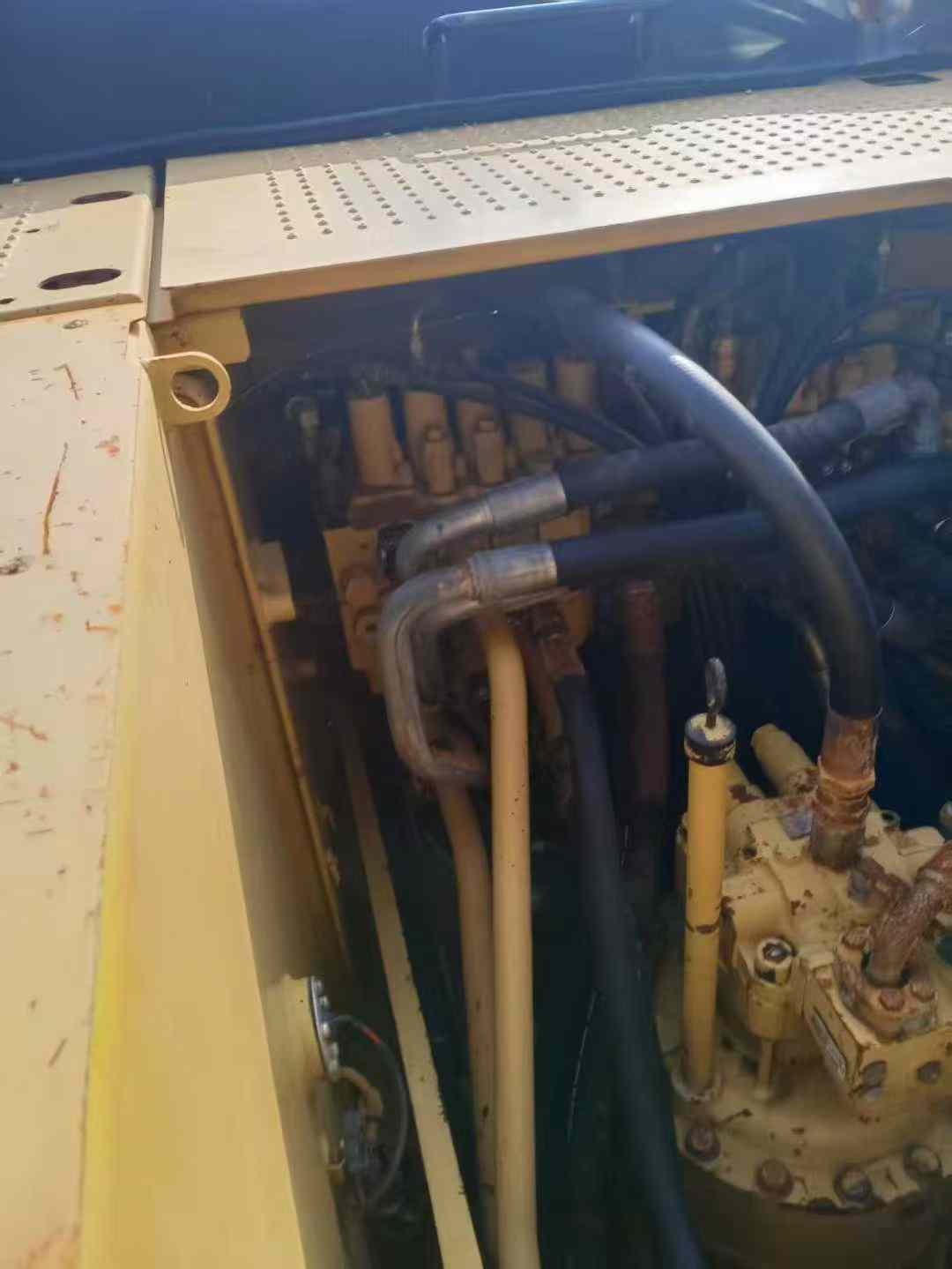

Used Caterpillar 323D2L Excavator 2014 Model / 8
Used Caterpillar 323D2L Excavator 2014 Model / 9

Product Description

【 Premium Recommendation 】2014 Caterpillar 323D2L excavator, full vehicle original paint, performance exempt from inspection, large parts untouched! This second-hand excavator is a 2014 Caterpillar 323D2L model, with a working time of only 6,500 hours. It has a moderate usage frequency and is well maintained. This machine is equipped with a Caterpillar C7.1 inline six-cylinder turbocharged diesel engine, with a maximum output power of 129 kilowatts (173 horsepower). It is powerful, stable and reliable. This engine features outstanding fuel economy and low emissions, capable of providing efficient and stable power output under various operating conditions. In terms of the hydraulic system, this machine is equipped with an advanced CLSS closed center load sensing hydraulic system, which can achieve precise control and rapid response, ensuring operational efficiency and comfort. In addition, it also features multiple working mode selection functions, which can be adjusted according to actual needs to achieve the best performance. It can handle heavy-duty tasks such as excavation, loading and crushing with ease. It is worth mentioning that the appearance of this excavator remains in good condition. The entire vehicle is painted with ori

SpecificationsValue
No.972733
Tonnage (tons)23
Working weight (kg)23300
Bucket capacity (m³)1.19
Boom length (mm)5700
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCat C7.1 ACERT
Rated power (kw/rpm)118/1100
Cylinder diameter × stroke (mm)105 x 135
Number of cylinders (PCS)6
Displacement (L)7.01
Rotation speed (rpm)10.5
Climbing ability (%)70/35 °
Bucket digging force (kN)140
Rod digging force (kN)107
Maximum tractive force (kN)205
Travel speed (km/h)Low: 3.5 / High: 5.6
Turning torque (Nm)61.8
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)214 x 2
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)35
Pilot Oil Circuit (MPa)3.92
Pilot pump flow (L/min)23.1
Bucket cylinders - Number × diameter × stroke (mm)120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1504
Boom cylinders - Number × diameter × stroke (mm)120 x 1260
Fuel Tank (L)410
Hydraulic Tank (L)138
Engine Oil changes (L)22
Coolant (L)25
Hydraulic System (L)260(including fuel tank)
Total transport length (mm)9460
Total transport width (mm)2980
Total transport height (mm)3030
Full cab height (mm)2950
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)450
Back end turning radius (mm)2750
Onboard width (mm)2740
Total track length (mm)4455
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3650
Maximum digging depth (mm)6720
Maximum excavation height (mm)9490
Maximum unloading height (mm)6490
Maximum vertical digging depth (mm)5690
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9860
Maximum effective digging depth (mm)6380
see more

Overview

No.972733

Brand Name:

Caterpillar

Model Number:

323D2L

Year:

2014

Location:

Jiangsu China
