2017 Caterpillar 323D2L

1/9
Used Caterpillar 323D2L Excavator 2017 Model / 1
Used Caterpillar 323D2L Excavator 2017 Model / 2

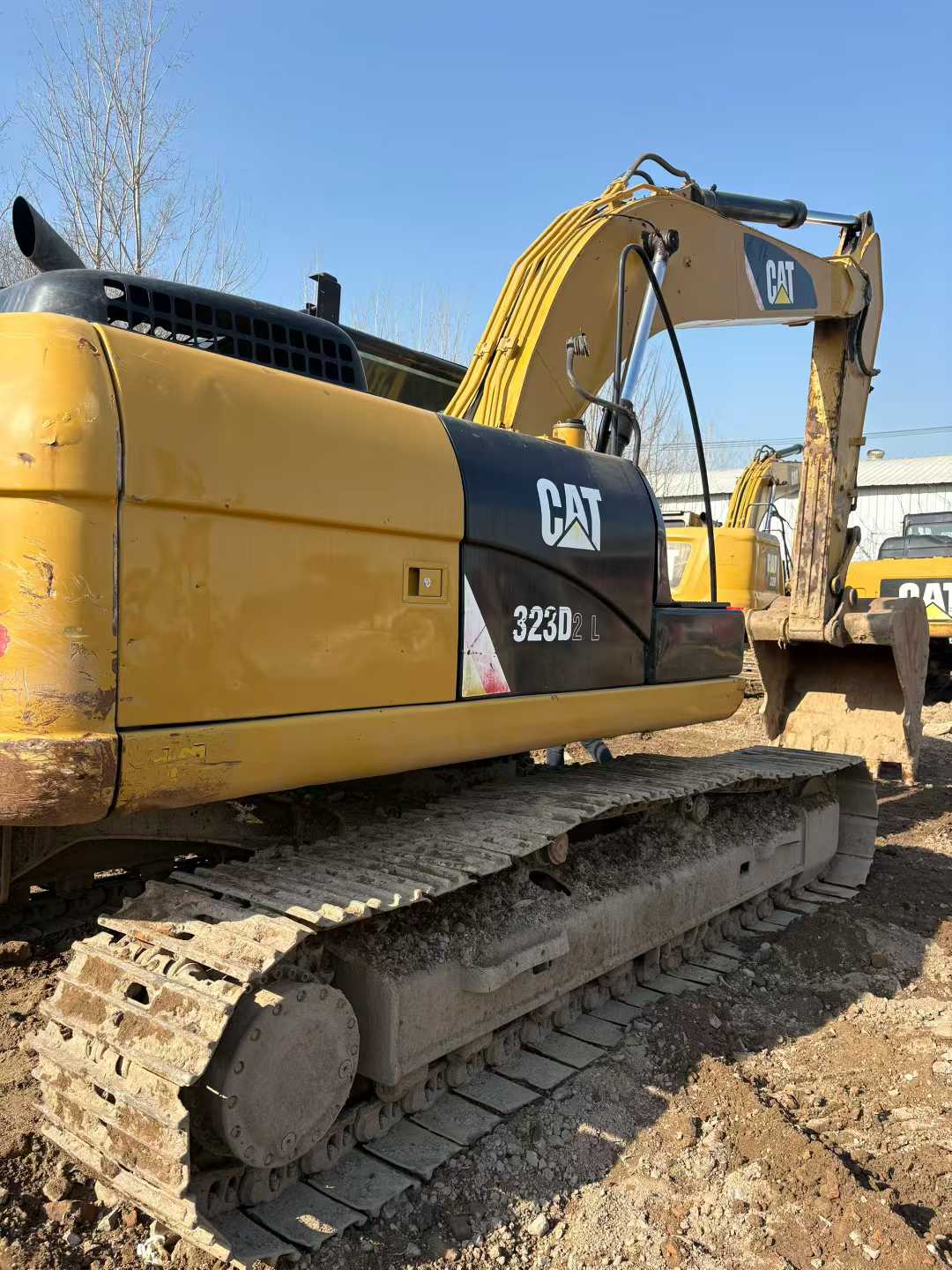

Used Caterpillar 323D2L Excavator 2017 Model / 3

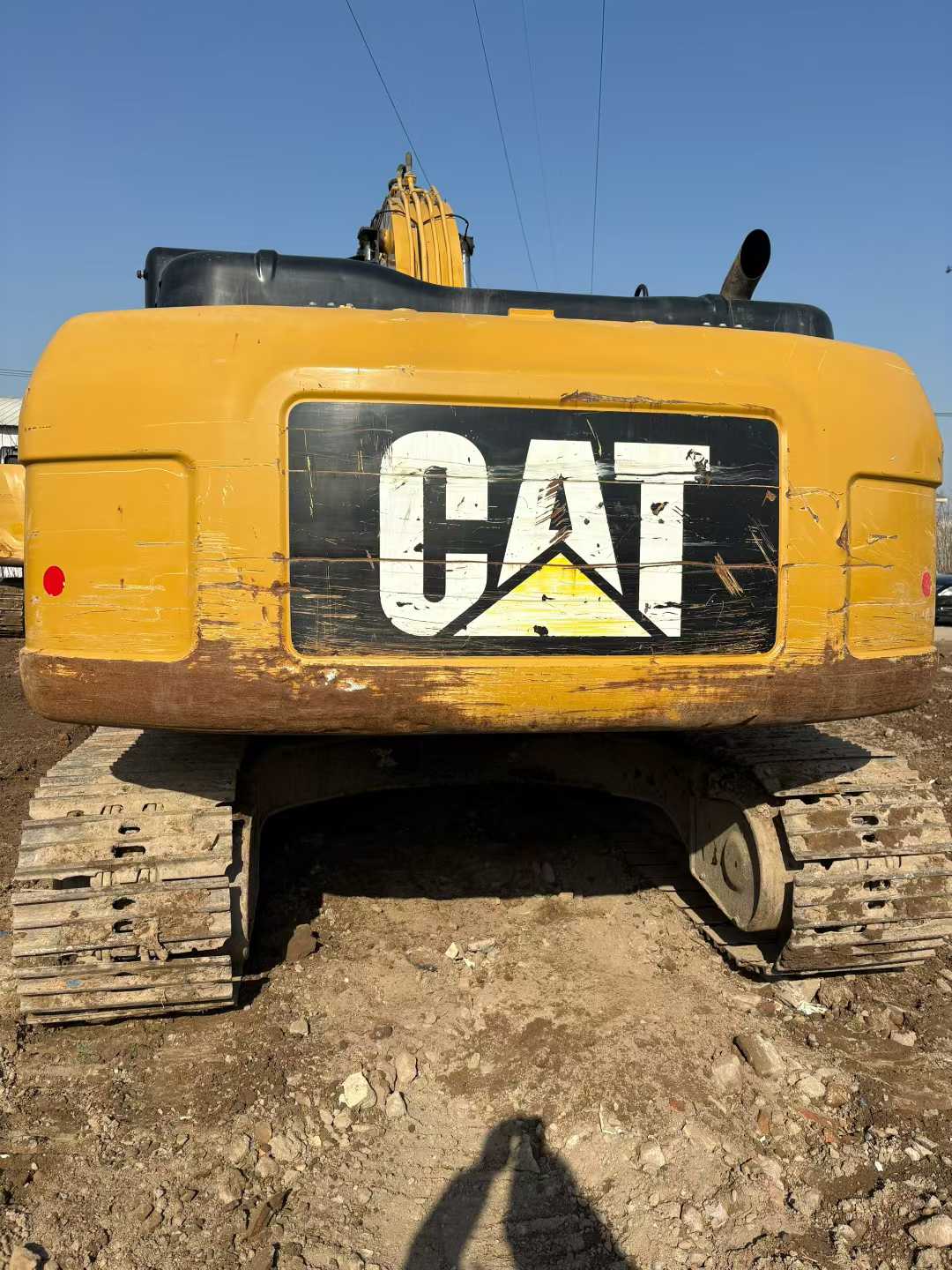

Used Caterpillar 323D2L Excavator 2017 Model / 4

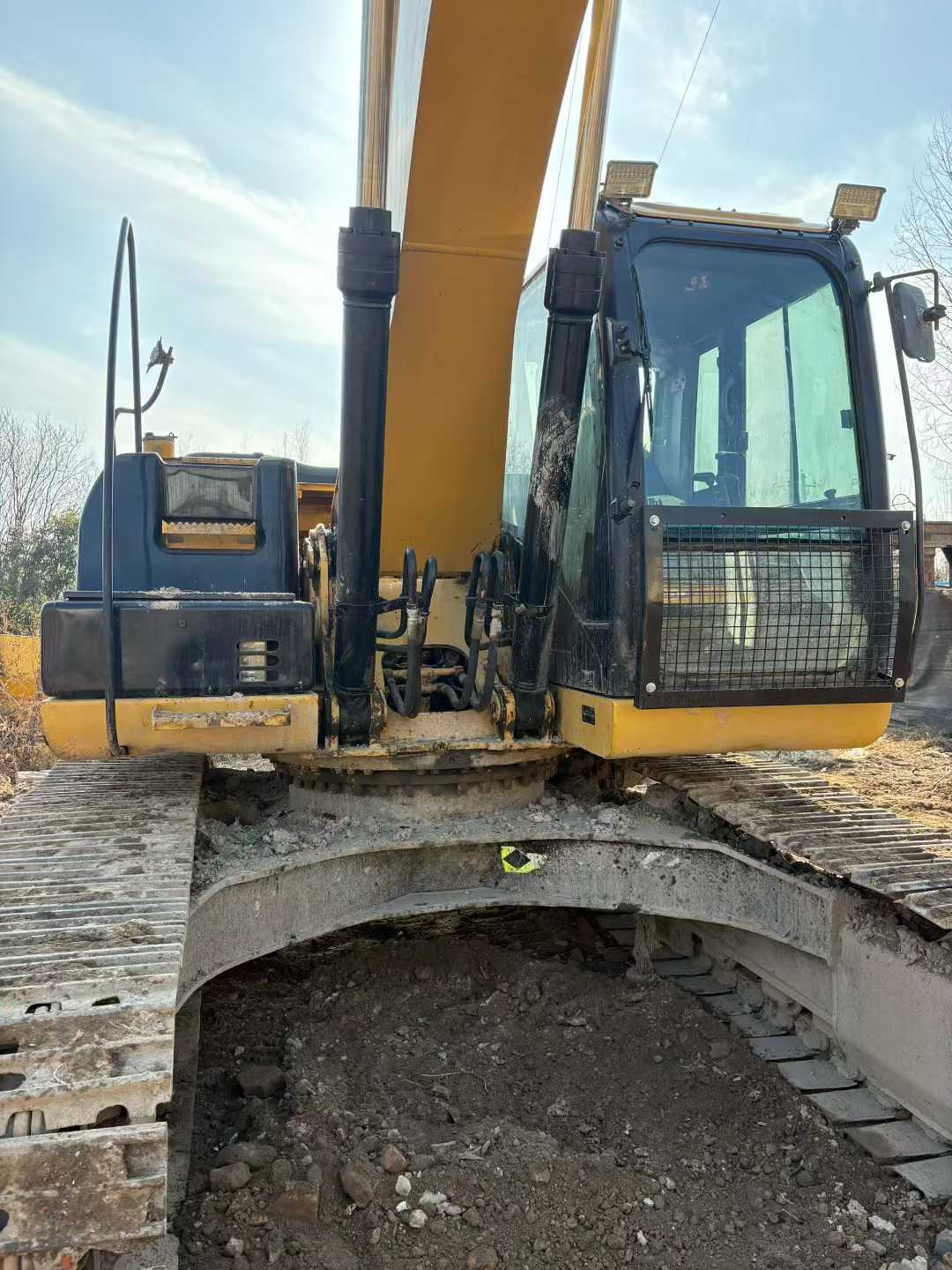

Used Caterpillar 323D2L Excavator 2017 Model / 5

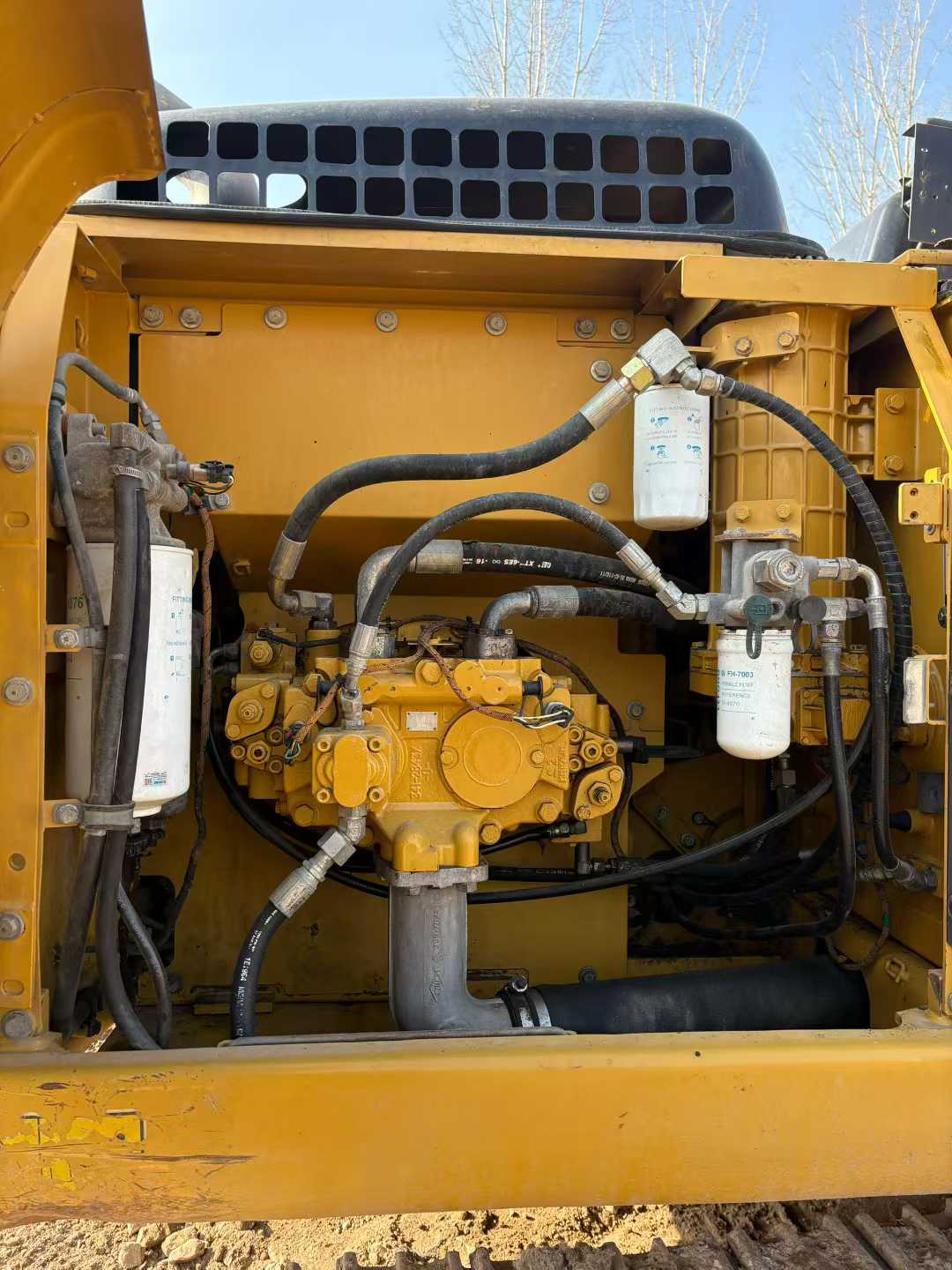

Used Caterpillar 323D2L Excavator 2017 Model / 6

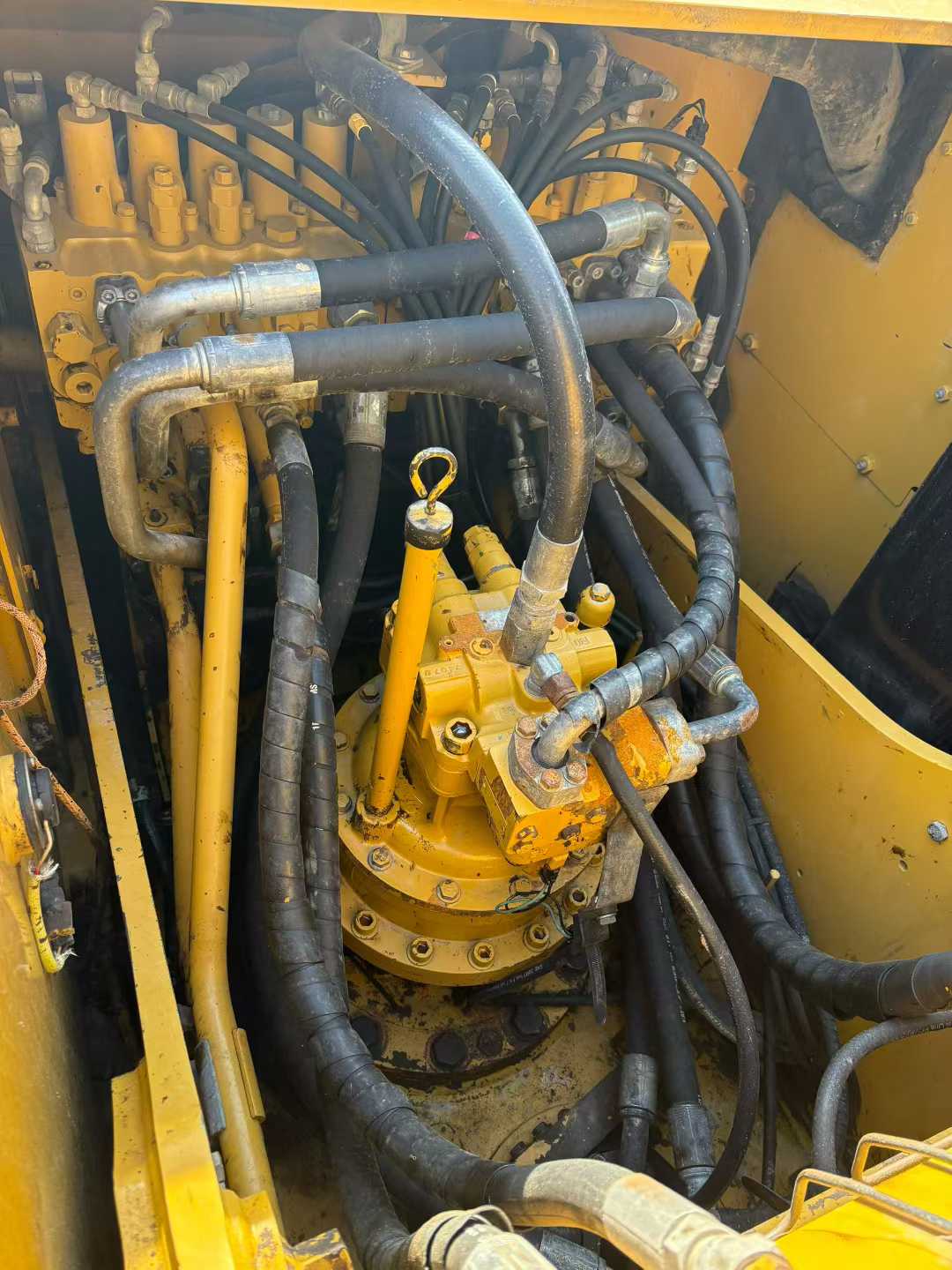

Used Caterpillar 323D2L Excavator 2017 Model / 7

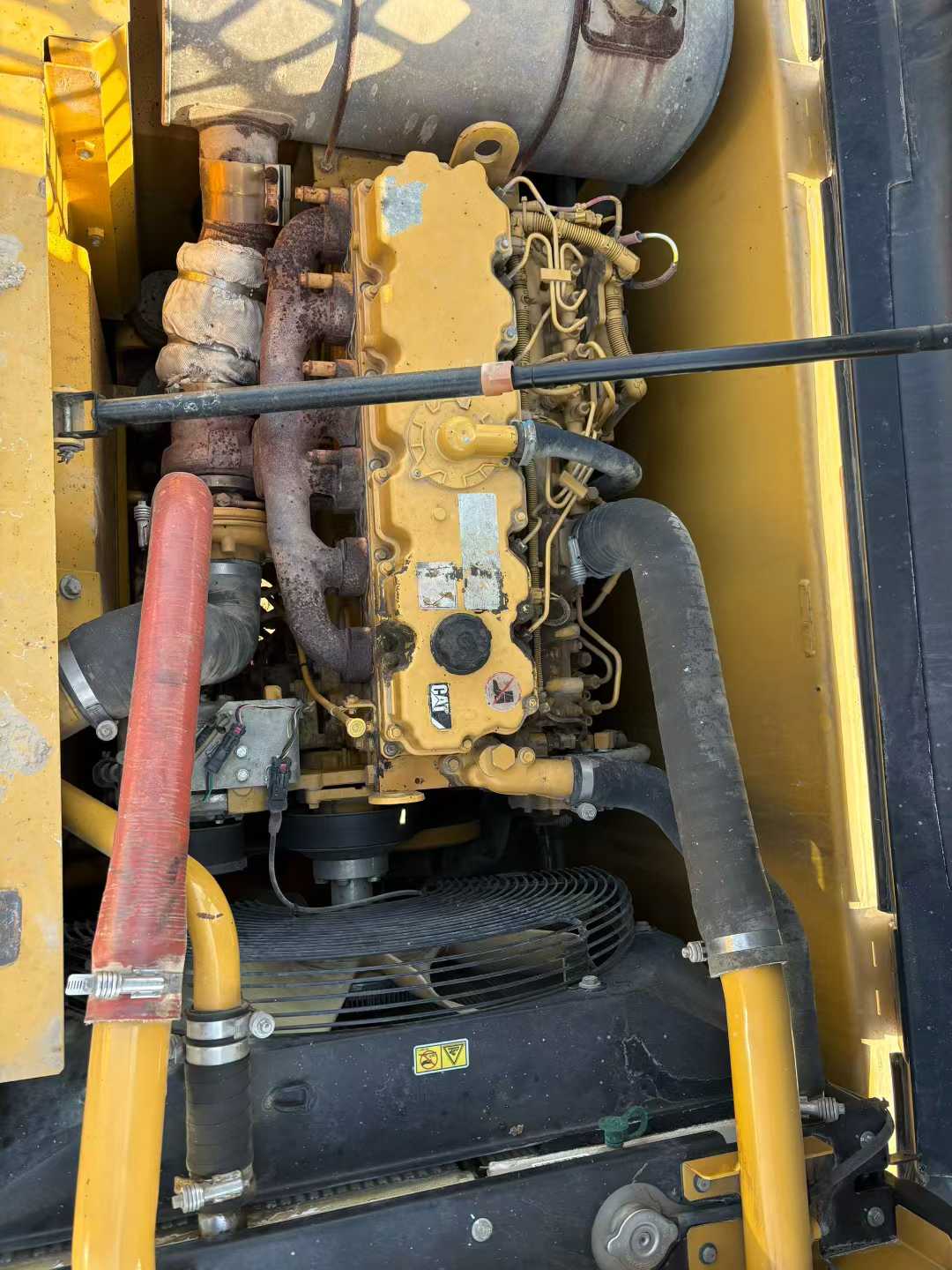

Used Caterpillar 323D2L Excavator 2017 Model / 8
Used Caterpillar 323D2L Excavator 2017 Model / 9

Product Description

【 Premium Recommendation 】 A second-hand Caterpillar 323D2L excavator manufactured in May 2017, with a working time of only 8,900 hours, is nearly 80% new. The original paint finish of this equipment is clean and undamaged in appearance. The major components of the chassis have not been modified in any way, ensuring the integrity of its original performance. After our personal test run and verification, it is in good operating condition, with strong power and no oil leakage, fully meeting the requirements of high-quality operations. In terms of the engine, this machine is equipped with a Caterpillar C7.1 ACERT engine, with a rated power of 125 kilowatts (approximately 167 horsepower), featuring excellent fuel economy and reliability. This engine adopts advanced combustion technology, which can effectively reduce emissions and improve work efficiency at the same time. It is very suitable for long-term and high-intensity operation environments. In terms of the hydraulic system, it is equipped with an efficient variable piston pump and a high-performance motor combination, ensuring rapid response and precise control. Whether it is in complex working conditions such as excavation, loading or crushing, it can maintain a stable and smooth

SpecificationsValue
No.973582
Tonnage (tons)23
Working weight (kg)23300
Bucket capacity (m³)1.19
Boom length (mm)5700
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCat C7.1 ACERT
Rated power (kw/rpm)118/1100
Cylinder diameter × stroke (mm)105 x 135
Number of cylinders (PCS)6
Displacement (L)7.01
Rotation speed (rpm)10.5
Climbing ability (%)70/35 °
Bucket digging force (kN)140
Rod digging force (kN)107
Maximum tractive force (kN)205
Travel speed (km/h)Low: 3.5 / High: 5.6
Turning torque (Nm)61.8
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)214 x 2
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)35
Pilot Oil Circuit (MPa)3.92
Pilot pump flow (L/min)23.1
Bucket cylinders - Number × diameter × stroke (mm)120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1504
Boom cylinders - Number × diameter × stroke (mm)120 x 1260
Fuel Tank (L)410
Hydraulic Tank (L)138
Engine Oil changes (L)22
Coolant (L)25
Hydraulic System (L)260(including fuel tank)
Total transport length (mm)9460
Total transport width (mm)2980
Total transport height (mm)3030
Full cab height (mm)2950
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)450
Back end turning radius (mm)2750
Onboard width (mm)2740
Total track length (mm)4455
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3650
Maximum digging depth (mm)6720
Maximum excavation height (mm)9490
Maximum unloading height (mm)6490
Maximum vertical digging depth (mm)5690
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9860
Maximum effective digging depth (mm)6380
see more

Overview

No.973582

Brand Name:

Caterpillar

Model Number:

323D2L

Year:

2017

Location:

Jiangsu China
