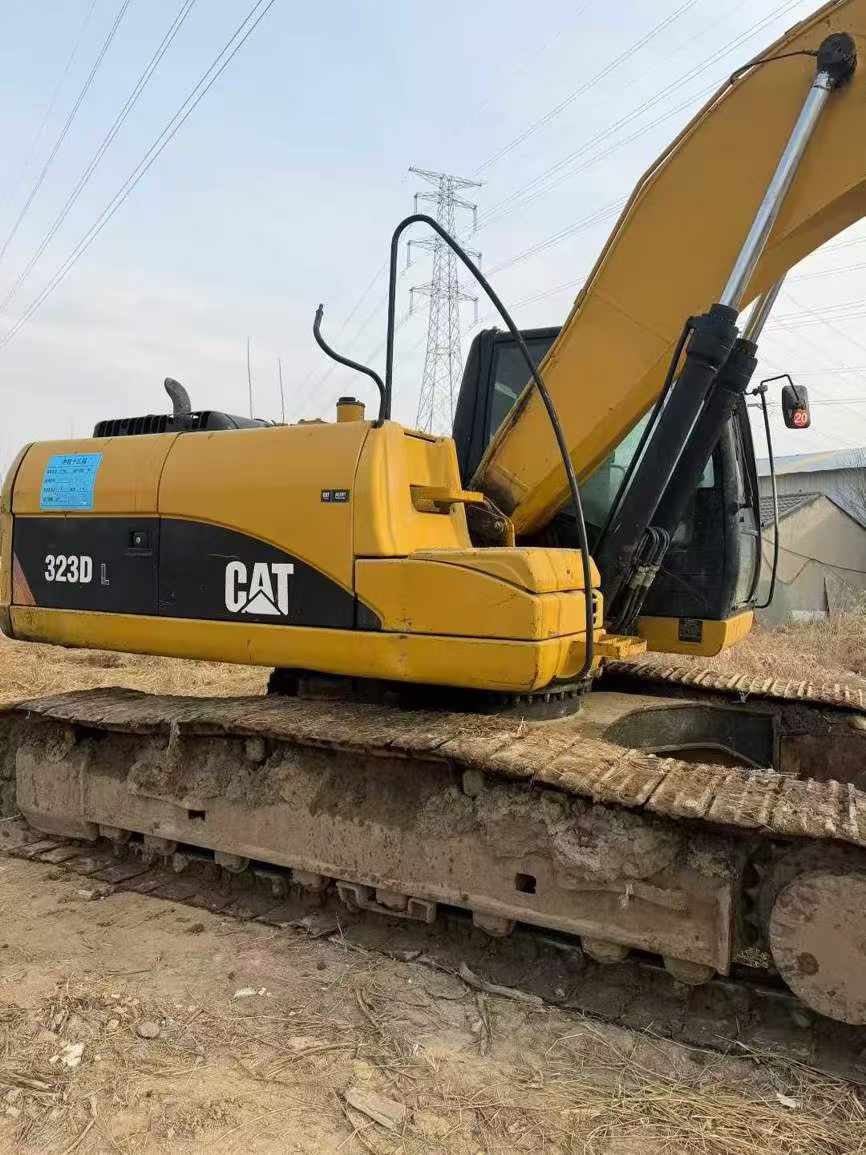

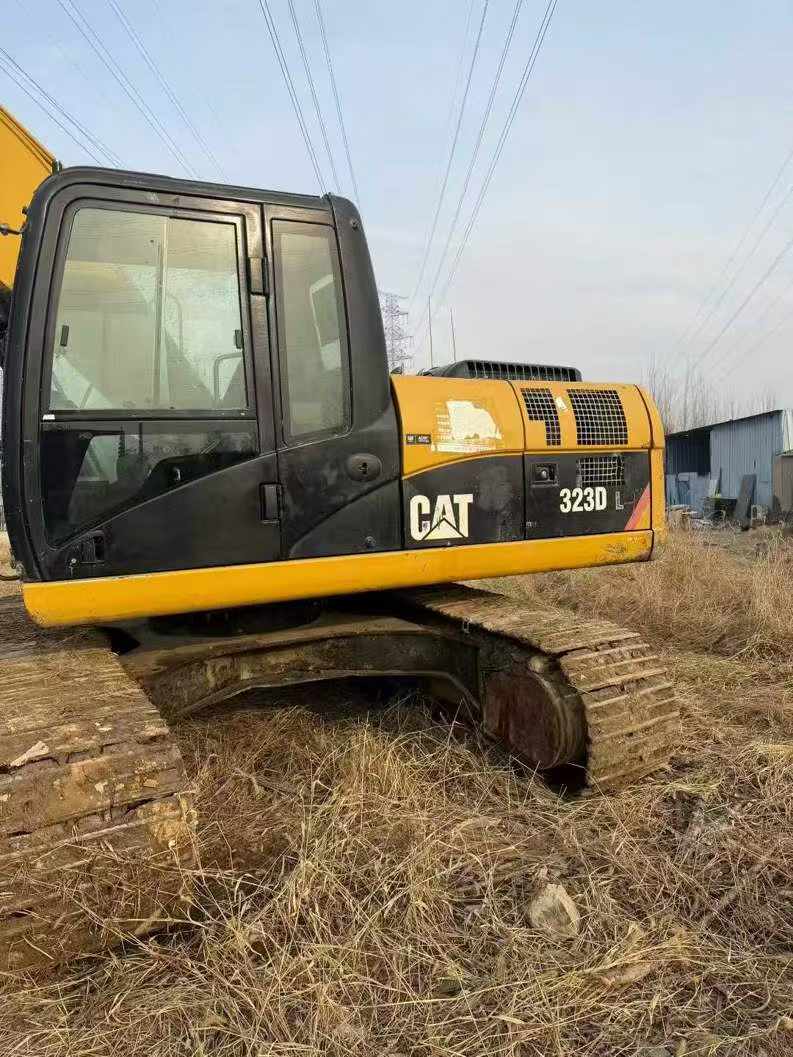

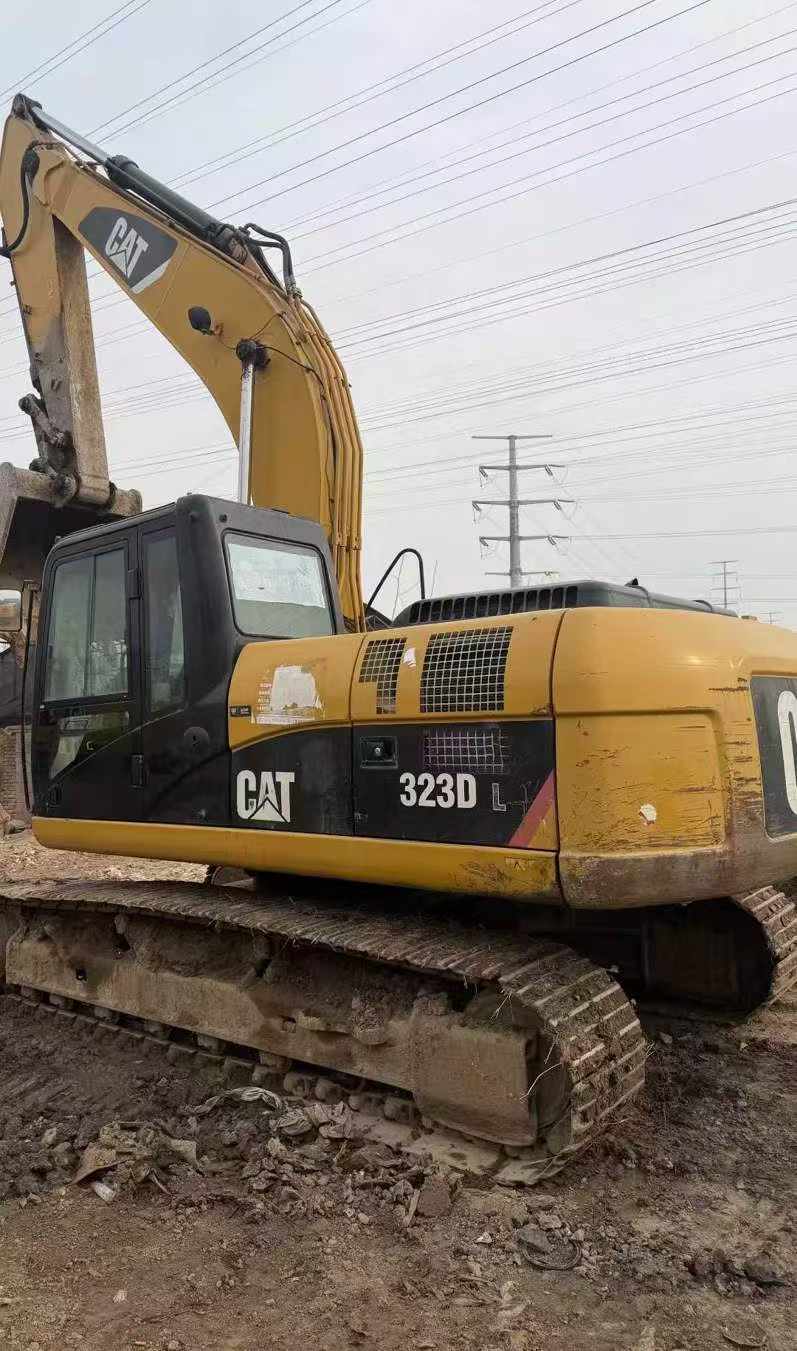

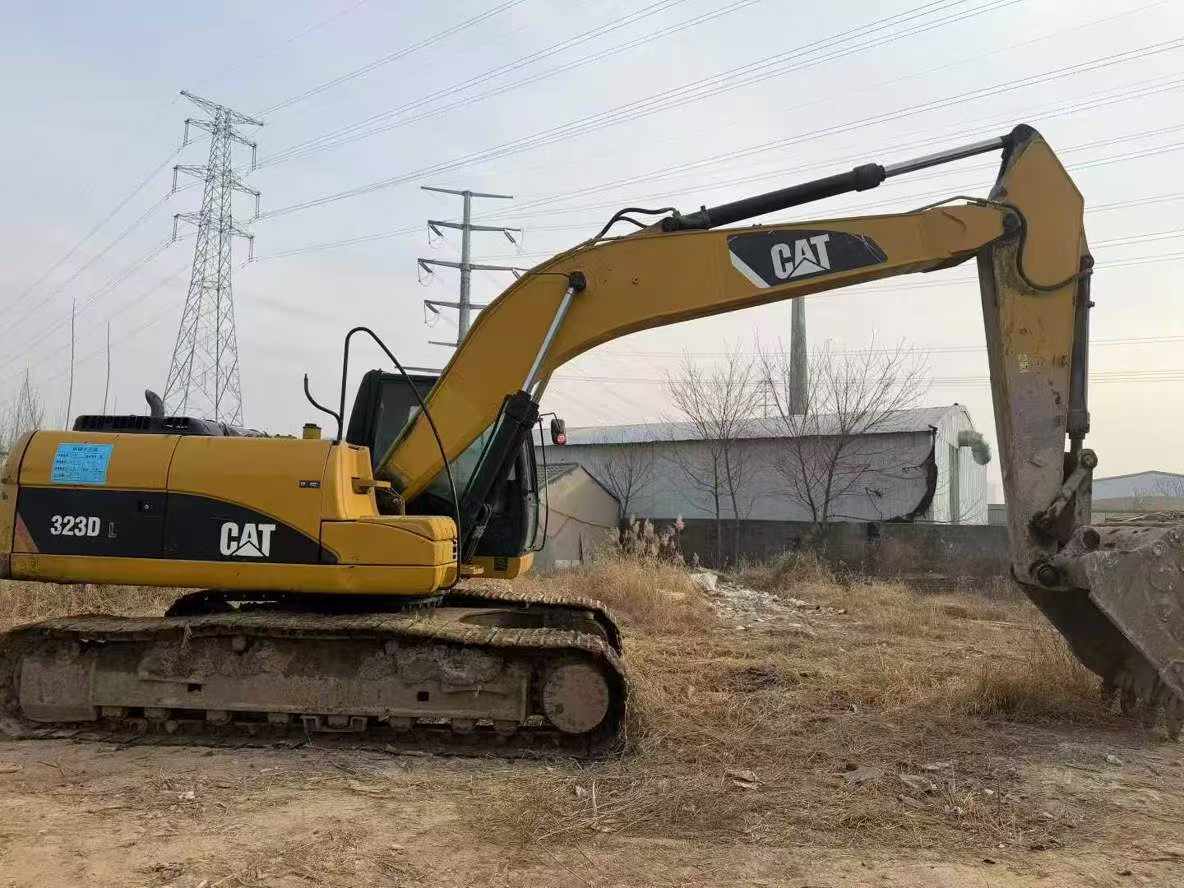

2011 Caterpillar 323DL
| Specifications | Value |
|---|---|
| No. | 964368 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 22300-23100 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

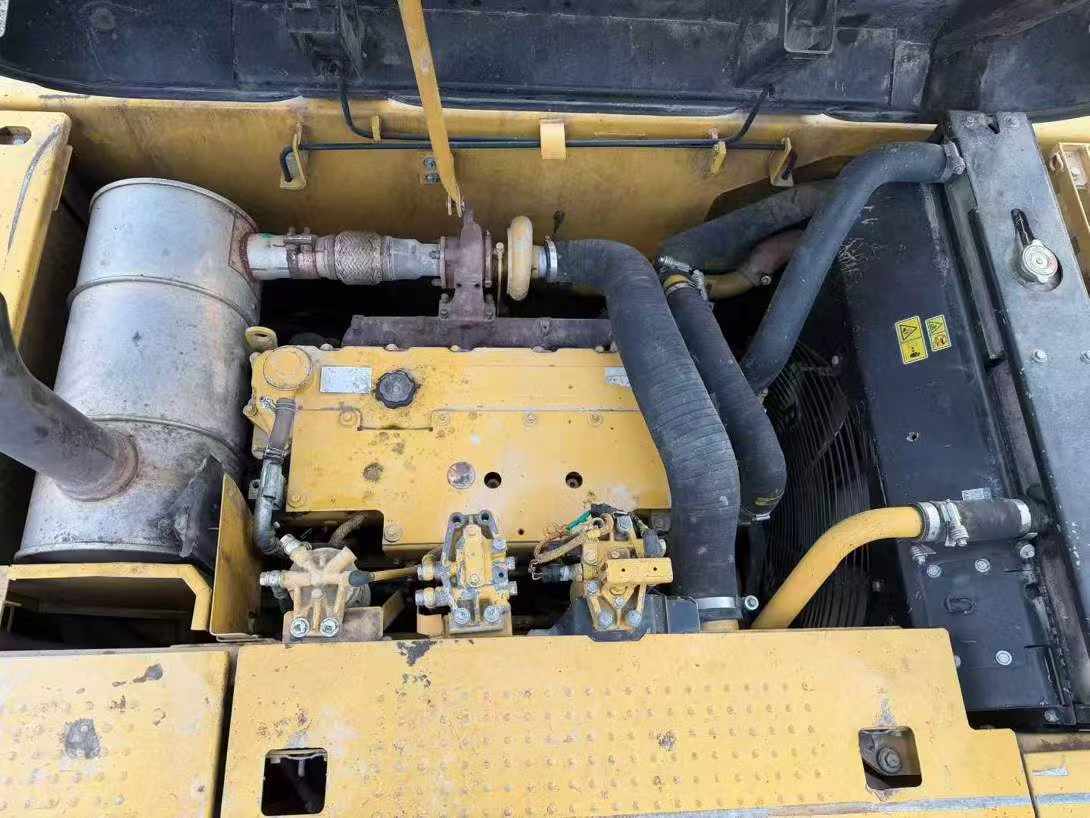

| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 110/2000 |

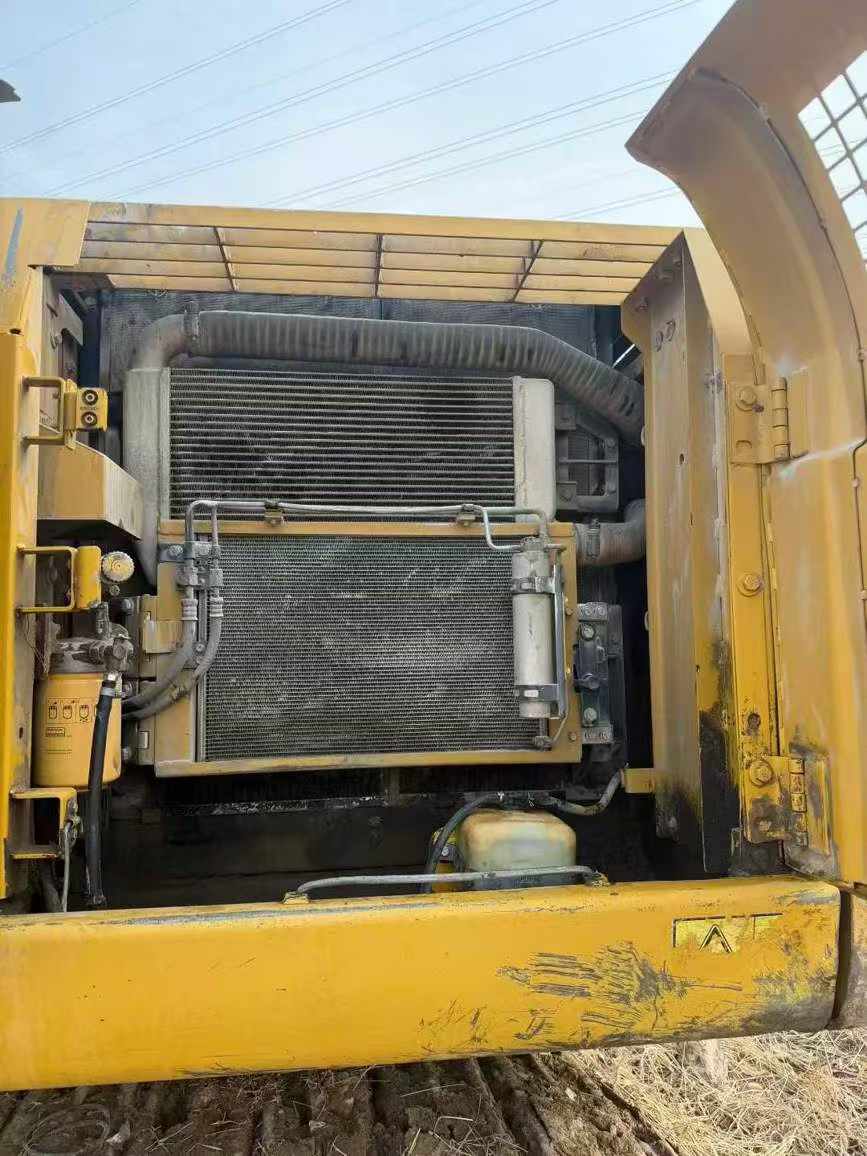

| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 106 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 3180 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 5860 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6380 |
Description
【 Premium Recommendation 】 The 2011 Caterpillar 323DL excavator, specially designed for earthwork projects, has accumulated over 11,000 hours of working time, yet its overall condition remains excellent. Since its manufacture, this equipment has been dedicated to earthwork operations and has not been involved in other complex working conditions. Therefore, the degree of wear and tear of its core components is much lower than that of machines of the same age. In terms of the power system, this machine is equipped with an original imported Caterpillar engine, which is renowned for its powerful output and excellent fuel economy. Even after long-term operation, this engine can still provide stable and reliable performance, starting quickly and running smoothly. It can handle both flat ground excavation and slope operations with ease. The hydraulic system is one of the key indicators for evaluating the performance of an excavator, and this 323DL also performs exceptionally well in this aspect. Adopting an advanced closed center load sensitive hydraulic control system, it not only has a fast response speed but also operates precisely and smoothly. Even the slightest operation can be accurately executed, greatly improving work efficiency an
Overview

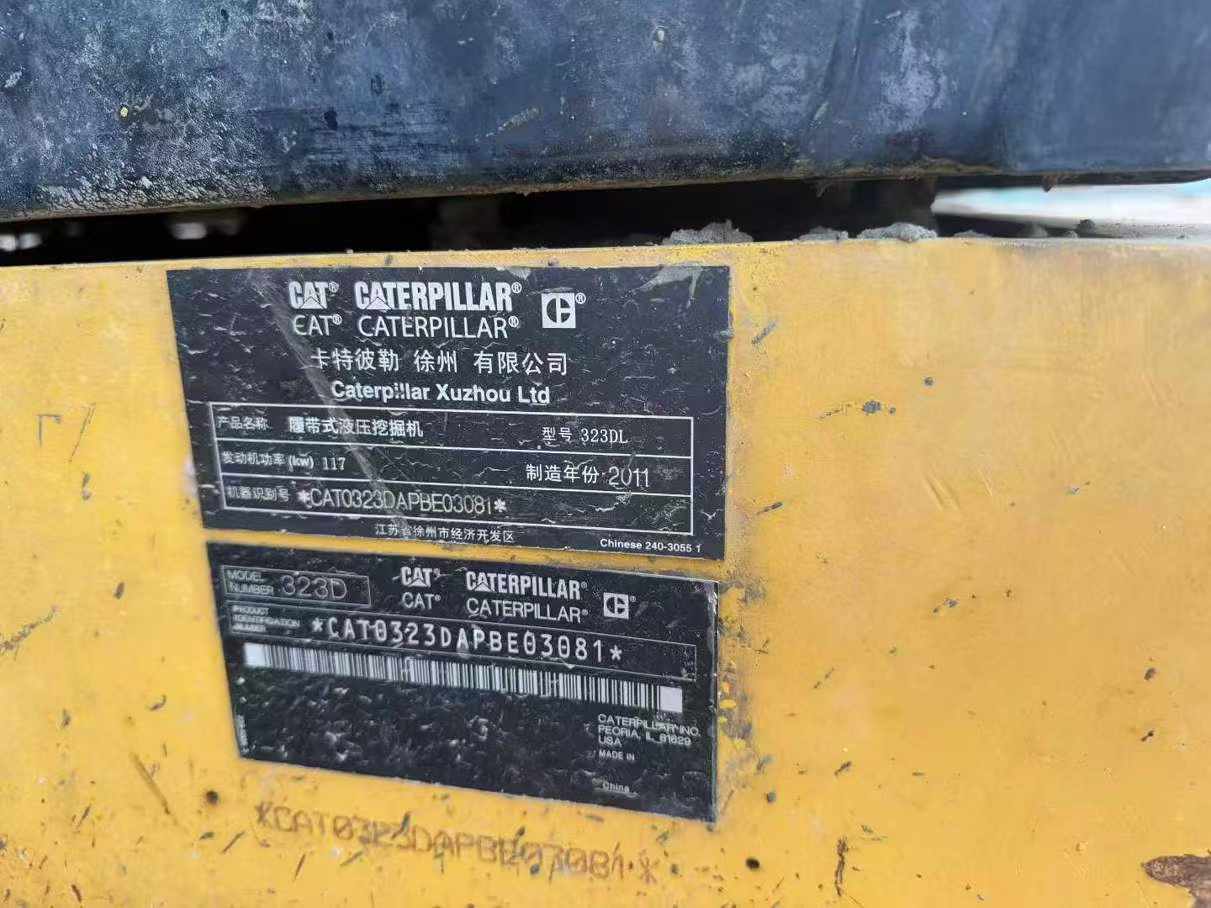

No.964368
Brand Name：
CaterpillarModel Number：
323DLYear：
2011
Location：
Jiangsu China
