2013 Caterpillar 323DL

1/5
Used Caterpillar 323DL Excavator 2013 Model / 1

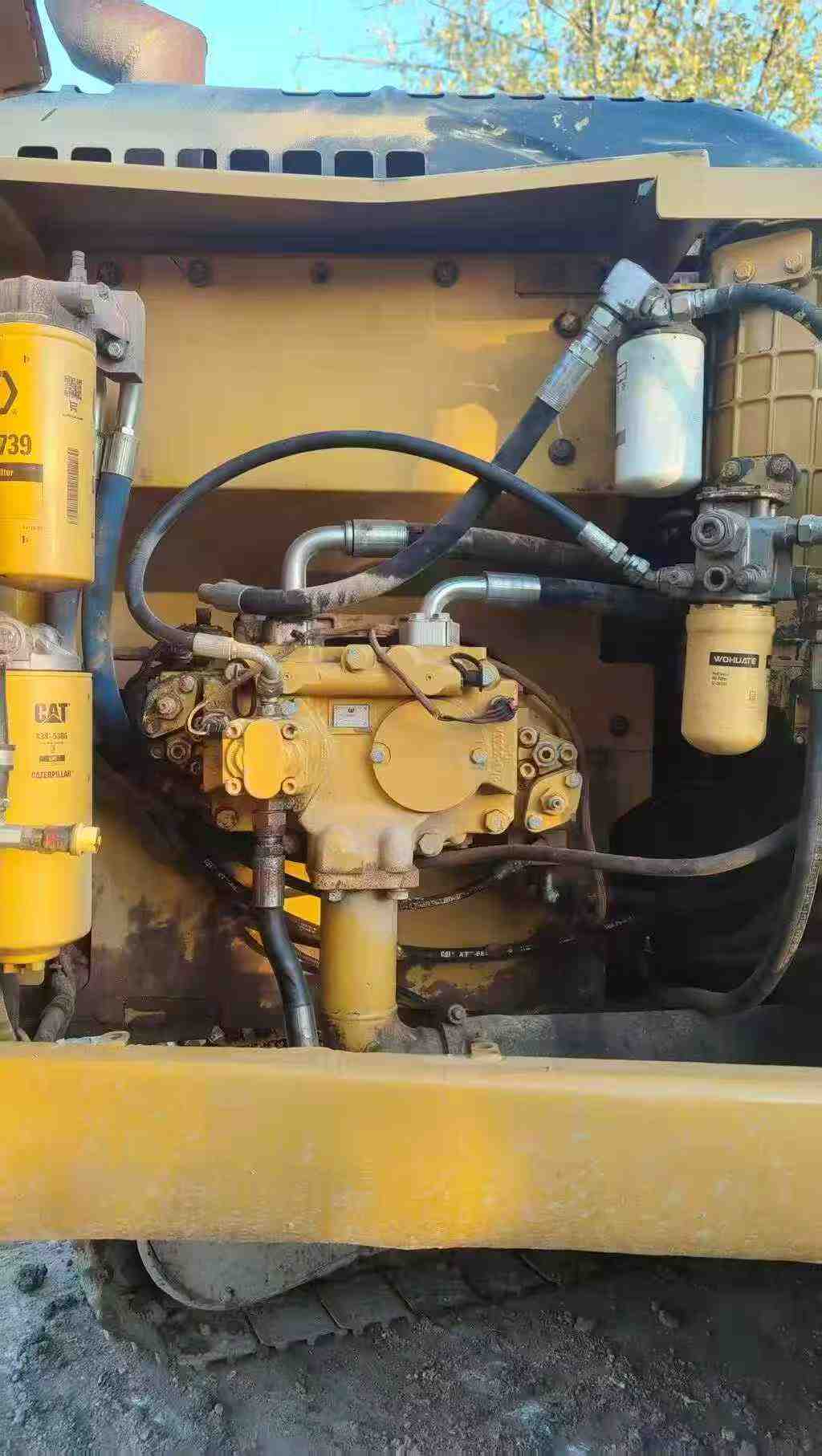

Used Caterpillar 323DL Excavator 2013 Model / 2

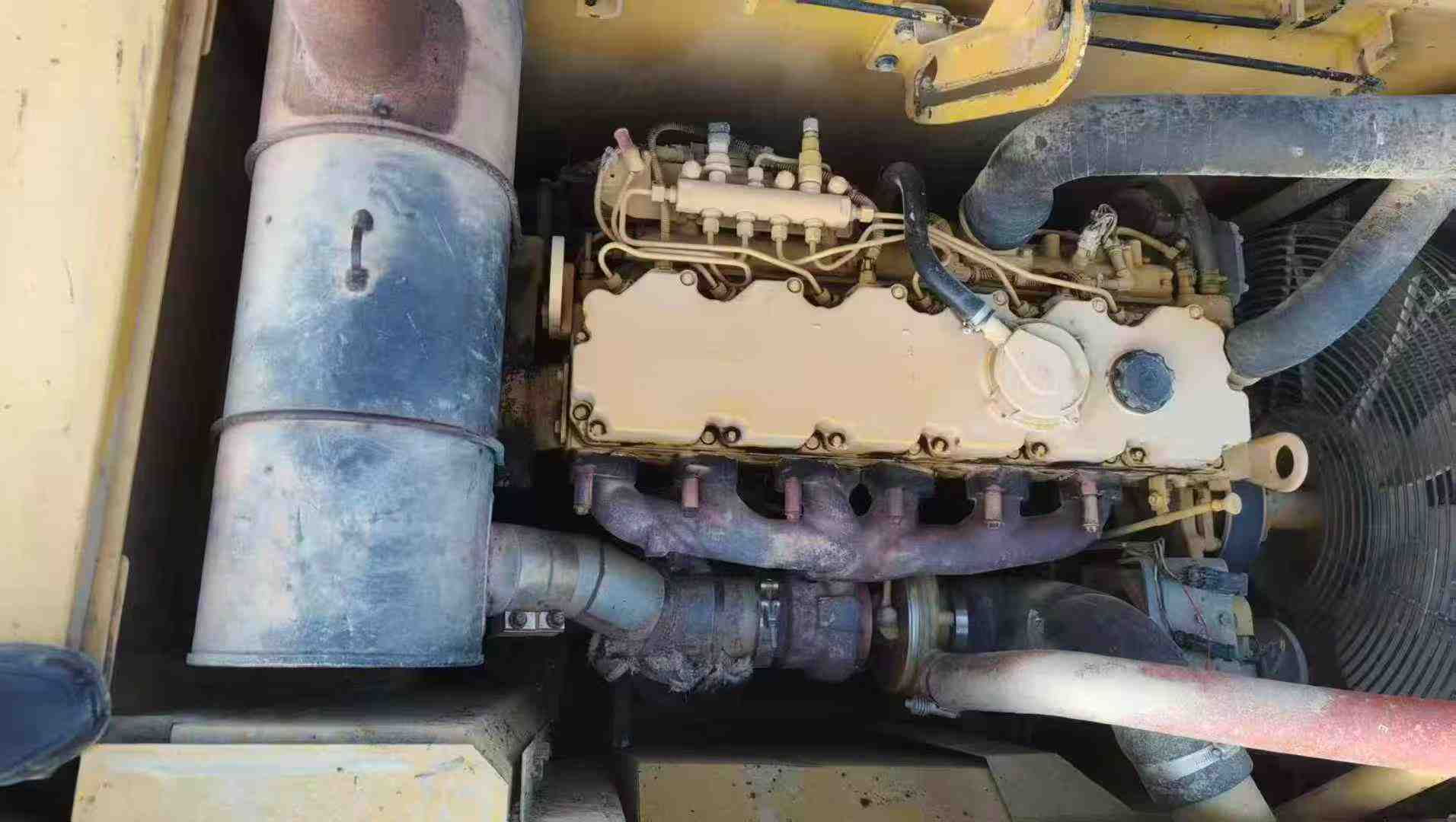

Used Caterpillar 323DL Excavator 2013 Model / 3

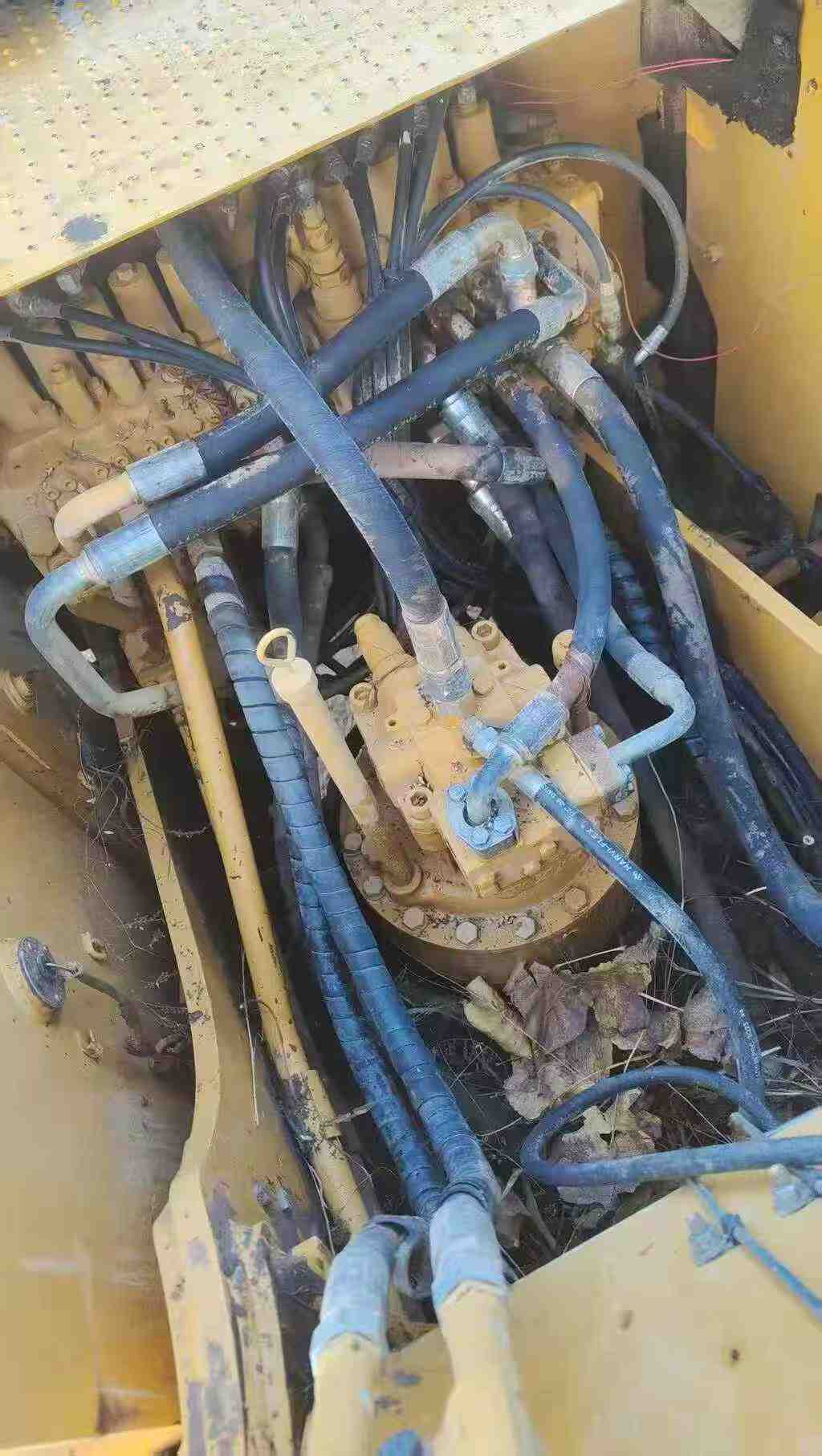

Used Caterpillar 323DL Excavator 2013 Model / 4

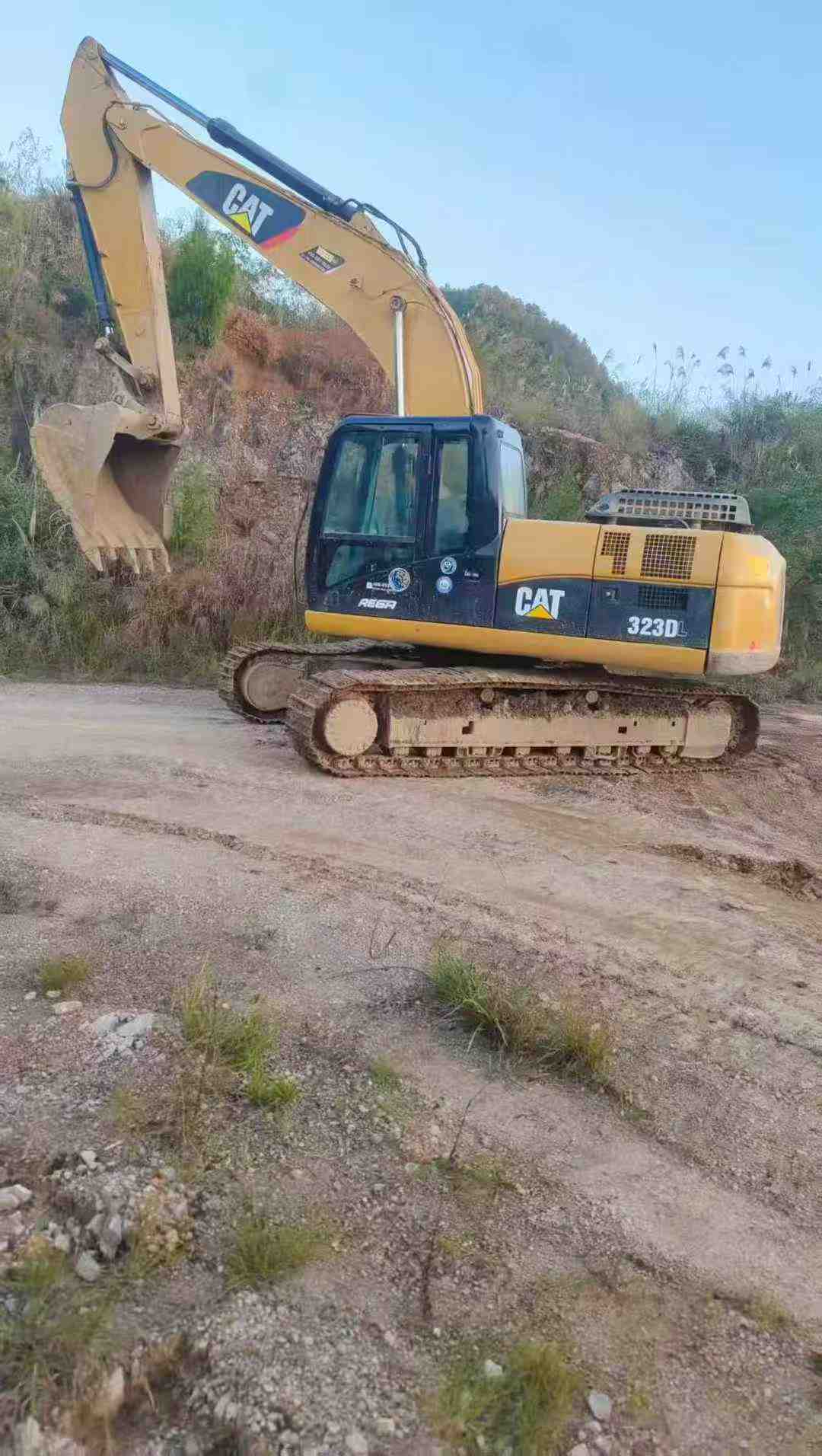

Used Caterpillar 323DL Excavator 2013 Model / 5

Product Description

"Recommendation of Premium Second-hand Excavators We currently have a second-hand Caterpillar 323DL excavator produced in 2013. This machine has a working time of only 6,600 hours. It is well maintained and in excellent overall condition. This excavator is equipped with a powerful C7.1 ACERT engine, with a maximum power output of up to 150kW (approximately 201 horsepower). It not only offers strong performance but also features excellent fuel economy and stable, reliable operation. This engine adopts advanced electronic fuel injection technology, ensuring outstanding performance and low emission standards. In terms of the hydraulic system, the 323DL is equipped with CAT's unique CLSS closed center load sensing system, which can achieve precise control and efficient operation. It can handle complex working conditions such as excavation, loading and crushing with ease. In addition, its highly efficient cooling system ensures stability during long-term high-intensity operation and reduces the failure rate. The vehicle body structure is sturdy and durable. After professional testing, key components such as tracks and buckets are all in good condition and can be directly put into use at the construction site. For such a second-hand device

SpecificationsValue
No.971925
Tonnage (tons)23
Working weight (kg)22300-23100
Bucket capacity (m³)1.2
Boom length (mm)5700
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC6.4ACERT
Rated power (kw/rpm)110/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)6
Displacement (L)6.4
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)140
Rod digging force (kN)106
Travel speed (km/h)3.5/5.7
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.5
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1504
Boom cylinders - Number × diameter × stroke (mm)120 x 1260
Fuel Tank (L)410
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)25
Hydraulic System (L)260(including fuel tank)
Total transport length (mm)9460
Total transport width (mm)3180
Total transport height (mm)3050
Full cab height (mm)2950
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)450
Back end turning radius (mm)2940
Total track length (mm)4455
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3650
Maximum digging depth (mm)6710
Maximum excavation height (mm)9470
Maximum unloading height (mm)6500
Maximum vertical digging depth (mm)5860
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9850
Maximum effective digging depth (mm)6380
see more

Overview

No.971925

Brand Name:

Caterpillar

Model Number:

323DL

Year:

2013

Location:

Sichuan China
