2013 Caterpillar 323DL

1/9
Used Caterpillar 323DL Excavator 2013 Model / 1
Used Caterpillar 323DL Excavator 2013 Model / 2

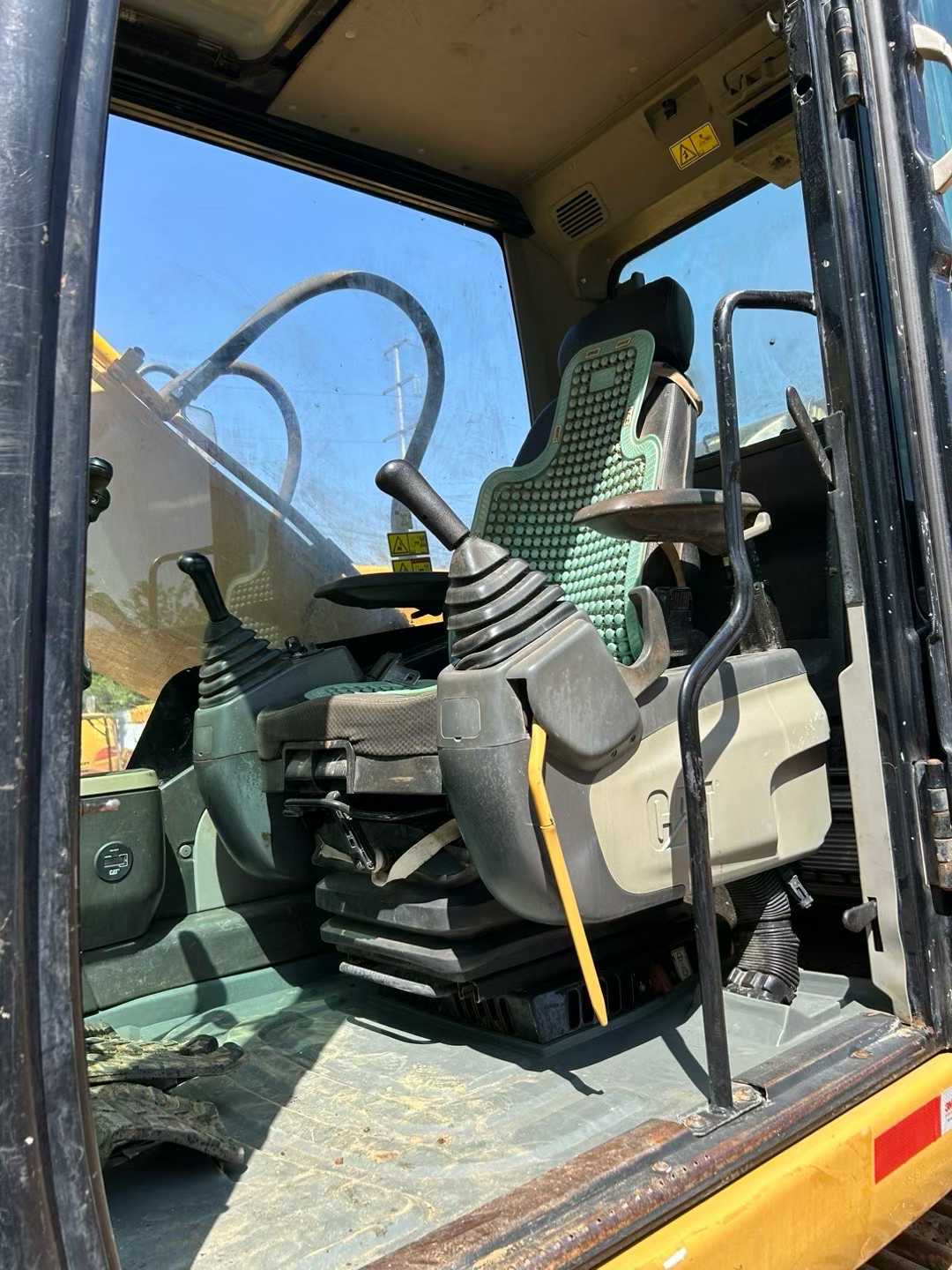

Used Caterpillar 323DL Excavator 2013 Model / 3

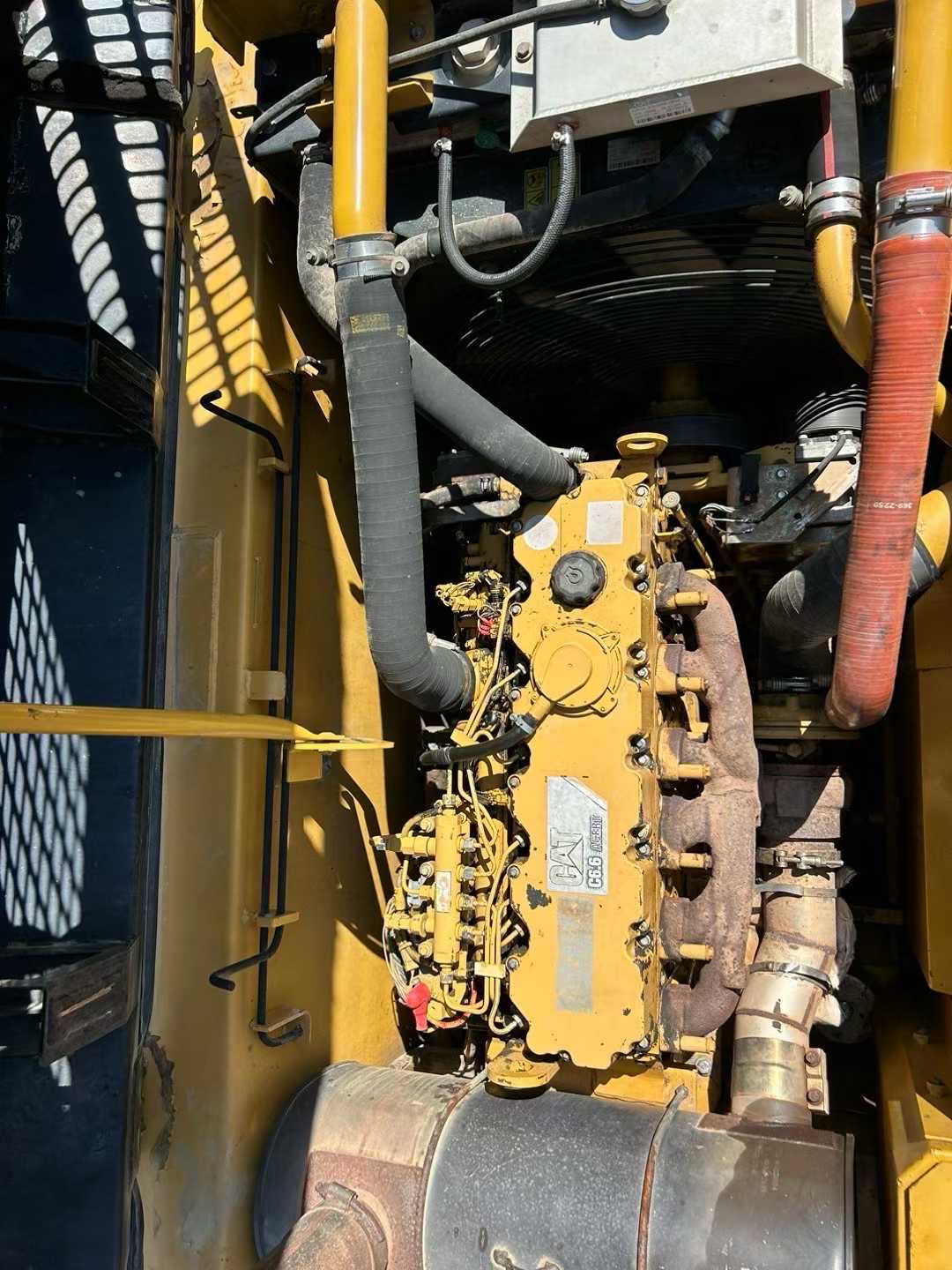

Used Caterpillar 323DL Excavator 2013 Model / 4

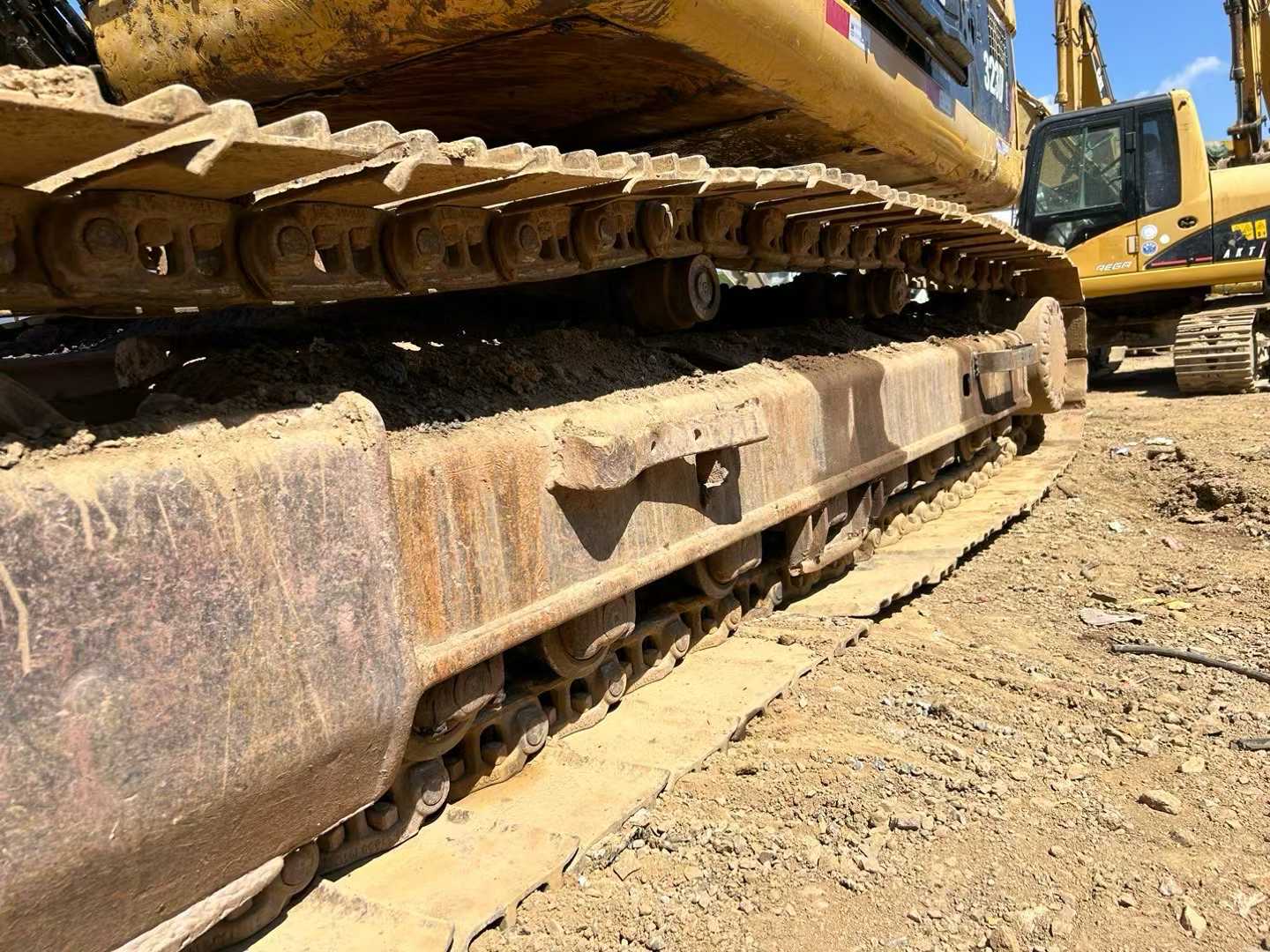

Used Caterpillar 323DL Excavator 2013 Model / 5
Used Caterpillar 323DL Excavator 2013 Model / 6

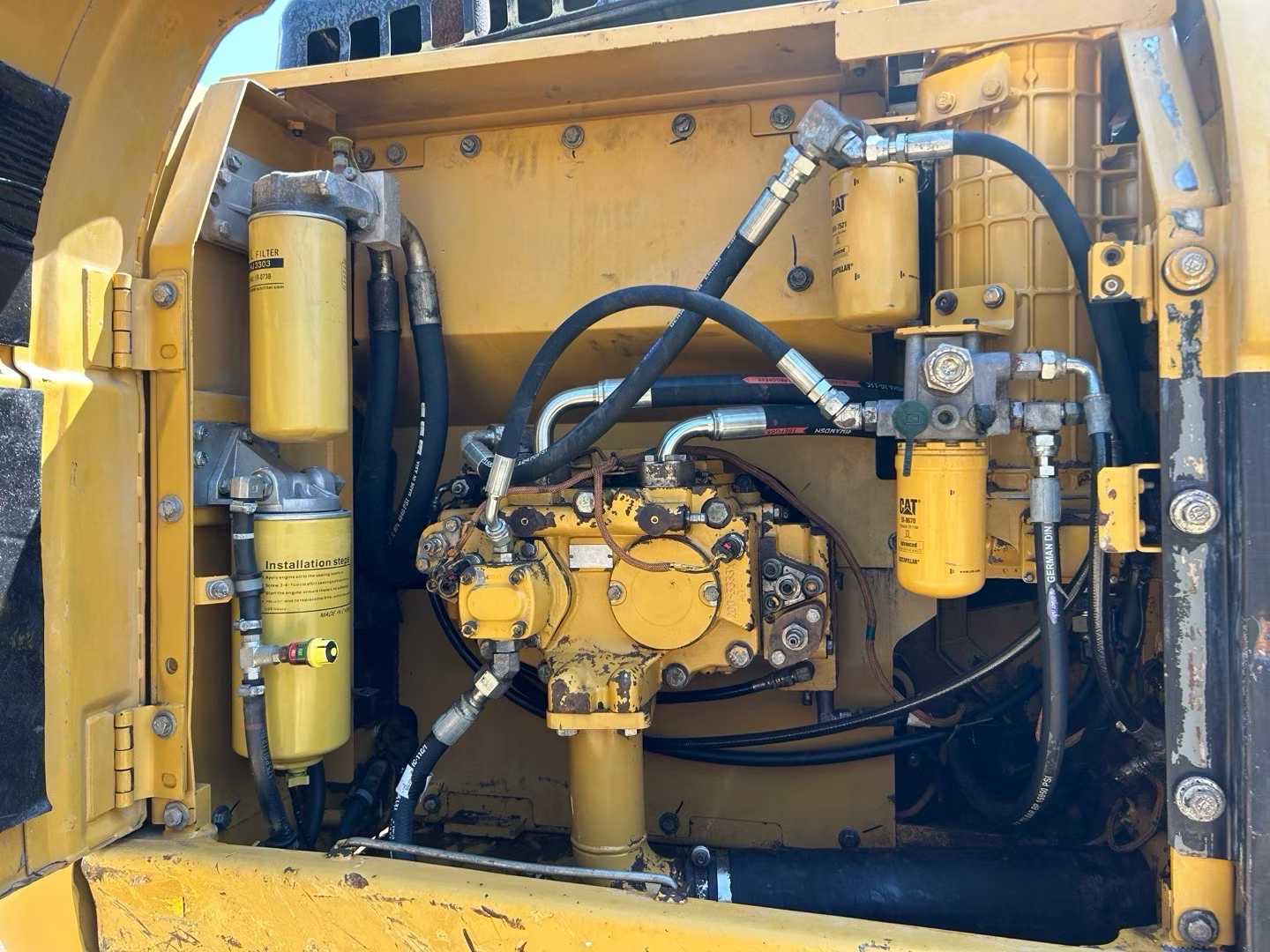

Used Caterpillar 323DL Excavator 2013 Model / 7

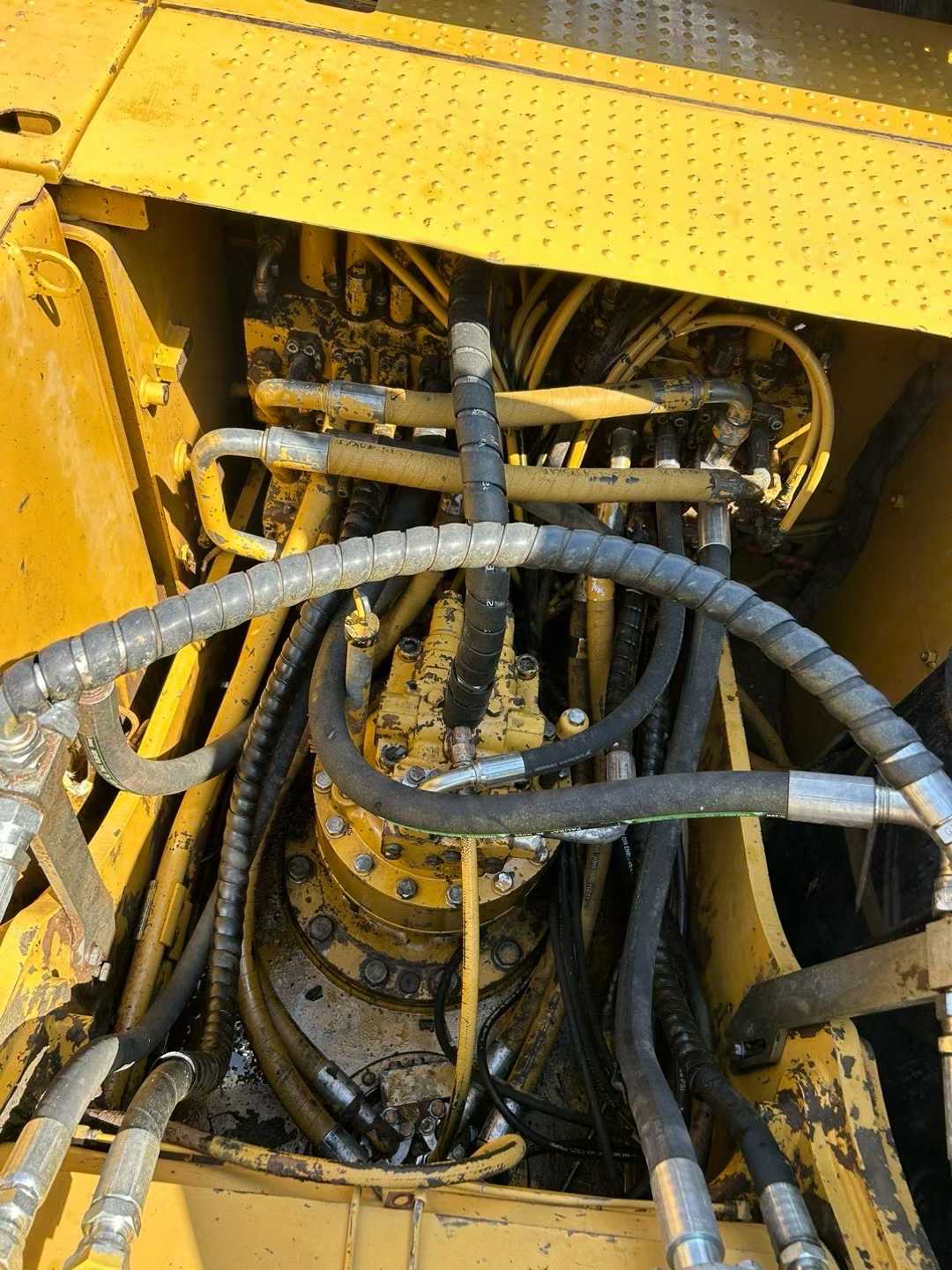

Used Caterpillar 323DL Excavator 2013 Model / 8
Used Caterpillar 323DL Excavator 2013 Model / 9

Product Description

【 Premium Recommendation 】2013 Caterpillar 323DL excavator, this is a second-hand excavator with outstanding performance and excellent condition. This machine is equipped with a powerful 6.6-liter engine, which is full of power. Whether it is digging hard soil layers or moving heavy objects, it can handle them with ease, ensuring efficient operation. This machine has a moderate working time, with a total working hour of approximately 8,000 hours. With proper maintenance and regular upkeep, it ensures a good operating condition. In terms of the hydraulic system, this 323DL adopts advanced hydraulic technology, making the operation more stable and smooth, with a rapid response, and capable of meeting the demands of various complex working conditions. Meanwhile, it is also equipped with a large-capacity bucket of 1.2 cubic meters, which further enhances work efficiency and is highly suitable for large-scale earthwork projects or mining and other application scenarios. In addition, this excavator also retains its original air conditioning system, which can provide the operator with a cool and comfortable working environment even in the hot summer. The current price is only over ten thousand yuan, offering a very high cost performance. Fo

SpecificationsValue
No.972833
Tonnage (tons)23
Working weight (kg)22300-23100
Bucket capacity (m³)1.2
Boom length (mm)5700
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC6.4ACERT
Rated power (kw/rpm)110/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)6
Displacement (L)6.4
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)140
Rod digging force (kN)106
Travel speed (km/h)3.5/5.7
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.5
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1504
Boom cylinders - Number × diameter × stroke (mm)120 x 1260
Fuel Tank (L)410
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)25
Hydraulic System (L)260(including fuel tank)
Total transport length (mm)9460
Total transport width (mm)3180
Total transport height (mm)3050
Full cab height (mm)2950
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)450
Back end turning radius (mm)2940
Total track length (mm)4455
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3650
Maximum digging depth (mm)6710
Maximum excavation height (mm)9470
Maximum unloading height (mm)6500
Maximum vertical digging depth (mm)5860
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9850
Maximum effective digging depth (mm)6380
see more

Overview

No.972833

Brand Name:

Caterpillar

Model Number:

323DL

Year:

2013

Location:

Guangdong China
