2013 Caterpillar 323DL

1/9
Used Caterpillar 323DL Excavator 2013 Model / 1

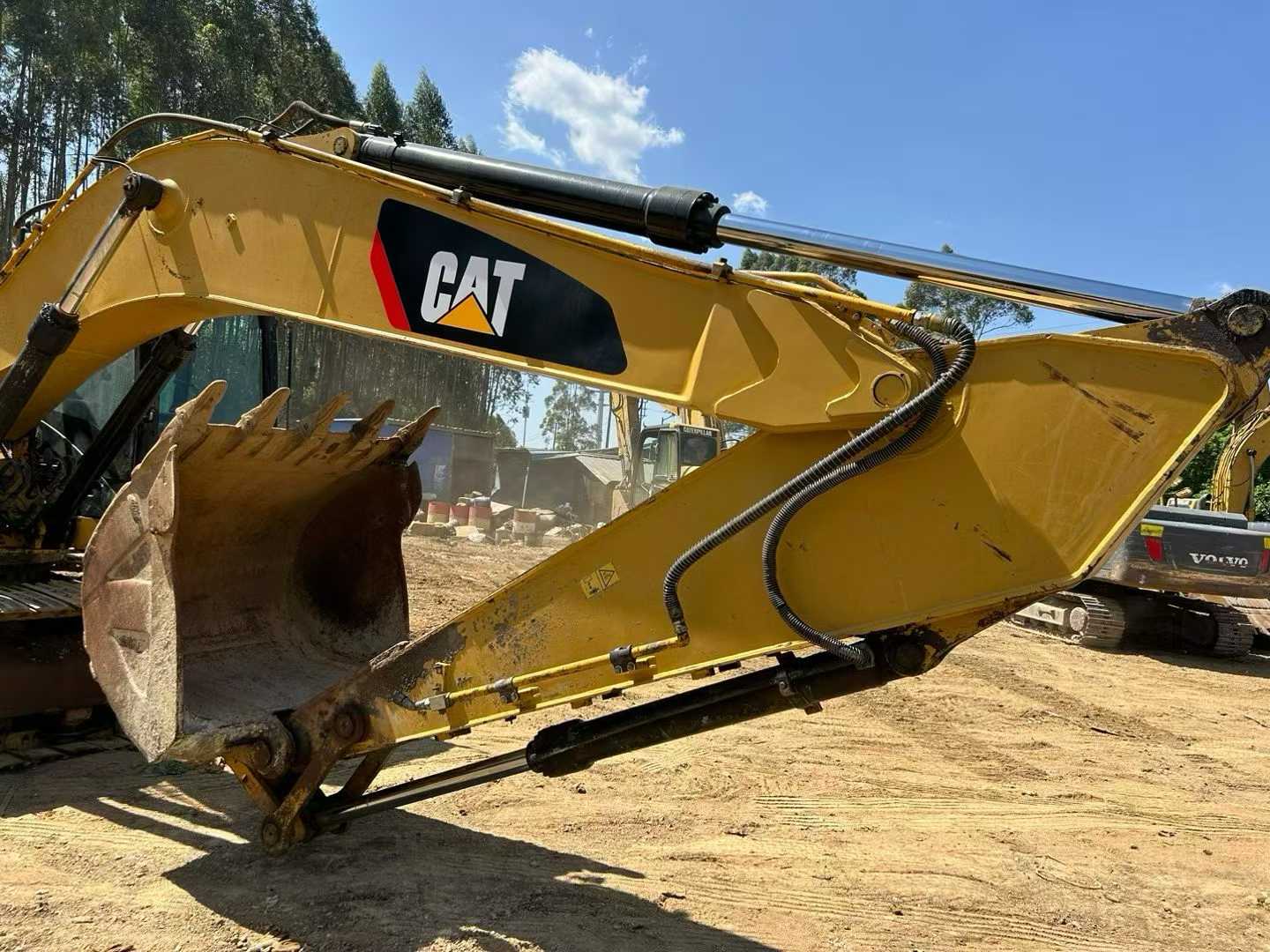

Used Caterpillar 323DL Excavator 2013 Model / 2
Used Caterpillar 323DL Excavator 2013 Model / 3

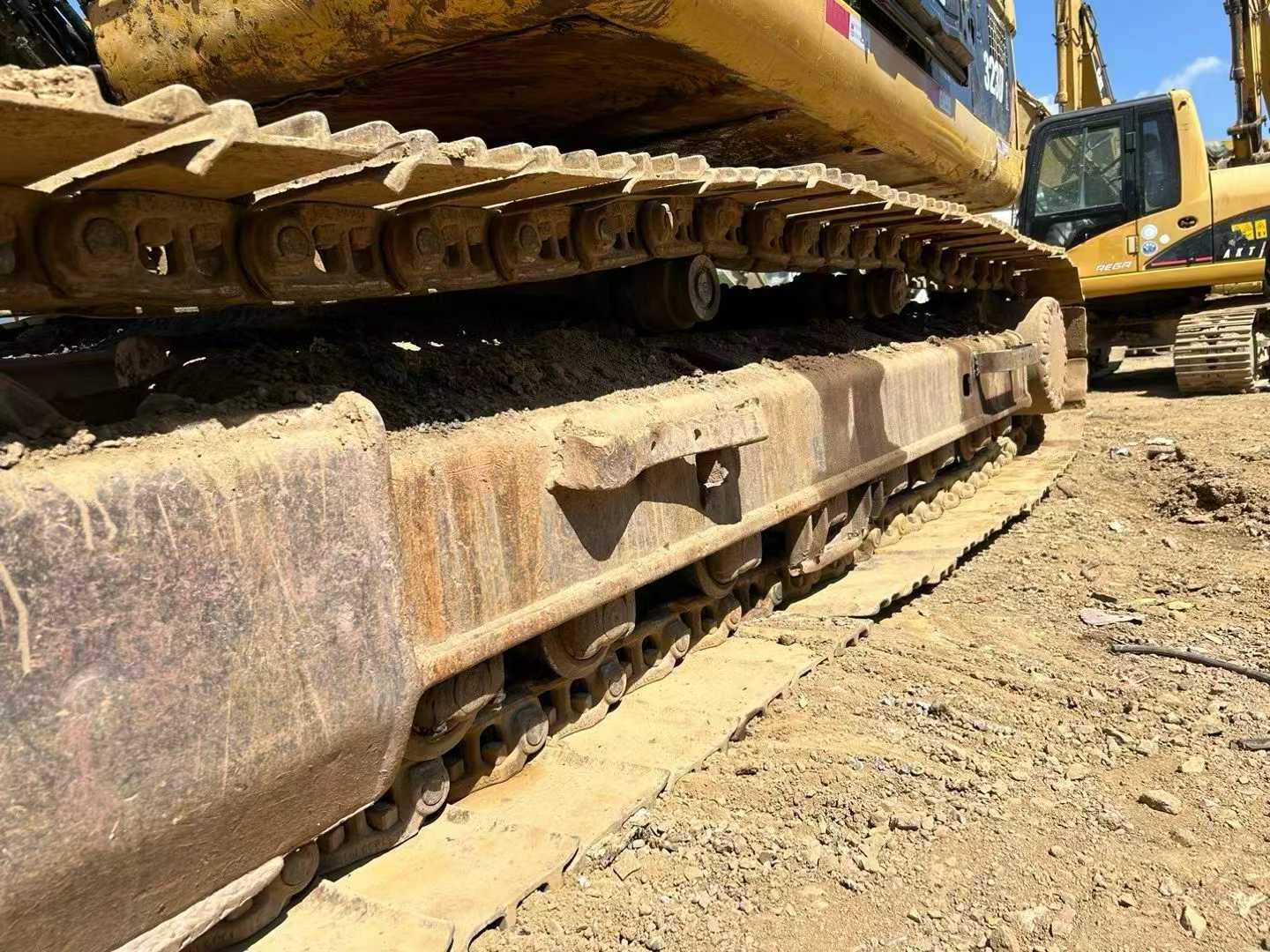

Used Caterpillar 323DL Excavator 2013 Model / 4

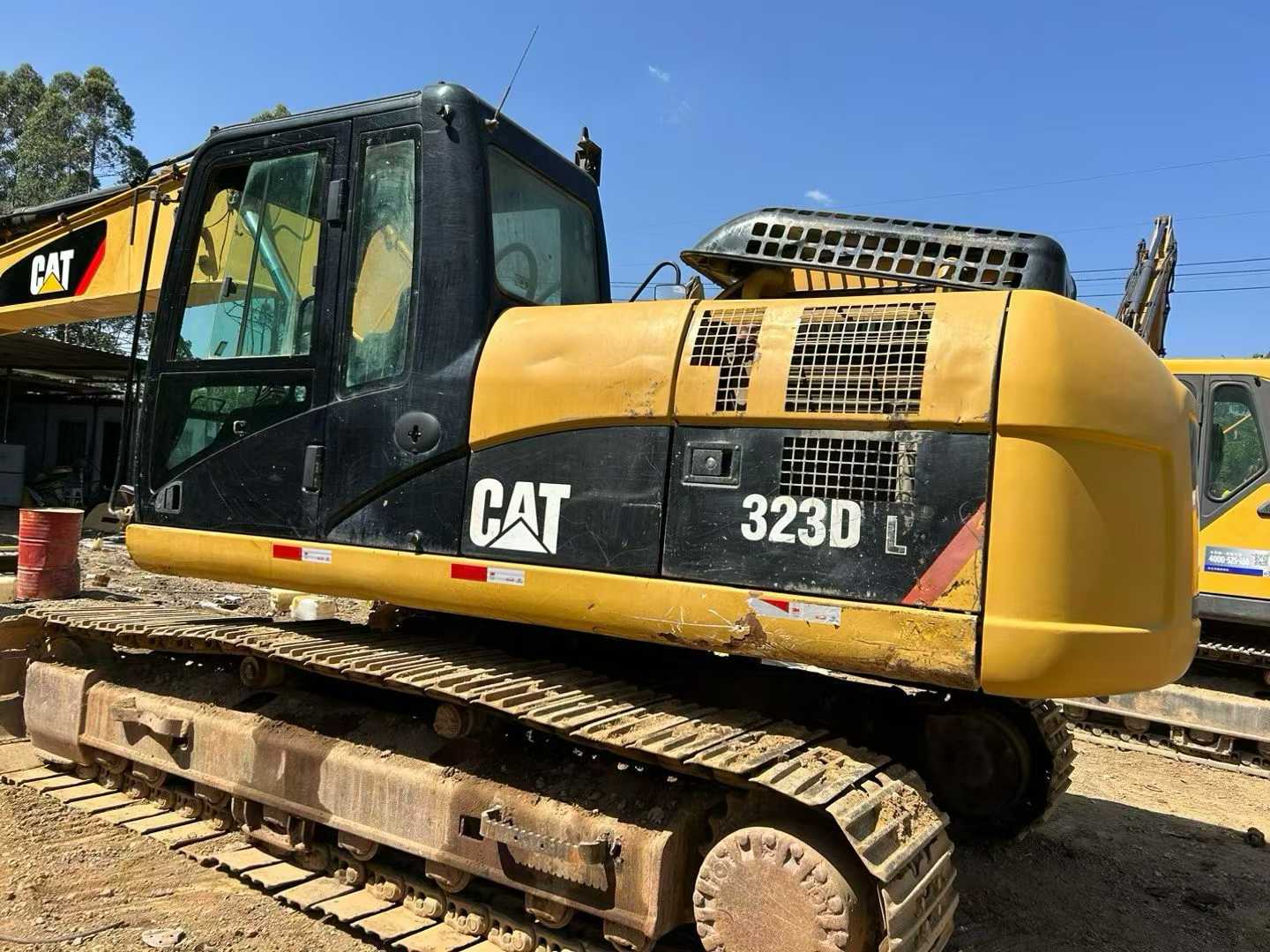

Used Caterpillar 323DL Excavator 2013 Model / 5

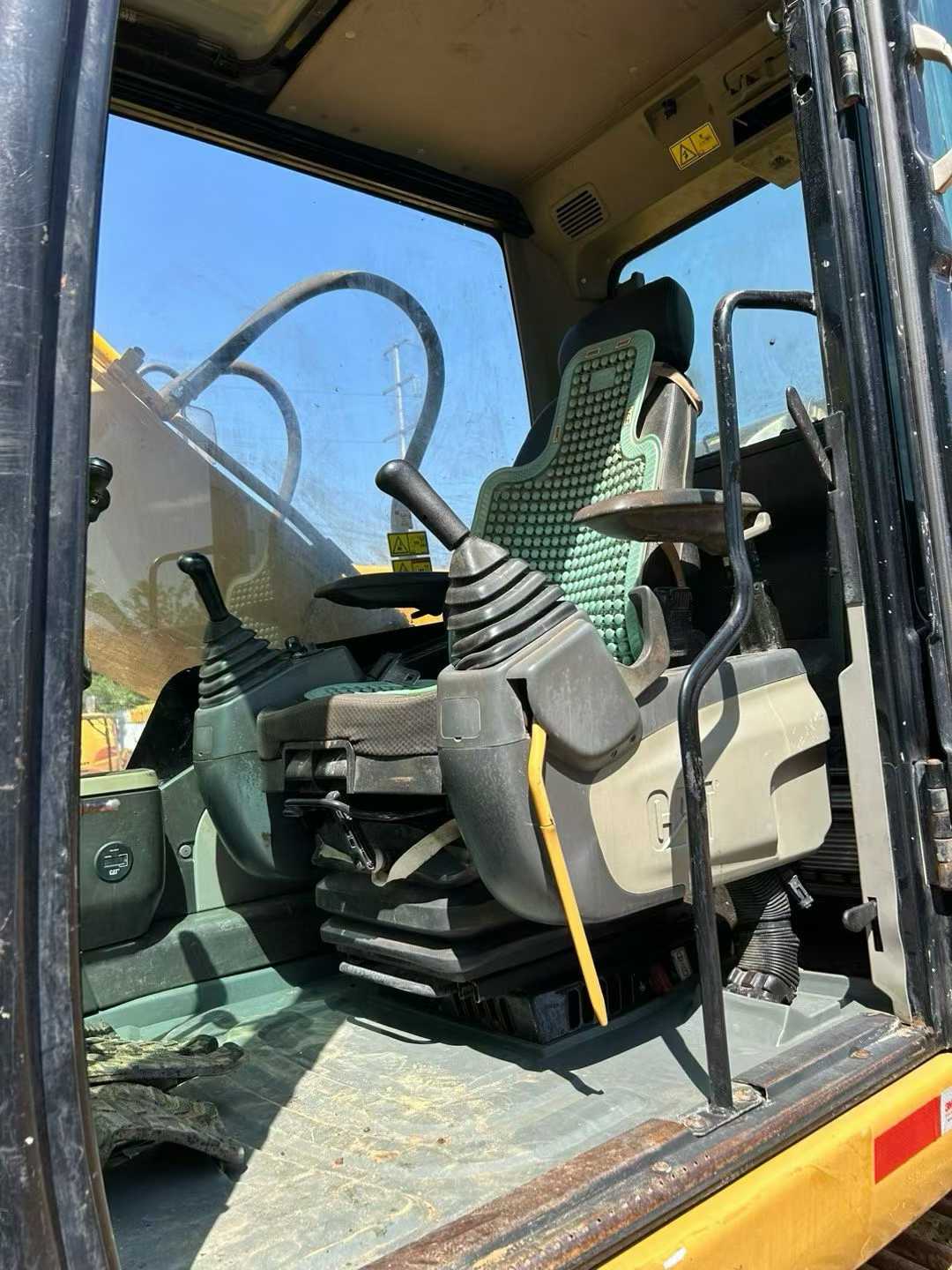

Used Caterpillar 323DL Excavator 2013 Model / 6

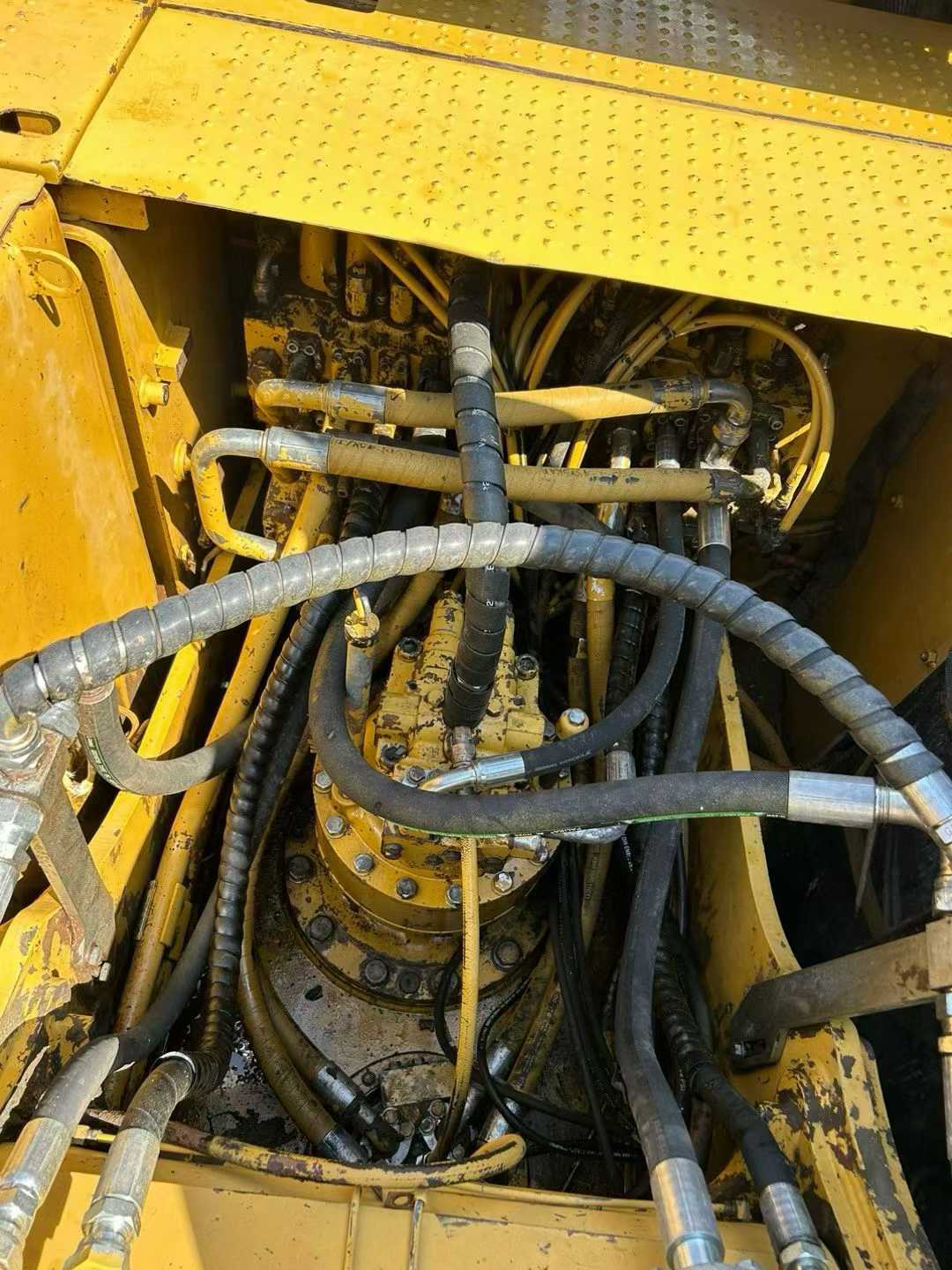

Used Caterpillar 323DL Excavator 2013 Model / 7

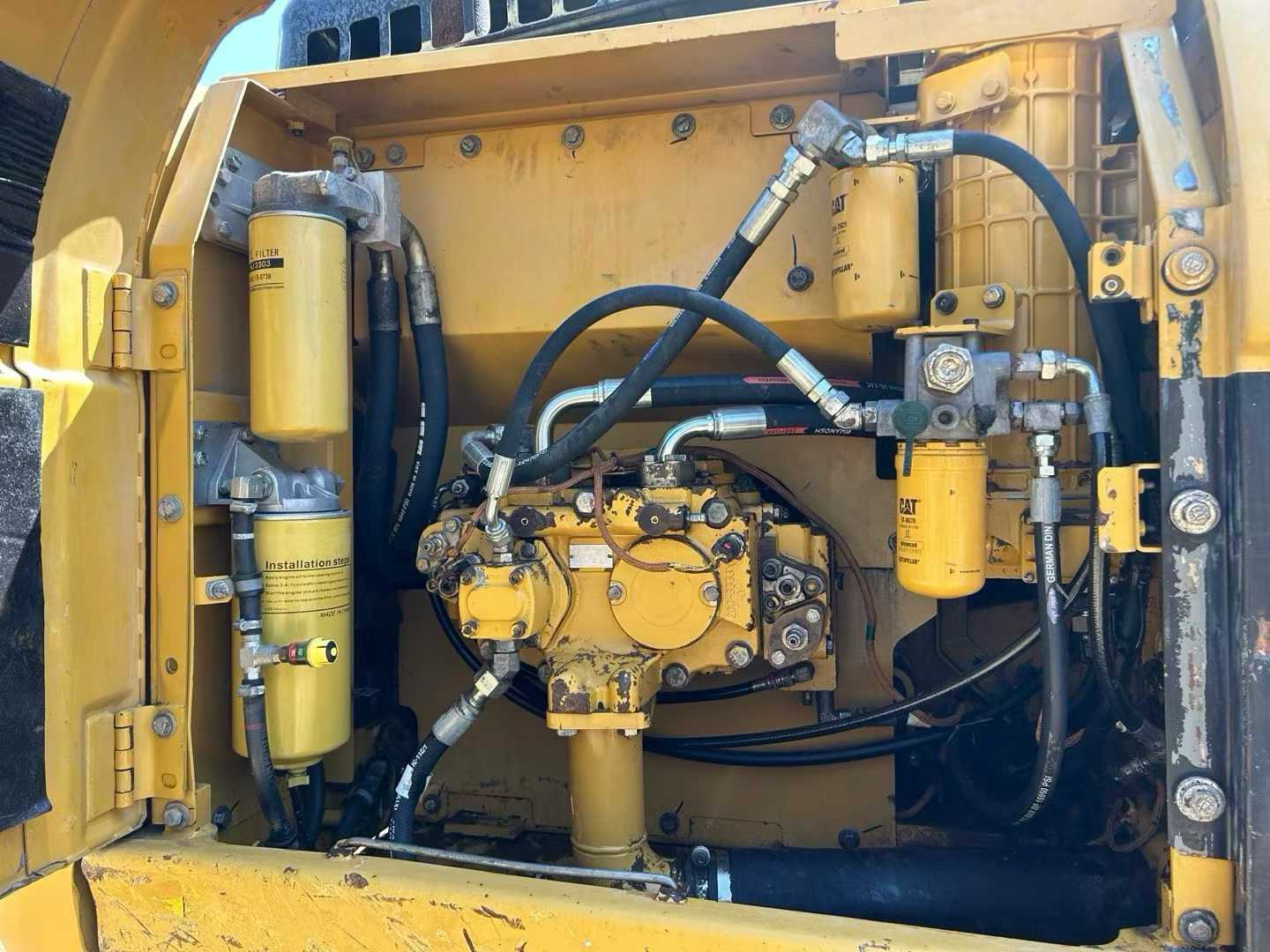

Used Caterpillar 323DL Excavator 2013 Model / 8

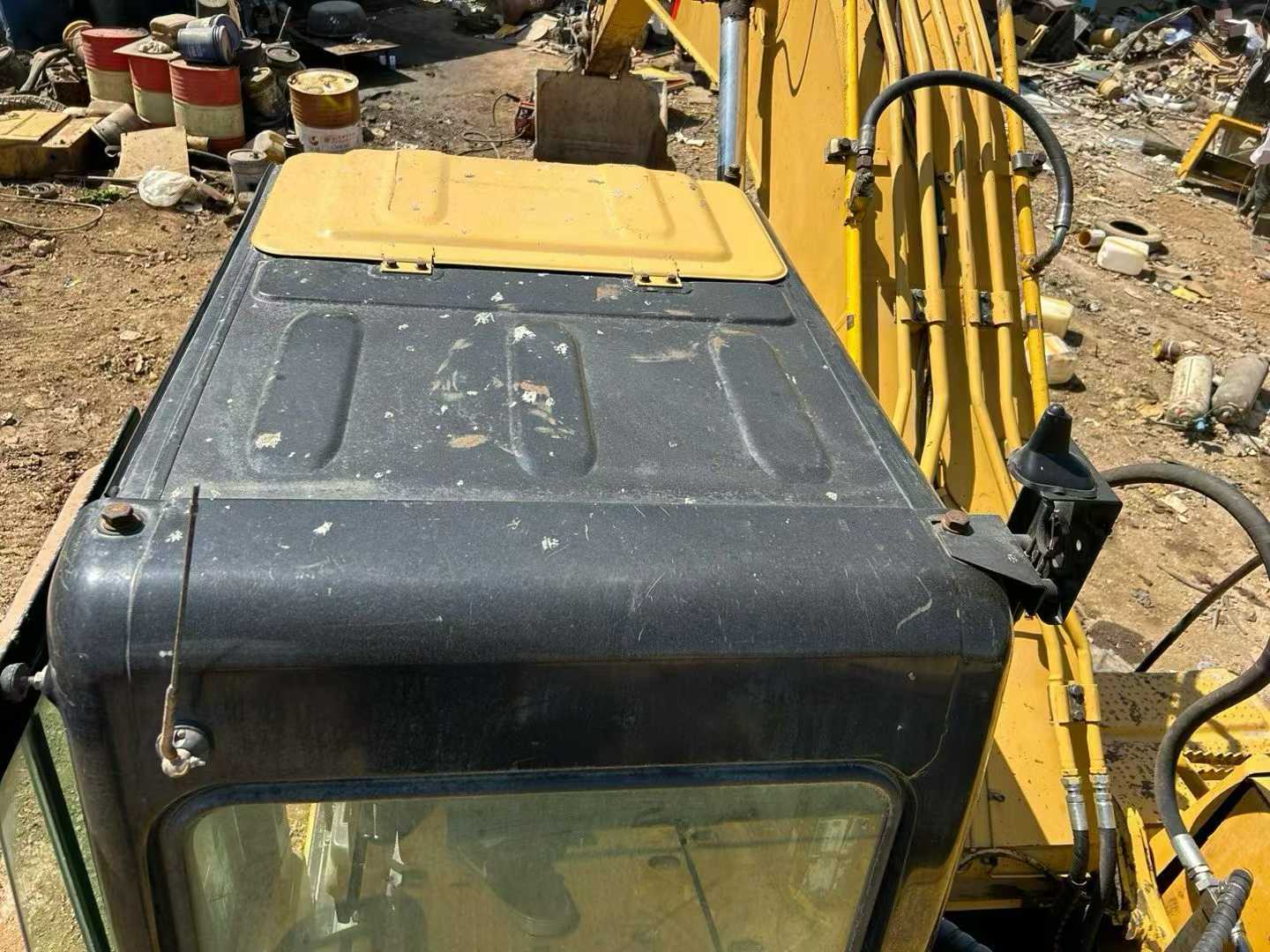

Used Caterpillar 323DL Excavator 2013 Model / 9

Product Description

There is currently a second-hand Caterpillar 323DL excavator produced in 2013, with a cumulative working time of approximately 10,000 hours. This equipment is equipped with an efficient 6.6-liter C7 engine, which is powerful and has a rated power of 150 kilowatts (201 horsepower), ensuring excellent digging capacity and outstanding fuel economy. Its hydraulic system adopts advanced variable piston pumps and high-efficiency hydraulic motors, providing a stable and precise operating experience. This Caterpillar 323DL excavator has been meticulously maintained. All maintenance work has been completed on time, ensuring that the machine is in the best working condition. A standard bucket with a capacity of 1.2 cubic meters is attached to the vehicle, which is suitable for various earthwork operations. In addition, this machine is also equipped with an original air conditioning system, which can provide the operator with a comfortable driving environment even in the hot summer. Whether you rent or purchase, this Carter 323DL is your ideal choice. It is not only reliable in performance and highly durable, but also reasonably priced, with an expected selling price of only over ten thousand yuan. It is highly suitable for real users who need

SpecificationsValue
No.976001
Tonnage (tons)23
Working weight (kg)22300-23100
Bucket capacity (m³)1.2
Boom length (mm)5700
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC6.4ACERT
Rated power (kw/rpm)110/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Number of cylinders (PCS)6
Displacement (L)6.4
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)140
Rod digging force (kN)106
Travel speed (km/h)3.5/5.7
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.5
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)140 x 1504
Boom cylinders - Number × diameter × stroke (mm)120 x 1260
Fuel Tank (L)410
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)25
Hydraulic System (L)260(including fuel tank)
Total transport length (mm)9460
Total transport width (mm)3180
Total transport height (mm)3050
Full cab height (mm)2950
Counterweight ground clearance (mm)1020
Minimum ground clearance (mm)450
Back end turning radius (mm)2940
Total track length (mm)4455
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)3180
Track ground length (mm)3650
Maximum digging depth (mm)6710
Maximum excavation height (mm)9470
Maximum unloading height (mm)6500
Maximum vertical digging depth (mm)5860
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9850
Maximum effective digging depth (mm)6380
see more

Overview

No.976001

Brand Name:

Caterpillar

Model Number:

323DL

Year:

2013

Location:

Guangdong China
