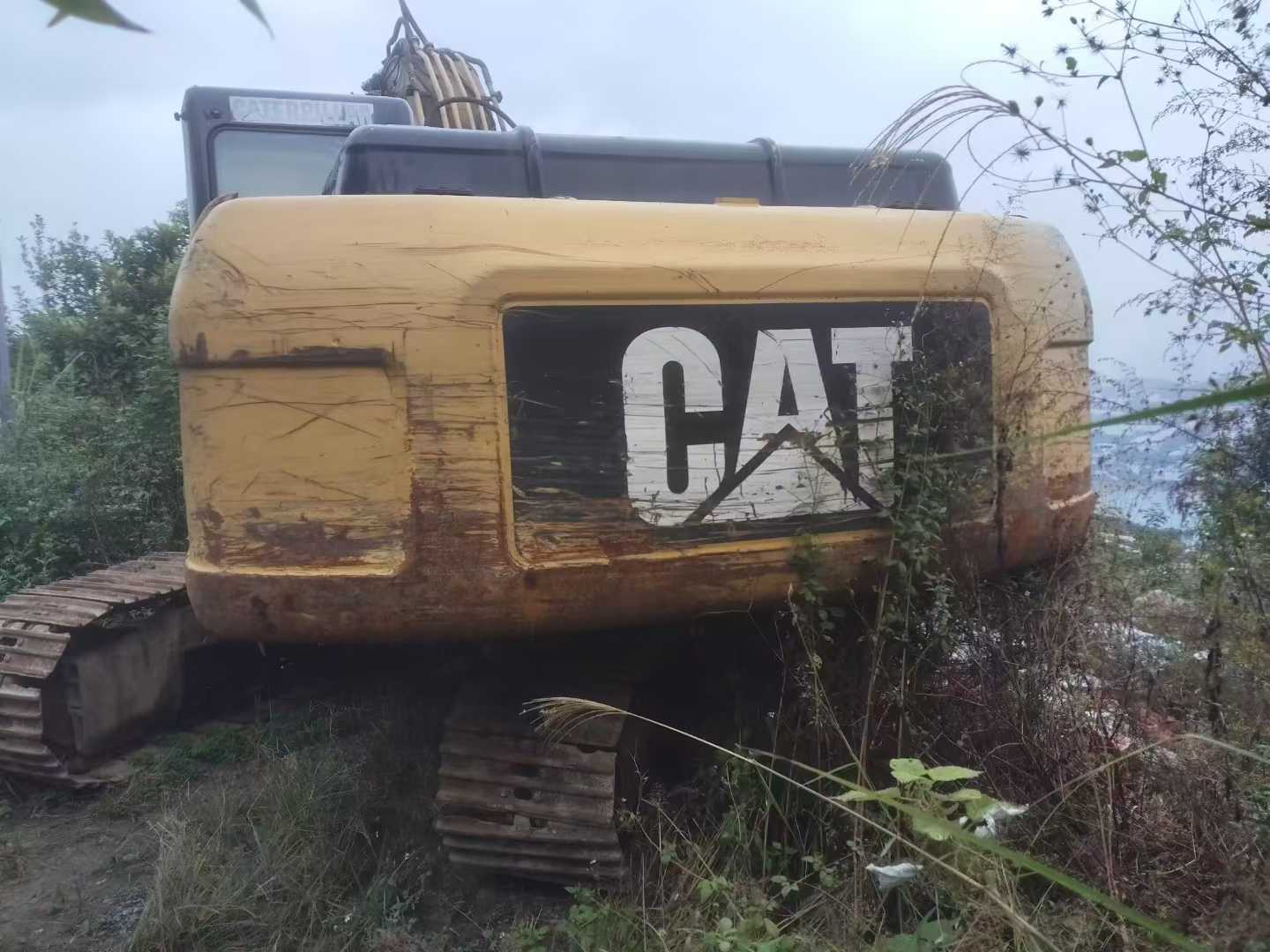

2016 Caterpillar 324D
| Specifications | Value |
|---|---|
| No. | 964841 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Description

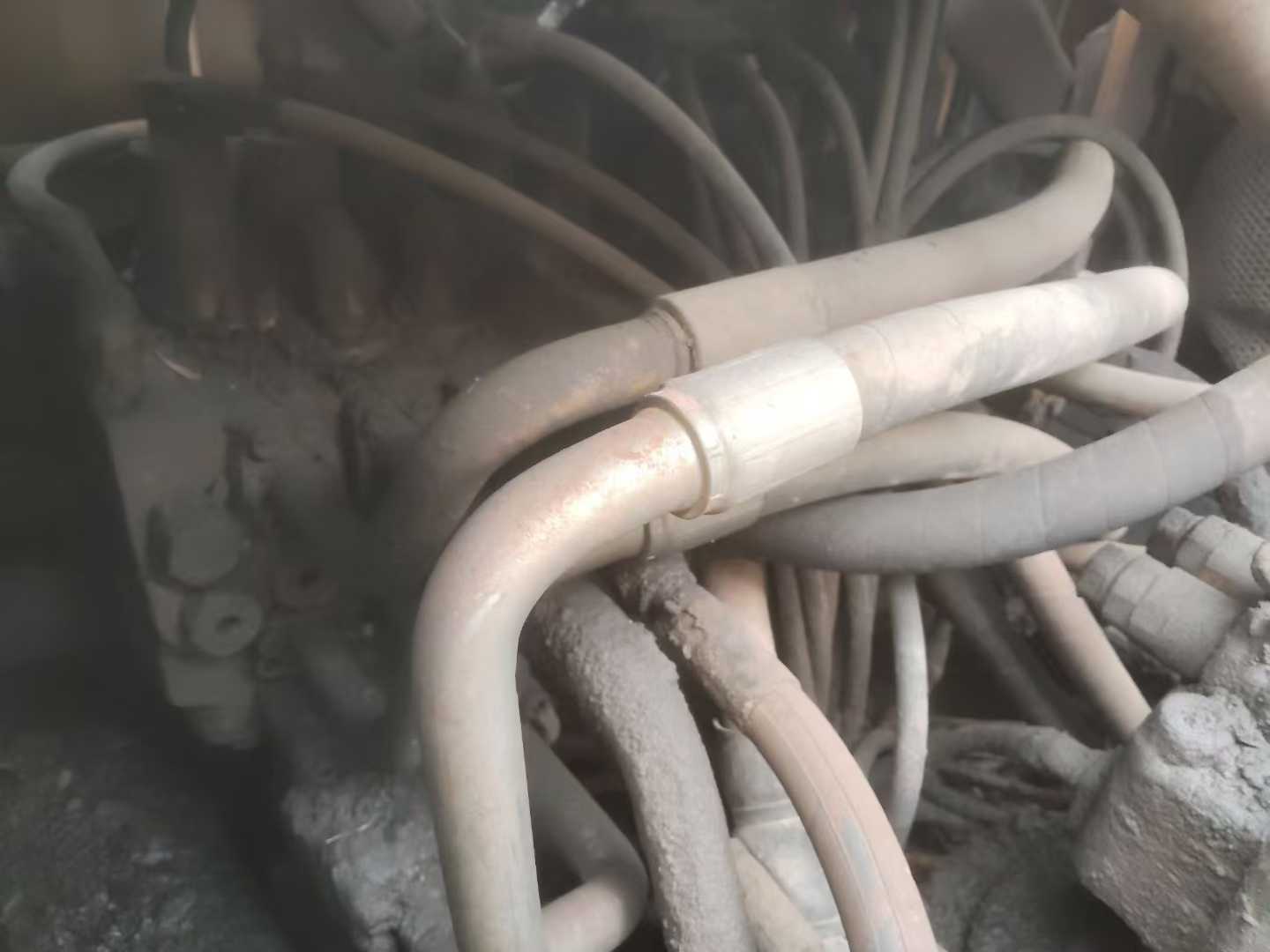

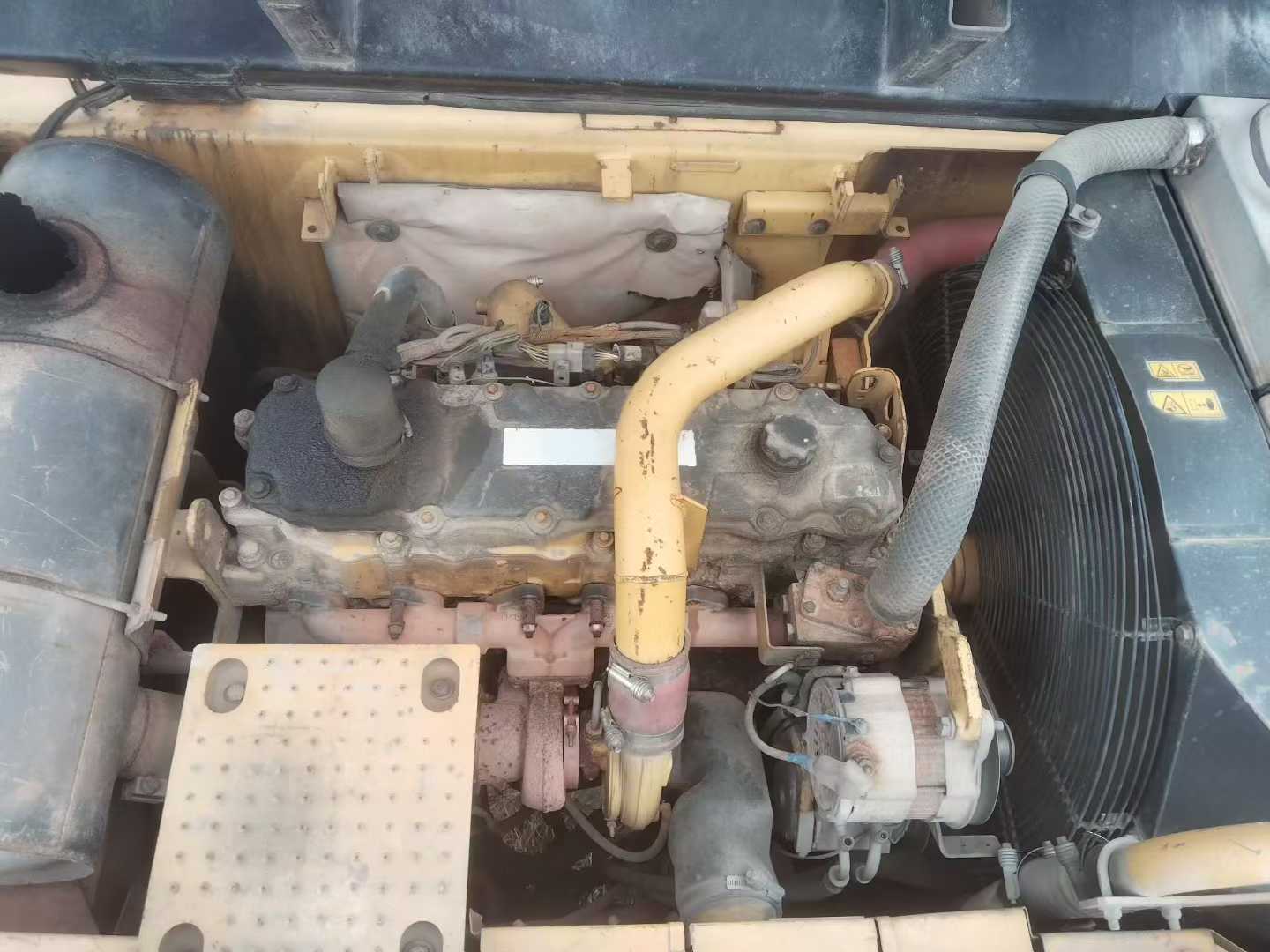

【 Special Offer Recommendation 】 Second-hand Caterpillar 324D excavator, the Best Choice for Value for Money! Dear customer, hello! We currently have a second-hand Caterpillar 324D excavator, which is being sold at an extremely favorable price. This device not only boasts outstanding performance but has also undergone comprehensive testing and maintenance to ensure that you can use it with confidence. ** Working hours ** : This 324D excavator has a working time of 5,000 hours, which is in the golden period of its mechanical life. It not only ensures a good working condition but also avoids the initial running-in problems of new machines, making it highly suitable for engineering projects that require efficient operations. ** Powertrain ** : This model is equipped with an original imported C7.1 engine from Caterpillar, with a rated power of 129kW (approximately 173 horsepower), featuring excellent fuel economy and powerful output. Whether in plains or mountainous areas, it can easily handle excavation tasks under various complex working conditions. ** Hydraulic System ** : It adopts an advanced closed center load sensing hydraulic system, which responds quickly, operates smoothly, and can achieve precise control and efficient operat
Overview
No.964841
Brand Name：
CaterpillarModel Number：
324DYear：
2016
Location：
Guangdong China
