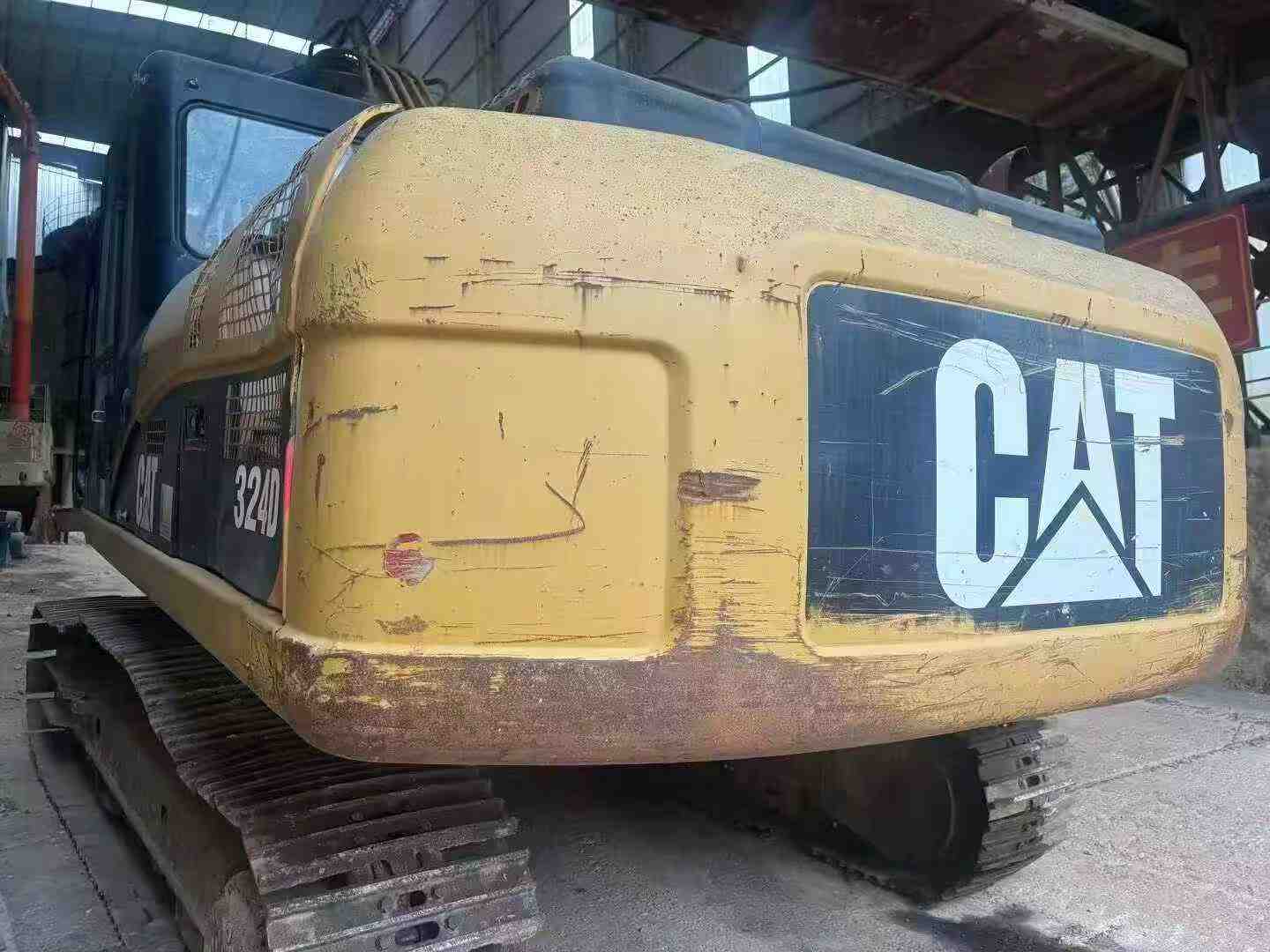

2016 Caterpillar 324D







| Specifications | Value |
|---|---|
| No. | 967488 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Description
【 Premium Recommendation 】 Second-hand Caterpillar 324D excavator, only over 90,000! This Caterpillar 324D excavator is one of the high-quality second-hand devices we have carefully selected. It features outstanding working performance and excellent durability, making it a reliable assistant in your engineering projects. This excavator has only accumulated 3,500 hours of working time since it left the factory, which means it is still in the best mechanical performance condition and far from reaching the limit of its service life. In terms of power, this machine is equipped with an original imported C4.4 engine from Caterpillar, with a maximum output power of up to 128kW (approximately 172 horsepower). It not only has strong power but also excellent fuel economy, capable of meeting the efficient operation requirements under various complex working conditions. In addition, the advanced electronic control system ensures that the engine can maintain stable operation under different load conditions, greatly improving work efficiency. In terms of the hydraulic system, a design scheme combining Caterpillar's patented high-pressure common rail pump and variable piston pump is adopted, which makes the overall operation of the machine more sm
Overview
No.967488
Brand Name:
CaterpillarModel Number:
324DYear:
2016
Location:
Sichuan China
