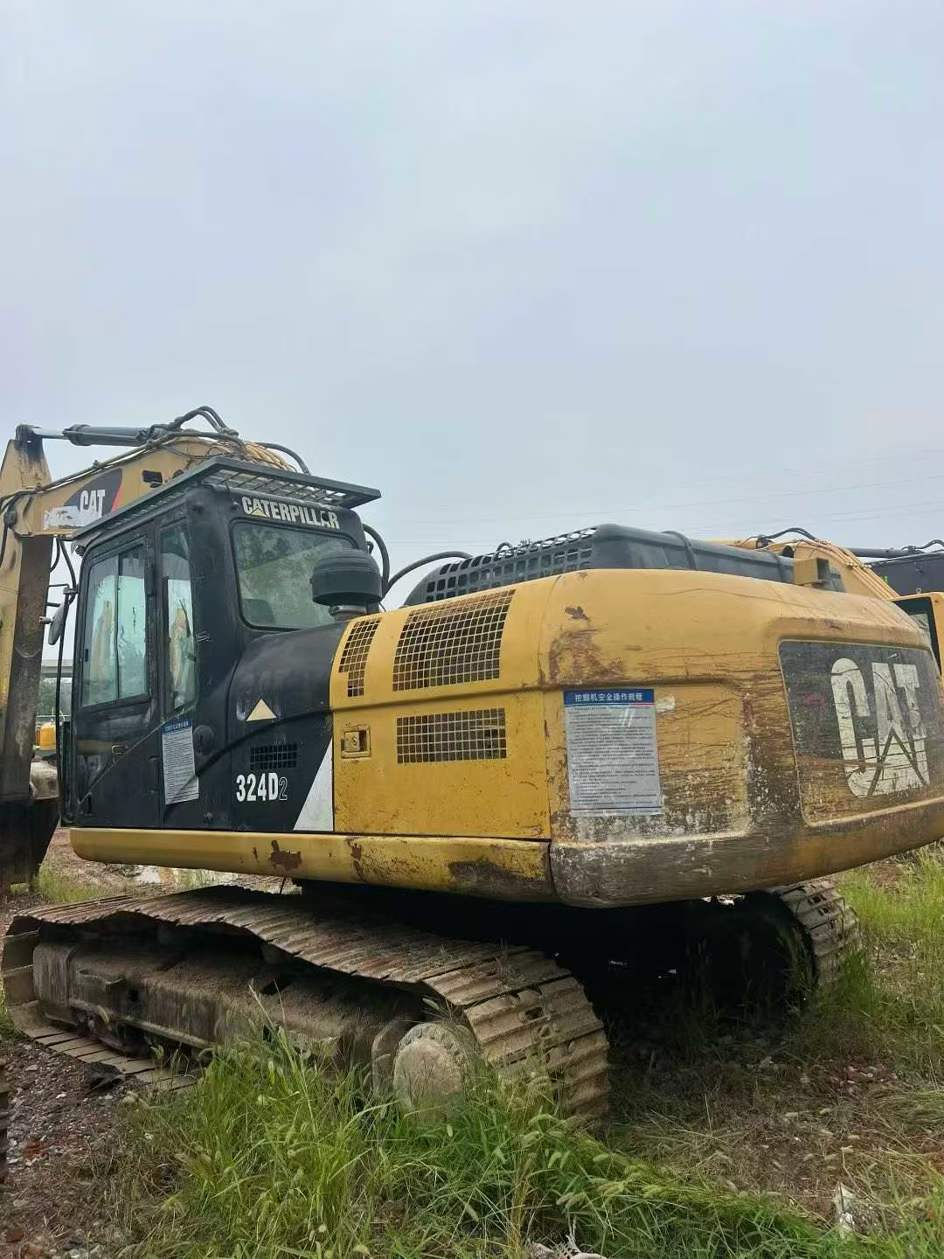

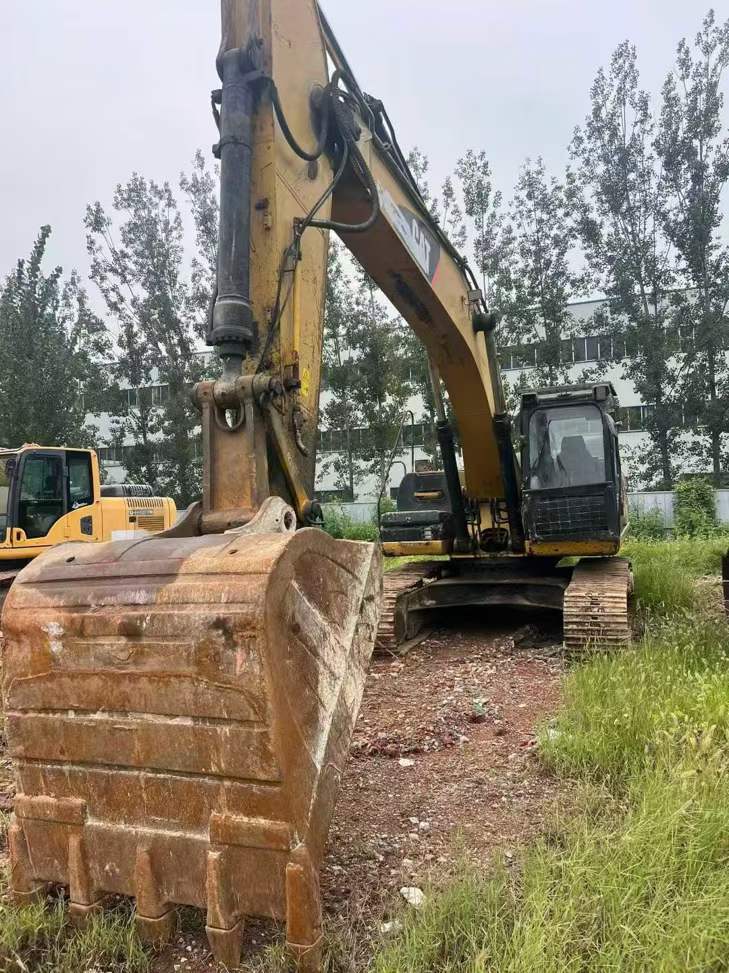

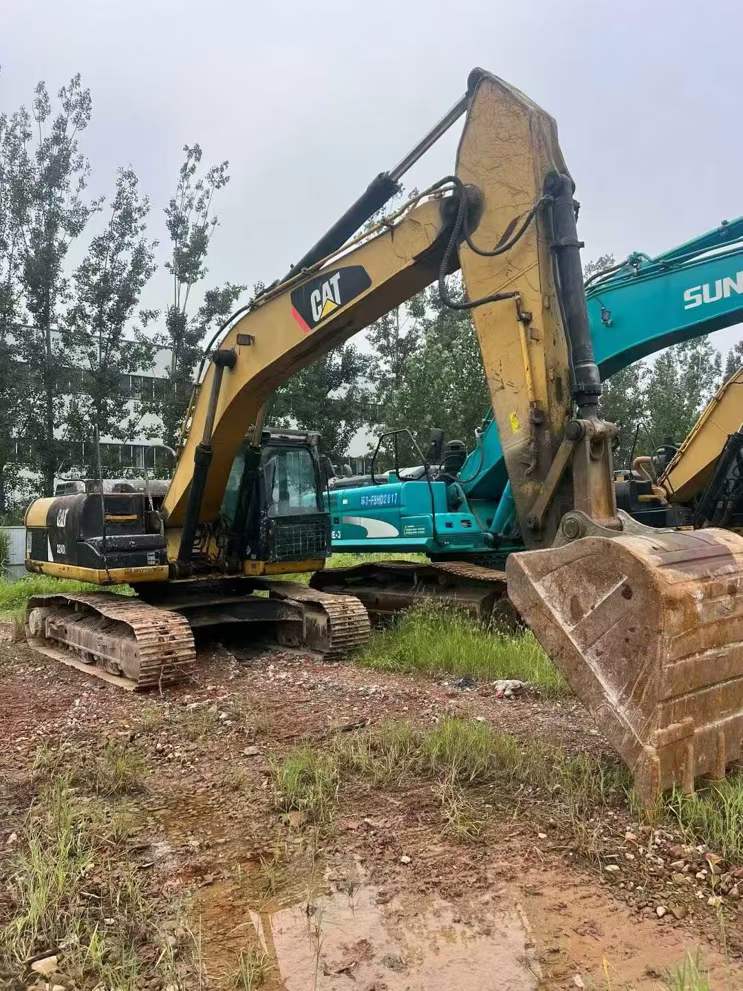

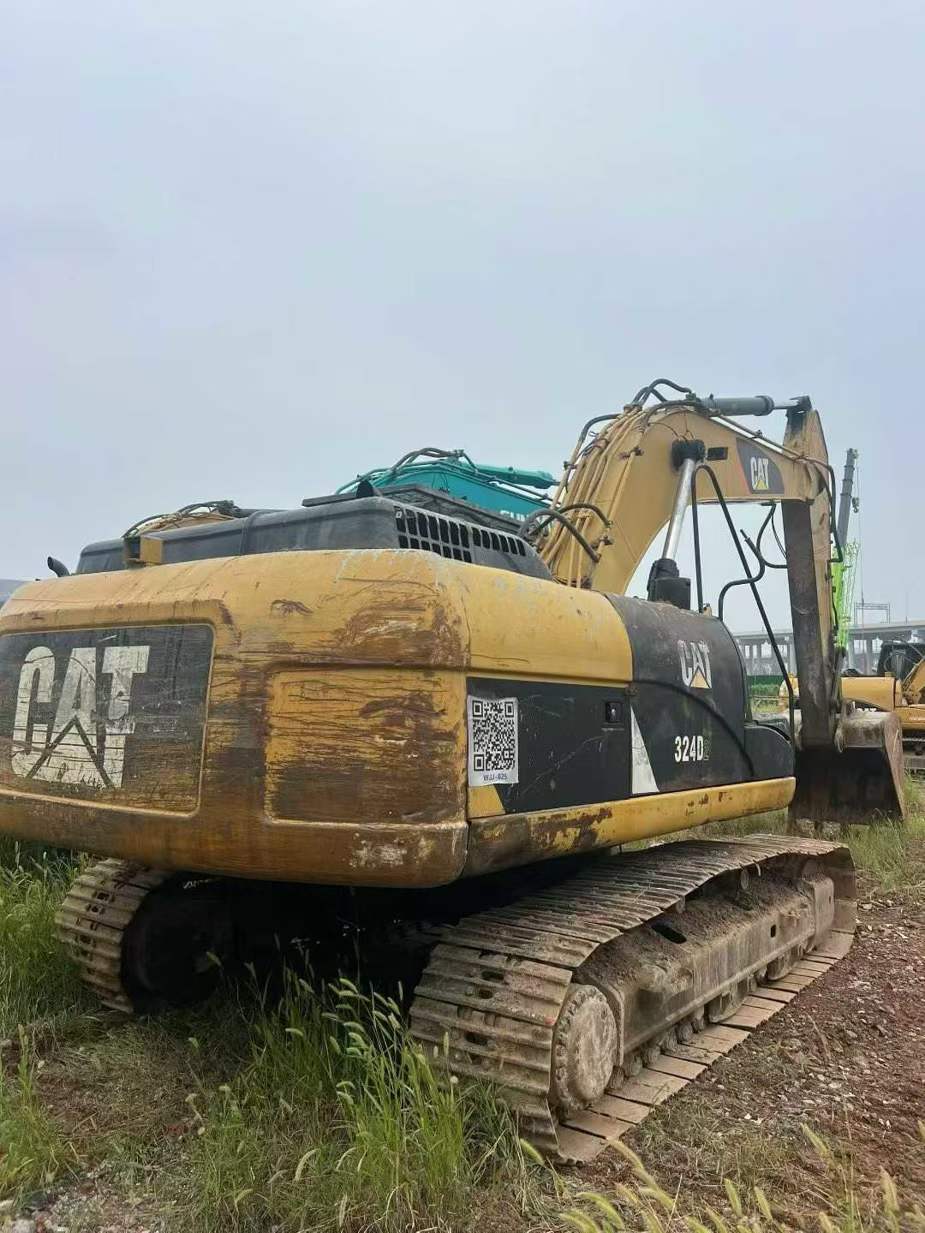

2013 Caterpillar 324D
| Specifications | Value |
|---|---|
| No. | 969801 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Description

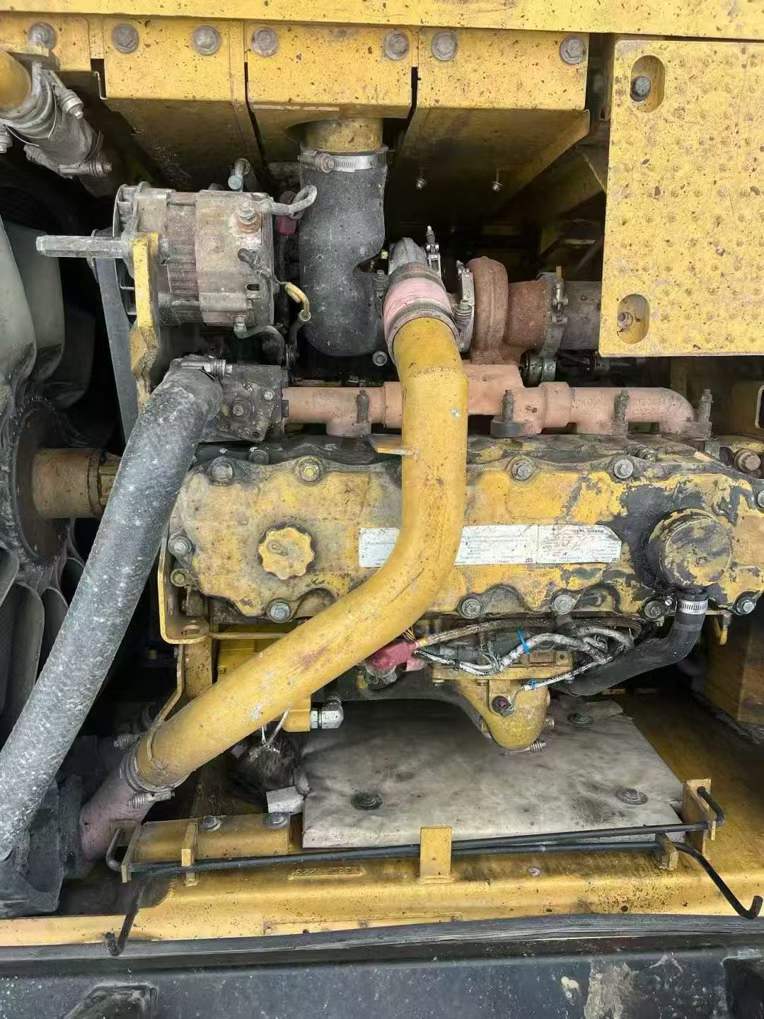

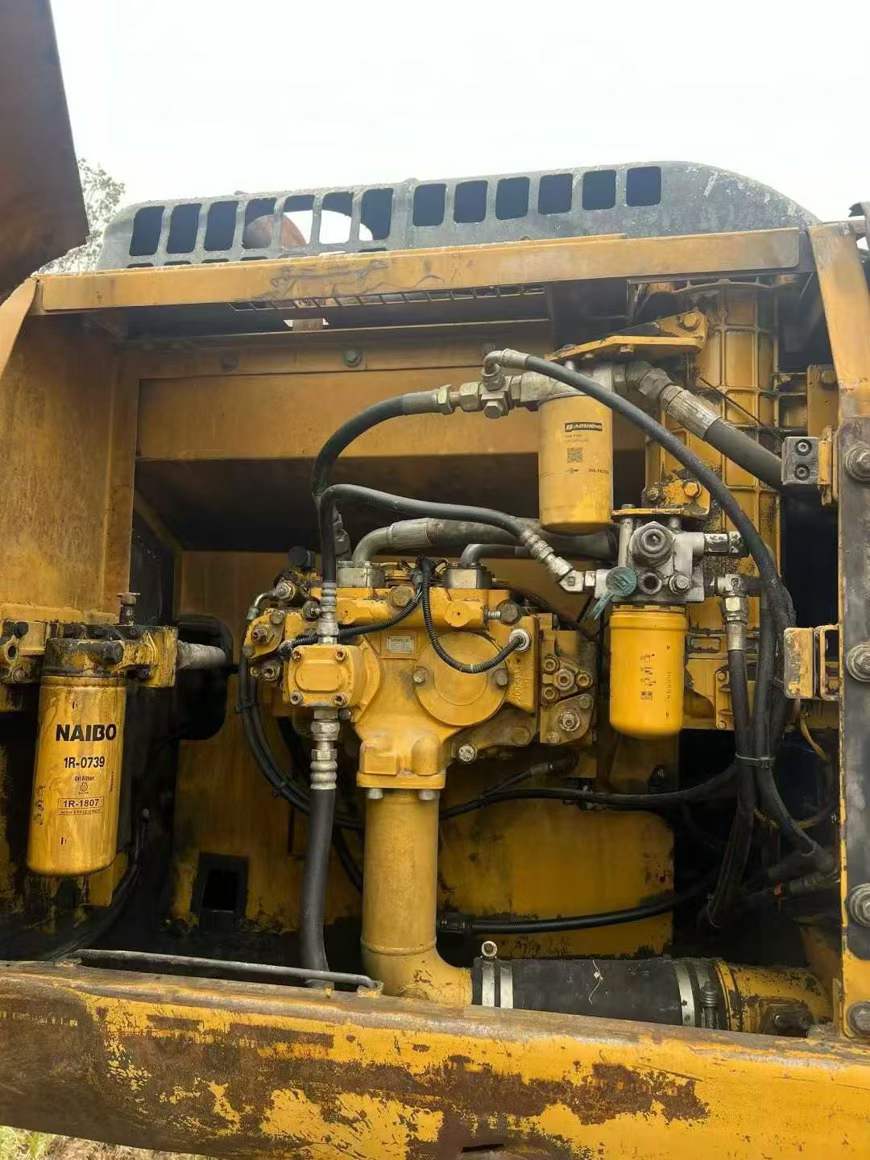

【 Premium Recommendation 】2013 original imported Caterpillar 324D excavator, in excellent condition for practical use on construction sites! This Caterpillar 324D excavator has been in use as the main equipment on the construction site since its factory release in 2013, with a total working time of 7,500 hours, which is of medium usage intensity. Proper vehicle maintenance and regular upkeep ensure its good operating condition. This machine is equipped with a Caterpillar C4.4ACERT engine, which is powerful, stable and reliable. Its maximum net power can reach 110kW (approximately 148 horsepower), providing abundant power output under various working conditions. Meanwhile, it is equipped with an advanced hydraulic system, including an efficient main pump and control valves, making the operation of the entire machine more smooth and precise. Whether it is excavation, loading or crushing operations, it can handle them with ease. The vehicle body structure is sturdy and durable, made of high-strength steel. Its outstanding durability has been proven through long-term on-site tests. In addition, we have prepared a large number of detailed pictures and video materials for your reference, allowing you to have a comprehensive understanding o
Overview
No.969801
Brand Name：
CaterpillarModel Number：
324DYear：
2013
Location：
Shandong China
