2013 Caterpillar 324D






Product Description

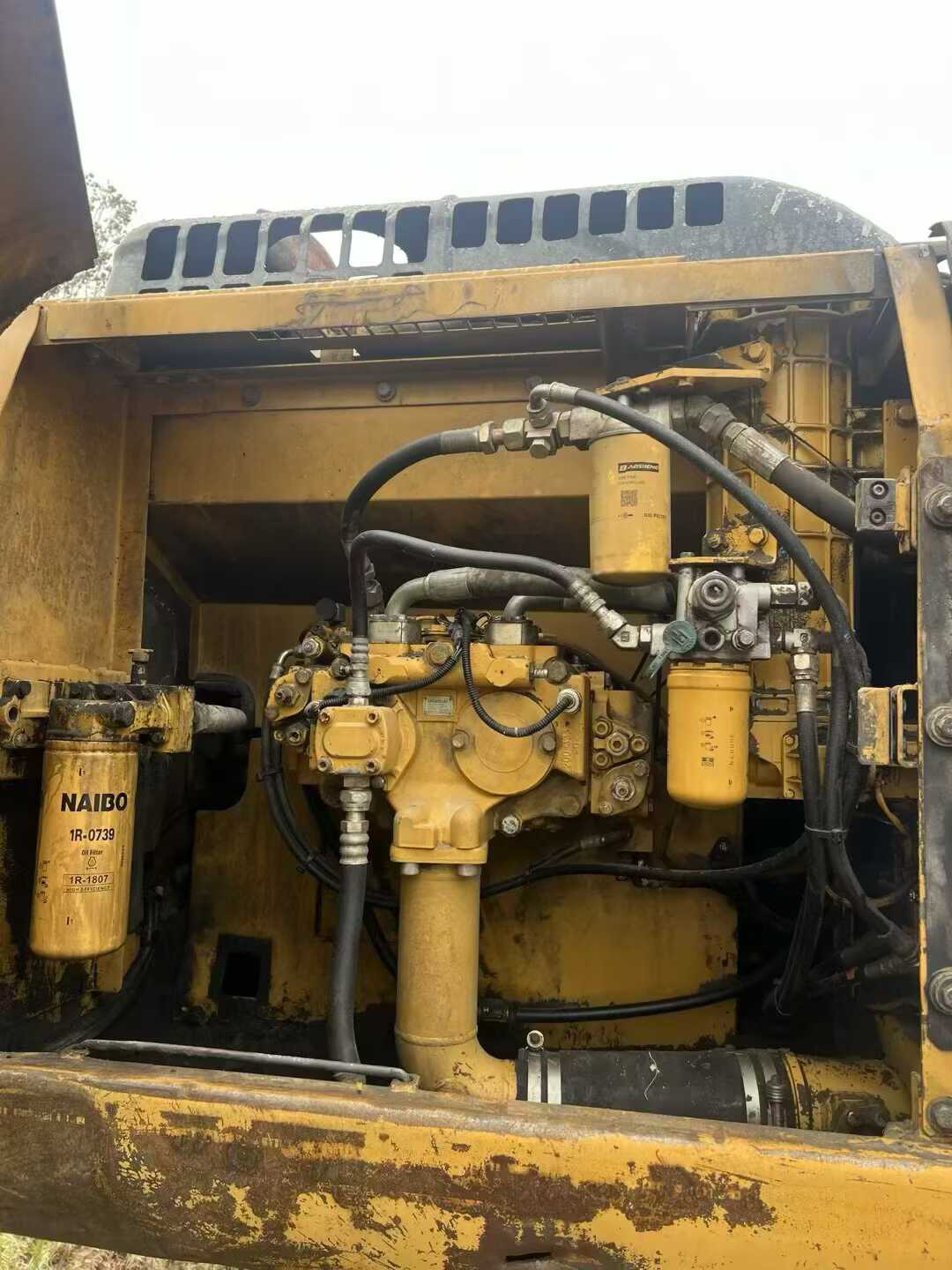

We are selling a second-hand Caterpillar 324D excavator imported in its original form from 2013. This equipment is in good overall condition and is expected to work for approximately 5,000 hours (estimated). This machine is equipped with a Caterpillar C7.1 inline six-cylinder turbocharged engine, with a maximum output power of up to 126 kilowatts, ensuring strong power output and excellent fuel economy. In terms of the hydraulic system, a dual-pump and dual-circuit design is adopted. The main pump model is P7100, which can provide stable flow support. Combined with an efficient hydraulic motor, the entire machine responds quickly and is precisely controlled during operations such as excavation and loading. Although there is a slight gap in the turntable, it does not affect its normal operation, and the performance of other parts remains excellent. It is worth mentioning that this excavator model features a spacious and comfortable cab environment as well as an advanced electronic monitoring system, which greatly enhances the operator's working experience and safety. The current price is very reasonable, only over 100,000 RMB, with an extremely high cost performance. It is very suitable for friends with a limited budget but still pursu
| Specifications | Value |
|---|---|
| No. | 973594 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.973594
Brand Name:
CaterpillarModel Number:
324DYear:
2013
Location:
Shandong China
