Caterpillar 326DL

2016 Caterpillar 326DL

1/8
Used Caterpillar 326DL Excavator 2016 Model / 1
Used Caterpillar 326DL Excavator 2016 Model / 2
Used Caterpillar 326DL Excavator 2016 Model / 3
Used Caterpillar 326DL Excavator 2016 Model / 4
Used Caterpillar 326DL Excavator 2016 Model / 5
Used Caterpillar 326DL Excavator 2016 Model / 6
Used Caterpillar 326DL Excavator 2016 Model / 7
Used Caterpillar 326DL Excavator 2016 Model / 8
Product Description
SpecificationsValue
No.962647
Tonnage (tons)26
Working weight (kg)25560
Bucket capacity (m³)1.35/1.57
Boom length (mm)5300/5900
Rod length (mm)2000/2500/2950
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

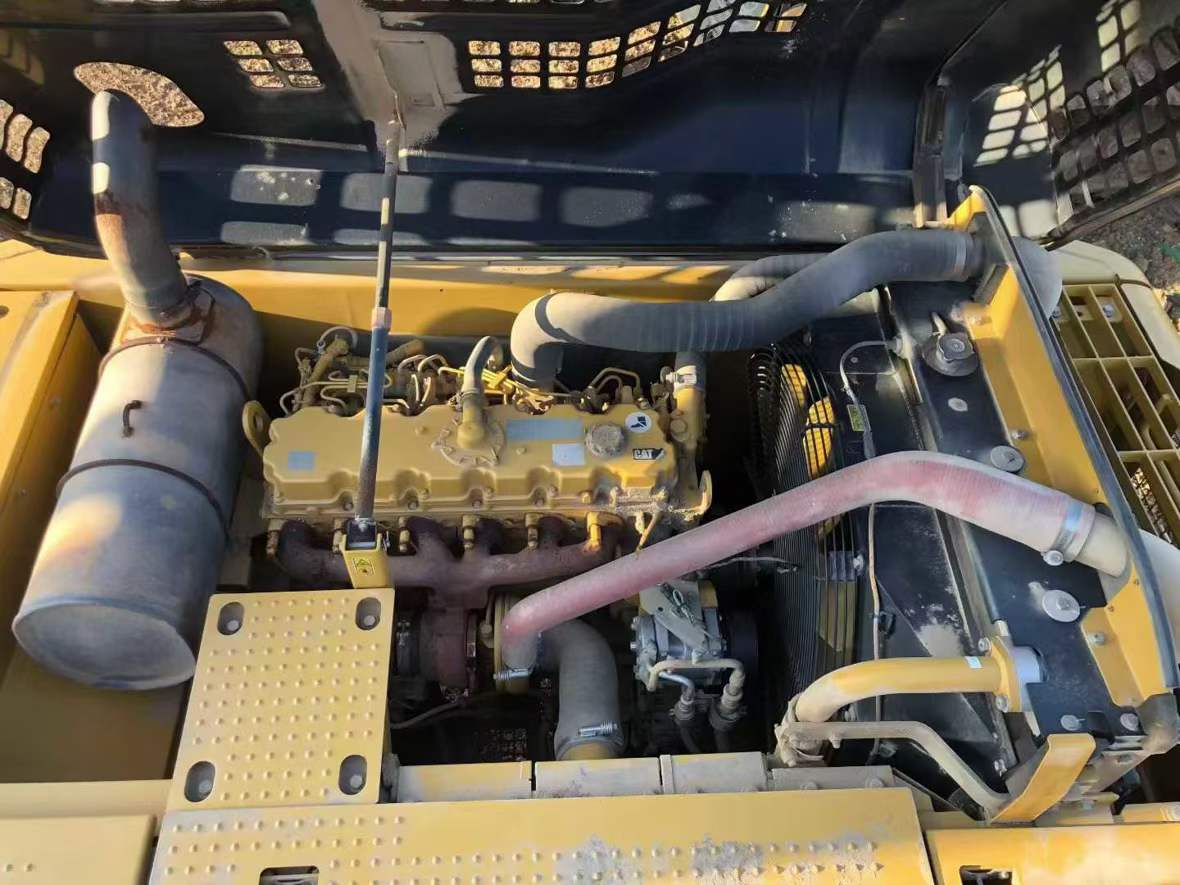

Engine typeCaterpillar C7 ACERT
Rated power (kw/rpm)140
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Displacement (L)7.2
Rotation speed (rpm)9.6
Bucket digging force (kN)174
Rod digging force (kN)122
Maximum tractive force (kN)227
Travel speed (km/h)5.5
Turning torque (Nm)73.4
Main overflow set pressure (Mpa)35
Rotary hydraulic motor type24.5
Type of walking hydraulic motor35
Maximum flow of main pump (l/min)235
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300
Total transport length (mm)10060
Total transport width (mm)3390
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3390
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Description

【 Premium Recommendation 】 Second-hand Caterpillar 326D2 excavator with a working time of only 338,000 hours. This machine is highly favored in the market for its outstanding performance and durability. As a medium to large-sized excavator, it is not only suitable for various heavy-load operation scenarios such as earthwork projects, mining, and road construction, but also favored by a wide range of users for its high efficiency and energy conservation. In terms of the power system, this machine is equipped with the Caterpillar C7 ACERT engine, which is renowned for its powerful output and smooth operation. With a maximum power output of 190kW (approximately 255 horsepower), it ensures sufficient power support under any working conditions. Meanwhile, the advanced electronic control system can achieve precise fuel injection, effectively reducing fuel consumption, improving work efficiency and being more environmentally friendly. The hydraulic system adopts the high-pressure common rail technology independently developed by Caterpillar, making the entire machine operate more smoothly and freely. Both the digging force and the rotation speed have reached the leading level in the industry. In addition, its unique intelligent control func
