Caterpillar 326DL

2018 Caterpillar 326DL

1/7
Used Caterpillar 326DL Excavator 2018 Model / 1
Used Caterpillar 326DL Excavator 2018 Model / 2
Used Caterpillar 326DL Excavator 2018 Model / 3
Used Caterpillar 326DL Excavator 2018 Model / 4
Used Caterpillar 326DL Excavator 2018 Model / 5
Used Caterpillar 326DL Excavator 2018 Model / 6
Used Caterpillar 326DL Excavator 2018 Model / 7
Product Description
SpecificationsValue
No.962648
Tonnage (tons)26
Working weight (kg)25560
Bucket capacity (m³)1.35/1.57
Boom length (mm)5300/5900
Rod length (mm)2000/2500/2950
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar C7 ACERT
Rated power (kw/rpm)140
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Displacement (L)7.2
Rotation speed (rpm)9.6
Bucket digging force (kN)174
Rod digging force (kN)122
Maximum tractive force (kN)227
Travel speed (km/h)5.5
Turning torque (Nm)73.4
Main overflow set pressure (Mpa)35
Rotary hydraulic motor type24.5
Type of walking hydraulic motor35
Maximum flow of main pump (l/min)235
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300
Total transport length (mm)10060
Total transport width (mm)3390
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3390
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Description

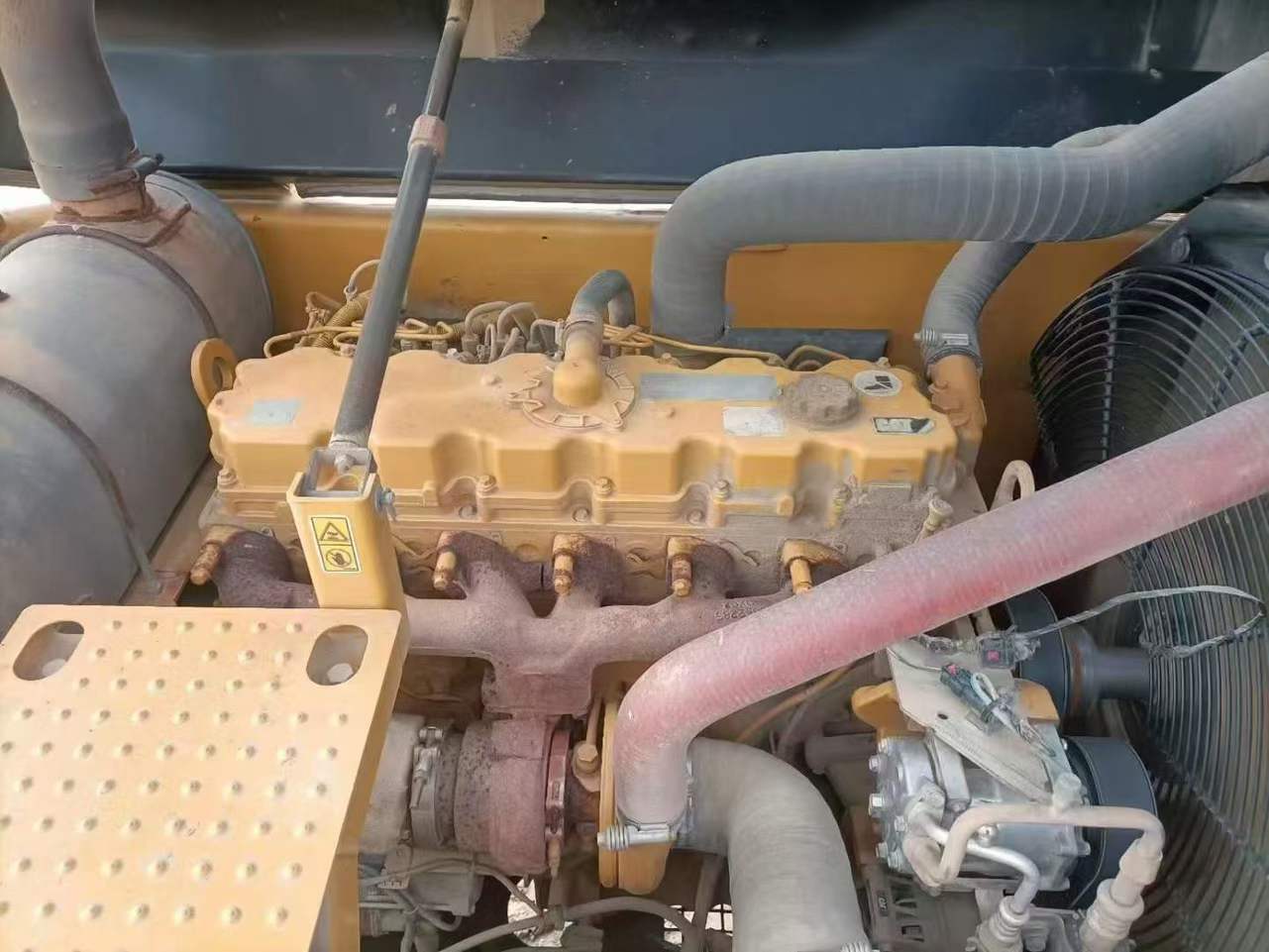

【 Premium Recommendation 】2018 Premium Caterpillar 326D2L excavator, with a working time of only 9,000 hours, in excellent condition, original imported, quality guaranteed. This excavator is one of Caterpillar's classic models and has won the trust of a wide range of users with its outstanding performance and reliability. 【 Power System 】 : This machine is equipped with a Caterpillar C7.1 ACERT engine, with a maximum power output of up to 140kW (190 horsepower), meeting the National III emission standards. It features excellent fuel economy and strong power output. The engine has been meticulously maintained, running smoothly, with low noise and excellent fuel consumption performance, making it suitable for efficient operation under various complex working conditions. 【 Hydraulic System 】 : Equipped with an advanced negative flow control hydraulic system, it responds quickly, operates flexibly and precisely, and can handle tasks such as excavation, loading, and crushing with ease. The high-efficiency combination of the hydraulic pump and motor ensures that the entire machine can maintain good stability and durability even under long-term high-intensity operation. 【 Advantages and Highlights 】 The vehicle body structure is sturdy and

Overview

No.962648

Brand Name:

Caterpillar

Model Number:

326DL

Year:

2018

Location:

Jiangsu China
