Name: 2016 Caterpillar 326DL Used Excavator
Brand: Caterpillar

HOME>>Find Excavators>>

Caterpillar 326DL

2016 Caterpillar 326DL

1/7

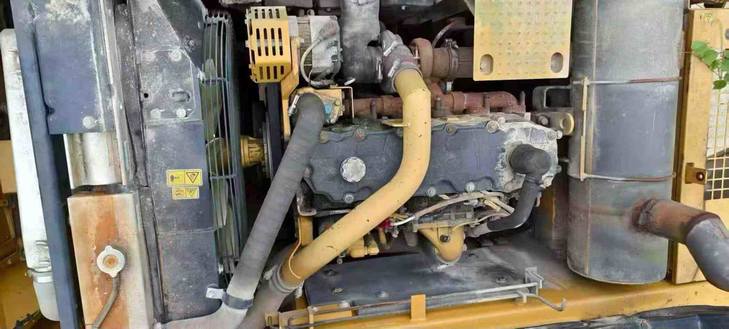

Used Caterpillar 326DL Excavator 2016 Model / 1

Used Caterpillar 326DL Excavator 2016 Model / 2

Used Caterpillar 326DL Excavator 2016 Model / 3

Used Caterpillar 326DL Excavator 2016 Model / 4

Used Caterpillar 326DL Excavator 2016 Model / 5

Used Caterpillar 326DL Excavator 2016 Model / 6

Used Caterpillar 326DL Excavator 2016 Model / 7

Product Description
Specifications	Value
No.	965857
Tonnage (tons)	26
Working weight (kg)	25560
Bucket capacity (m³)	1.35/1.57
Boom length (mm)	5300/5900
Rod length (mm)	2000/2500/2950
Country of origin	Xuzhou, Jiangsu
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Caterpillar C7 ACERT
Rated power (kw/rpm)	140
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	110 x 127
Displacement (L)	7.2
Rotation speed (rpm)	9.6
Bucket digging force (kN)	174
Rod digging force (kN)	122
Maximum tractive force (kN)	227
Travel speed (km/h)	5.5
Turning torque (Nm)	73.4
Main overflow set pressure (Mpa)	35
Rotary hydraulic motor type	24.5
Type of walking hydraulic motor	35
Maximum flow of main pump (l/min)	235
Pilot Oil Circuit (MPa)	3.9
Bucket cylinders - Number × diameter × stroke (mm)	1 x 150 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)	1 x 140 x 1660
Boom cylinders - Number × diameter × stroke (mm)	2 x 135 x 1305
Fuel Tank (L)	520
Hydraulic Tank (L)	145
Engine Oil changes (L)	30
Coolant (L)	30
Hydraulic System (L)	300
Total transport length (mm)	10060
Total transport width (mm)	3390
Total transport height (mm)	3170
Full cab height (mm)	2980
Counterweight ground clearance (mm)	1060
Minimum ground clearance (mm)	470
Back end turning radius (mm)	2940
Total track length (mm)	4630
Track gauge (mm)	2590
Track plate width (mm)	600
Total track width (mm)	3390
Maximum digging depth (mm)	6740
Maximum excavation height (mm)	9660
Maximum unloading height (mm)	6700
Maximum vertical digging depth (mm)	5830
Maximum excavation radius of stop surface (mm)	10030
Maximum effective digging depth (mm)	6560

Description

【 Premium Recommendation 】 Super original Caterpillar 326D2 excavator, now priced at only 140,000 yuan! This equipment is your reliable assistant on the construction site. Whether it's digging, loading or leveling the land, it can handle all these tasks with ease. This machine has a working time of only 1,500 hours, which is equivalent to a nearly brand new machine. With low usage frequency, minimal wear and tear, and proper maintenance, its overall performance is stable and reliable. In terms of the power system, it is equipped with the C7.1 ACERT engine independently developed by Caterpillar. This engine is renowned worldwide for its outstanding fuel economy and powerful output. It not only meets the operational requirements under various complex working conditions but also runs smoothly with low noise, significantly enhancing the comfort of operation. In addition, this engine is also equipped with advanced electronic control technology, which can automatically adjust the speed according to the actual load, further reducing fuel consumption and improving work efficiency. The hydraulic system adopts Caterpillar's unique positive flow control system, which features a fast response speed, precise and smooth operation, ensuring stable 2025-12-13 00:01:52

Overview

No.965857

Brand Name：

Caterpillar

Model Number：

326DL

Year：

2016

Location：

Sichuan China
