HOME>>Find Excavators>>Caterpillar 326DL

2018 Caterpillar 326DL

1/9
Used Caterpillar 326DL Excavator 2018 Model / 1
Used Caterpillar 326DL Excavator 2018 Model / 2

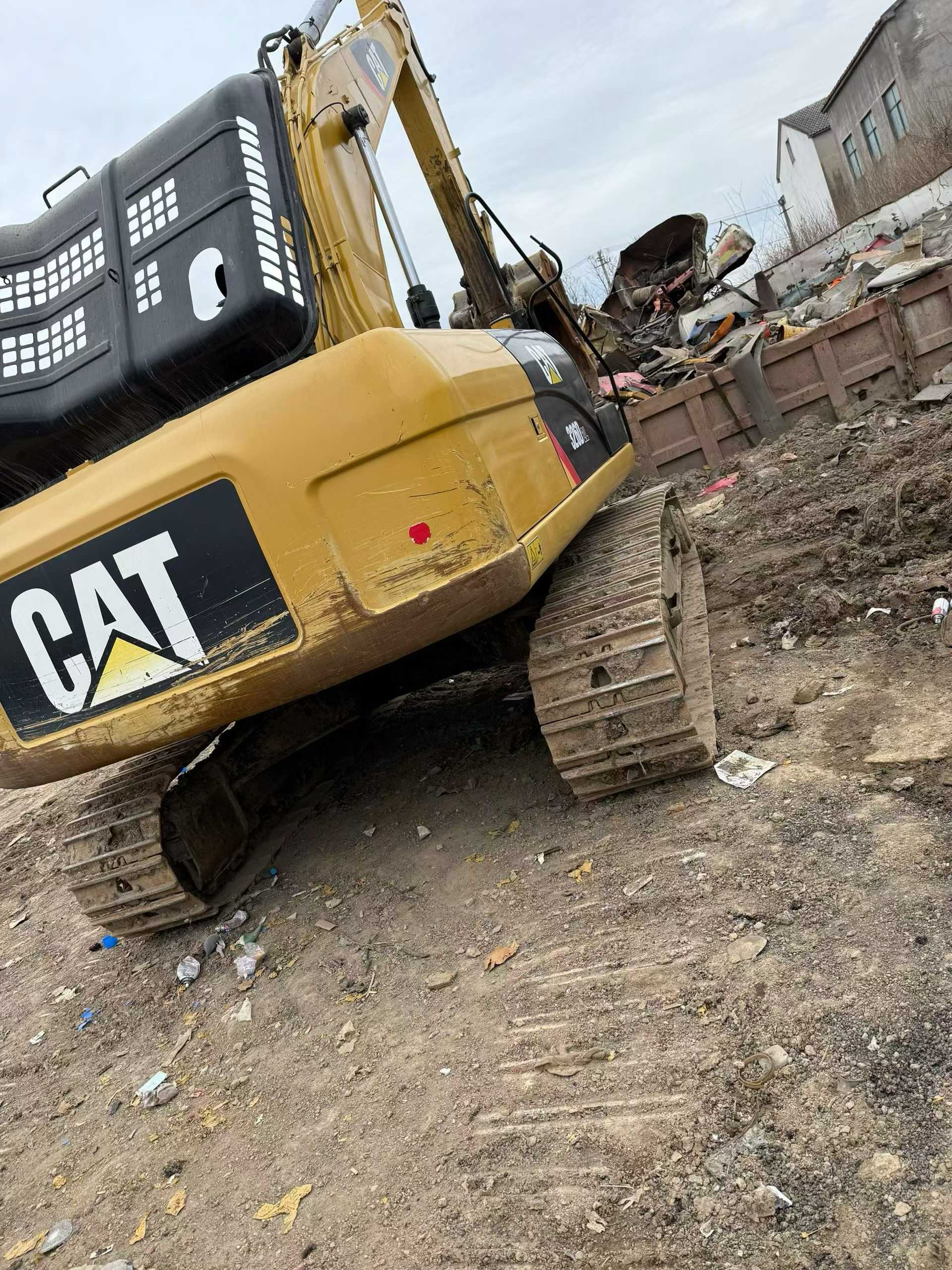

Used Caterpillar 326DL Excavator 2018 Model / 3
Used Caterpillar 326DL Excavator 2018 Model / 4

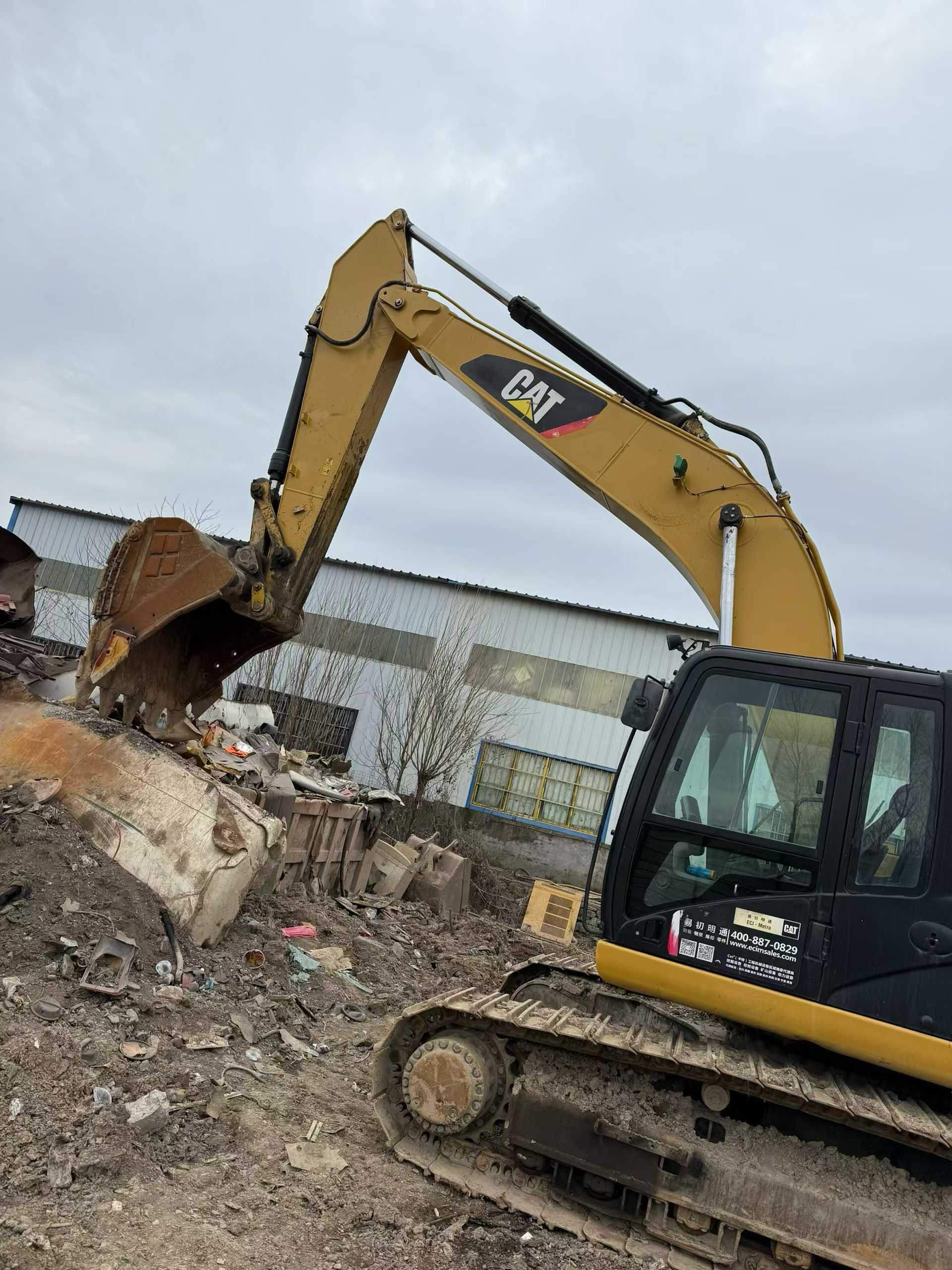

Used Caterpillar 326DL Excavator 2018 Model / 5

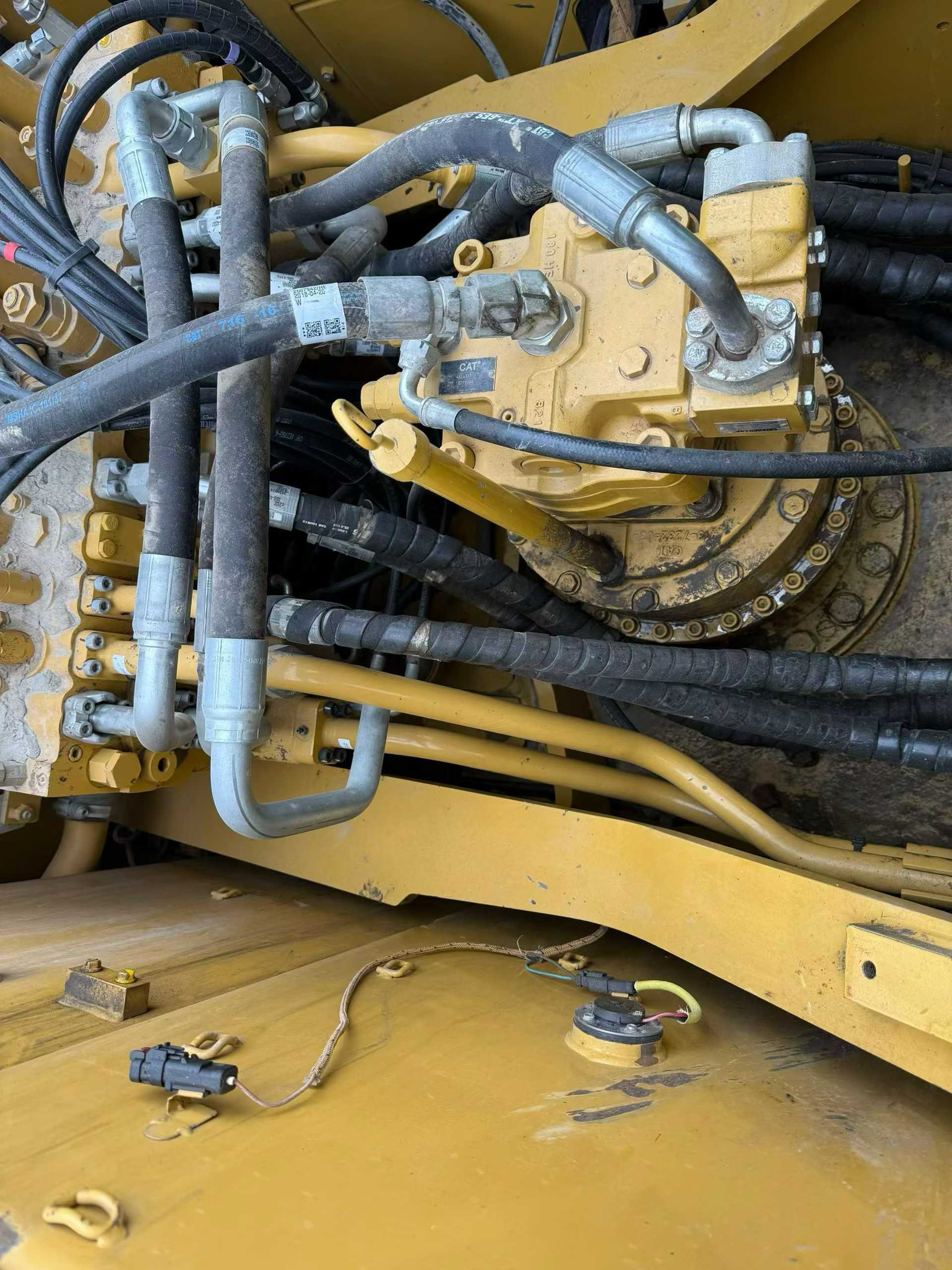

Used Caterpillar 326DL Excavator 2018 Model / 6

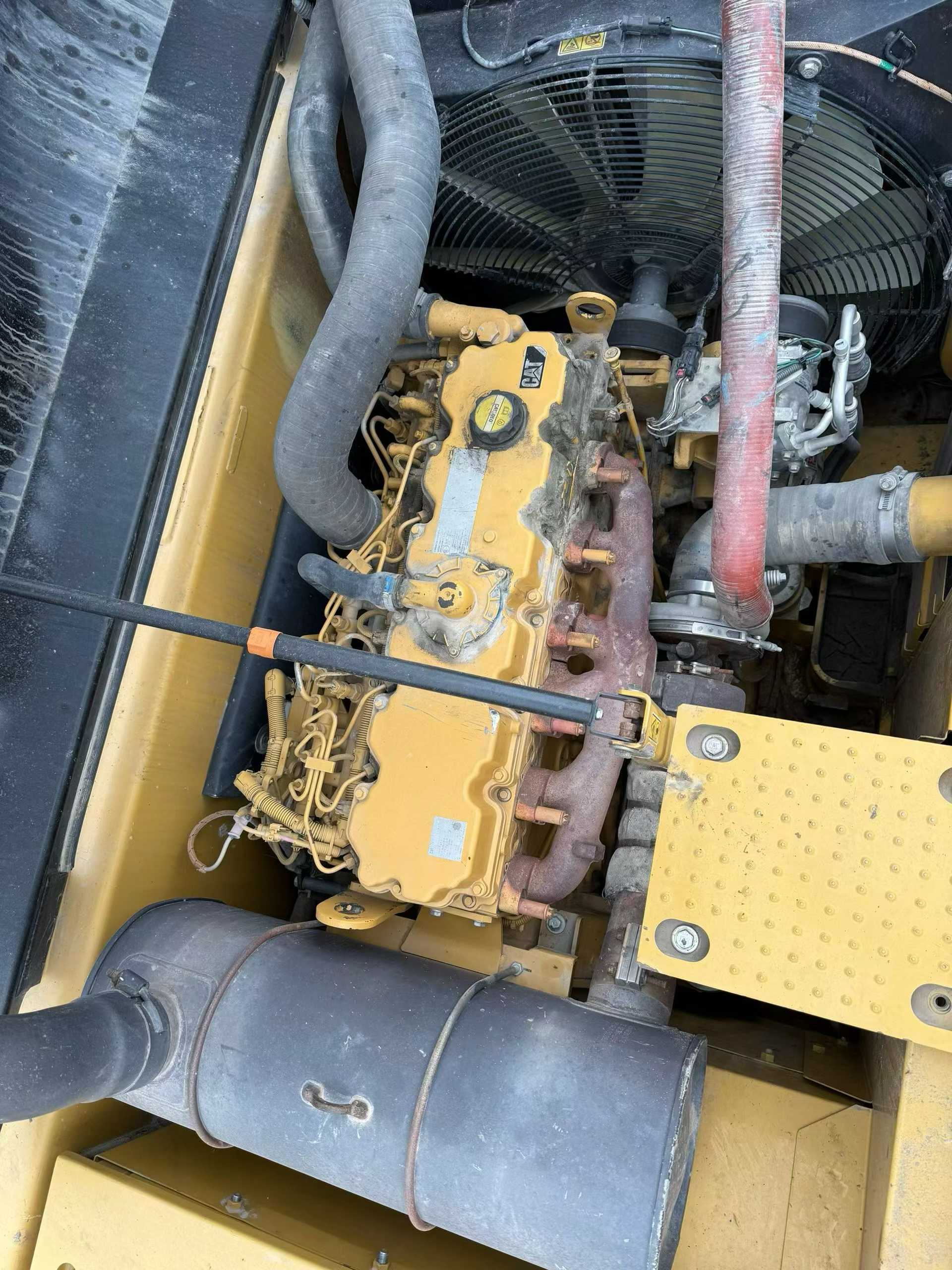

Used Caterpillar 326DL Excavator 2018 Model / 7

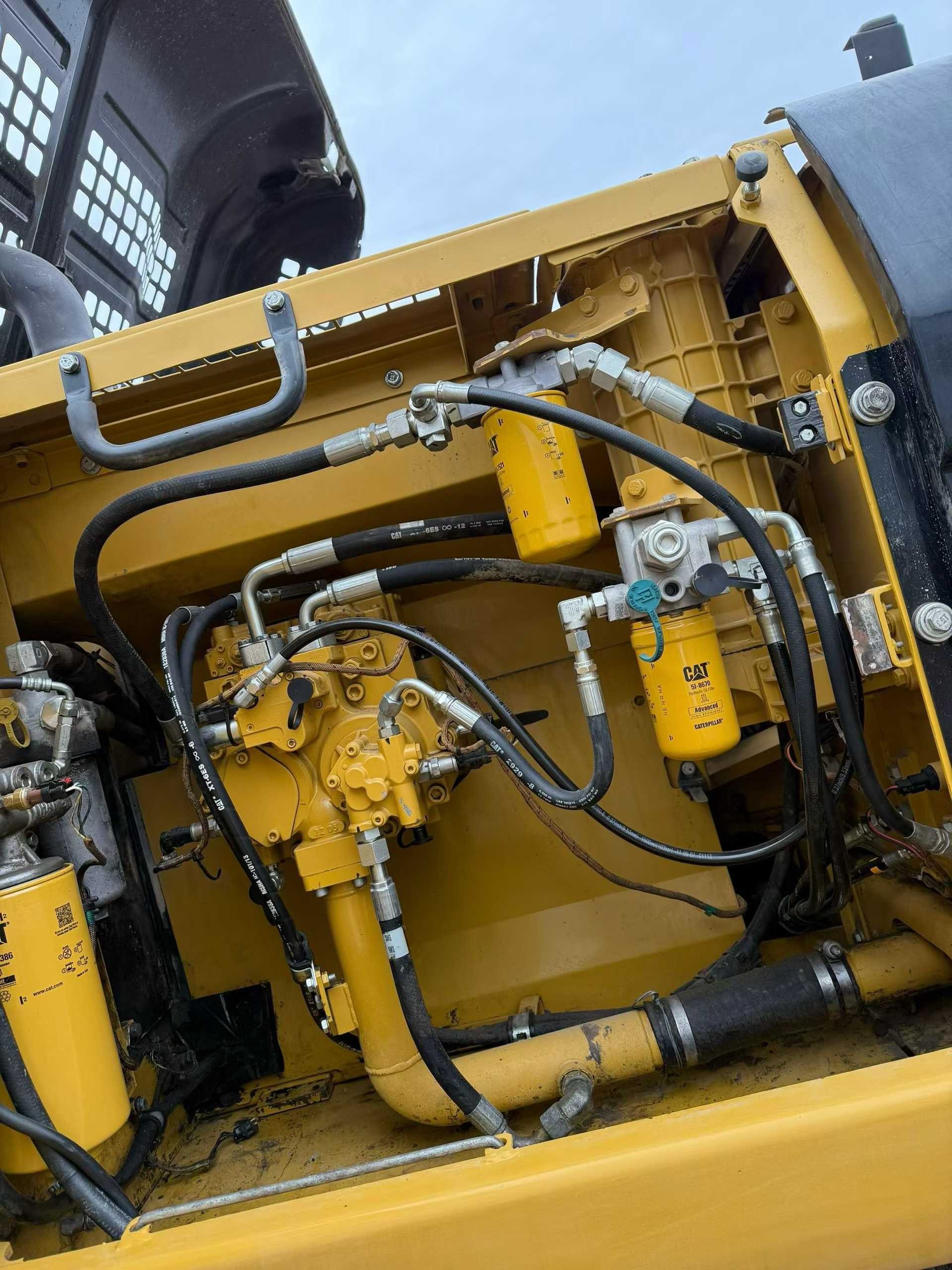

Used Caterpillar 326DL Excavator 2018 Model / 8

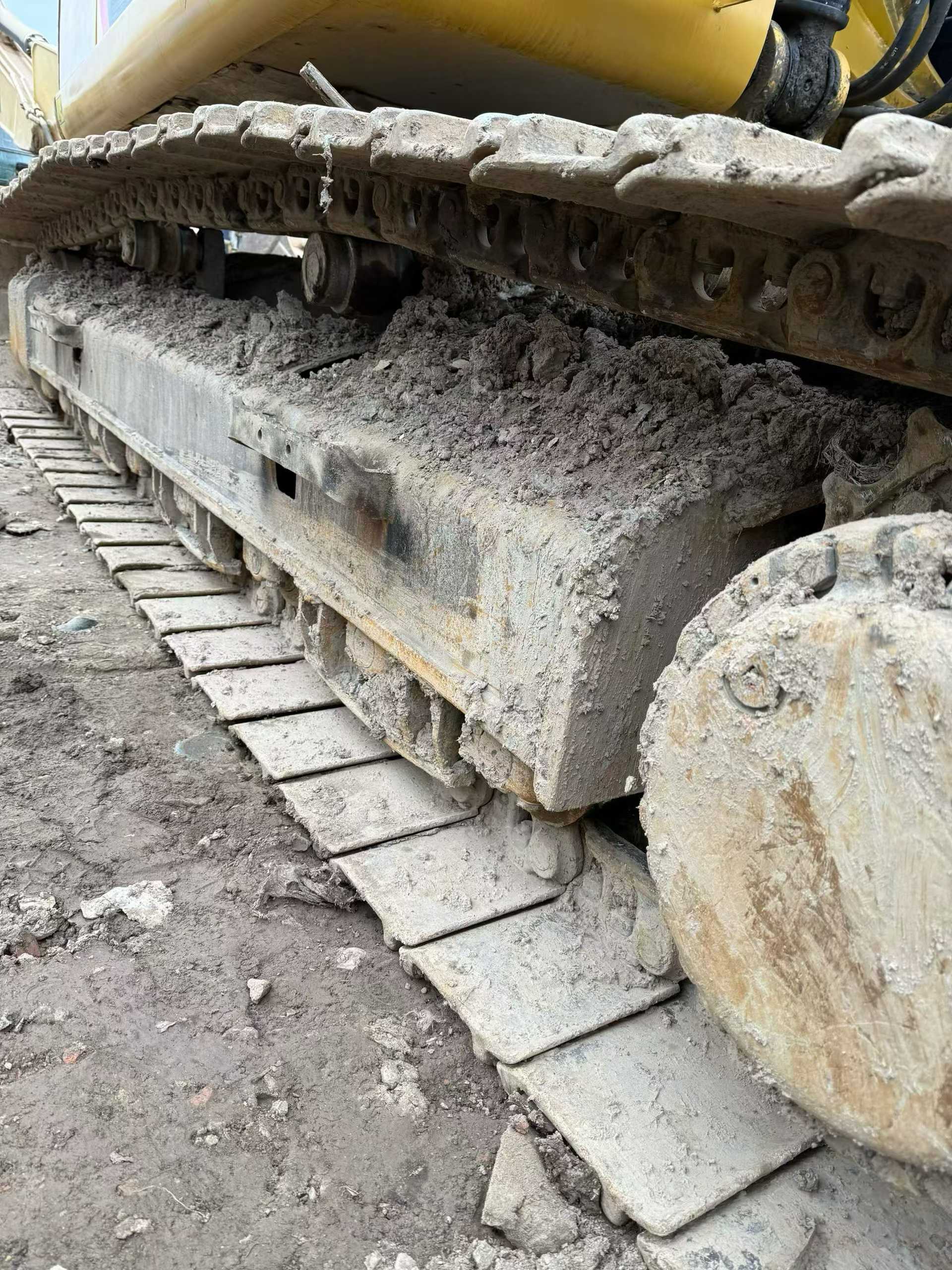

Used Caterpillar 326DL Excavator 2018 Model / 9

Product Description

【 Premium Recommendation 】2018 Caterpillar 326D2L excavator, mining-specific chassis, outstanding performance, quality guaranteed! Since it was put into use in 2018, this second-hand excavator has worked for a total of 4,500 hours and has been serving the professional mining operation environment. Its sturdy and durable mine-specific chassis design not only enables it to withstand harsh working conditions but also significantly extends the service life of the equipment. In terms of power, this aircraft is equipped with an original imported C7.1 engine from Caterpillar, with a rated power of 190 horsepower (approximately 142 kilowatts). While providing strong power, it can also effectively reduce fuel consumption and emissions, meeting national environmental protection standards. The hydraulic system adopts advanced electric control positive flow control technology, ensuring more precise and smooth operation. It can handle complex working conditions such as excavation, loading and crushing with ease. In addition, this excavator is equipped with a variety of safety protection devices and an intelligent monitoring system, which can monitor the machine's status in real time, prevent faults from occurring, and further ensure construction

SpecificationsValue
No.972195
Tonnage (tons)26
Working weight (kg)25560
Bucket capacity (m³)1.35/1.57
Boom length (mm)5300/5900
Rod length (mm)2000/2500/2950
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar C7 ACERT
Rated power (kw/rpm)140
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Displacement (L)7.2
Rotation speed (rpm)9.6
Bucket digging force (kN)174
Rod digging force (kN)122
Maximum tractive force (kN)227
Travel speed (km/h)5.5
Turning torque (Nm)73.4
Main overflow set pressure (Mpa)35
Rotary hydraulic motor type24.5
Type of walking hydraulic motor35
Maximum flow of main pump (l/min)235
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300
Total transport length (mm)10060
Total transport width (mm)3390
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3390
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Overview

No.972195

Brand Name:

Caterpillar

Model Number:

326DL

Year:

2018

Location:

Jiangsu China
