2020 Caterpillar 326DL

1/9

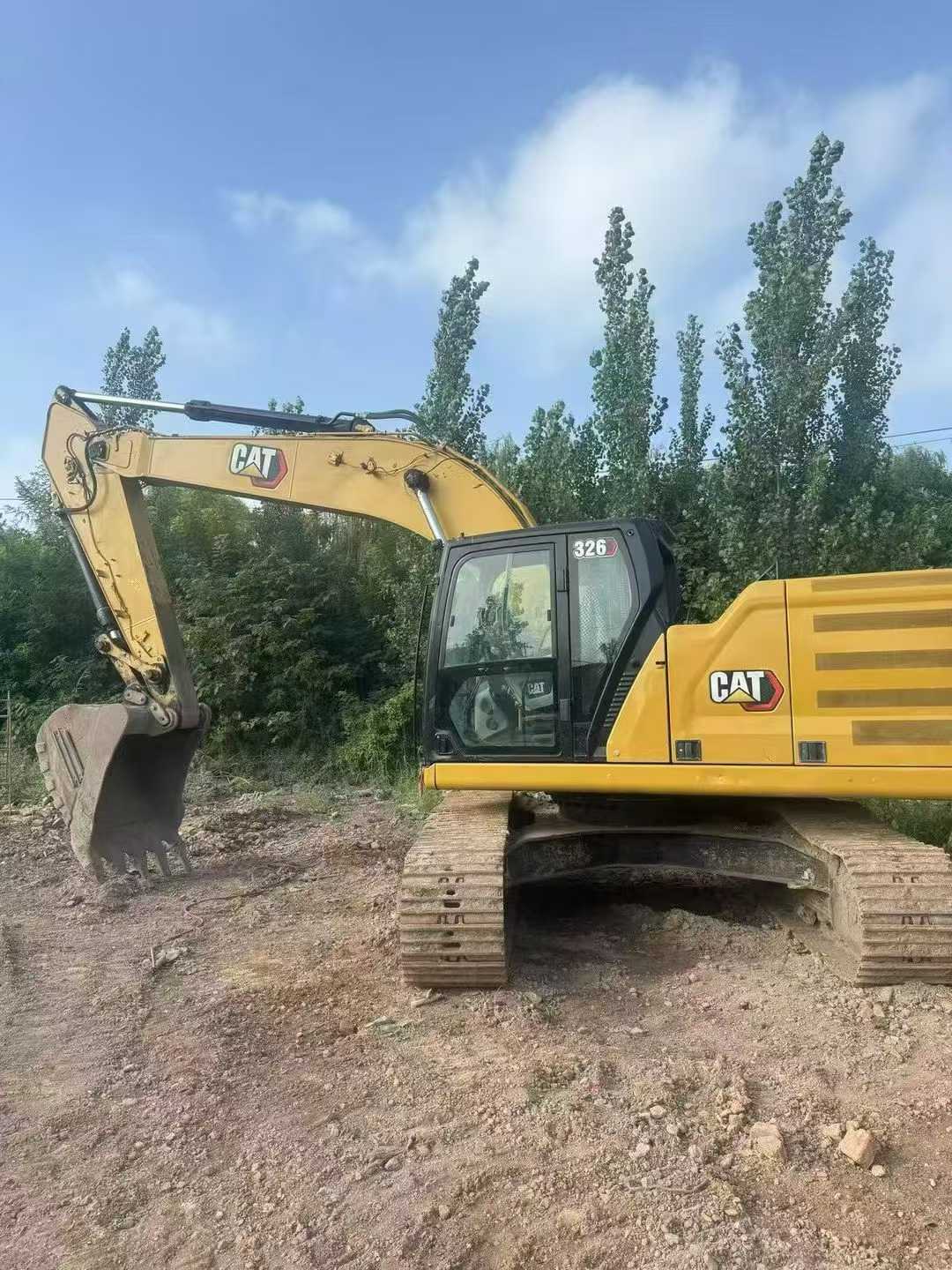

Used Caterpillar 326DL Excavator 2020 Model / 1

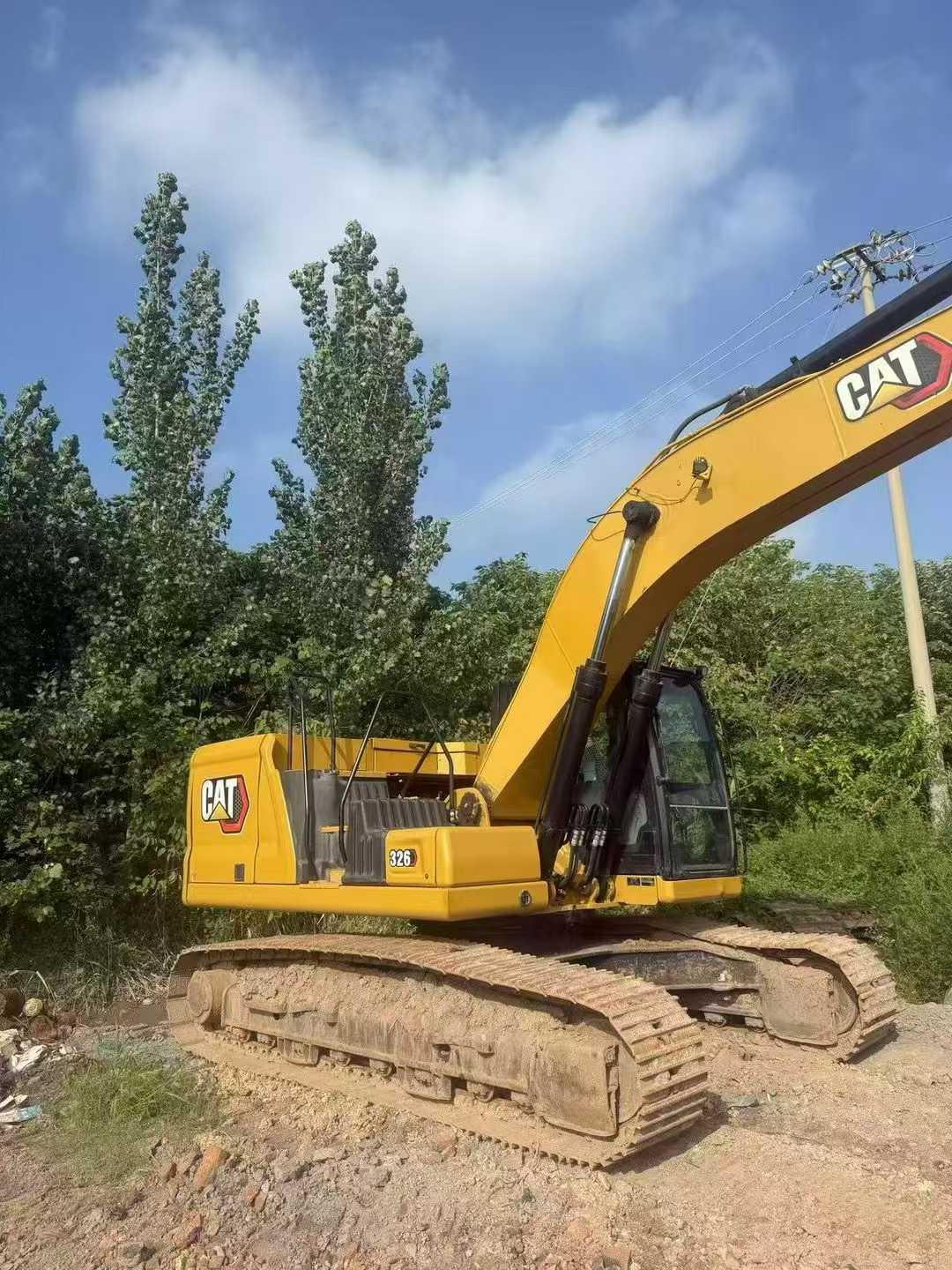

Used Caterpillar 326DL Excavator 2020 Model / 2
Used Caterpillar 326DL Excavator 2020 Model / 3

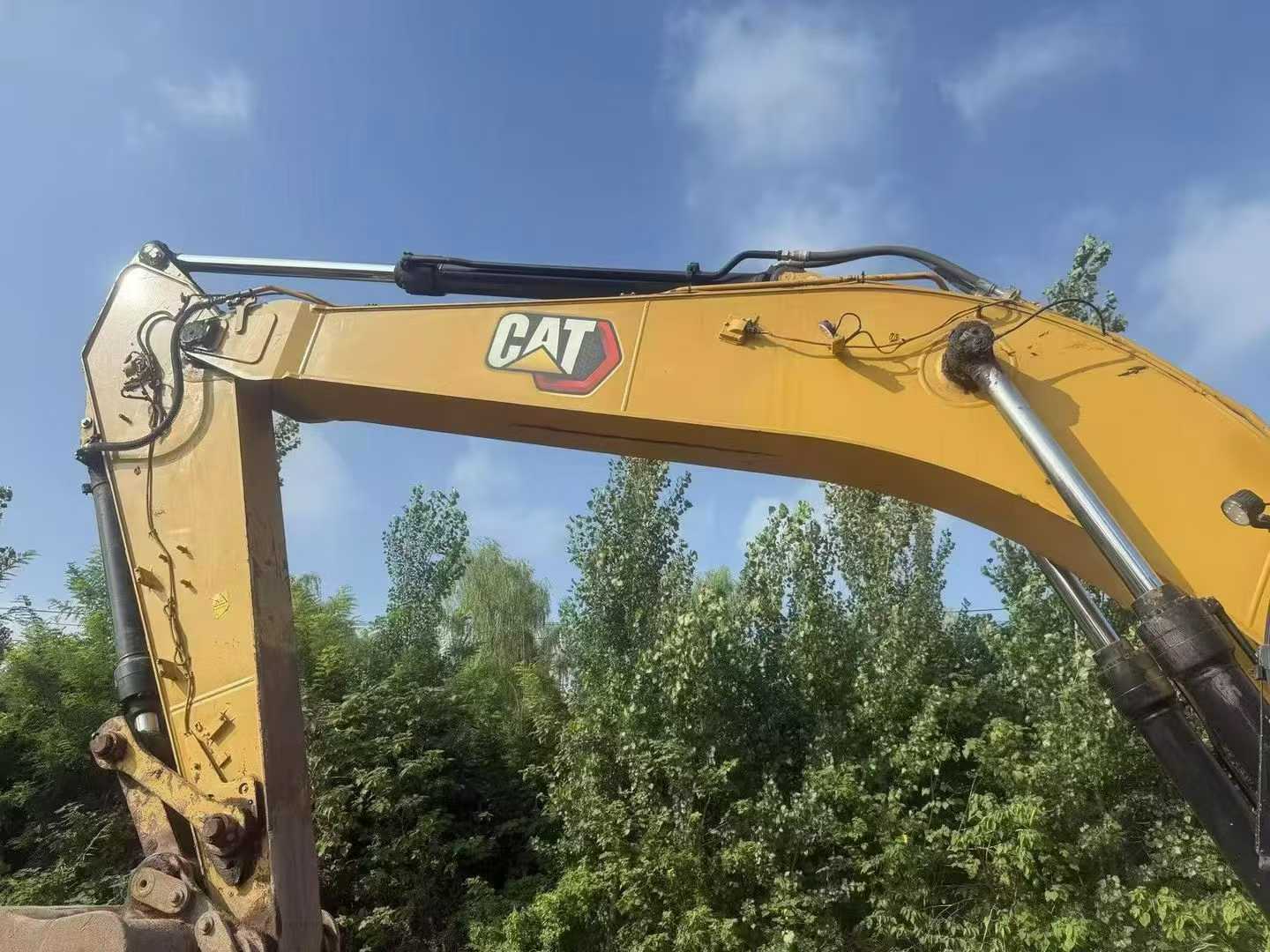

Used Caterpillar 326DL Excavator 2020 Model / 4

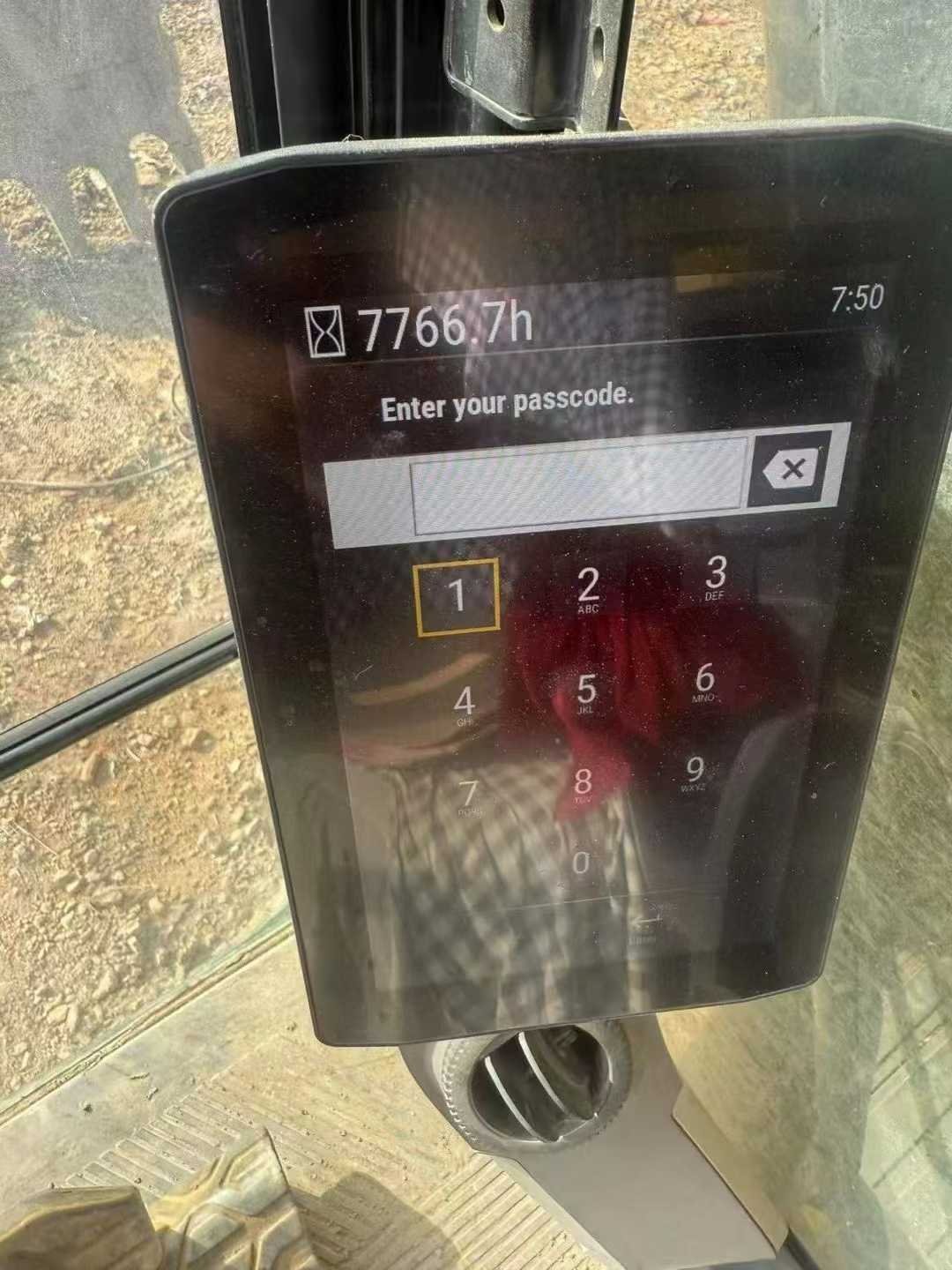

Used Caterpillar 326DL Excavator 2020 Model / 5

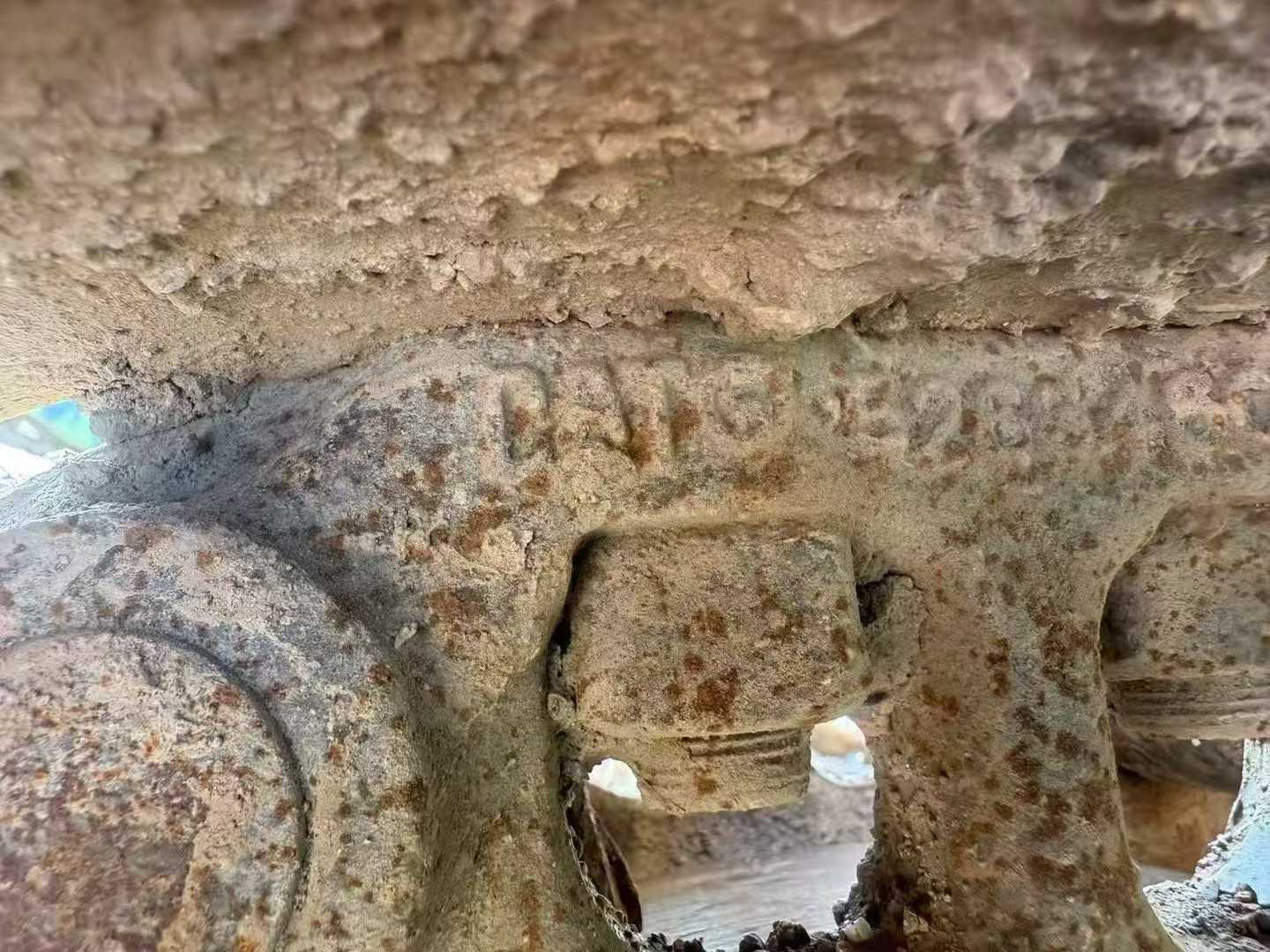

Used Caterpillar 326DL Excavator 2020 Model / 6

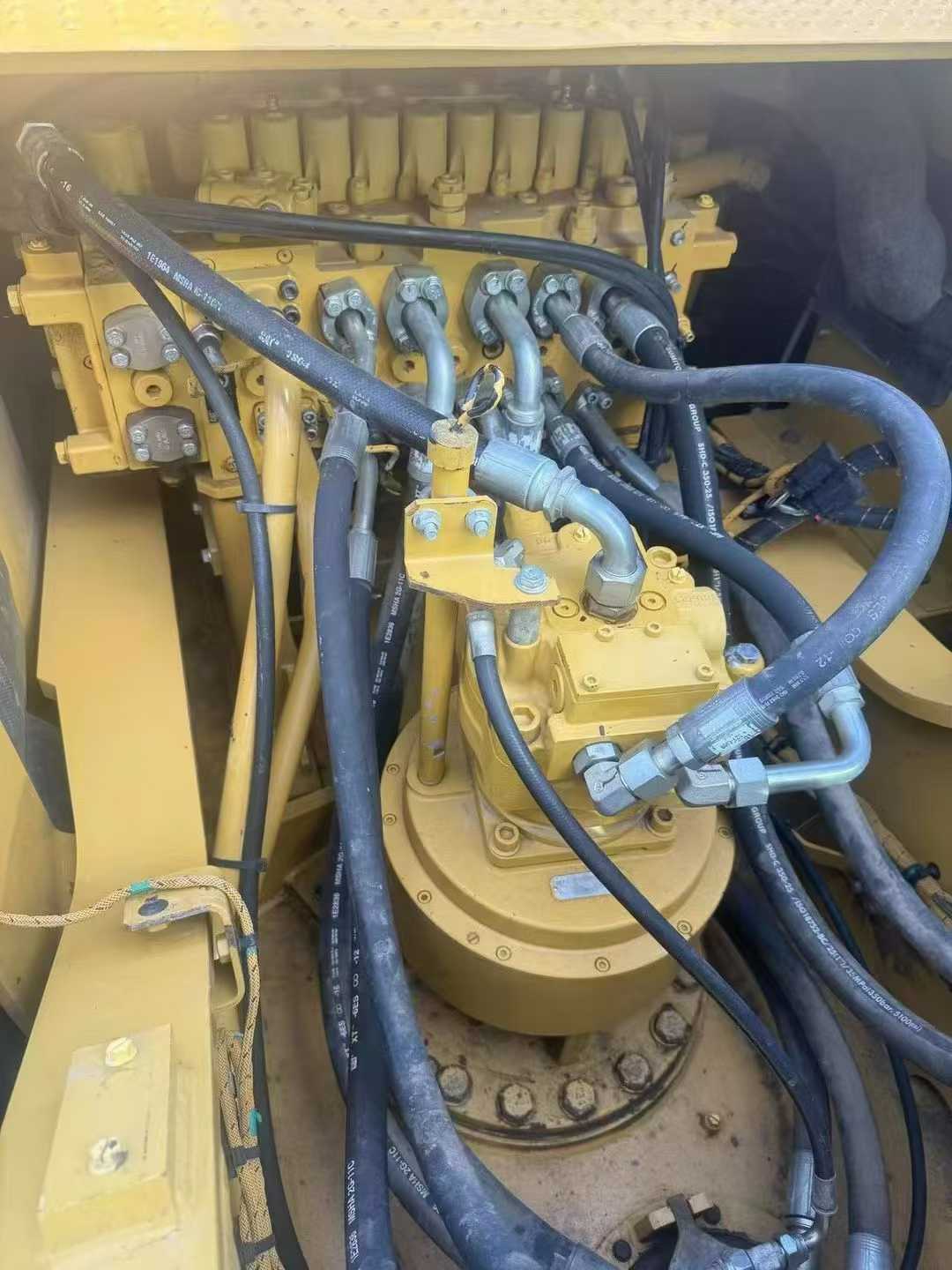

Used Caterpillar 326DL Excavator 2020 Model / 7

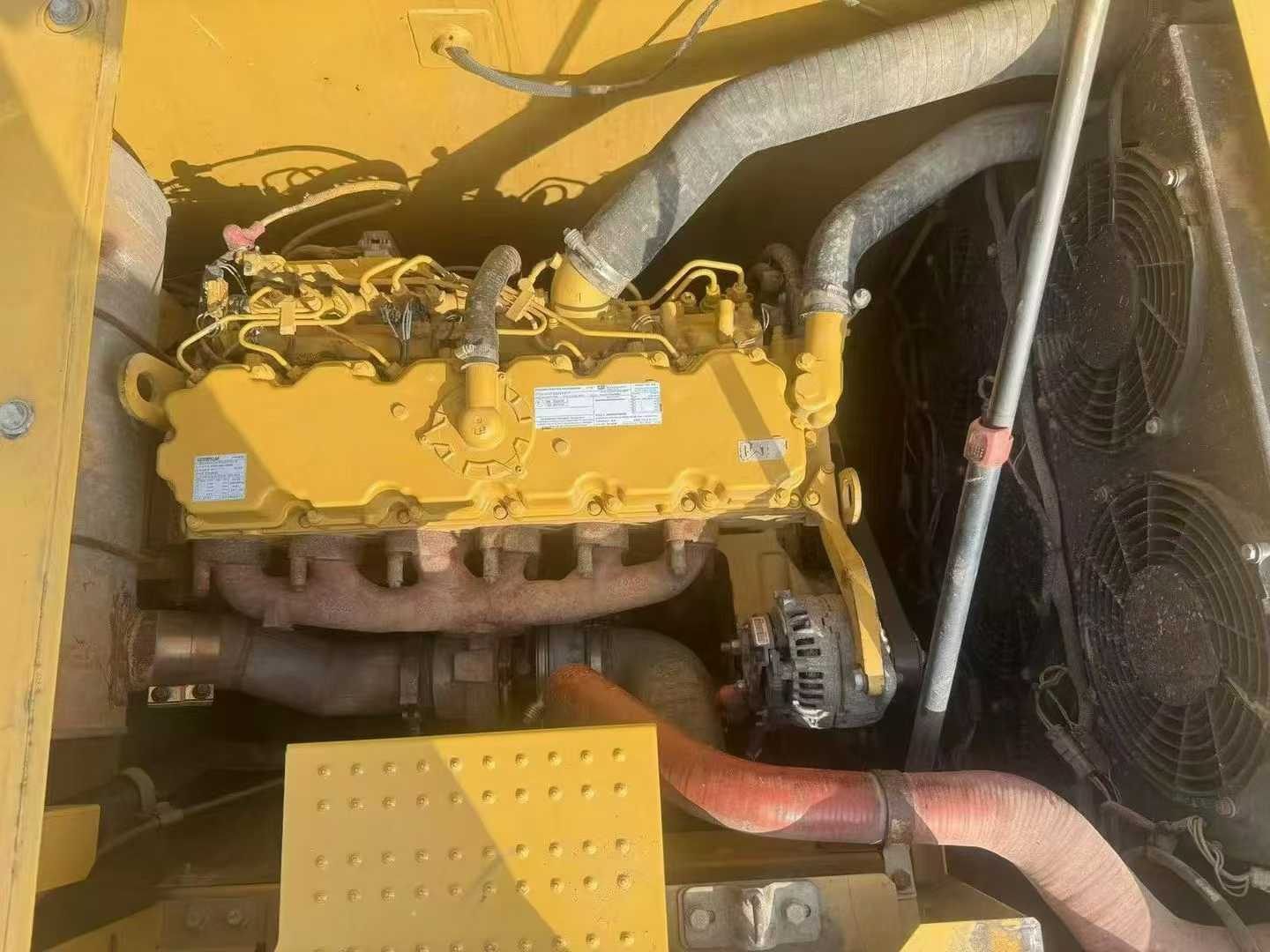

Used Caterpillar 326DL Excavator 2020 Model / 8

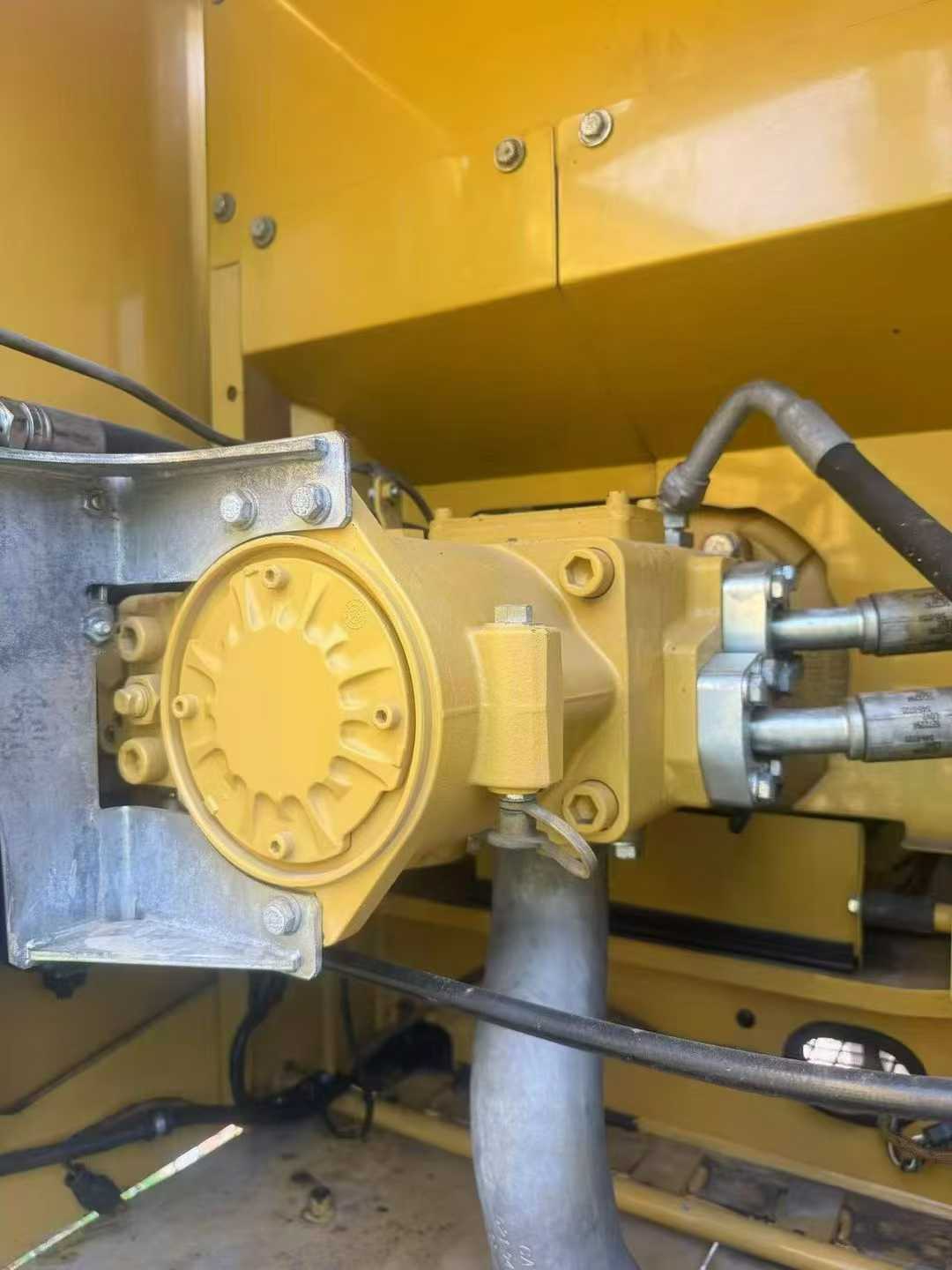

Used Caterpillar 326DL Excavator 2020 Model / 9

Product Description

There is currently a high-end Caterpillar 326 excavator produced in 2012, with a working time of only over 7,700 hours, in the best condition for use. This device is equipped with a C9.3 ACERT engine, with a maximum power output of 184 kilowatts (approximately 245 horsepower). It features excellent fuel economy and strong power output, ensuring efficient and stable operation performance under various complex working conditions. In terms of the hydraulic system, this excavator is equipped with advanced variable piston pumps and high-torque hydraulic motors, which not only provide precise and rapid operation responses but also effectively reduce energy consumption and extend the service life of the entire machine. Its outstanding excavation force combined with smoothness enables it to handle both earthwork projects and rock crushing tasks with ease. In addition, this second-hand Caterpillar 326 also features a spacious and comfortable cab design, an easy-to-maintain structural layout, and comprehensive safety protection measures, among many other advantages. Overall, it is a highly cost-effective medium-sized excavator choice, making it very suitable for professional users who pursue both efficient construction and cost control. It is

SpecificationsValue
No.976234
Tonnage (tons)26
Working weight (kg)25560
Bucket capacity (m³)1.35/1.57
Boom length (mm)5300/5900
Rod length (mm)2000/2500/2950
Country of originXuzhou, Jiangsu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar C7 ACERT
Rated power (kw/rpm)140
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Displacement (L)7.2
Rotation speed (rpm)9.6
Bucket digging force (kN)174
Rod digging force (kN)122
Maximum tractive force (kN)227
Travel speed (km/h)5.5
Turning torque (Nm)73.4
Main overflow set pressure (Mpa)35
Rotary hydraulic motor type24.5
Type of walking hydraulic motor35
Maximum flow of main pump (l/min)235
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)1 x 150 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)1 x 140 x 1660
Boom cylinders - Number × diameter × stroke (mm)2 x 135 x 1305
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)300
Total transport length (mm)10060
Total transport width (mm)3390
Total transport height (mm)3170
Full cab height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)470
Back end turning radius (mm)2940
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3390
Maximum digging depth (mm)6740
Maximum excavation height (mm)9660
Maximum unloading height (mm)6700
Maximum vertical digging depth (mm)5830
Maximum excavation radius of stop surface (mm)10030
Maximum effective digging depth (mm)6560
see more

Overview

No.976234

Brand Name:

Caterpillar

Model Number:

326DL

Year:

2020

Location:

Jiangsu China
