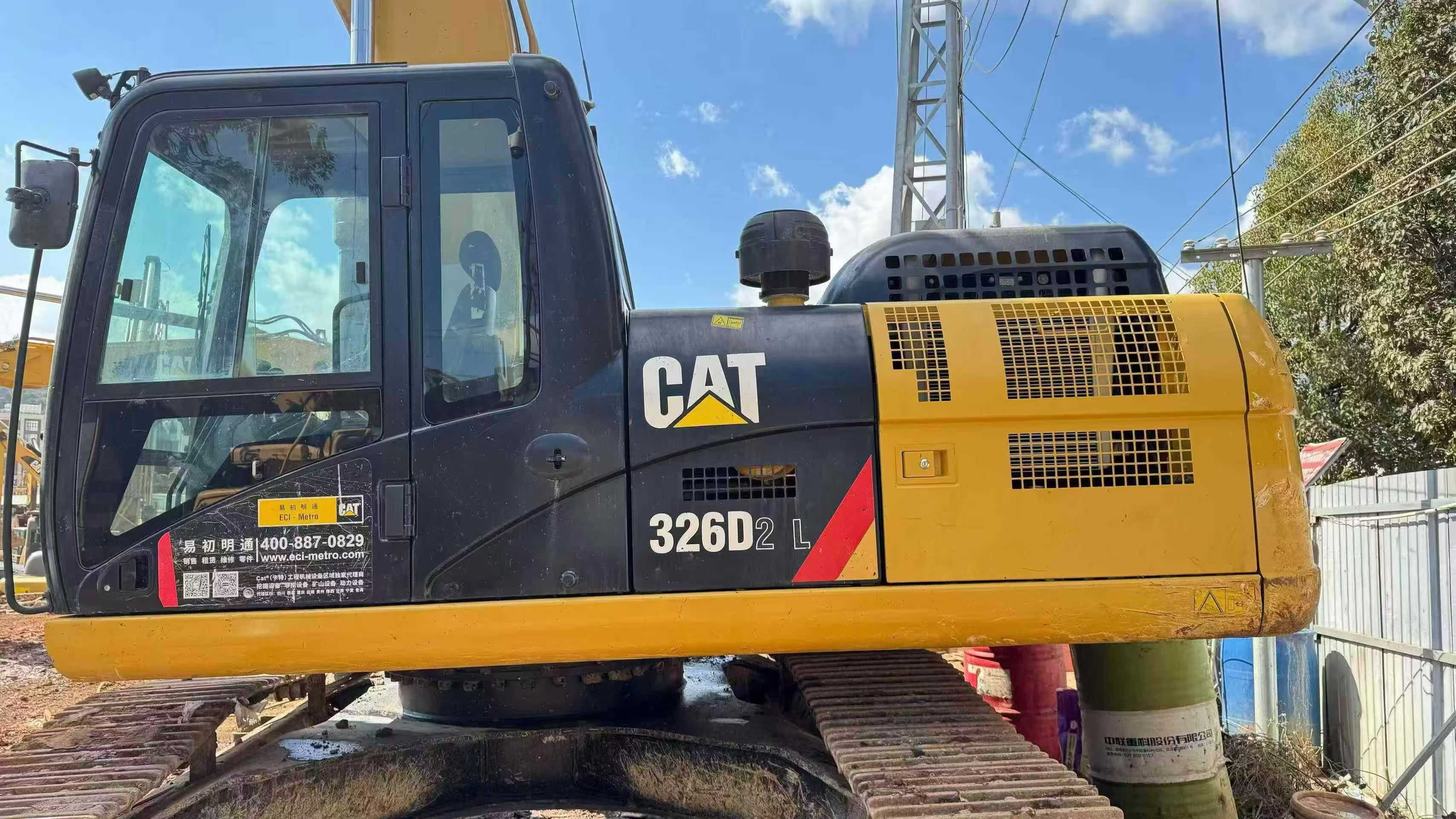

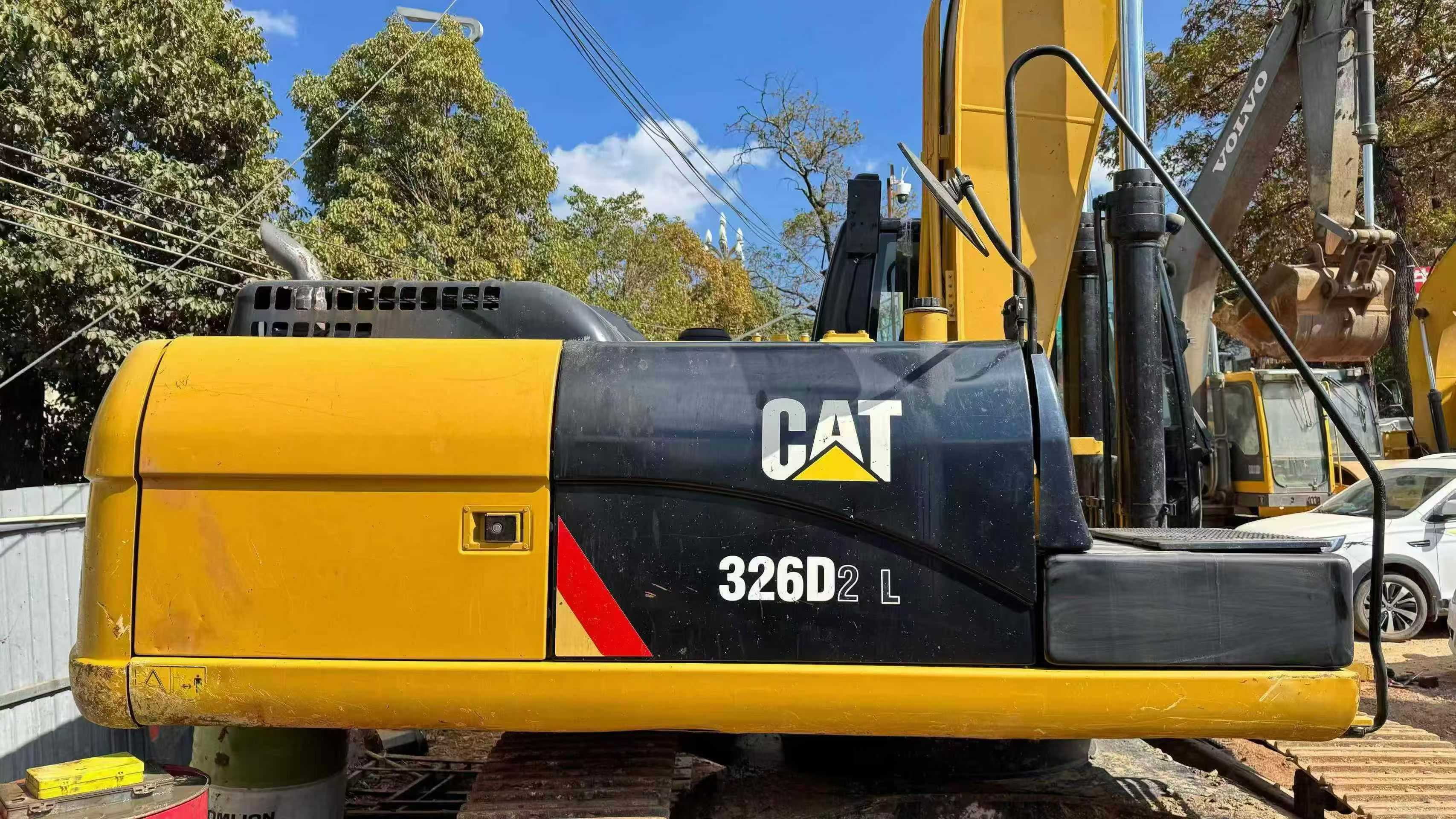

2020 Caterpillar 326DL
Product Description
Built for demanding construction environments, this 2020 Caterpillar 326DL delivers exceptional operator control and jobsite performance. With 26 tons of working weight and a powerful 140kW Caterpillar C7 ACERT engine, operators experience smooth hydraulic response and precise digging capabilities across varied terrain conditions.

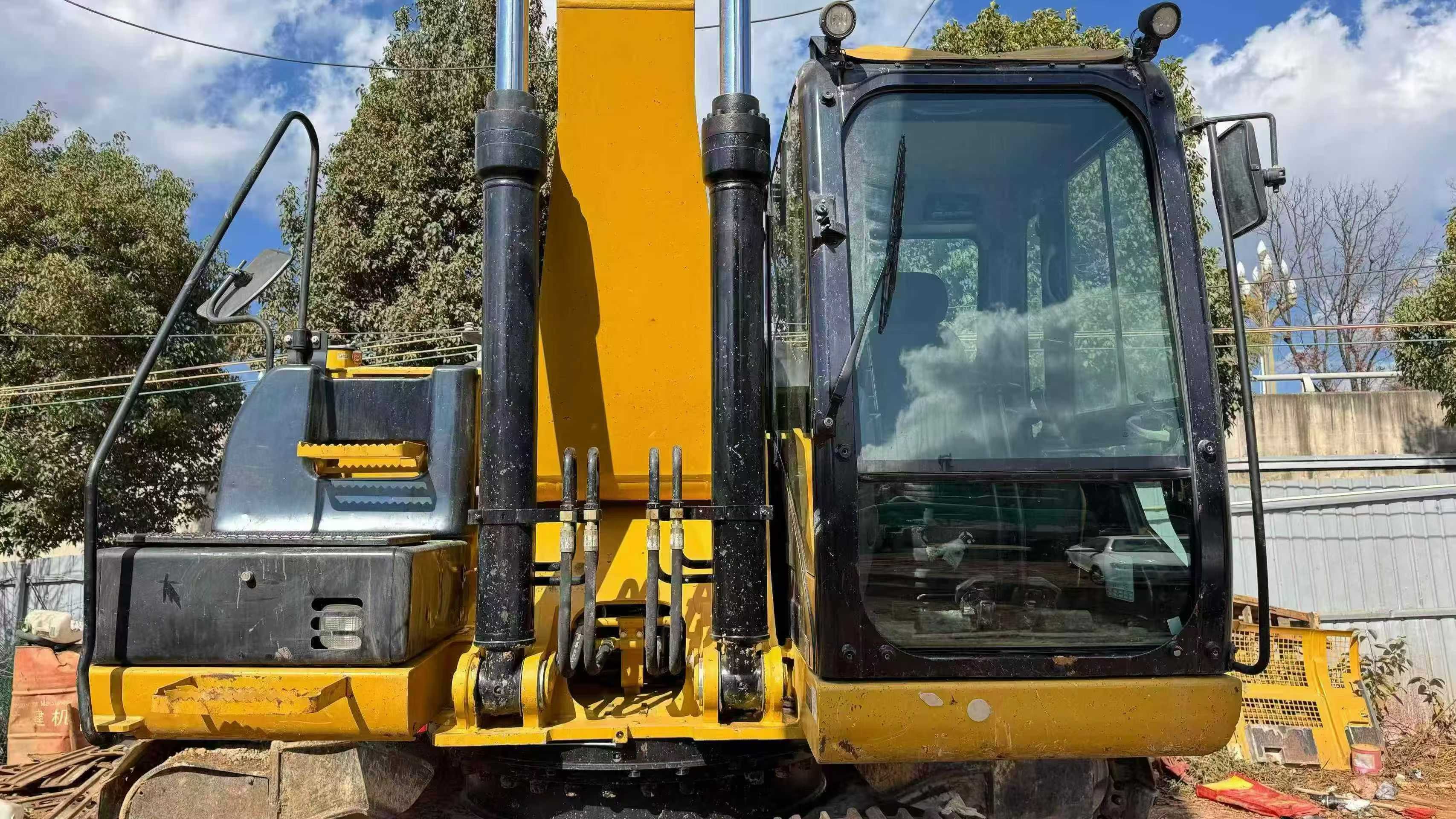

Enhanced cabin design provides superior visibility for safe operation, while the machine's 10.03m maximum excavation radius and 6.74m digging depth handle large-scale earthmoving tasks efficiently. Advanced hydraulic systems generate 174kN bucket digging force, ensuring consistent productivity in challenging soil conditions.

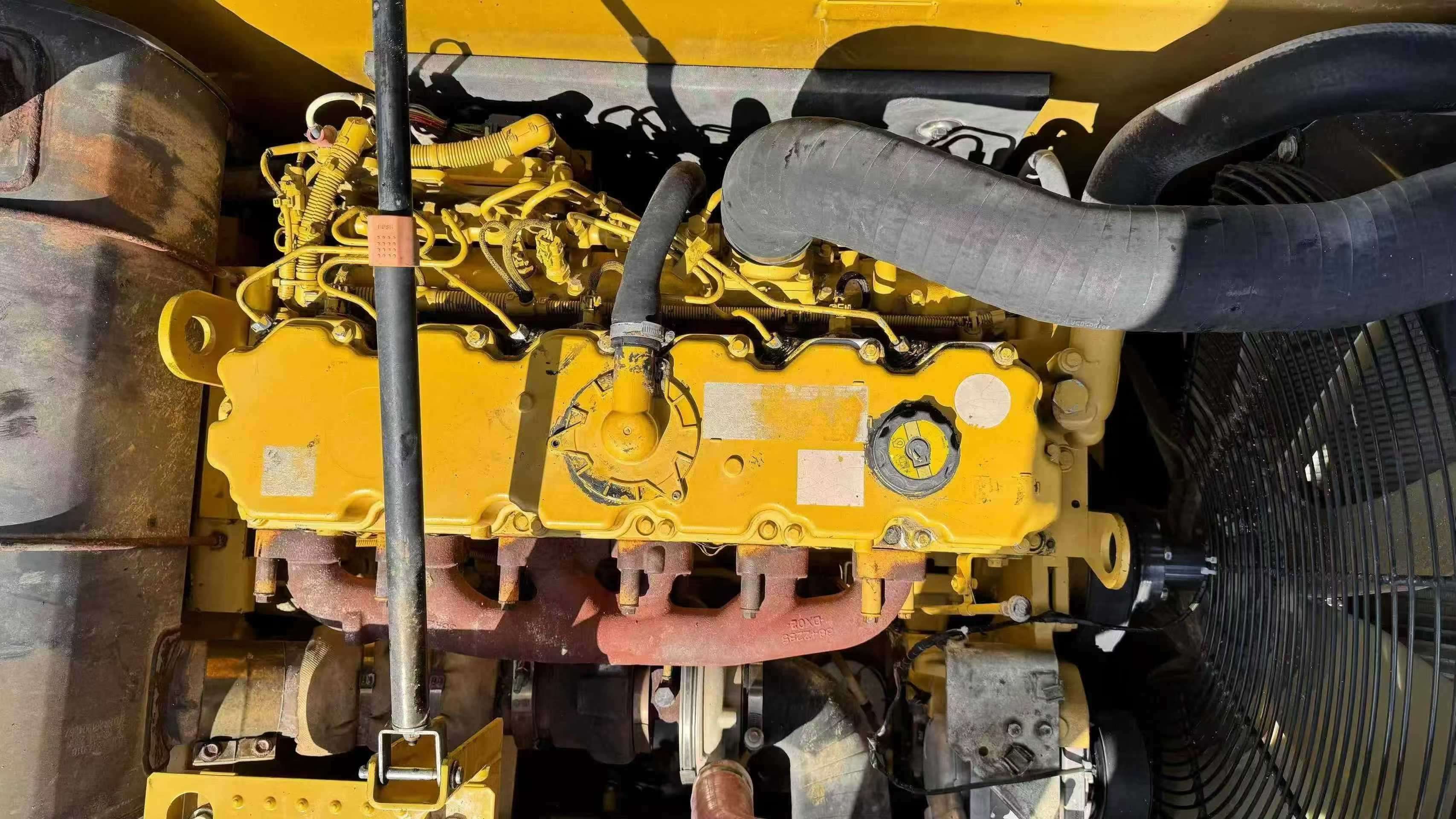

- Caterpillar C7 ACERT engine with water-cooling system

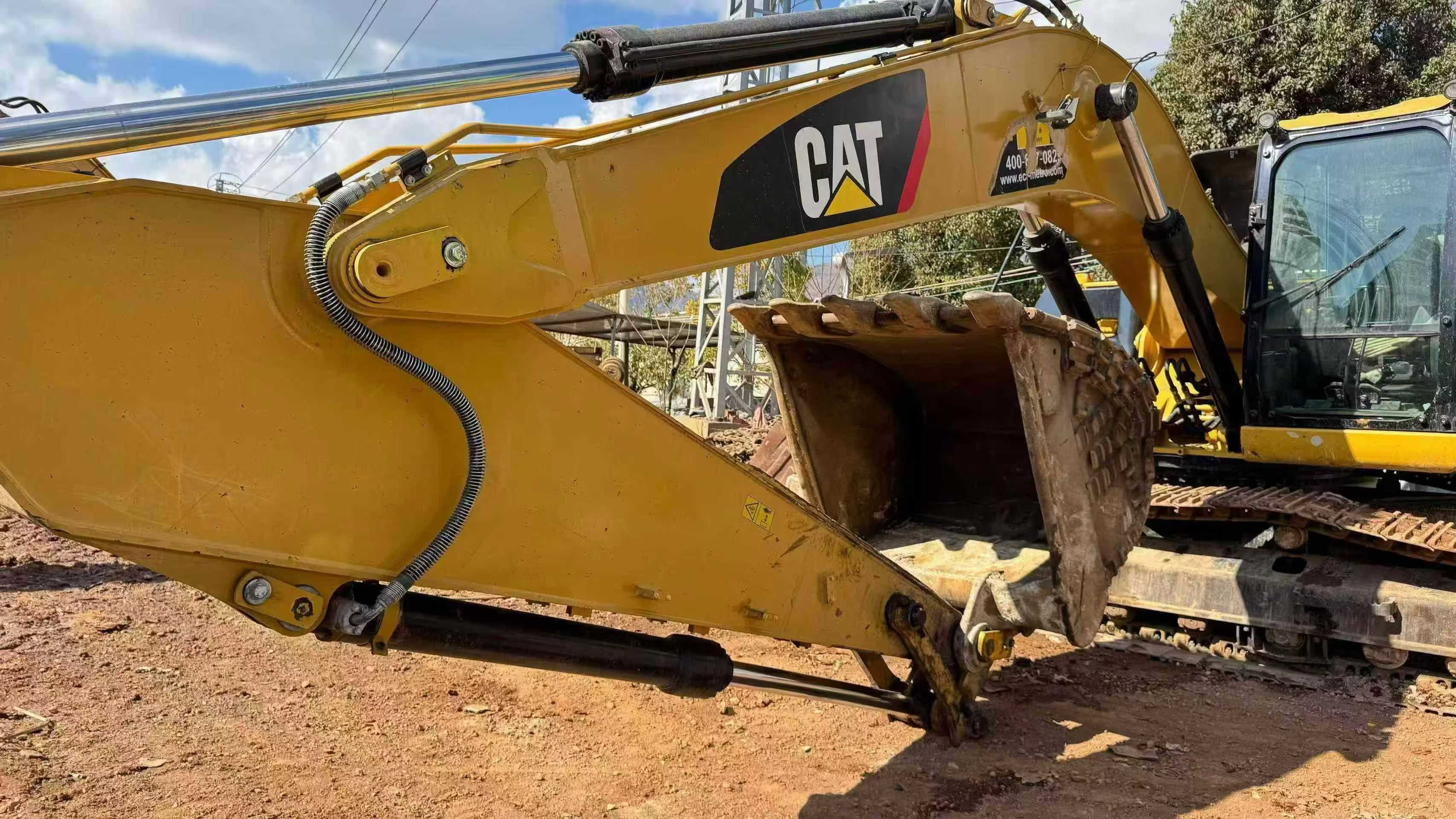

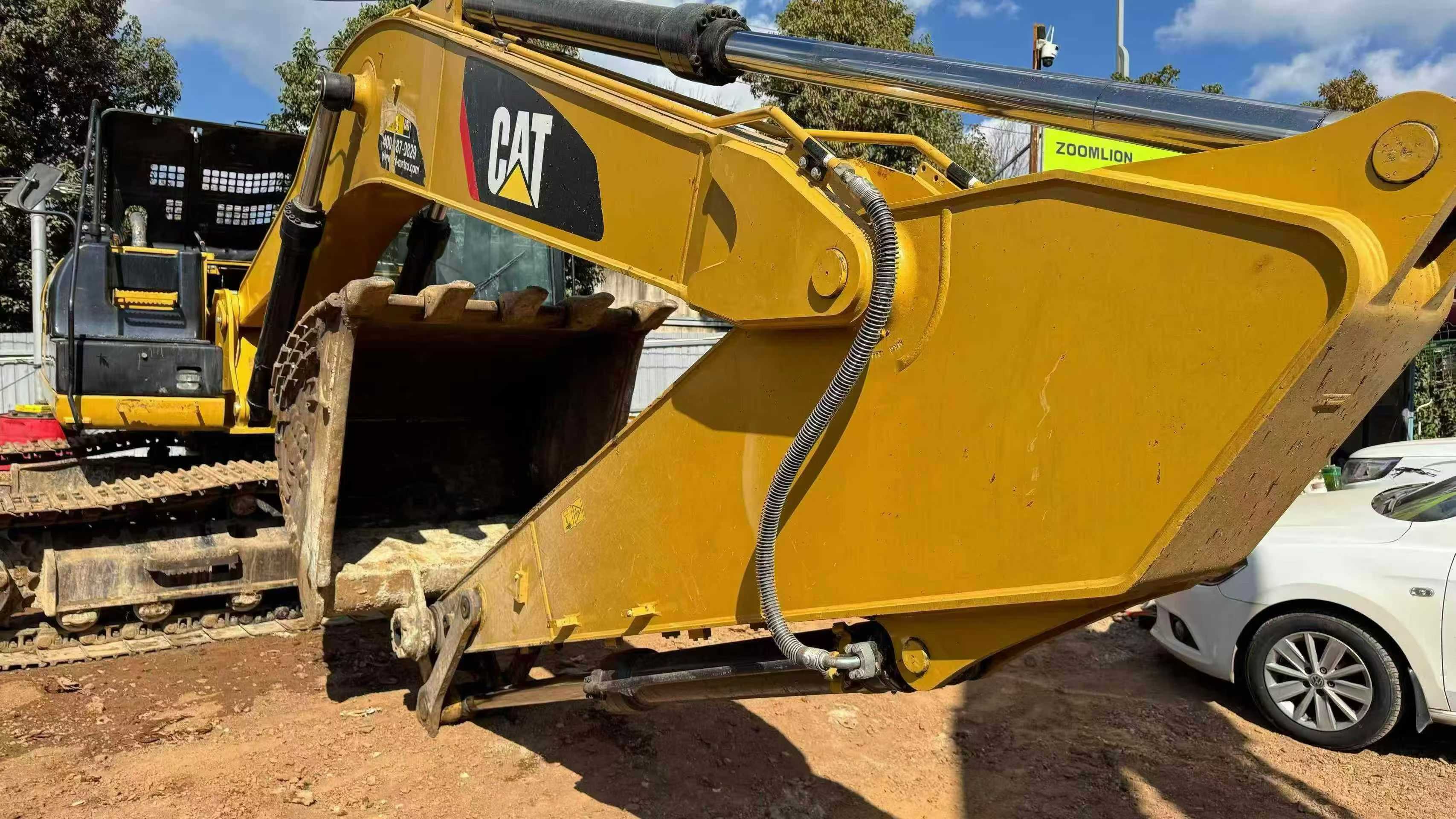

- 1.35/1.57m³ bucket capacity for versatile material handling
- Stable 2.59m track gauge for enhanced jobsite maneuverability
- 520L fuel capacity minimizes refueling downtime
- Located in Yunnan province for regional availability
Proven reliability meets operator-focused engineering in this well-maintained excavator, ready for immediate deployment on your next project.
| Specifications | Value |
|---|---|
| No. | 985708 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
Overview
No.985708
Brand Name：
CaterpillarModel Number：
326DLYear：
2020
Location：
Yunnan China
