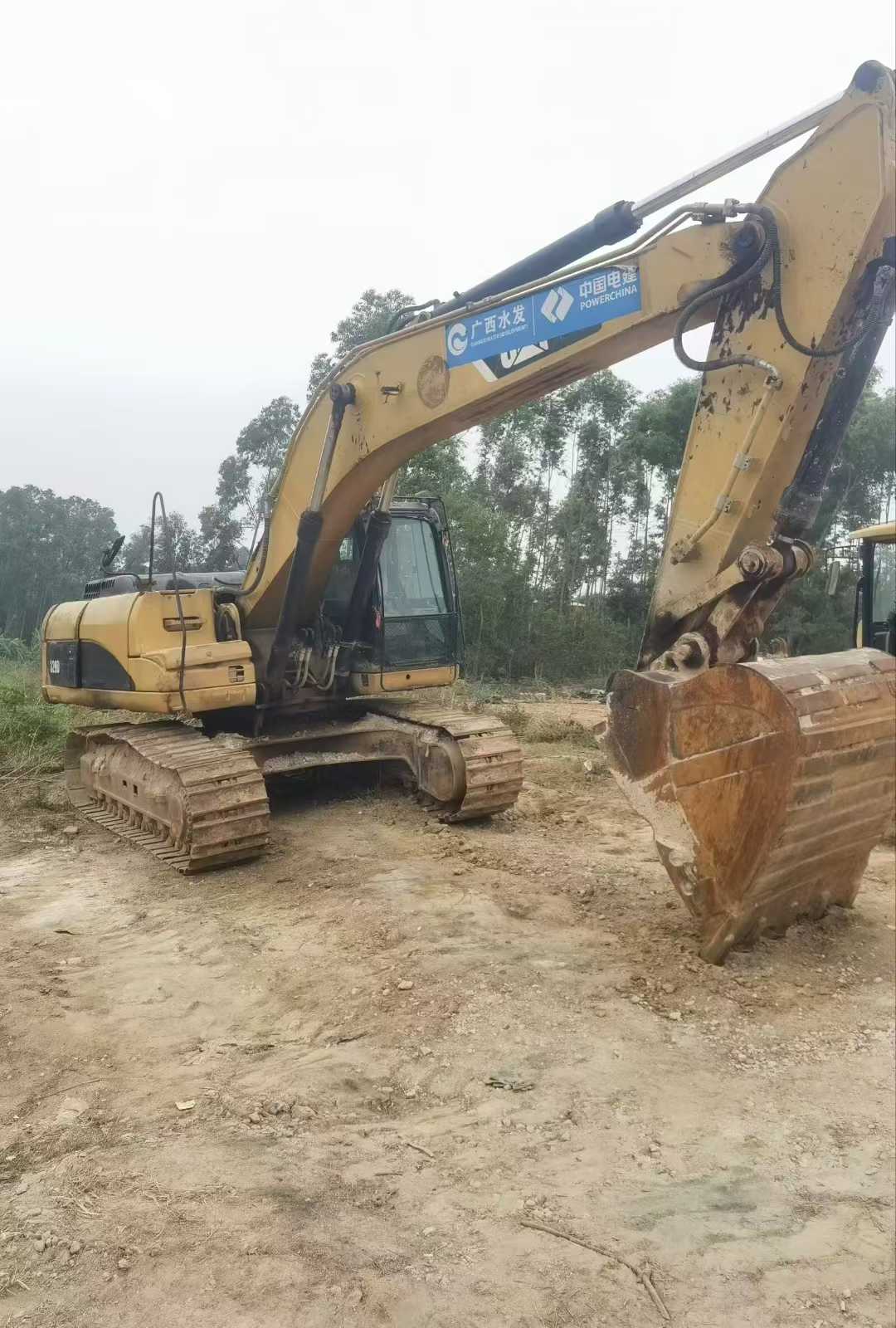

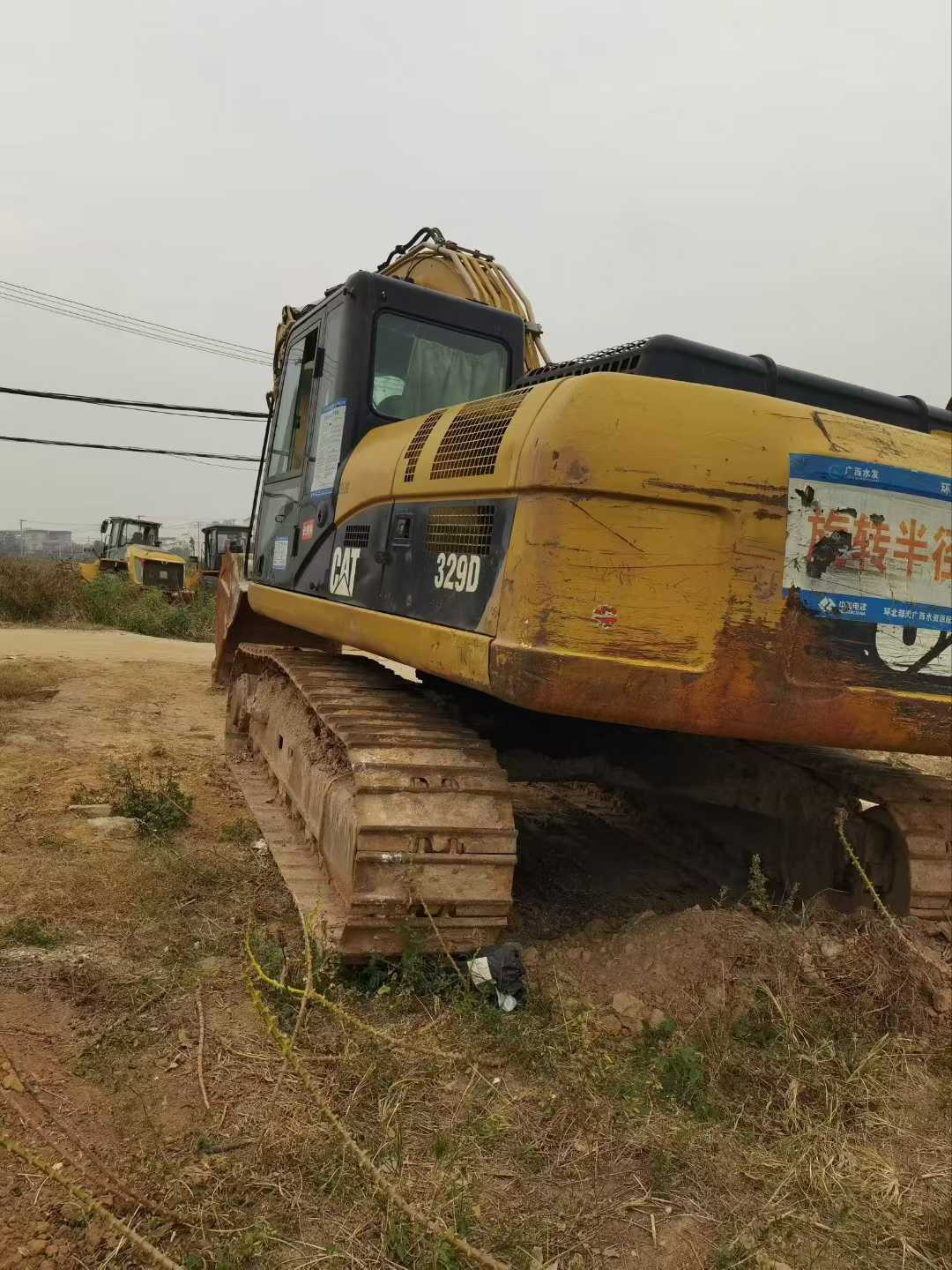

2016 Caterpillar 329D
| Specifications | Value |
|---|---|
| No. | 964487 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Description

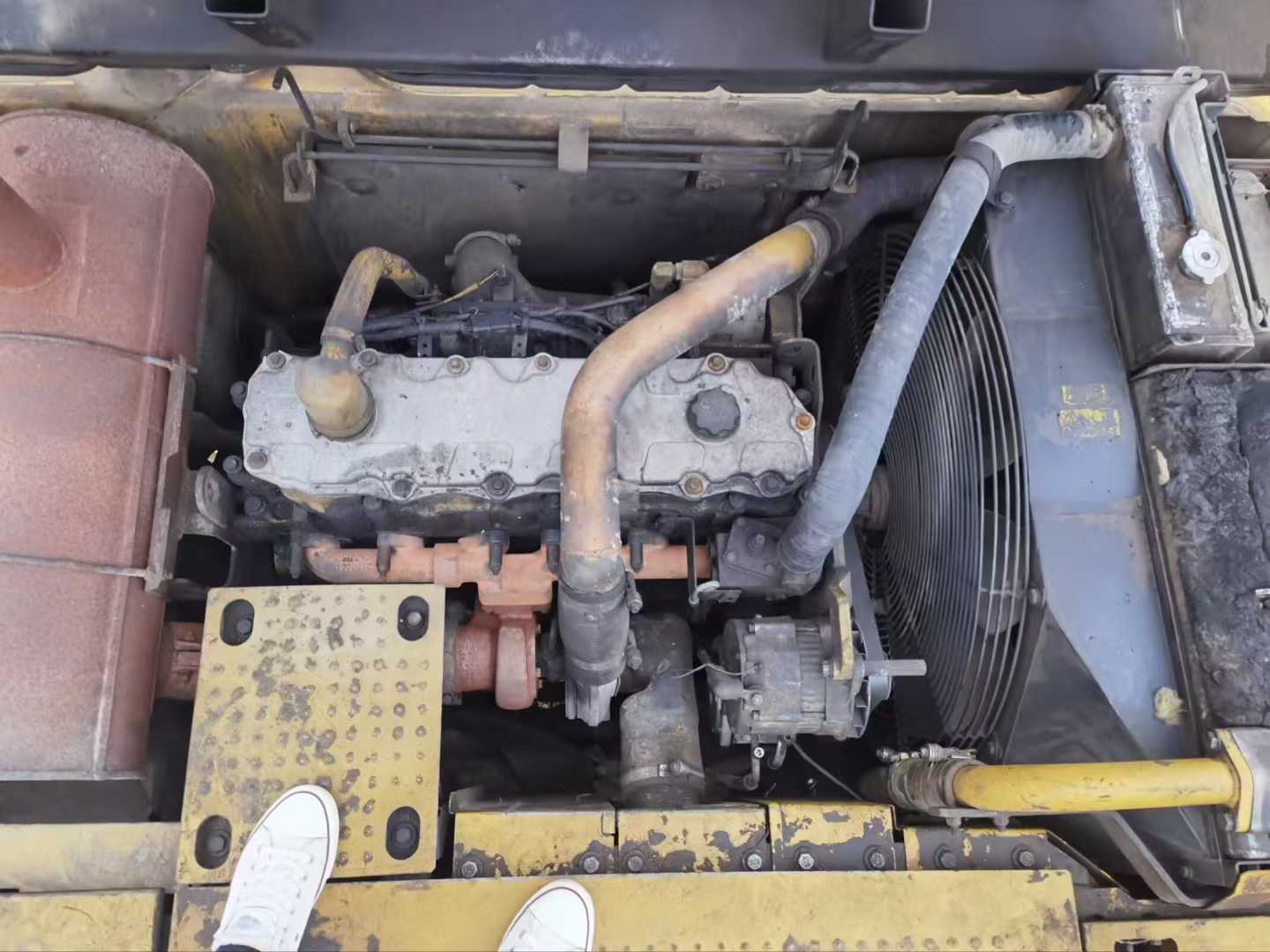

【 Premium Recommendation 】 Second-hand Caterpillar 329D excavator. This machine not only has a well-maintained appearance but also performs exceptionally well, making it a reliable assistant in your engineering projects. The working time of this excavator is only 4,000 hours, which is far shorter than the average service life of similar equipment. This means that it still has a long service life waiting for excavation. In terms of the power system, the Caterpillar 329D is equipped with the C9 ACERT engine produced by Caterpillar itself. This engine is renowned for its powerful output and excellent fuel economy. It can maintain stable operation even under heavy load, and the low-noise design makes the operating environment more comfortable. In addition, the advanced electronic control system can automatically adjust the rotational speed according to the actual working conditions, ensuring the best working efficiency while reducing fuel consumption. The hydraulic system adopts Caterpillar's patented technology - the high-pressure common rail system (HPCR), which offers a faster and more accurate action response speed and can handle tasks such as excavation, loading, and flat ground operations with ease. More importantly, this system al
Overview
No.964487
Brand Name：
CaterpillarModel Number：
329DYear：
2016
Location：
Guangdong China
