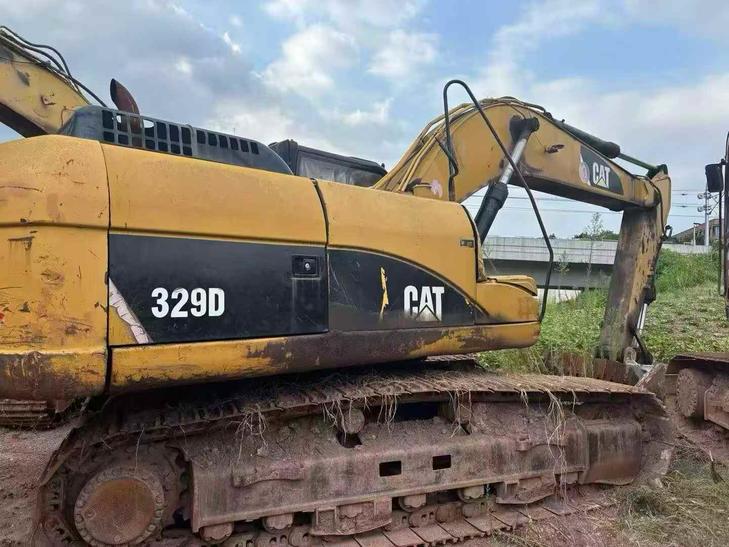

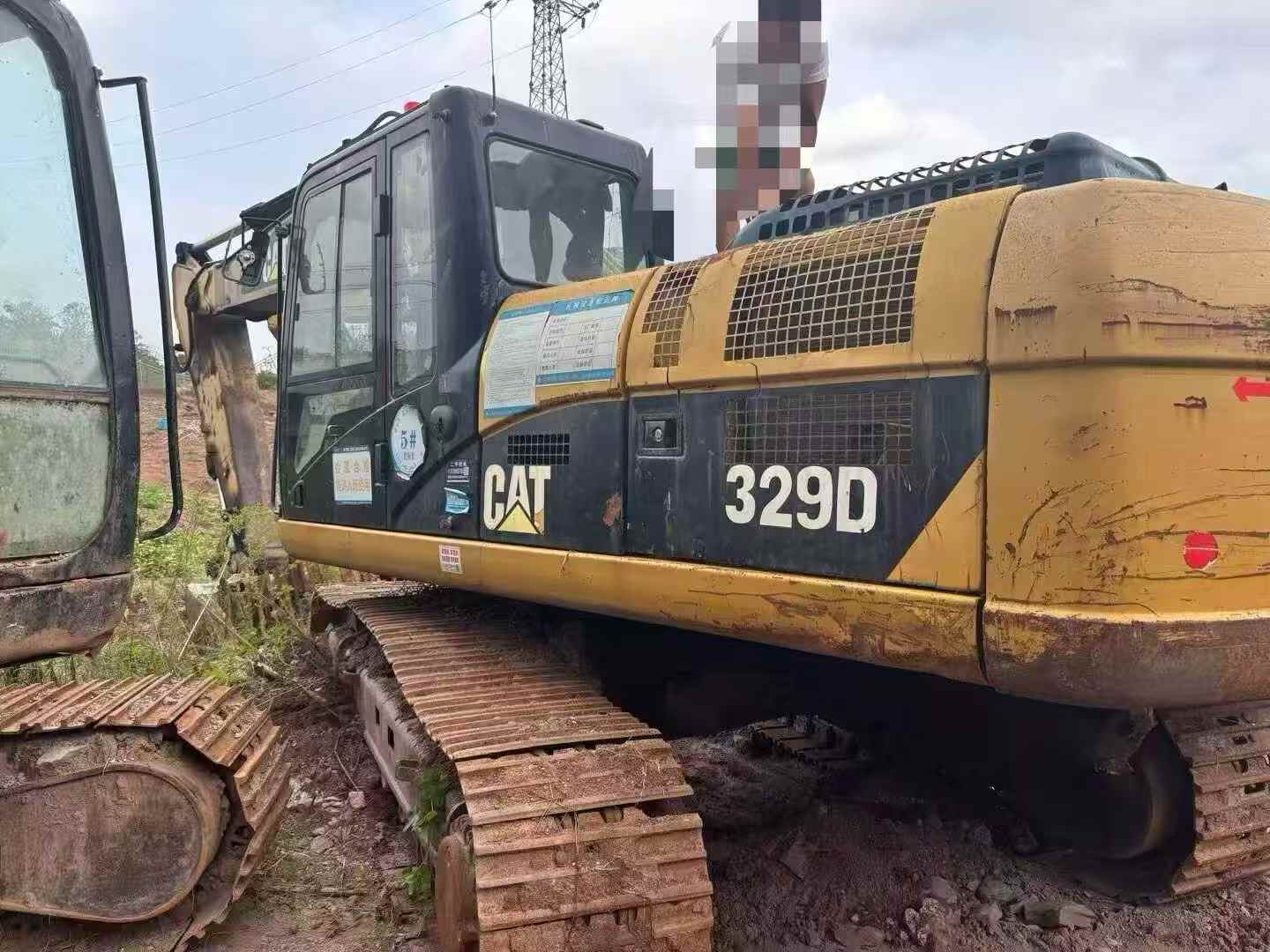

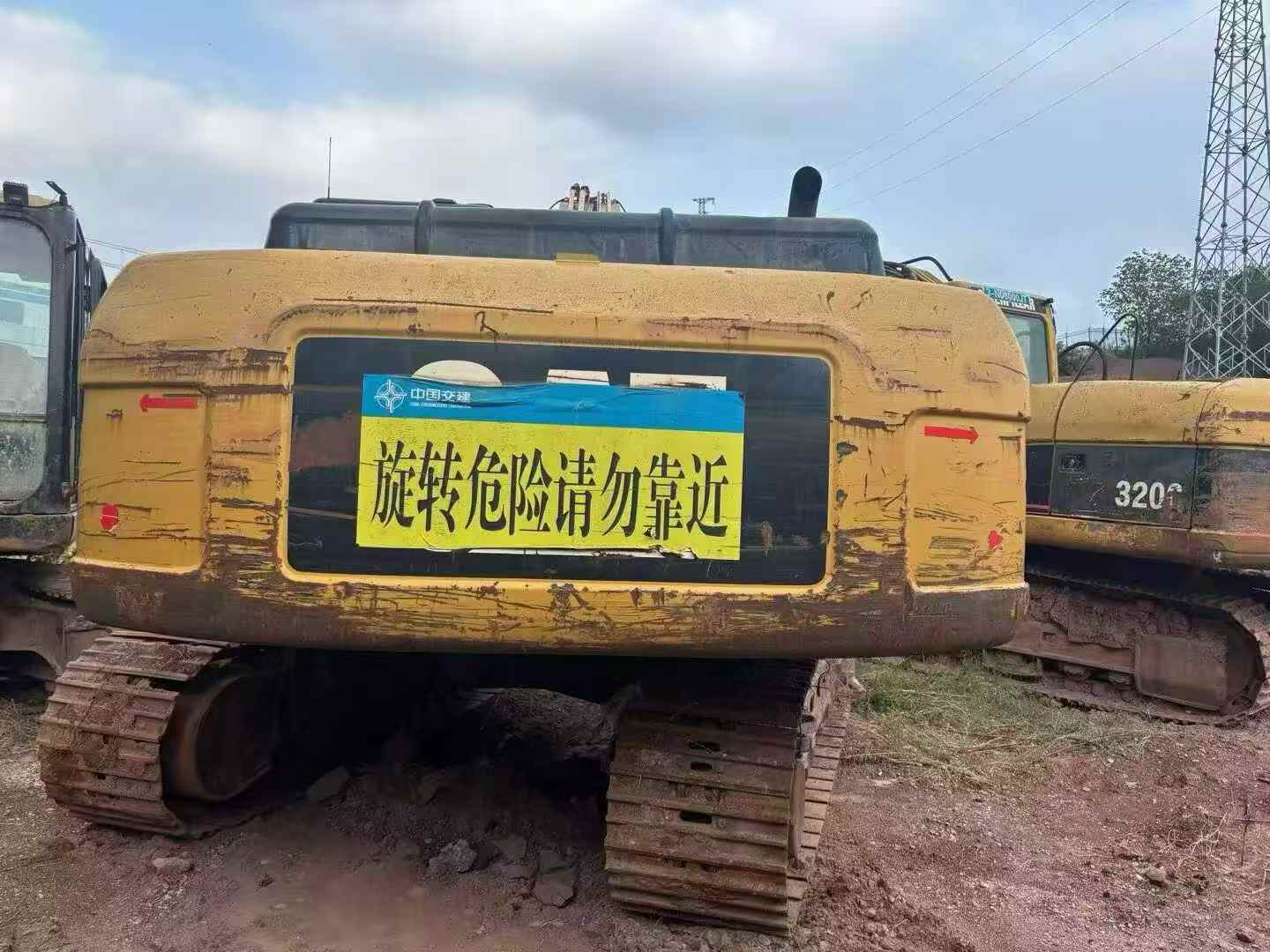

2016 Caterpillar 329D
| Specifications | Value |
|---|---|
| No. | 965605 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Description
【 Premium Recommendation 】 First-hand stock, top-quality Caterpillar 329D excavator, reasonable price, excellent quality, ideal choice for your engineering operations! This Caterpillar 329D excavator has only been in operation for 4,000 hours since it left the factory. With a short usage period and proper maintenance, its overall condition is excellent. It is equipped with the Caterpillar C7 ACERT engine, which is renowned for its high efficiency, energy conservation and low emissions. It can provide strong power output, with a maximum power of 185kW (247 horsepower), ensuring that it can easily handle challenges in various complex working conditions. In terms of the hydraulic system, this equipment is equipped with advanced CLSS (Closed Center Load Sensing System) technology, which not only improves fuel efficiency but also enhances operational accuracy and response speed, making actions such as excavation and loading more smooth and effortless. In addition, its sturdy and durable structural design, combined with the selection of high-quality materials, further enhances the stability and service life of the entire machine. We have prepared a large amount of detailed technical materials for this machine for your reference, including
Overview
No.965605
Brand Name：
CaterpillarModel Number：
329DYear：
2016
Location：
Fujian China
