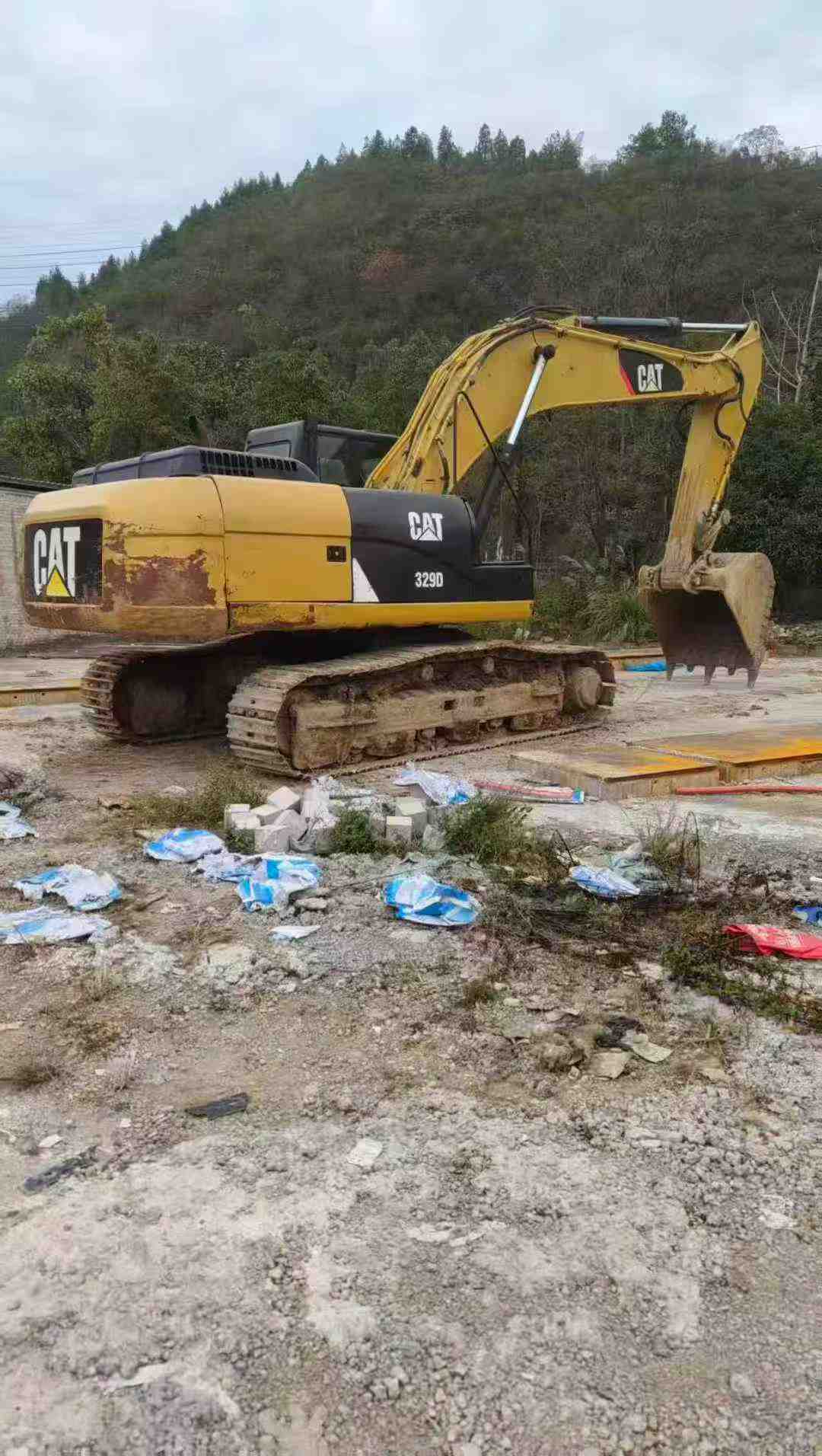

2014 Caterpillar 329D
Product Description

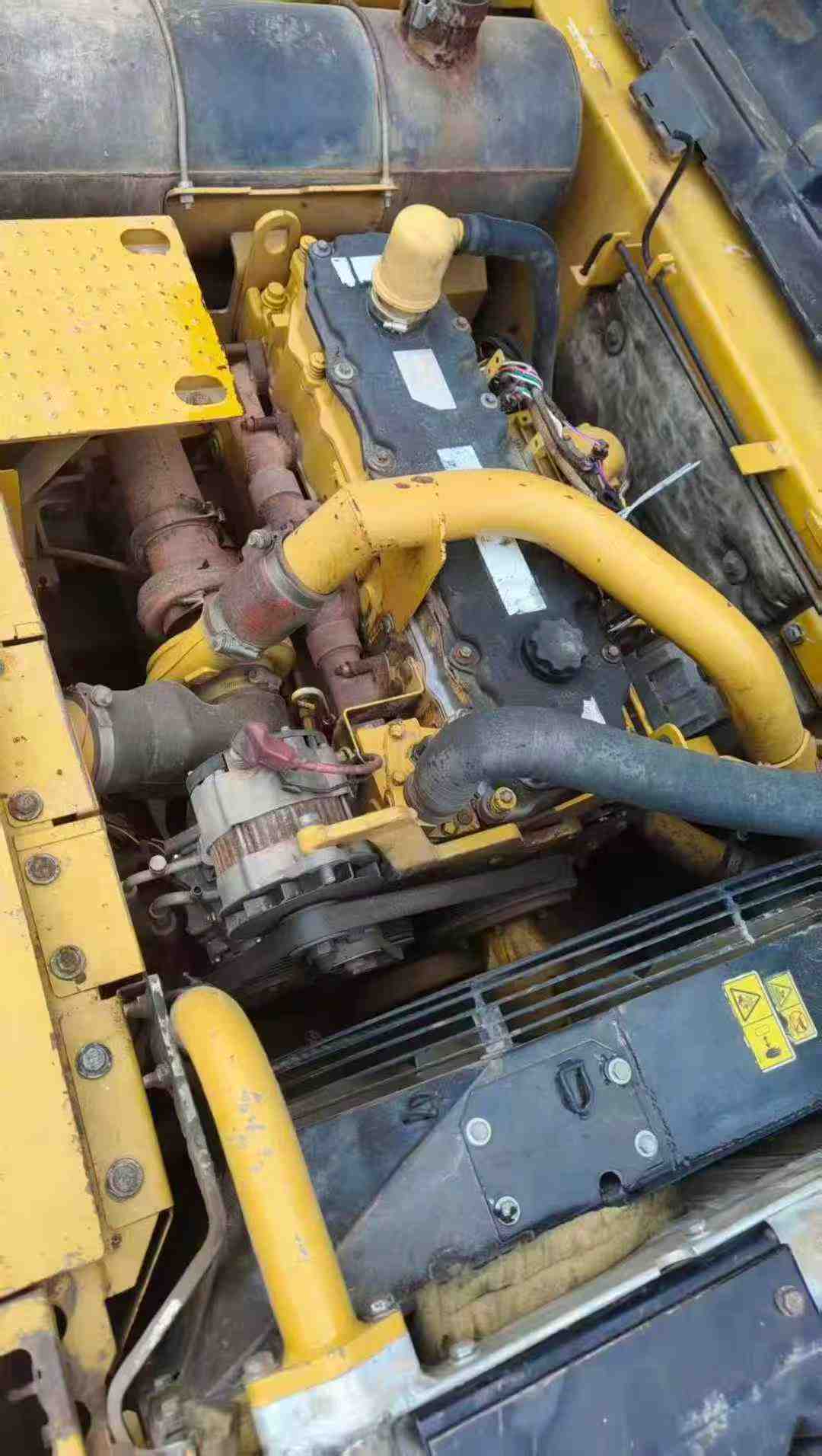

【 Premium Recommendation 】 A second-hand Caterpillar 329D excavator from the end of 2014, available for just over 150,000! This Caterpillar 329D excavator is a model from the end of 2014 and features outstanding performance and reliability. Its working time is only about 6,000 hours, which means it is still in good working condition and well maintained. This is definitely an ideal choice for projects that require high efficiency and low maintenance costs. In terms of the power system, this aircraft is equipped with the C7.1 ACERT engine produced by Caterpillar itself. This engine is renowned for its high efficiency and energy conservation, providing strong power while effectively reducing fuel consumption. Its maximum power can reach 180kW (approximately 240 horsepower), making it capable of handling both hard soil excavation and rock crushing with ease. In addition, this engine is also equipped with an advanced electronic control system, which can automatically adjust the rotational speed according to the actual operating conditions to ensure the best working efficiency. The hydraulic system adopts Caterpillar's patented technology - a combination design of high-pressure common rail pumps and electrically controlled proportional va
| Specifications | Value |
|---|---|
| No. | 972355 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Overview
No.972355
Brand Name：
CaterpillarModel Number：
329DYear：
2014
Location：
Sichuan China
