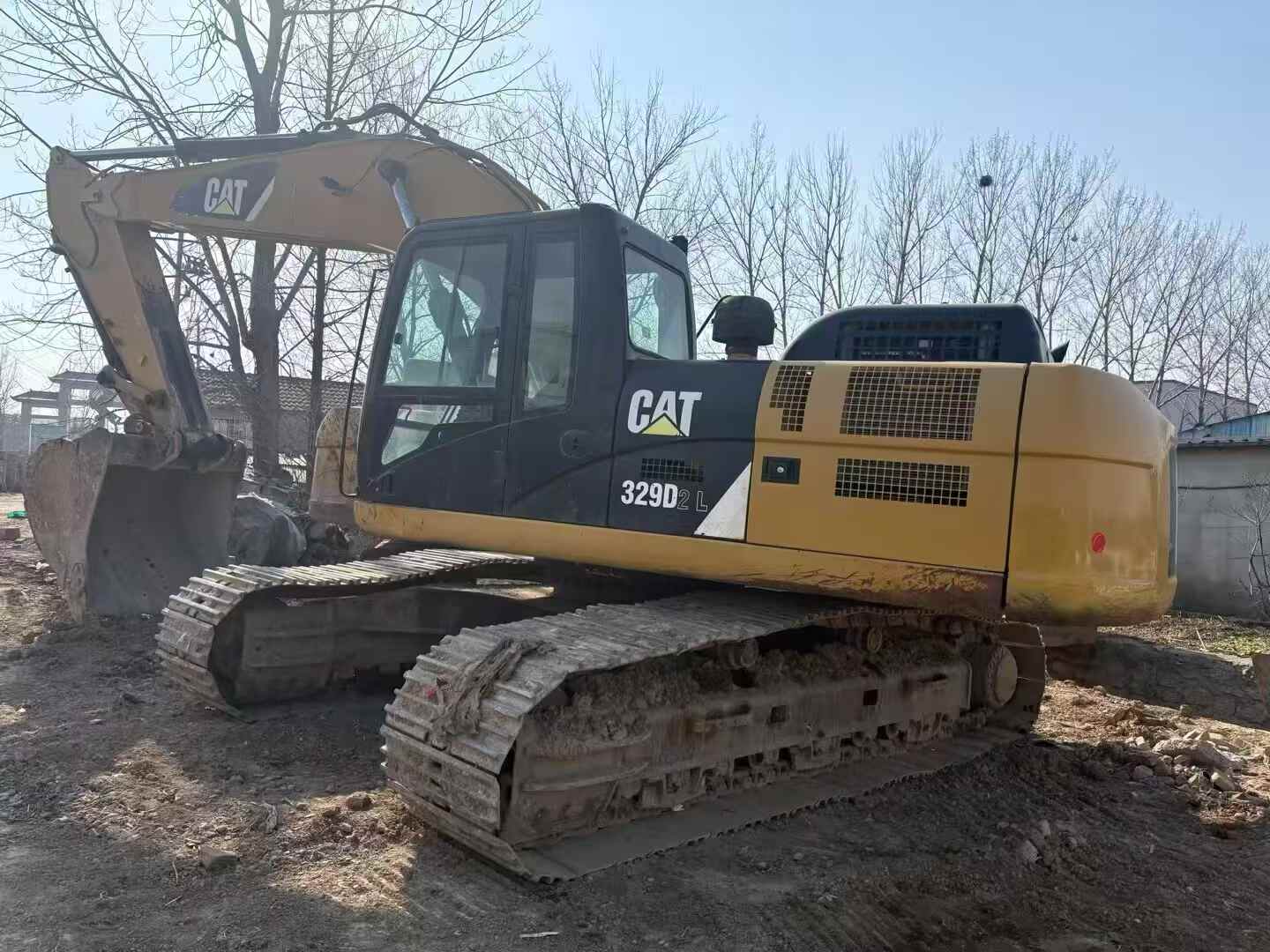

2014 Caterpillar 329D
Product Description

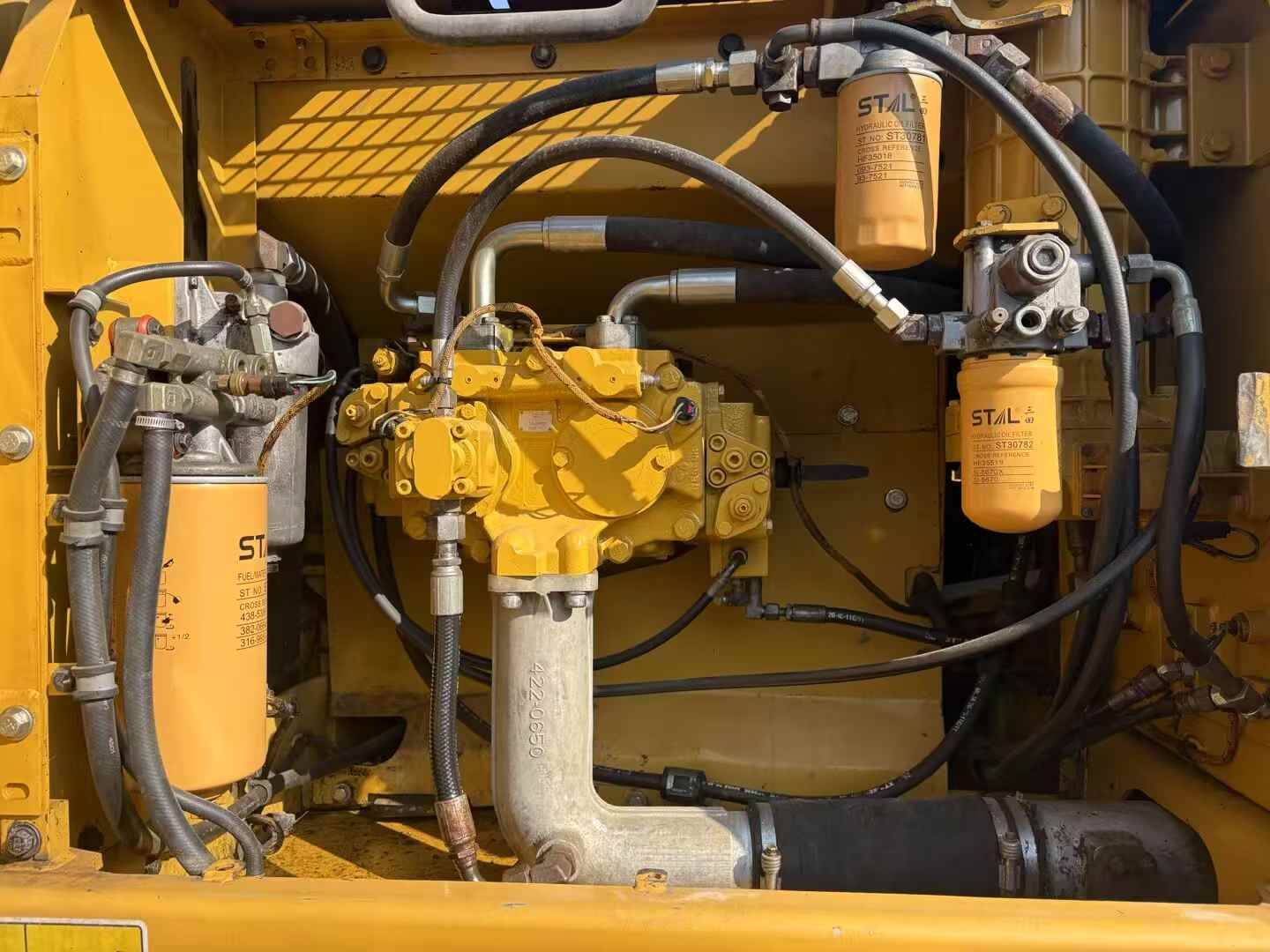

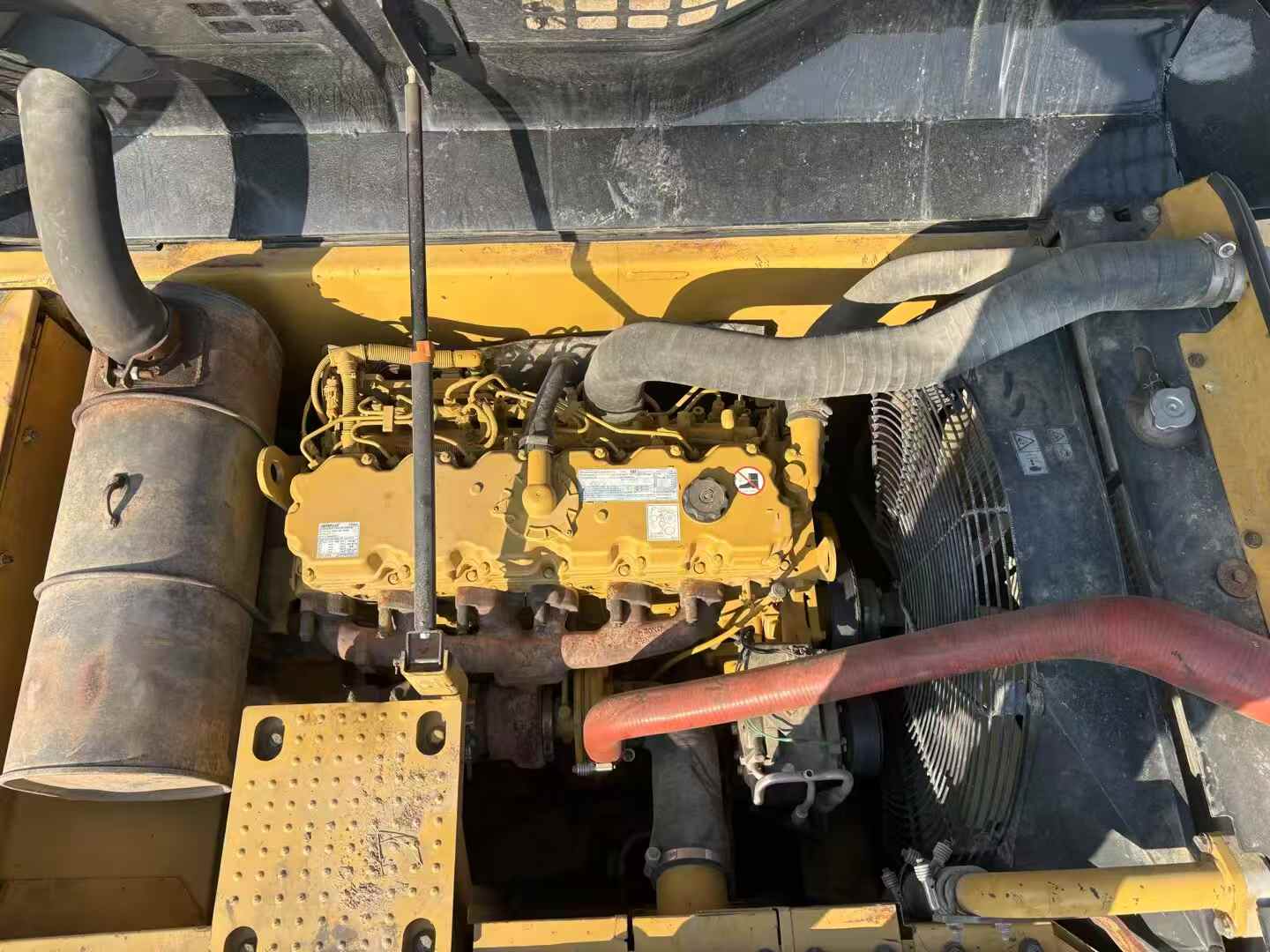

Powered by Caterpillar's proven C7 ACERT engine delivering 152kW at 2000 RPM, this 2014 329D excavator combines robust hydraulic performance with exceptional operational reliability. The advanced hydraulic system generates 235 L/min maximum flow at 3.5 MPa working pressure, enabling precise control across demanding applications.
Engineering excellence defines the 329D series through its optimized 29-ton operating weight and strategic component placement. Key performance specifications include:
- Maximum digging depth: 7,170mm with 10,600mm reach at ground level
- 1.1m³ bucket capacity for efficient material handling
- 6,150mm boom and 3,200mm arm configuration for versatile positioning
- 70% gradeability with dual-speed travel (3.5/5.3 km/h)

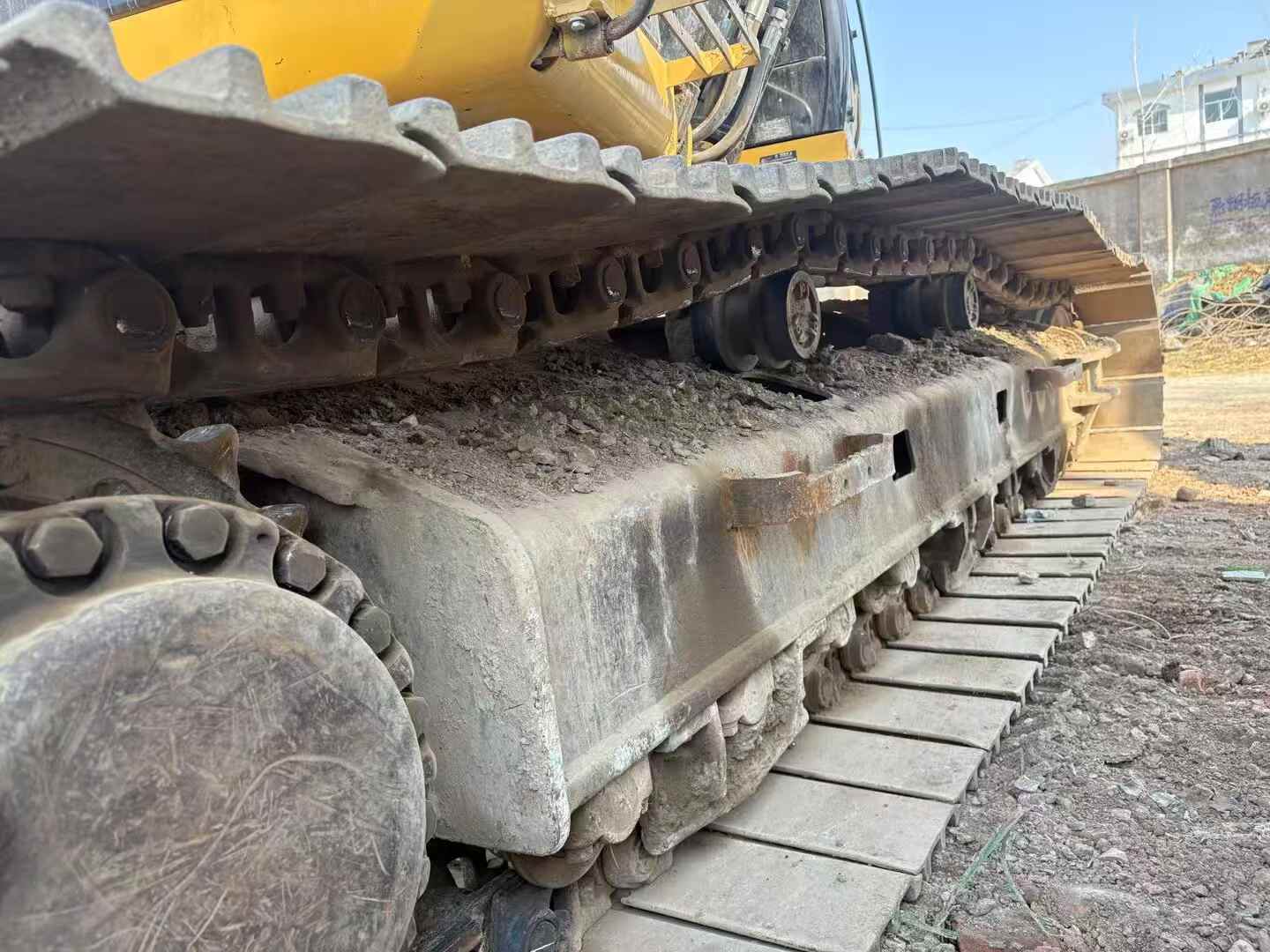

Located in Xuzhou, Jiangsu, this machine features Caterpillar's signature build quality with water-cooled 6-cylinder architecture and comprehensive hydraulic integration. The 520L fuel capacity and robust undercarriage design ensure sustained productivity in construction, mining, and infrastructure projects requiring dependable excavation performance.
| Specifications | Value |
|---|---|
| No. | 981916 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4360 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Overview
No.981916
Brand Name：
CaterpillarModel Number：
329DYear：
2014
Location：
Jiangsu China
