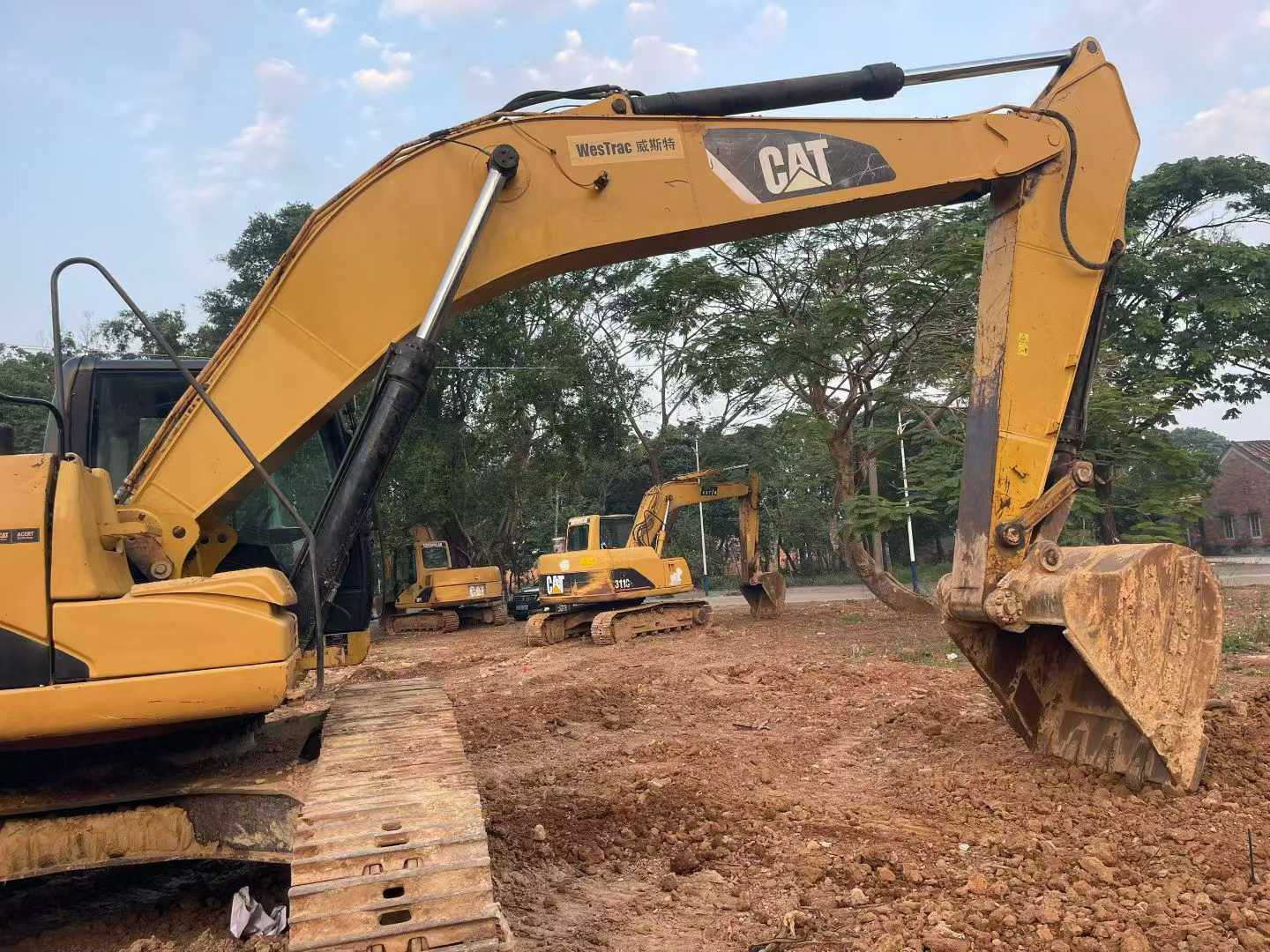

2011 Caterpillar 329DL
| Specifications | Value |
|---|---|
| No. | 964065 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4860 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3990 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Description

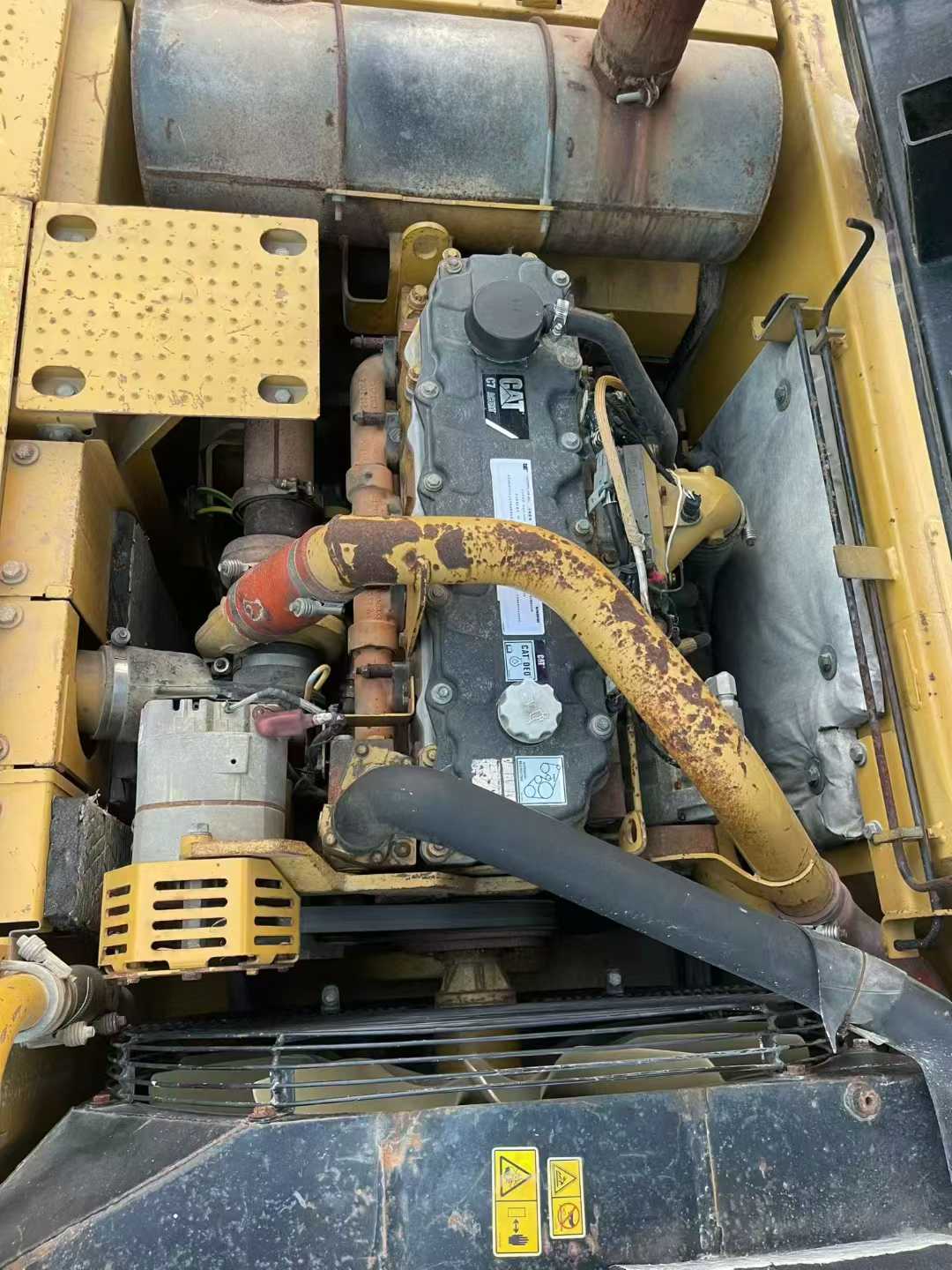

【 Premium Recommendation 】2011 Caterpillar 329DL excavator, this is a high-quality second-hand excavator that has been strictly selected. Since its manufacture, this equipment has accumulated a working time of only 6,500 hours, which is far lower than the average usage time of similar equipment. This means that it is still in the best working condition and has extremely high residual value and service life. In terms of the power system, this 329DL is equipped with an original Caterpillar C7 ACERT engine, which is powerful and has high fuel efficiency, and can easily handle the operation requirements under various complex working conditions. Whether it is flat ground excavation or slope construction, it can perform outstandingly, ensuring efficient and stable operation performance. In addition, this model also adopts advanced electronic control technology, which makes the start-up more rapid and stable, while reducing noise pollution and providing a comfortable working environment for the operator. The hydraulic system is a major highlight of this excavator. It adopts a closed center load sensing hydraulic system (CLSS), which not only has a fast response speed and precise movement, but also performs well in energy conservation, signi
Overview
No.964065
Brand Name：
CaterpillarModel Number：
329DLYear：
2011
Location：
Guangdong China
