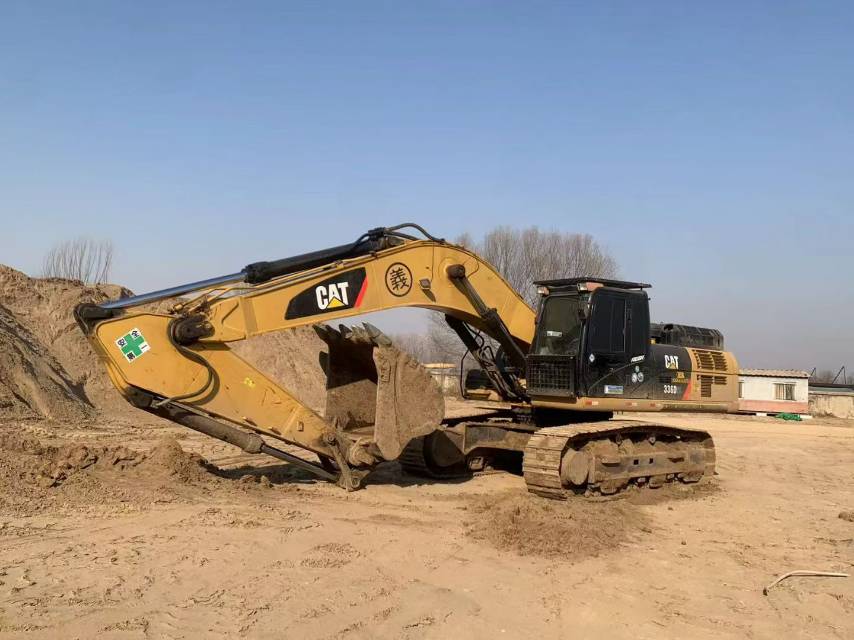

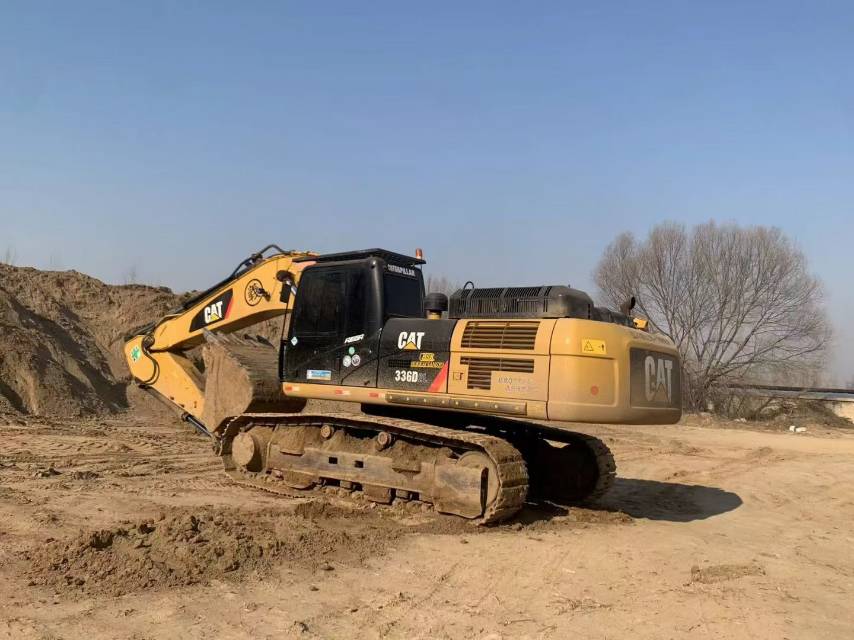

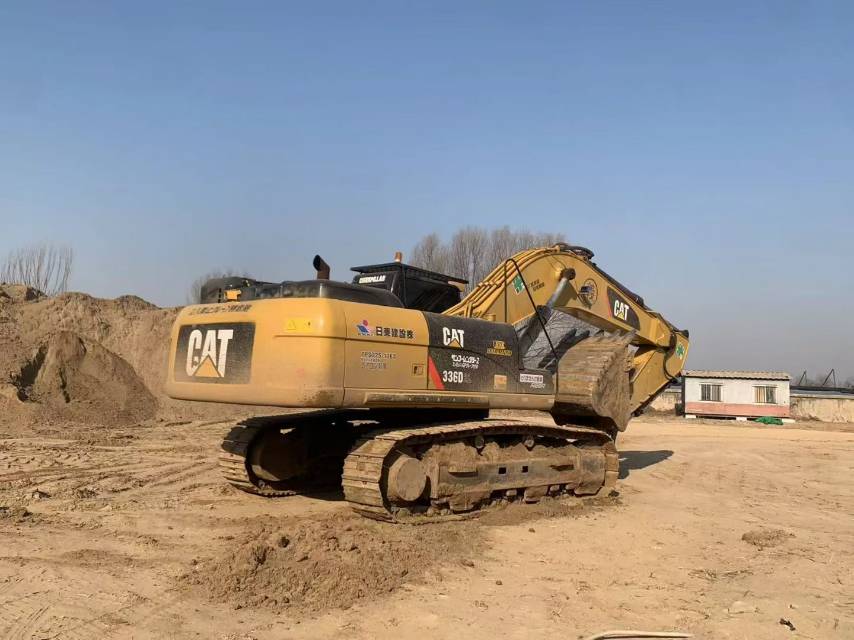

2019 Caterpillar 336DL
| Specifications | Value |
|---|---|
| No. | 963975 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35020 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3290 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
Description

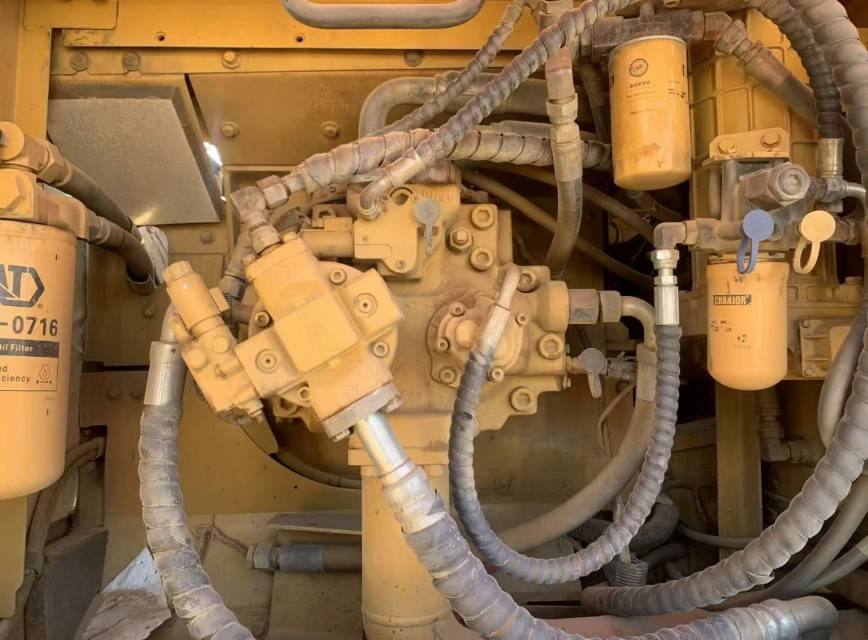

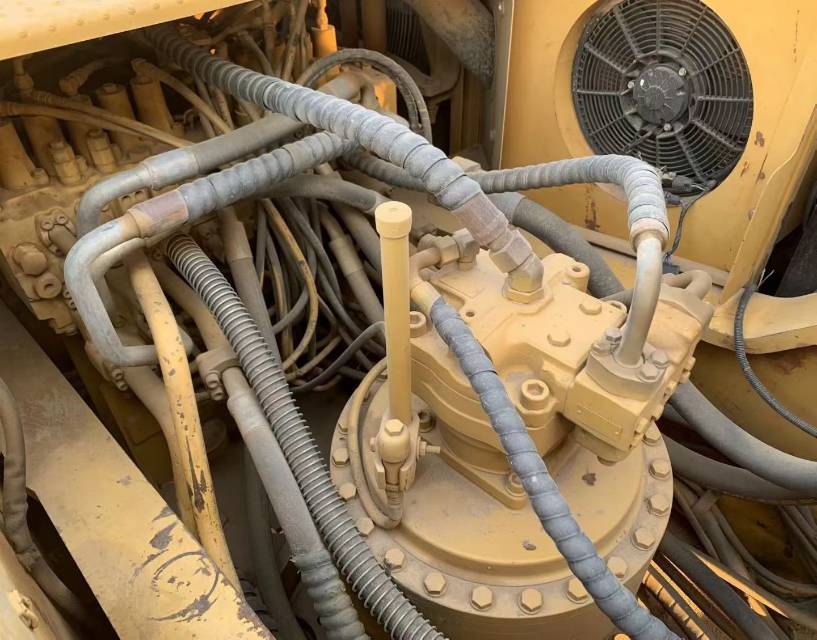

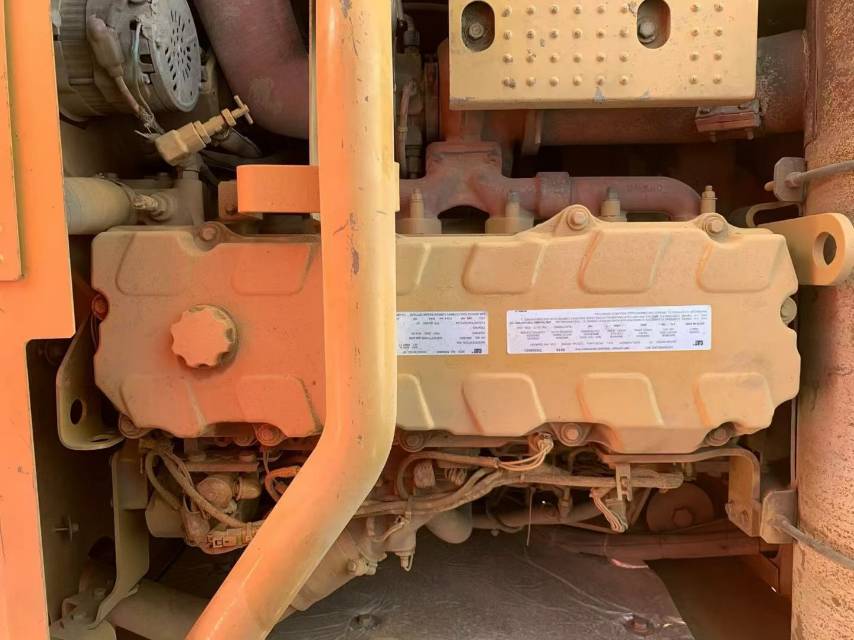

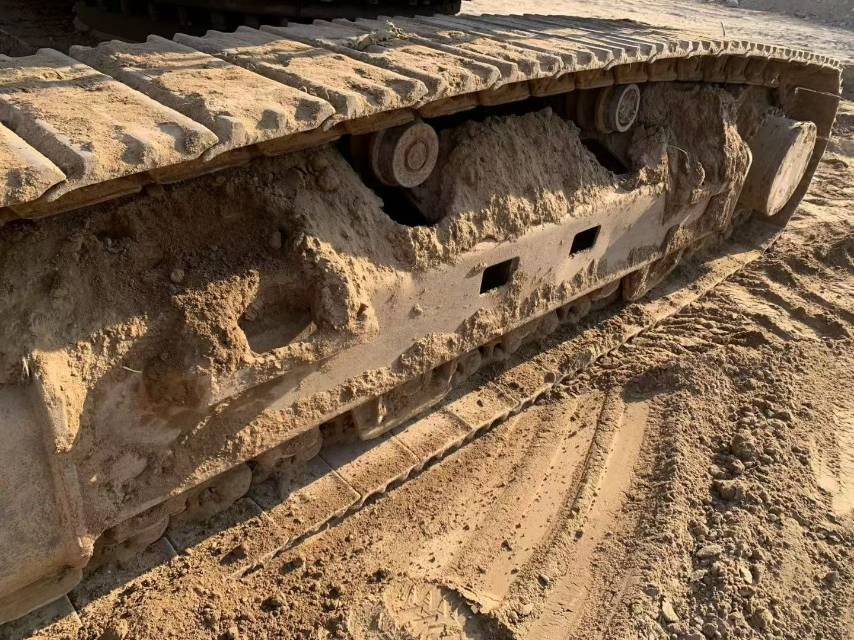

【 Premium Recommendation 】 Original imported Caterpillar 336D2 excavator. This equipment was once used in sand yards but has now been shut down and removed from construction sites. It is a pure earthmoving machine, especially suitable for all kinds of earthwork operations. The entire machine has a working time of 5,000 hours and is in the best condition for use. In terms of the power system, this Caterpillar 336D2 is equipped with a high-performance Caterpillar C18 ACERT engine, which is renowned for its powerful output and excellent fuel economy. During long-term use, the engine has performed stably with no fault records, ensuring the efficient operation of the equipment. In terms of the hydraulic system, this excavator adopts Caterpillar's advanced hydraulic technology, providing outstanding operational performance and reliability. The hydraulic system has been meticulously maintained with no leakage or damage, ensuring the outstanding performance of the equipment under various working conditions. In addition, this Caterpillar 336D2 is also equipped with the original vehicle earthwork bucket, which is suitable for various earthwork operation requirements. The chassis part remains in a 90% new condition. Major components such as th
Overview
No.963975
Brand Name：
CaterpillarModel Number：
336DLYear：
2019
Location：
Hebei China
