2016 Caterpillar 336DL

1/9
Used Caterpillar 336DL Excavator 2016 Model / 1

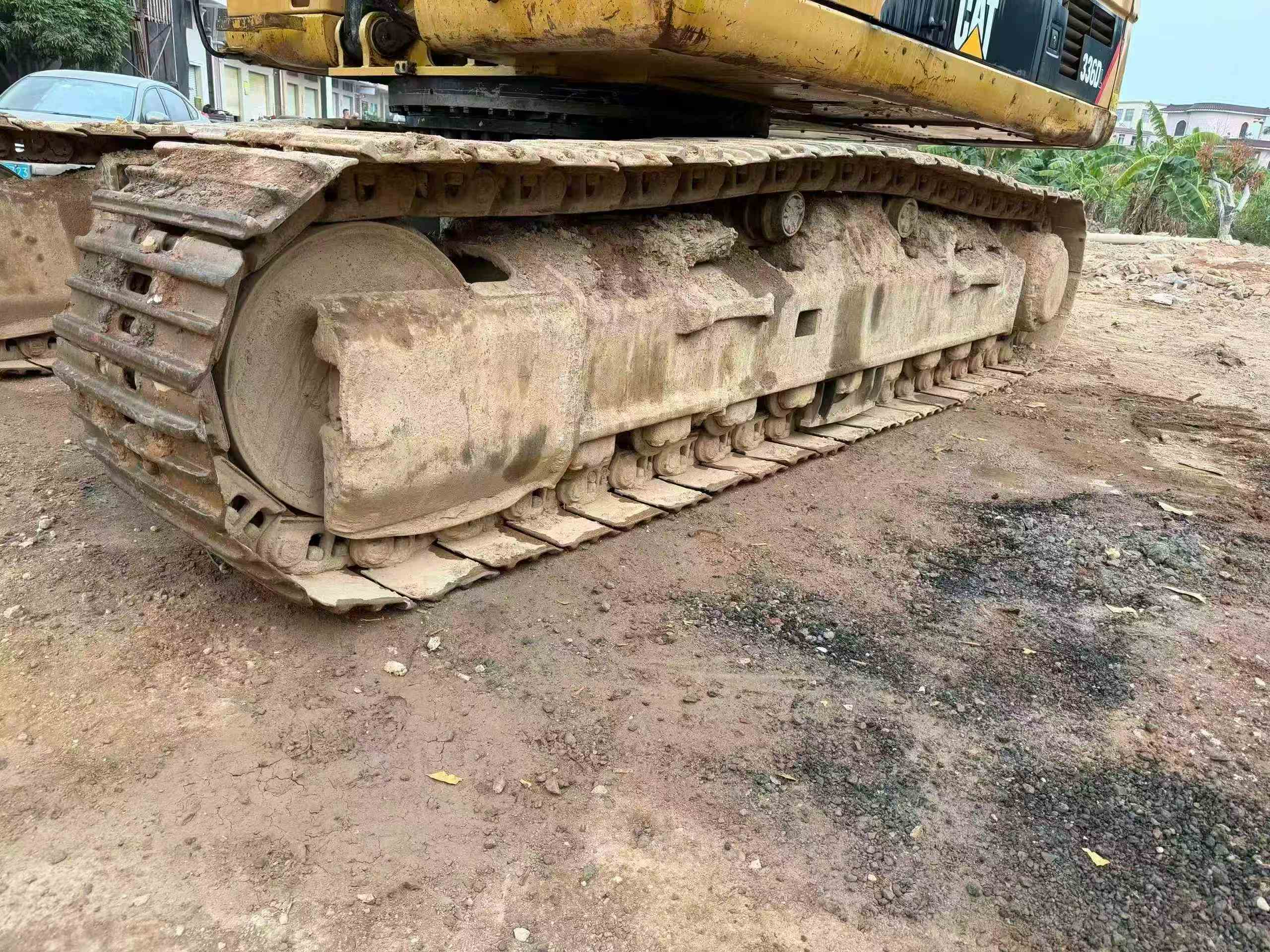

Used Caterpillar 336DL Excavator 2016 Model / 2

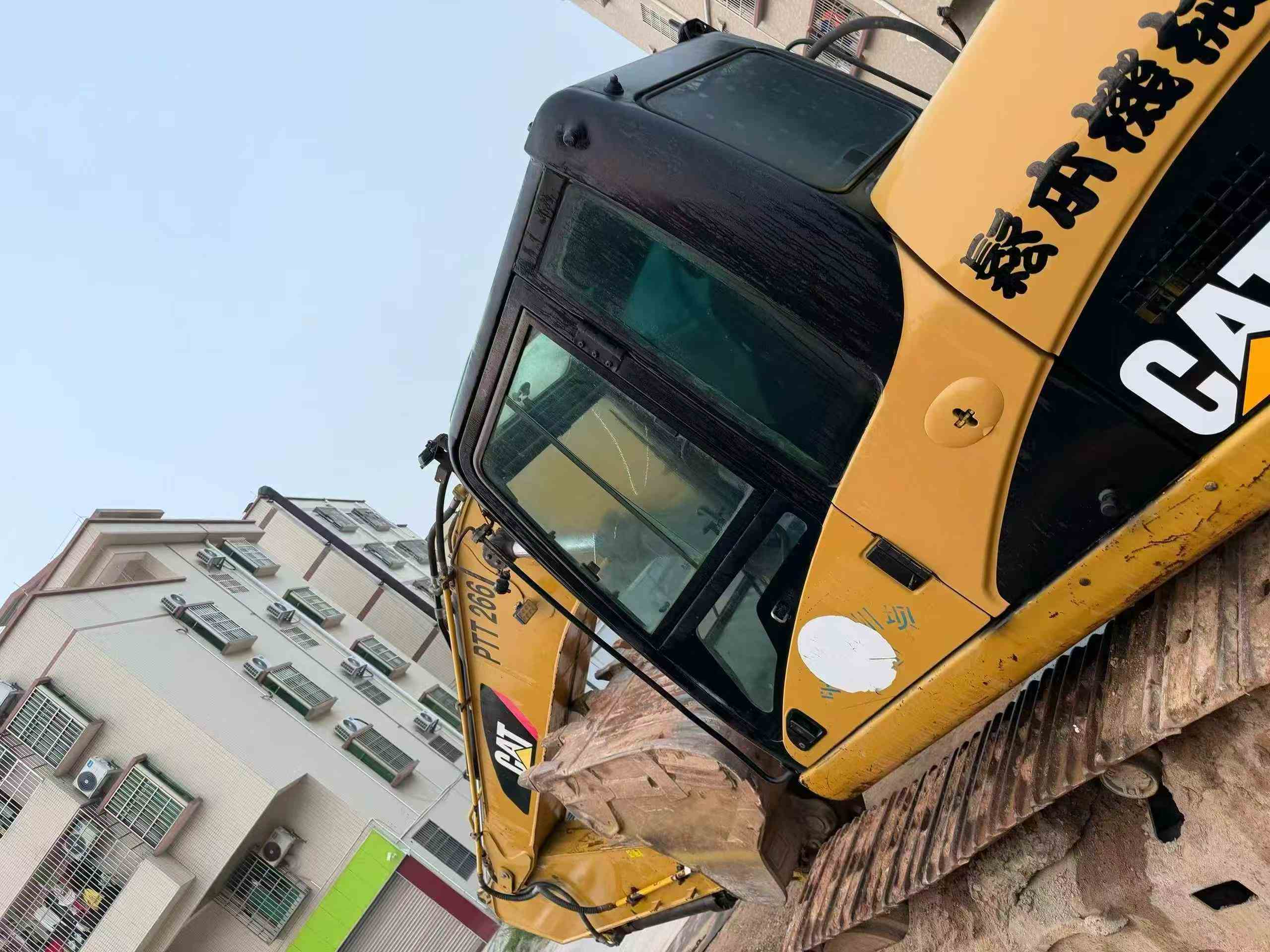

Used Caterpillar 336DL Excavator 2016 Model / 3
Used Caterpillar 336DL Excavator 2016 Model / 4

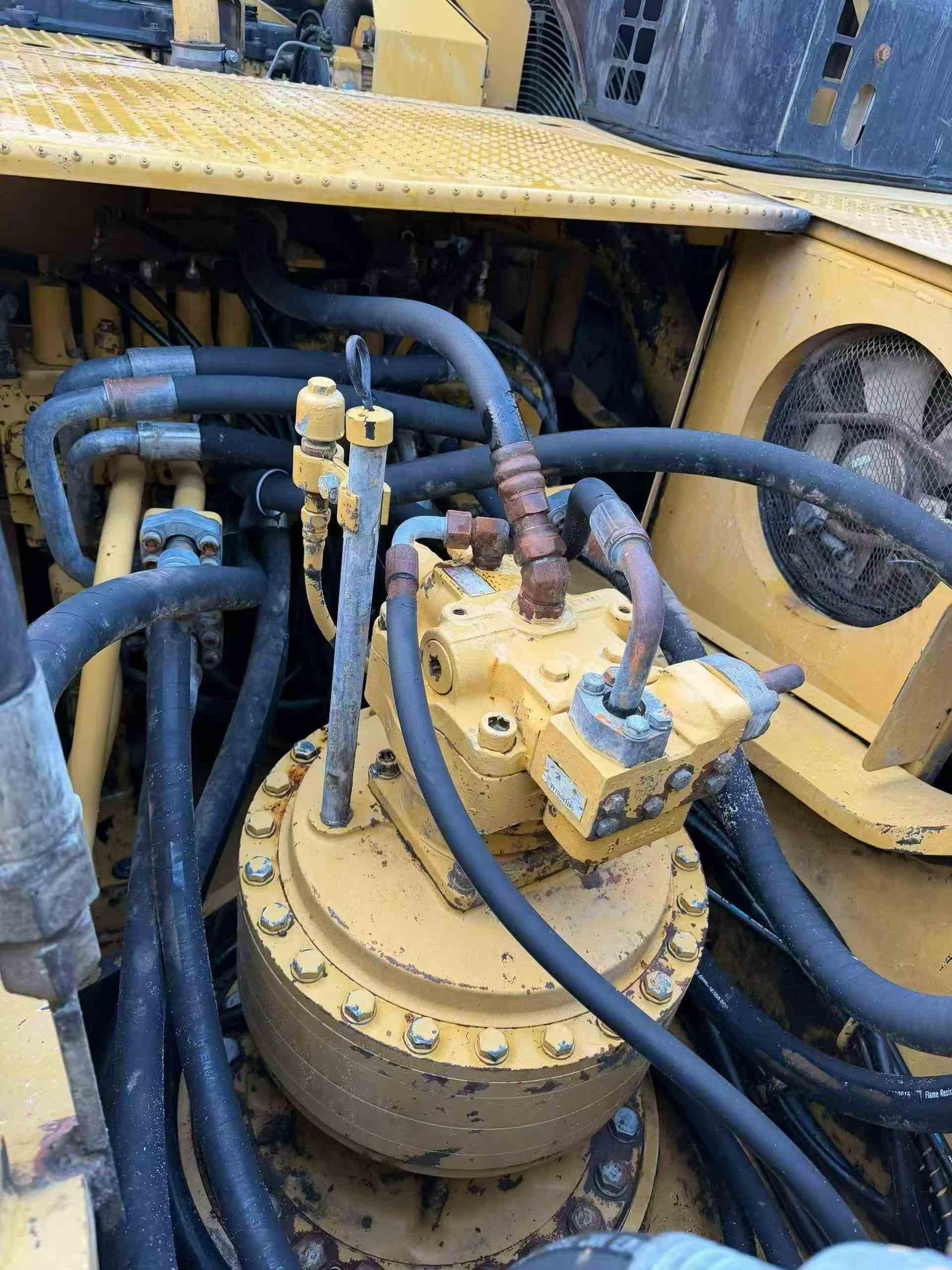

Used Caterpillar 336DL Excavator 2016 Model / 5

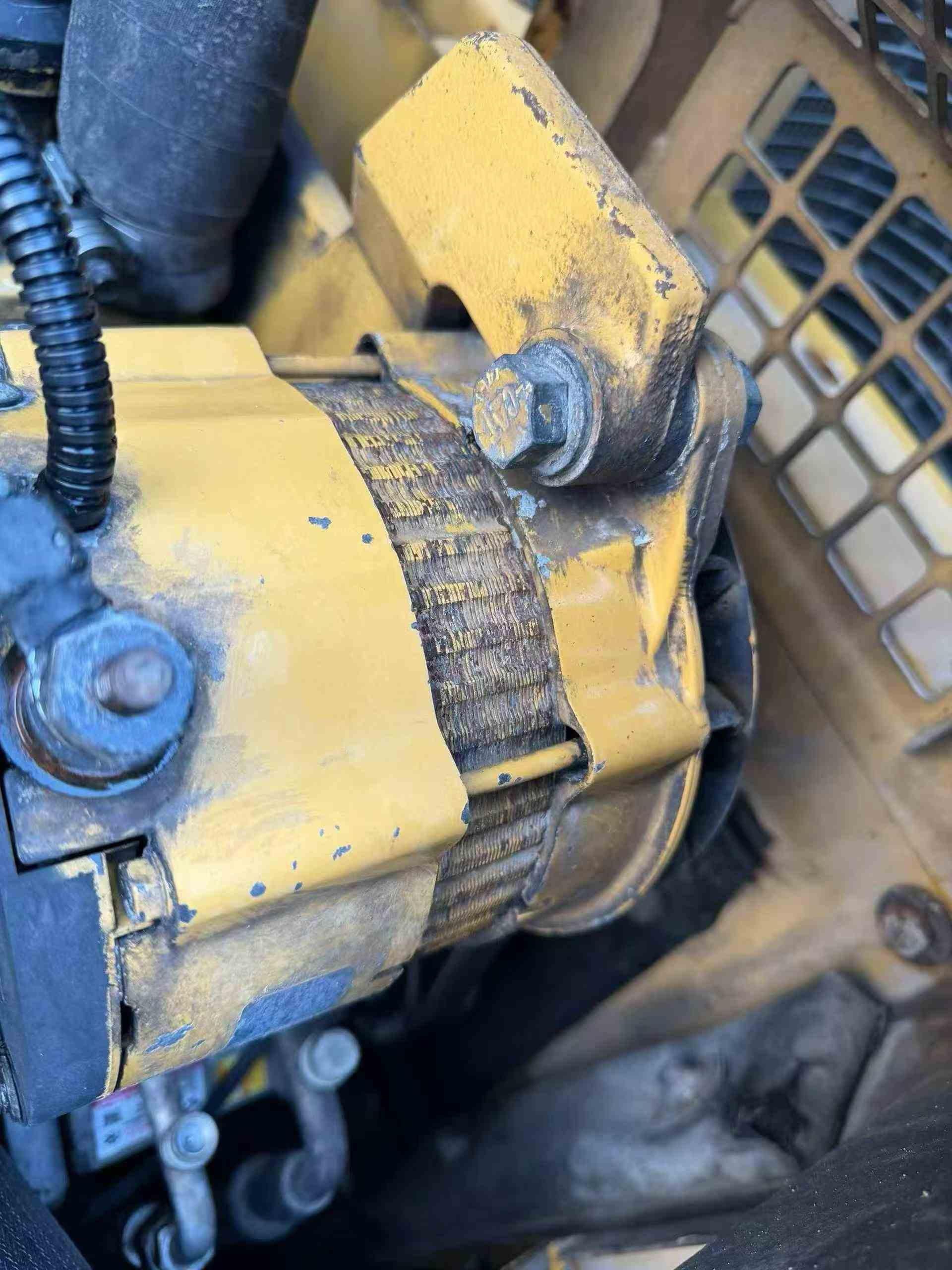

Used Caterpillar 336DL Excavator 2016 Model / 6

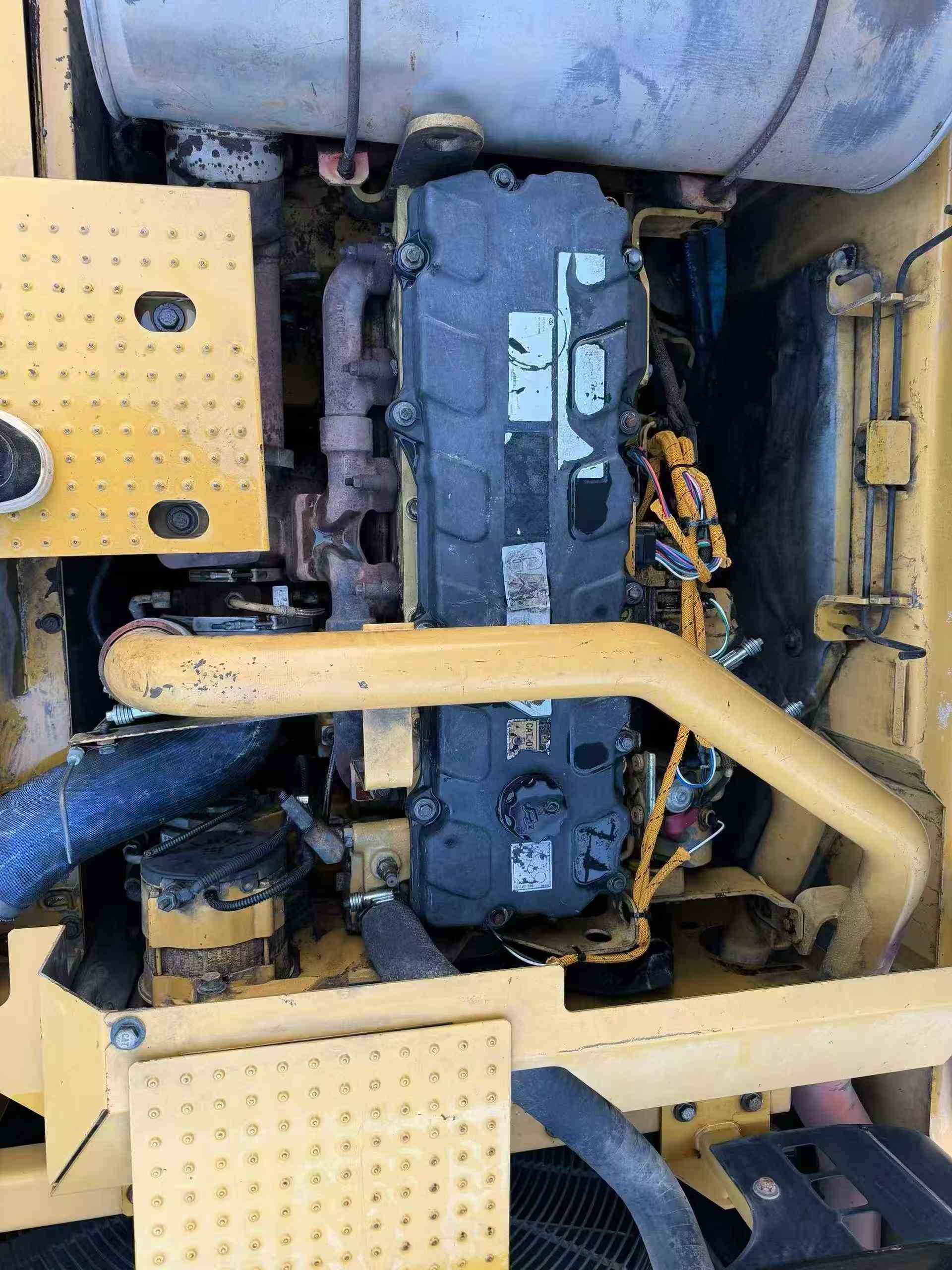

Used Caterpillar 336DL Excavator 2016 Model / 7

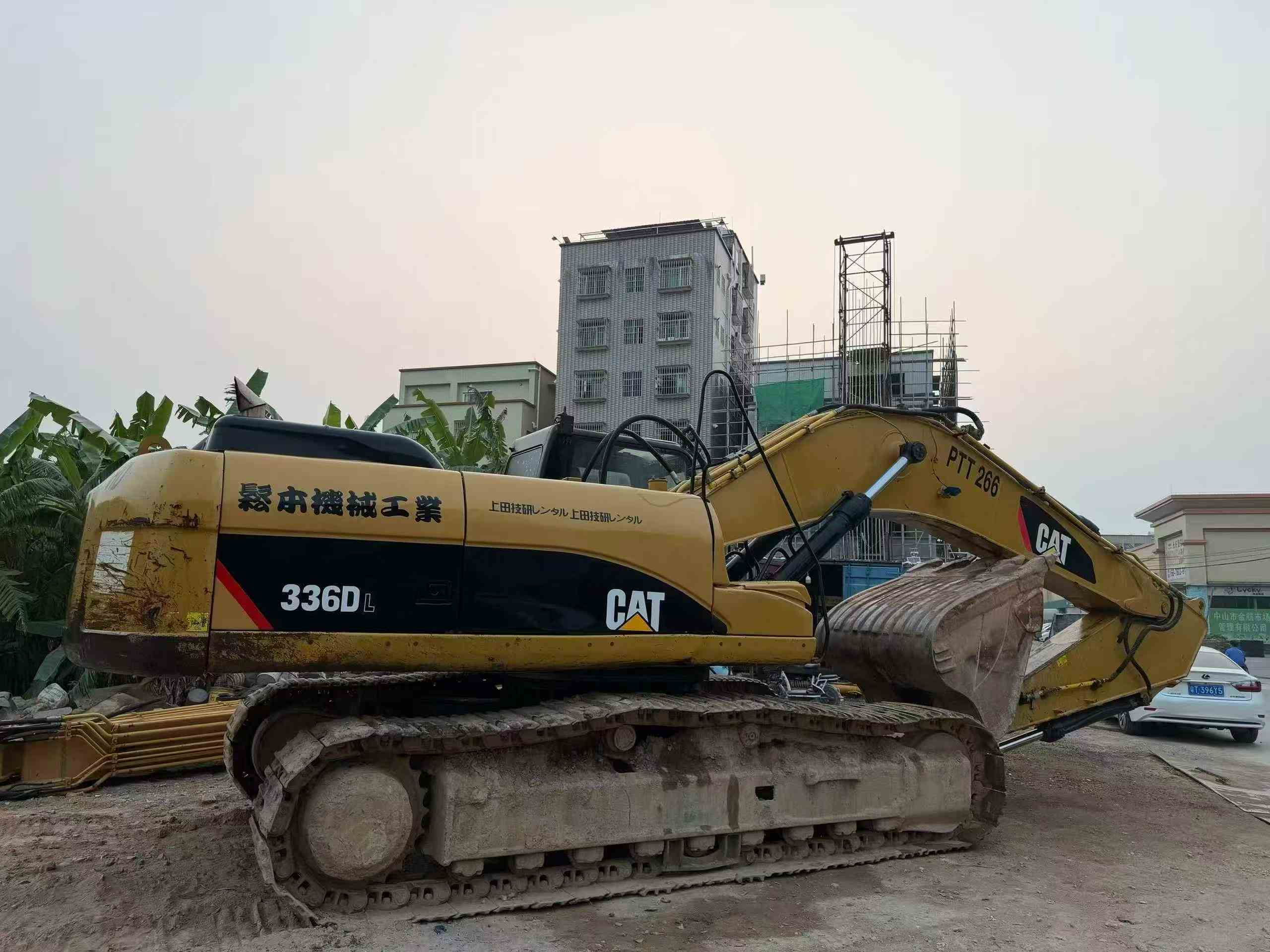

Used Caterpillar 336DL Excavator 2016 Model / 8

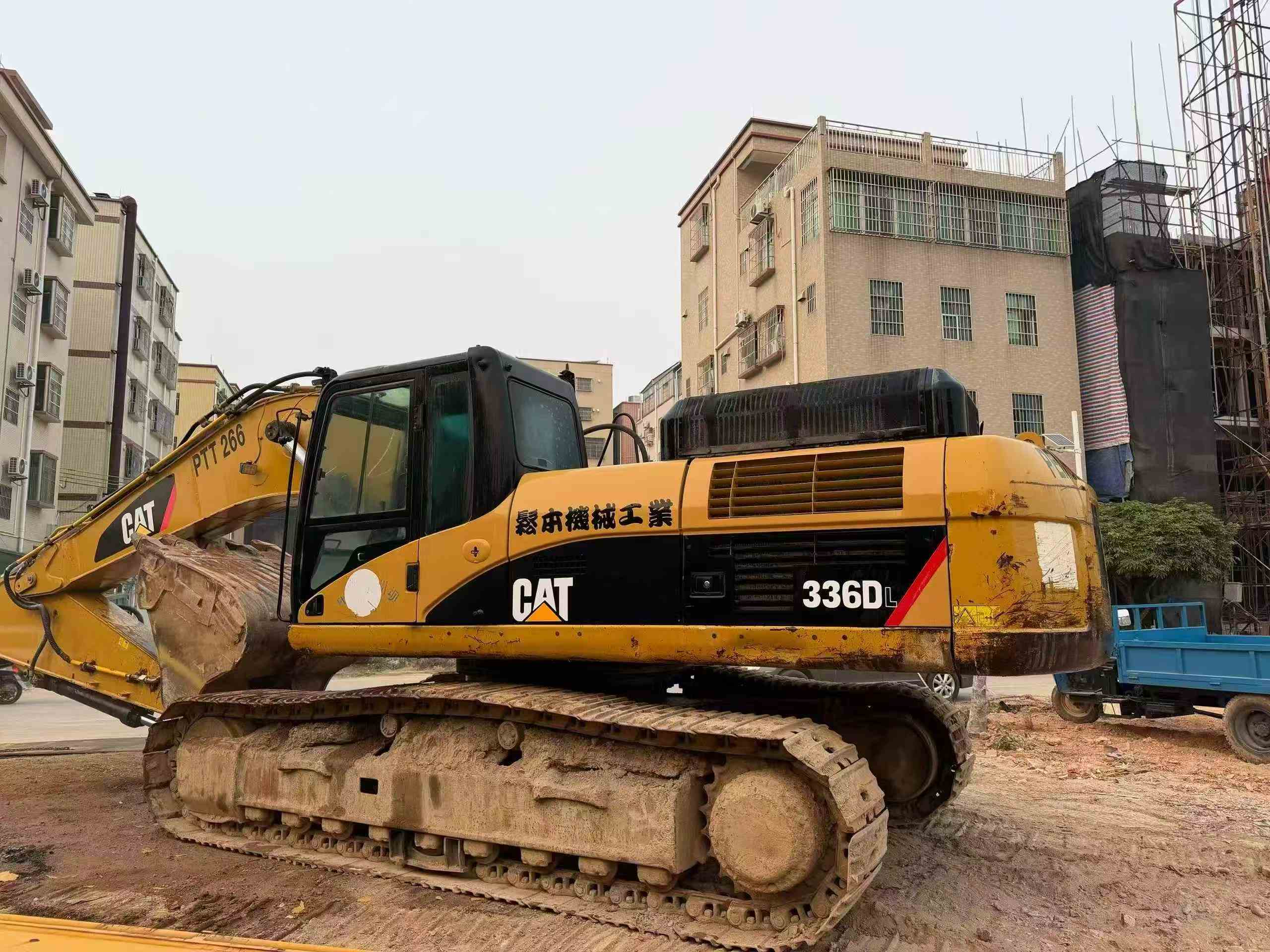

Used Caterpillar 336DL Excavator 2016 Model / 9

Product Description

Premium Recommendation: Second-hand Caterpillar 336DL excavator with outstanding performance. Welcome to view the vehicle on site This Caterpillar 336DL excavator has an estimated working time of only 10,000 hours and features outstanding stability and durability. It is equipped with a C9 ACERT engine, with a maximum power output of 225kW, ensuring strong power output and efficient fuel economy under all working conditions. The advanced hydraulic system is equipped with a high-flow main pump and a highly responsive hydraulic motor, which not only enhances the digging force and stability but also significantly reduces operational fatigue. In addition, this model is equipped with an intelligent control system that can automatically adjust the throttle opening according to the actual load, further optimizing work efficiency and reducing fuel consumption. The main advantages include: - Excellent power performance and fuel efficiency - Efficient and stable hydraulic system Intelligent control technology enhances productivity The durable design is suitable for a variety of working environments Whether it's earthwork or mining, this 336DL is your ideal choice. We sincerely invite all customers to come for an on-site inspection and test dri

SpecificationsValue
No.977566
Tonnage (tons)36
Working weight (kg)35020
Bucket capacity (m³)1.5
Boom length (mm)6500
Rod length (mm)3200
Country of originJapan/Xuzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC9ACERT
Rated power (kw/rpm)200/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Number of cylinders (PCS)6
Displacement (L)8.8
Rotation speed (rpm)10
Climbing ability (%)70/35 °
Bucket digging force (kN)222
Rod digging force (kN)146
Travel speed (km/h)March 5th
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)280
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.8
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)150 x 1151
Bucket rod cylinders - Number × diameter × stroke (mm)170 x 1738
Boom cylinders - Number × diameter × stroke (mm)150 x 1440
Fuel Tank (L)620
Hydraulic Tank (L)175
Engine Oil changes (L)40
Coolant (L)40
Hydraulic System (L)410(including fuel tank)
Total transport length (mm)11150
Total transport width (mm)3190
Total transport height (mm)3340
Full cab height (mm)3140
Counterweight ground clearance (mm)1220
Minimum ground clearance (mm)450
Back end turning radius (mm)3500
Total track length (mm)5020
Track gauge (mm)2590
Track plate width (mm)700
Total track width (mm)3290
Track ground length (mm)4040
Maximum digging depth (mm)7390
Maximum excavation height (mm)10240
Maximum unloading height (mm)7200
Maximum vertical digging depth (mm)5830
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10920
Maximum effective digging depth (mm)7230
see more

Overview

No.977566

Brand Name:

Caterpillar

Model Number:

336DL

Year:

2016

Location:

Guangdong China
