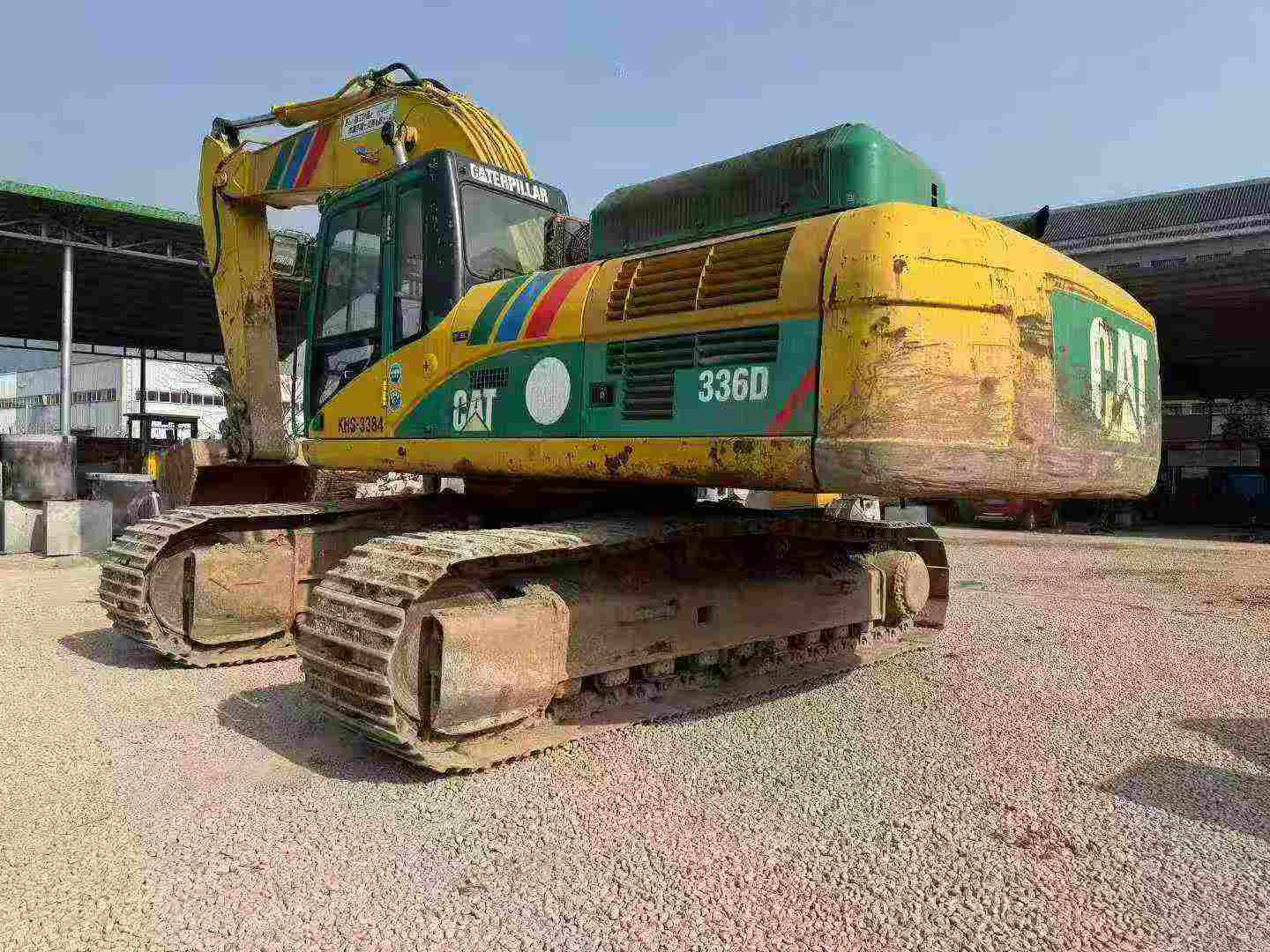

2016 Caterpillar 336DL
Product Description
Built for endurance, this 2016 Caterpillar 336DL excavator demonstrates exceptional longevity with its robust C9ACERT engine delivering 200kW of reliable power. After years of proven performance, this 36-ton workhorse continues to showcase Caterpillar's legendary build quality and engineering excellence.
Key specifications include:
- 1.5m³ bucket capacity with 222kN digging force
- 7.39m maximum digging depth and 10.24m reach
- Water-cooled 6-cylinder engine with 8.8L displacement

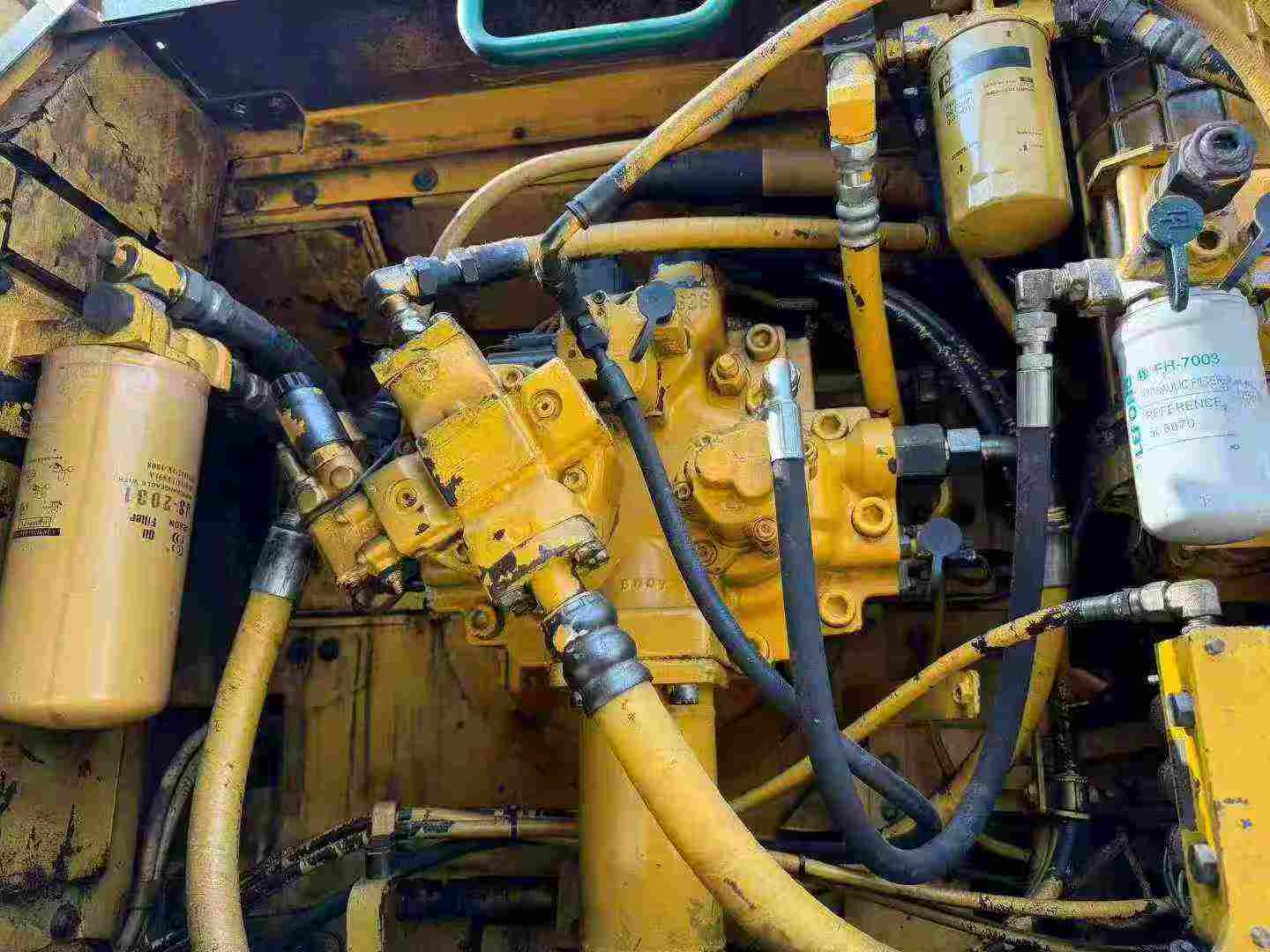

- Advanced hydraulic system with 280L/min main pump flow
- 620L fuel capacity for extended operation cycles
Currently located in Luzhou, Sichuan, this machine represents time-tested reliability. With its proven track record spanning multiple years of operation, the 336DL stands as testament to Caterpillar's commitment to durability. The combination of Japanese engineering precision and robust construction ensures continued productivity for demanding construction and excavation projects.
| Specifications | Value |
|---|---|
| No. | 987030 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35020 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3290 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
Overview
No.987030
Brand Name：
CaterpillarModel Number：
336DLYear：
2016
Location：
Sichuan China
