2023 Caterpillar 336EL











| Specifications | Value |
|---|---|
| No. | 970475 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 (General) |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4.1 |
| Pilot pump flow (L/min) | 26 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 30.5 |
| Coolant (L) | 56 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 3360 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700/800/850 |
| Maximum digging radius (mm) | 11720 |
| Maximum digging depth (mm) | 8190 |
| Maximum excavation height (mm) | 10740 |
| Maximum unloading height (mm) | 7500 |
| Maximum vertical digging depth (mm) | 6310 |
| Maximum effective digging depth (mm) | 7610 |
Description

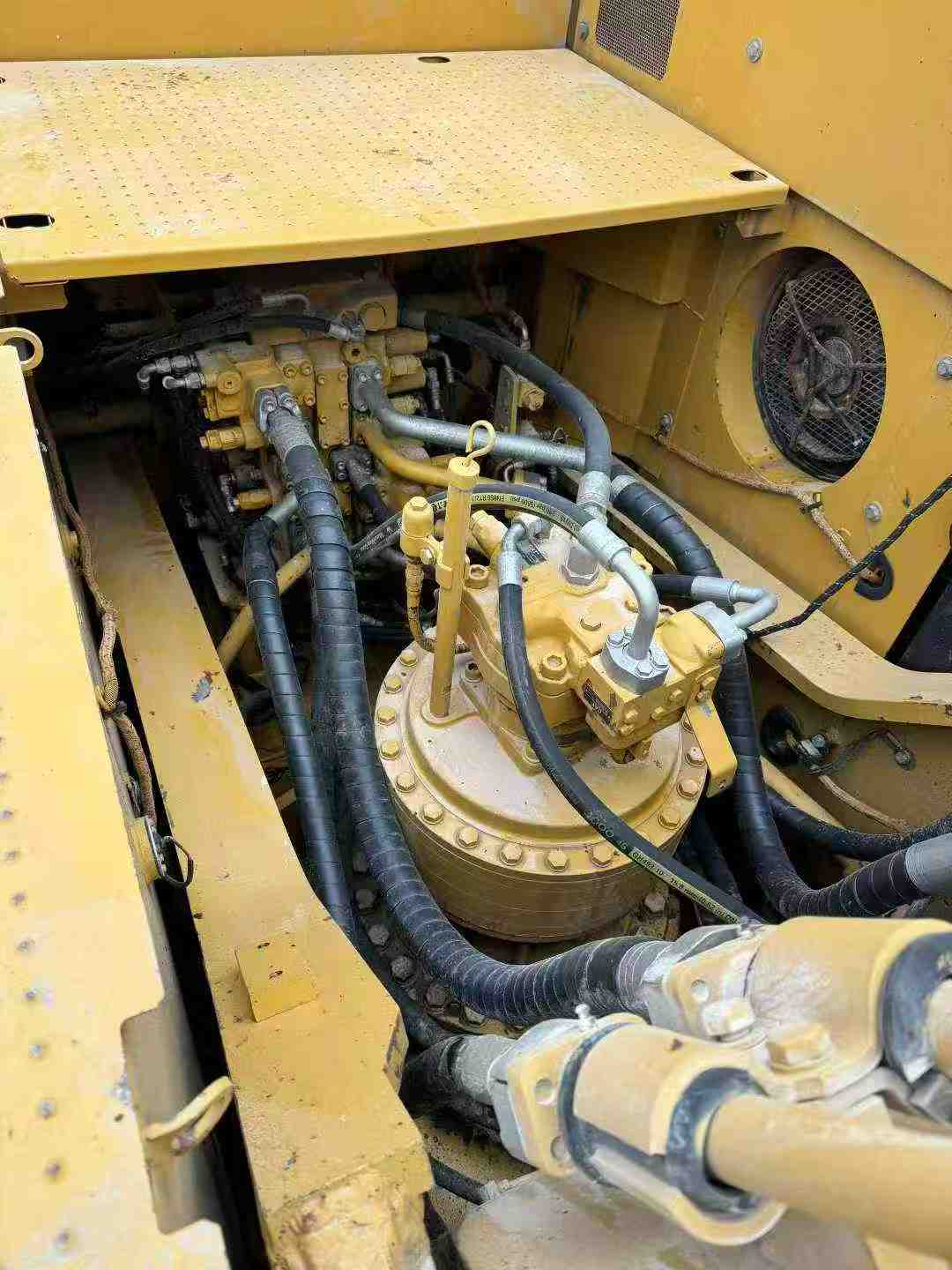

【 Premium Recommendation 】 Original pure import, 23 years of customs declaration, top-quality Caterpillar 336EL excavator This Caterpillar 336EL excavator is an original imported device that was just declared in 2023. It has a total working time of only 1,500 hours and is almost brand new. It boasts outstanding performance and extremely low fuel consumption, making it a rare high-quality second-hand construction machinery. "Power System: This excavator is equipped with a Caterpillar C9.3 ACERT engine, which is powerful and stable in operation, with a maximum output power of 227 kilowatts (305 horsepower). This engine not only has abundant power but also features excellent fuel economy. Even under high-load operation conditions, it can maintain a low fuel consumption level, significantly reducing operating costs. "Hydraulic system: Equipped with an advanced negative flow control hydraulic system, it ensures efficient energy utilization and precise operational response. Whether it is in complex working conditions such as excavation, loading or crushing, it can provide a smooth and fluid action experience. In addition, its unique hydraulic oil cooling device can effectively extend the service life and ensure the stability of long-term
Overview
No.970475
Brand Name:
CaterpillarModel Number:
336ELYear:
2023
Location:
Zhejiang China
