2016 Caterpillar 336EL

1/9
Used Caterpillar 336EL Excavator 2016 Model / 1
Used Caterpillar 336EL Excavator 2016 Model / 2
Used Caterpillar 336EL Excavator 2016 Model / 3
Used Caterpillar 336EL Excavator 2016 Model / 4
Used Caterpillar 336EL Excavator 2016 Model / 5
Used Caterpillar 336EL Excavator 2016 Model / 6
Used Caterpillar 336EL Excavator 2016 Model / 7
Used Caterpillar 336EL Excavator 2016 Model / 8
Used Caterpillar 336EL Excavator 2016 Model / 9

Product Description

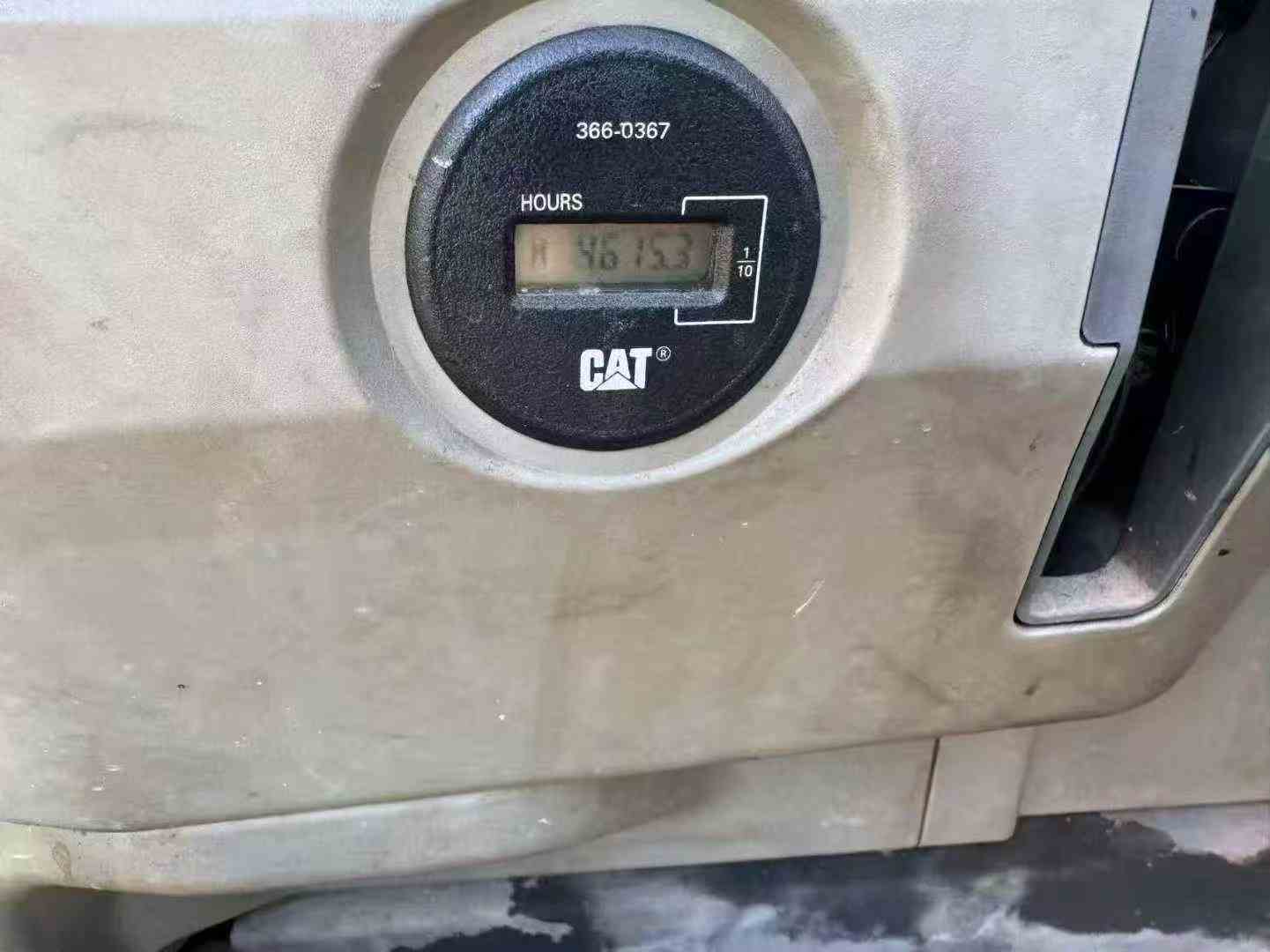

【 Premium Recommendation 】 Second-hand Caterpillar 336EL excavator, with a large chassis design and outstanding performance, is your reliable assistant for engineering operations. This device has a cumulative working time of only 4,000 hours (possibly), and its overall condition is excellent. With professional maintenance and care, it ensures its efficient and stable performance. In terms of the power system, this aircraft is equipped with a Caterpillar C9.3 ACERT engine, with a maximum power output of 270kW (expected). It not only provides strong power output but also has excellent fuel economy. More importantly, this excavator is equipped with advanced DPF (Diesel Particulate Filter) technology, meeting the National IV emission standards. It is environmentally friendly and energy-saving, allowing you to enjoy high performance while also contributing to environmental protection. The hydraulic system adopts a combination of original imported high-quality hydraulic pumps and motors, ensuring rapid response and precise operation of the machine. Whether it is excavation or loading operations, they can be handled with ease, significantly enhancing work efficiency. In addition, this Caterpillar 336EL excavator also has the following sign

SpecificationsValue
No.978874
Tonnage (tons)36
Working weight (kg)36570-39370
Bucket capacity (m³)2.28 (General)
Boom length (mm)2550/3200/3900
Rod length (mm)6180/6500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

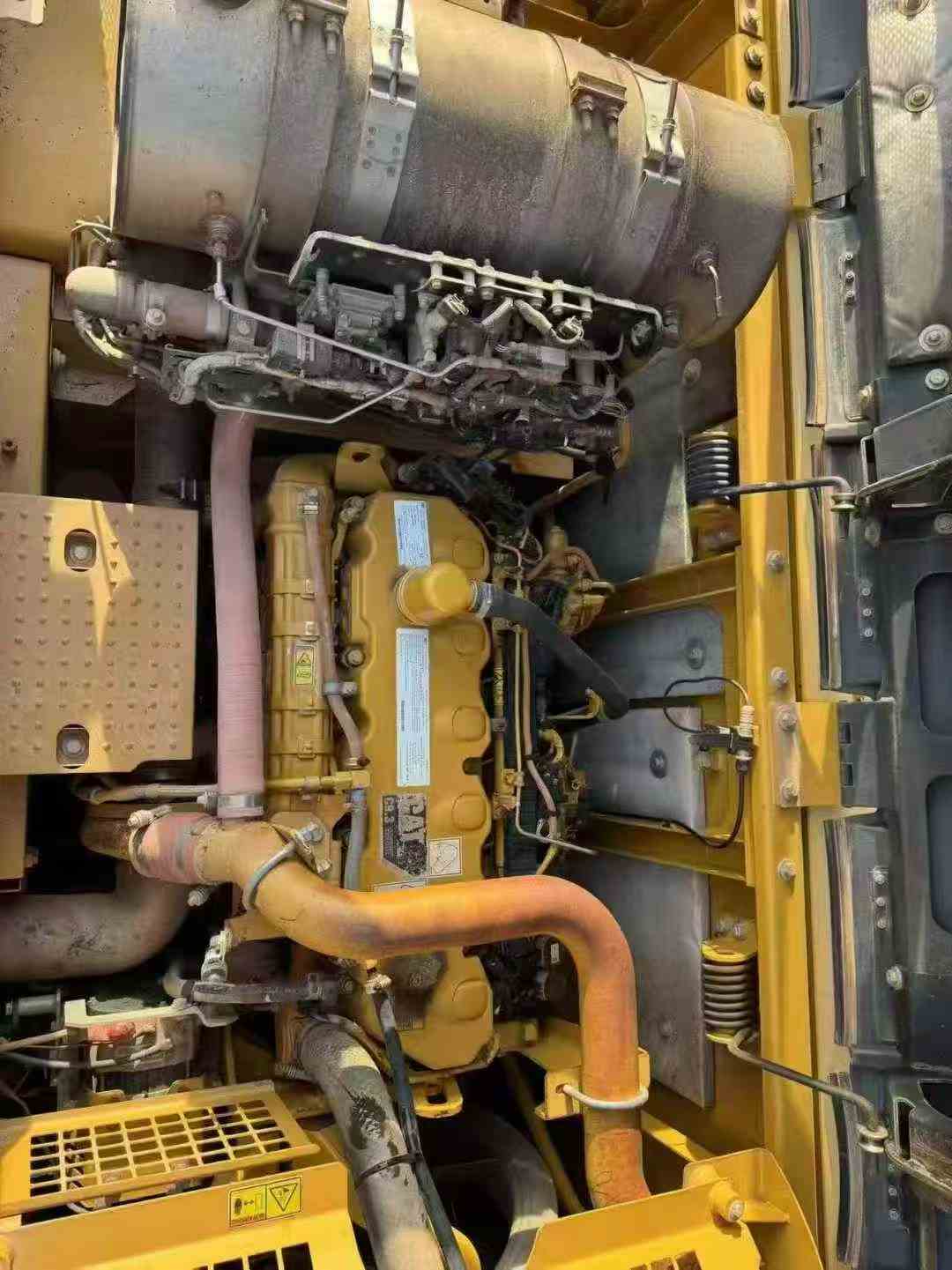

Engine typeCaterpillar Cat C9.3(ATAAC)
Rated power (kw/rpm)224
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 149
Displacement (L)9.3
Working formAir-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards
Rotation speed (rpm)9.2
Maximum tractive force (kN)295
Travel speed (km/h)4.9
Maximum flow of main pump (l/min)578
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)28
Pilot Oil Circuit (MPa)4.1
Pilot pump flow (L/min)26
Bucket cylinders - Number × diameter × stroke (mm)1-160 x 1356
Bucket rod cylinders - Number × diameter × stroke (mm)1-170 x 1738
Boom cylinders - Number × diameter × stroke (mm)2-150 x 1440
Fuel Tank (L)620
Hydraulic Tank (L)175
Engine Oil changes (L)30.5
Coolant (L)56
Hydraulic System (L)380
Total transport length (mm)11170
Total transport width (mm)3290/3390/3440
Total transport height (mm)3660
Full cab height (mm)3360
Counterweight ground clearance (mm)3360
Minimum ground clearance (mm)510
Back end turning radius (mm)3500
Total track length (mm)5020
Track gauge (mm)2590
Track plate width (mm)700/800/850
Maximum digging radius (mm)11720
Maximum digging depth (mm)8190
Maximum excavation height (mm)10740
Maximum unloading height (mm)7500
Maximum vertical digging depth (mm)6310
Maximum effective digging depth (mm)7610
see more

Overview

No.978874

Brand Name:

Caterpillar

Model Number:

336EL

Year:

2016

Location:

Guangdong China
