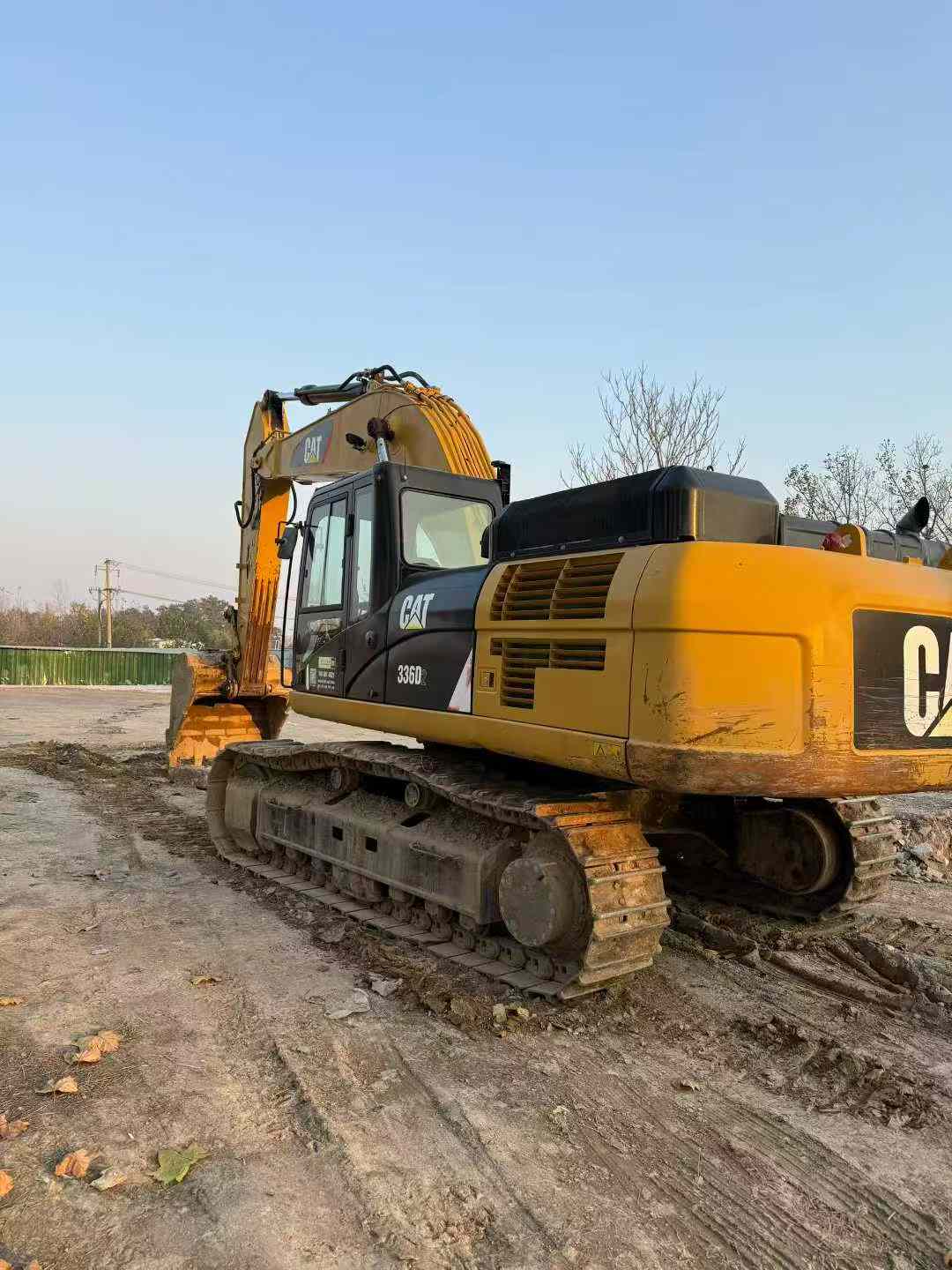

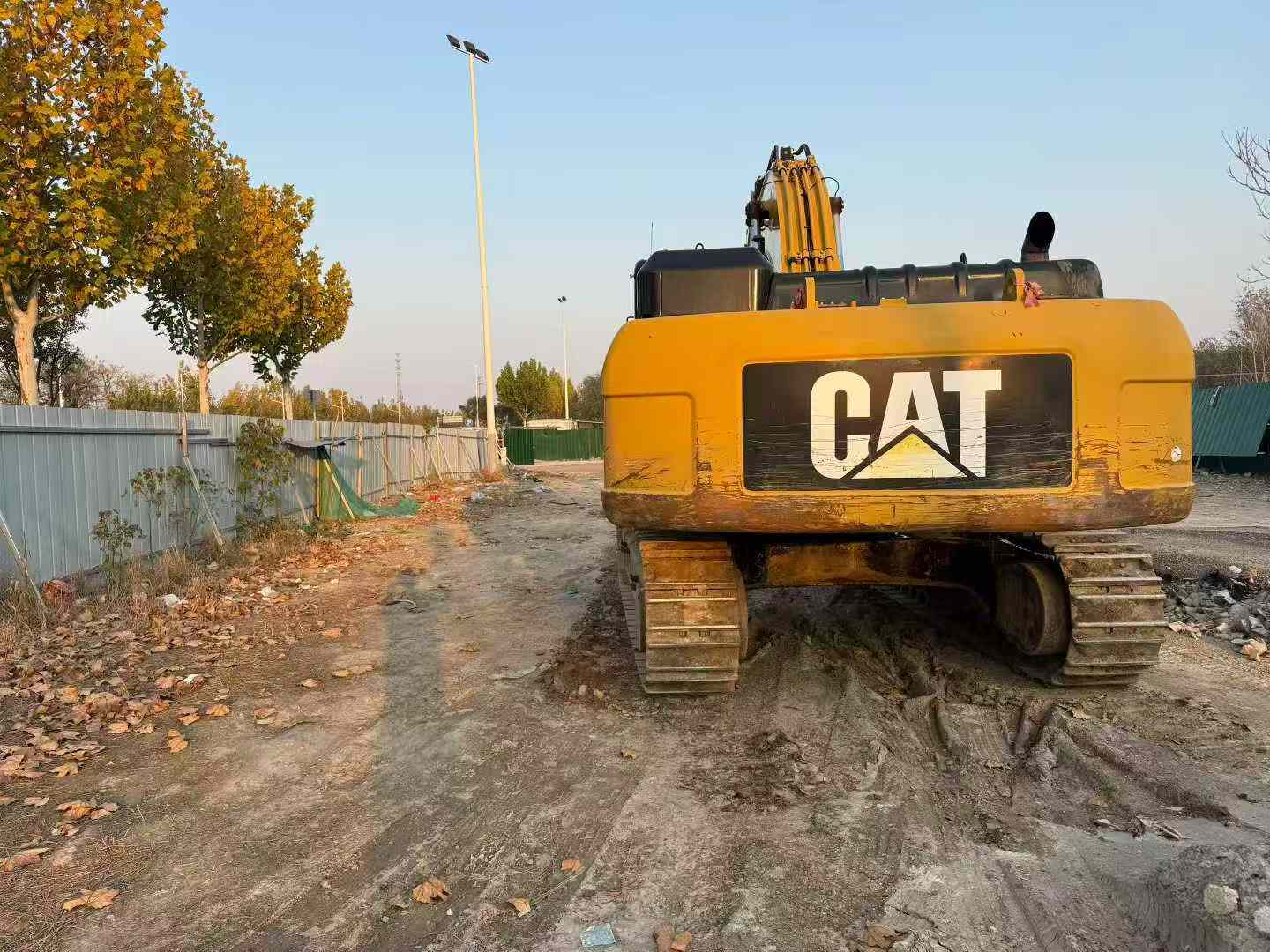

2017 Caterpillar 336FLH











| Specifications | Value |
|---|---|
| No. | 967828 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

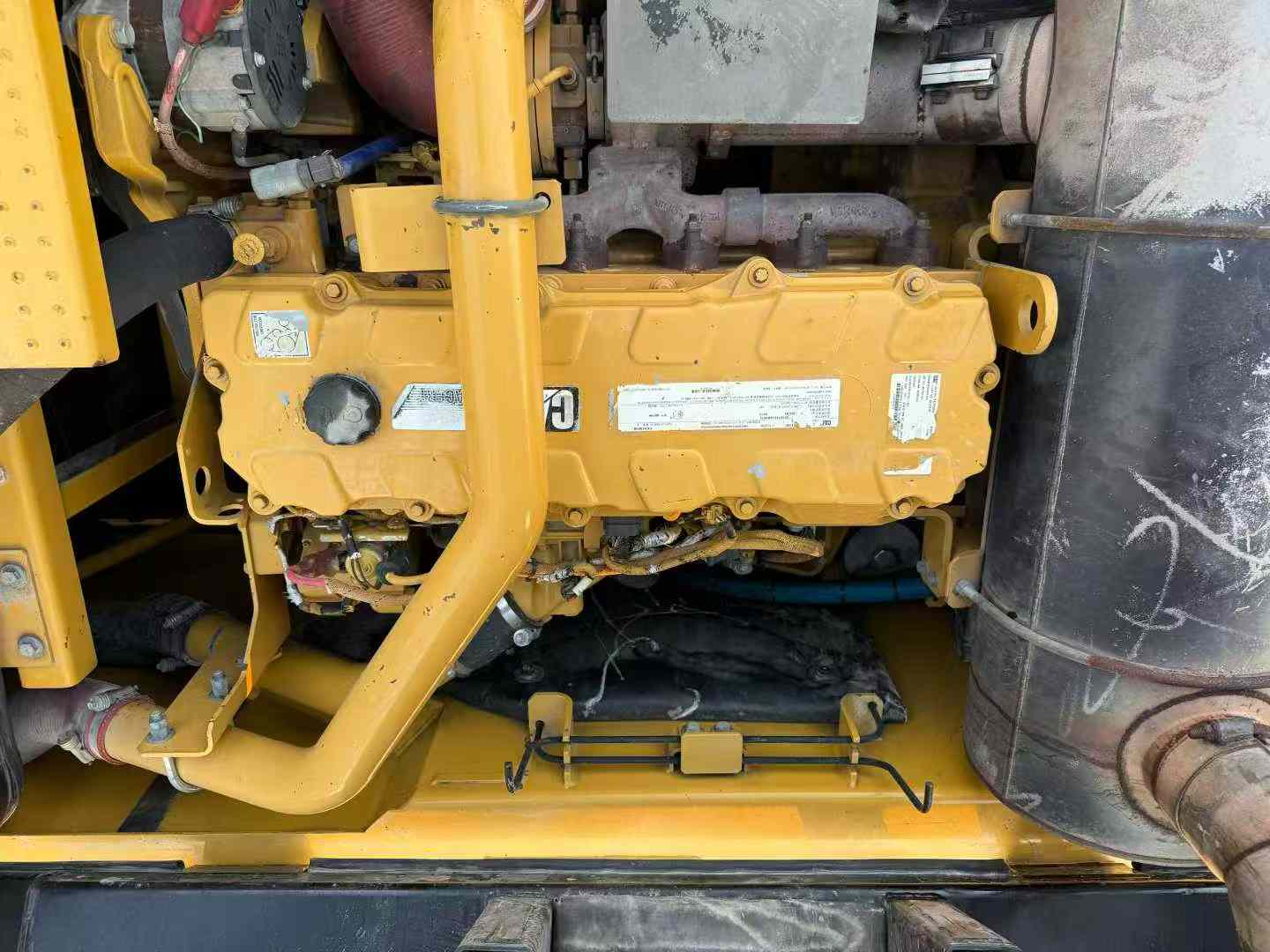

| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |

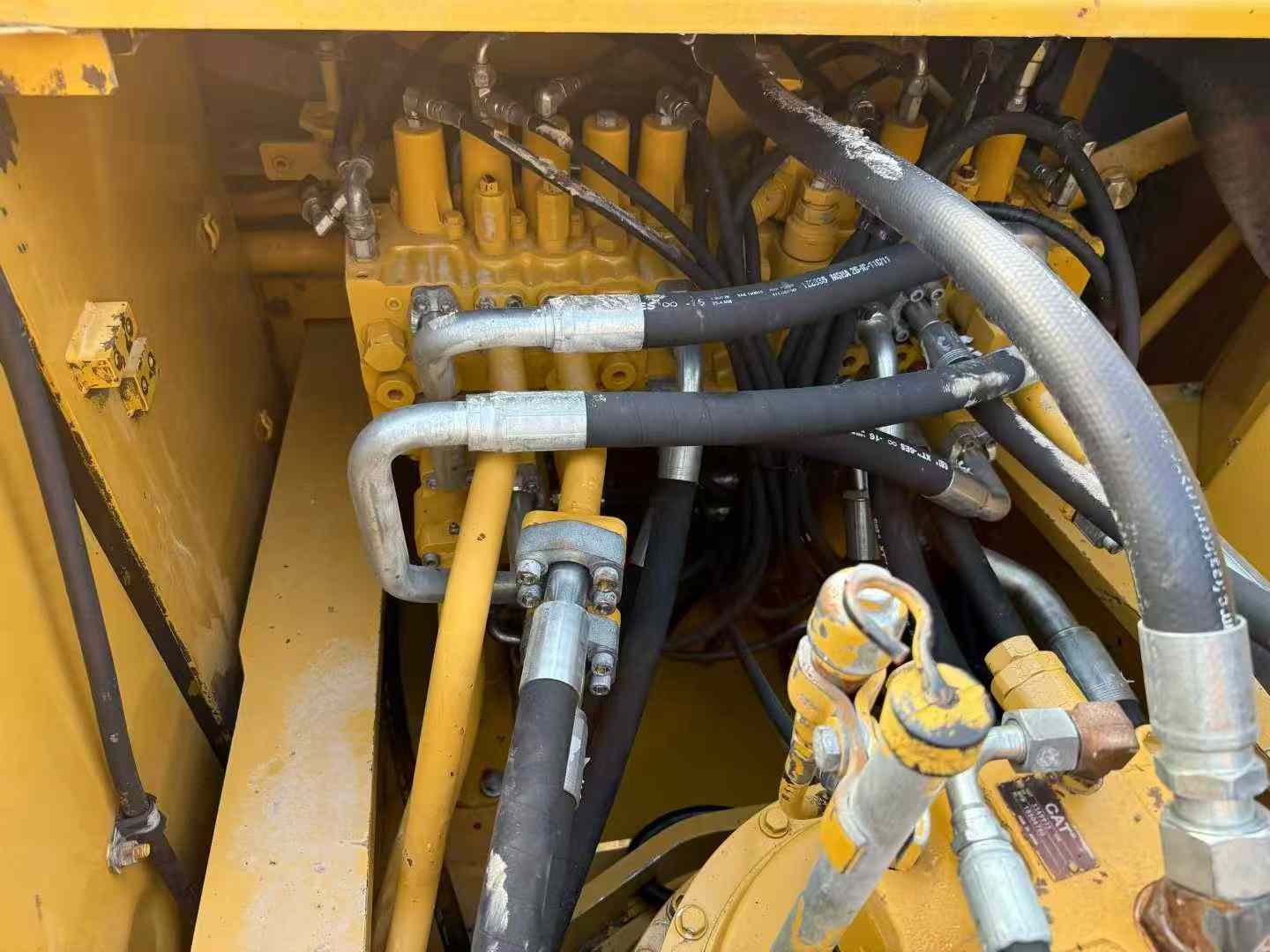

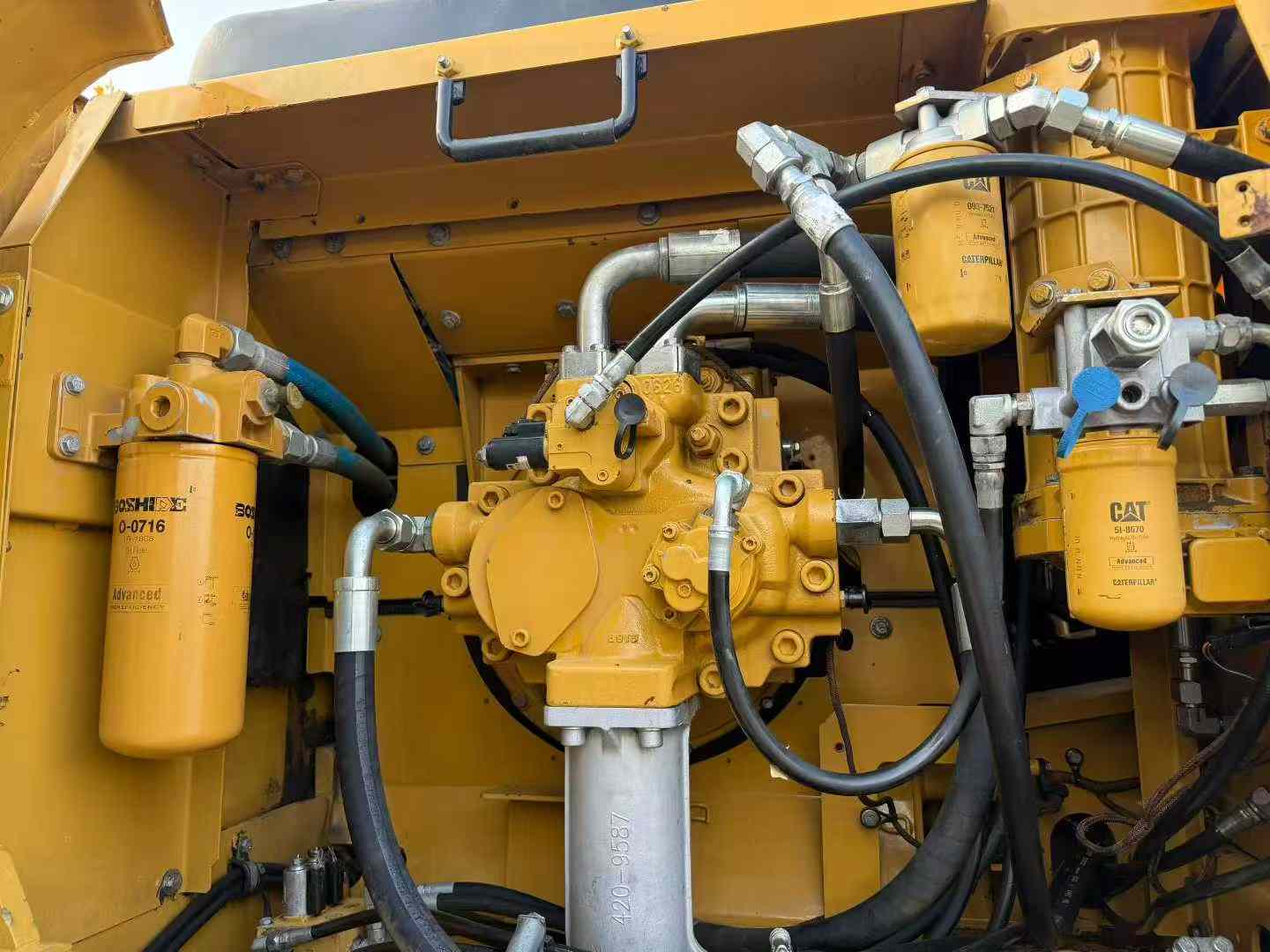

| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |

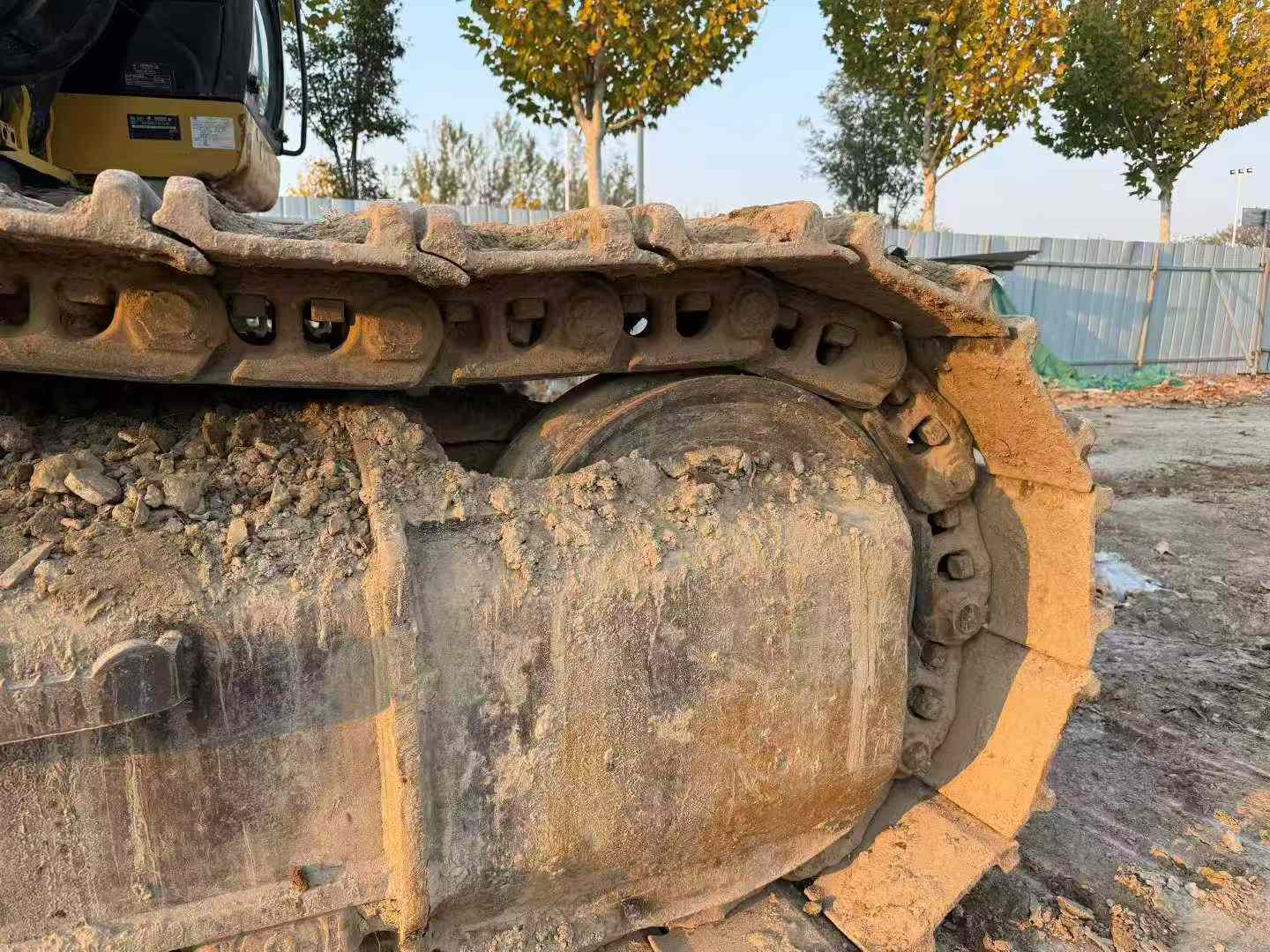

| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Description
【 Premium Recommendation 】2017 Caterpillar 336 Mining Edition Excavator, this is a heavy-duty equipment specially designed for the harsh mining operation environment. This excavator has a cumulative working time of only 5,000 hours, which is far lower than the average service life of similar equipment, ensuring the stability and long-term durability of mechanical performance. The power system is equipped with a Caterpillar C9.3ACERT engine, with a maximum power output of 240kW. It not only provides strong power output but also features excellent fuel economy, effectively reducing operating costs. In terms of the hydraulic system, it is equipped with advanced positive flow control technology, which responds quickly and operates precisely. Whether it is digging hard rock or transporting heavy objects, it can handle them with ease. In addition, this model has particularly enhanced the strength and wear resistance of structural components to meet the high-intensity operation requirements under harsh working conditions. The cab is spacious and comfortable, with a wide field of vision. It is also equipped with an air conditioning system, ensuring a good working environment even in the hot summer. If you are looking for a second-hand mining e
Overview
No.967828
Brand Name:
CaterpillarModel Number:
336FLHYear:
2017
Location:
Jiangsu China
