2013 Caterpillar 336FLH






| Specifications | Value |
|---|---|
| No. | 970753 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | |35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot pump flow (L/min) | 4.1 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Fuel Tank (L) | 620 |
| Coolant (L) | 56 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Counterweight ground clearance (mm) | 5020 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | |700/800/850 |
| Maximum digging depth (mm) | 10740 |
| Maximum excavation height (mm) | 7500 |
| Maximum unloading height (mm) | 7610 |
Description

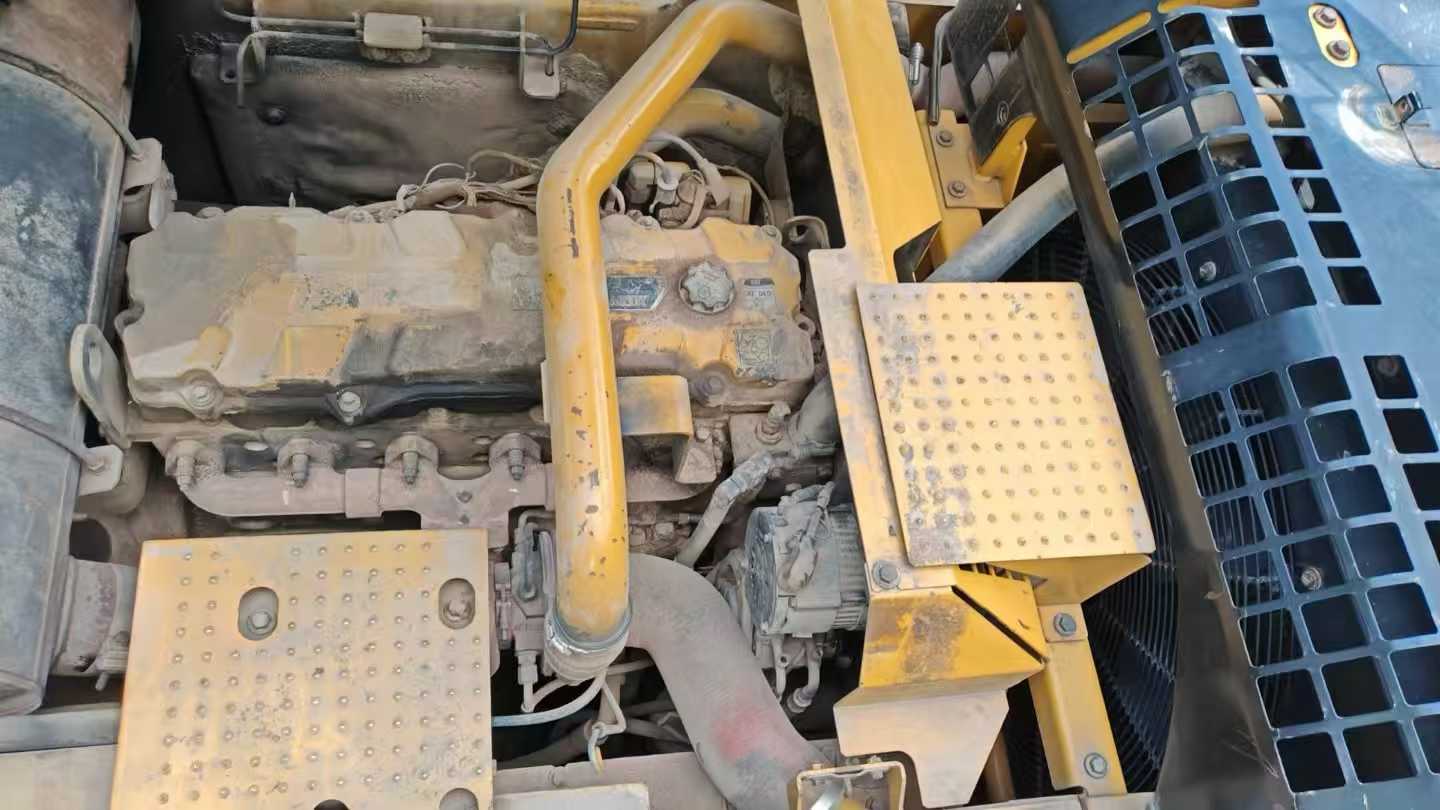

【 Premium Recommendation 】 The 2013 Caterpillar 336D second-hand excavator is about to be displayed on site. Welcome to visit! Since its commissioning in 2013, this Caterpillar 336D excavator has been in operation for a total of 8,500 hours, with complete maintenance records and in good working condition. This machine is equipped with a Caterpillar C9.3 ACERT engine, which is powerful with a rated power of 227kW (305 horsepower). It not only has abundant power but also low fuel consumption and smooth operation. This engine also performs outstandingly in terms of environmental protection, meeting the emission standards of Europe and America and being suitable for various working conditions. In terms of the hydraulic system, this machine is equipped with Caterpillar's advanced high-pressure common rail electronic control hydraulic system, ensuring high operational sensitivity and fast response speed of the entire machine, while also having good fuel economy. Whether it is excavation or loading operations, it can handle them with ease and outstanding efficiency. In addition, its robust and durable structural design, combined with high-quality manufacturing processes, enables this 336D to maintain a good condition even after prolonged an
Overview
No.970753
Brand Name:
CaterpillarModel Number:
336FLHYear:
2013
Location:
Yunnan China
