2012 Caterpillar 336FLH

1/4
Used Caterpillar 336FLH Excavator 2012 Model / 1

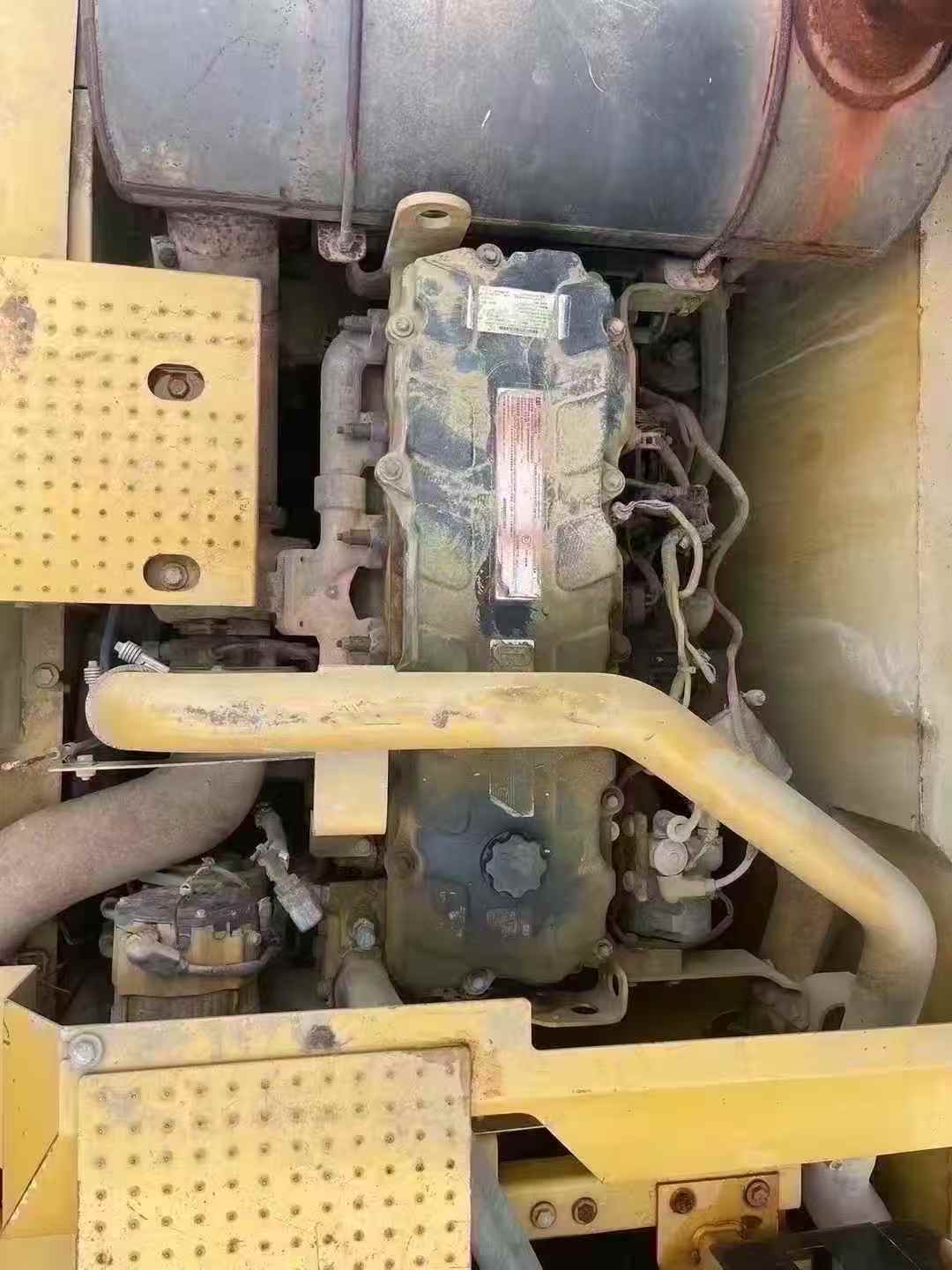

Used Caterpillar 336FLH Excavator 2012 Model / 2

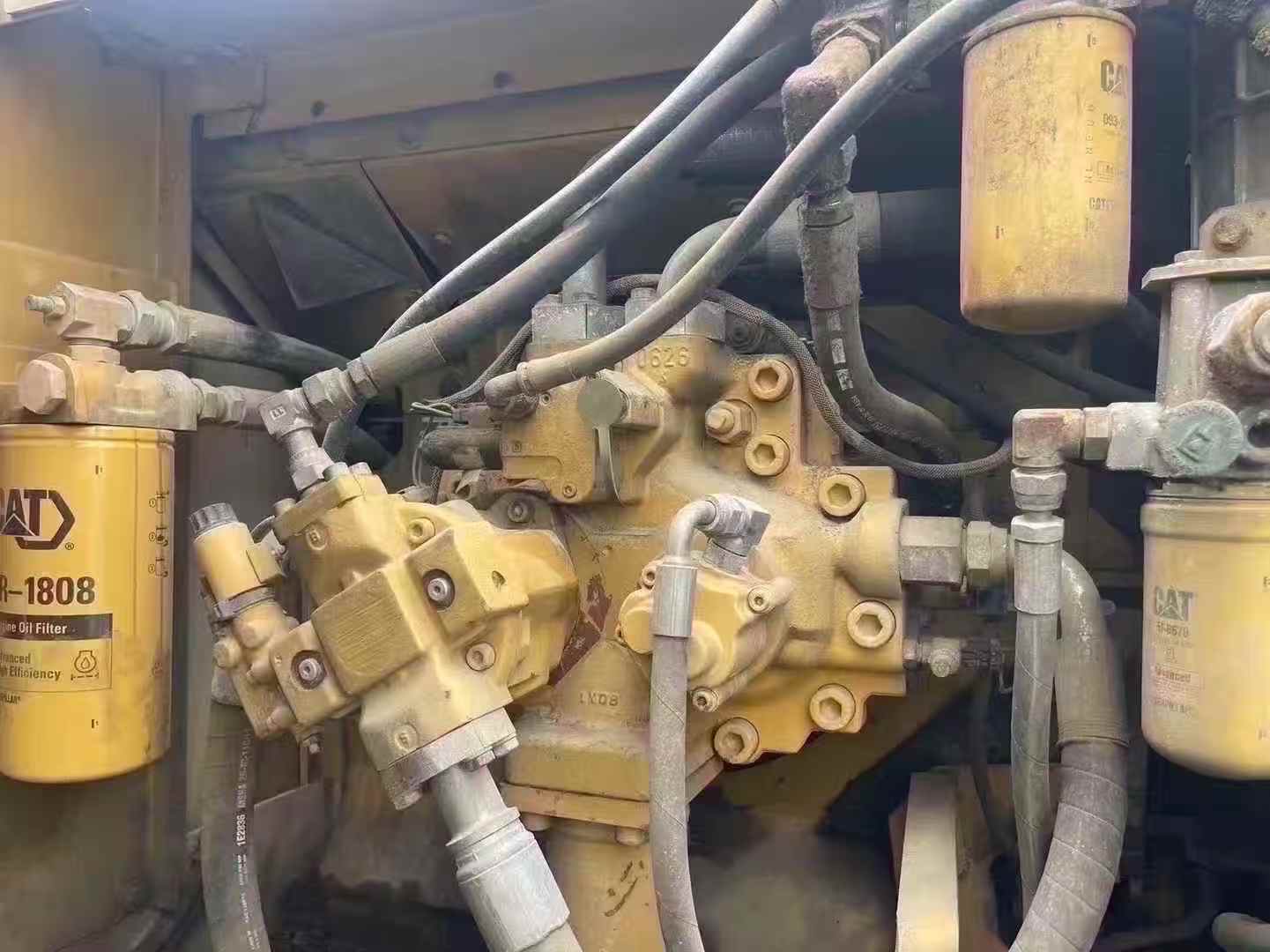

Used Caterpillar 336FLH Excavator 2012 Model / 3

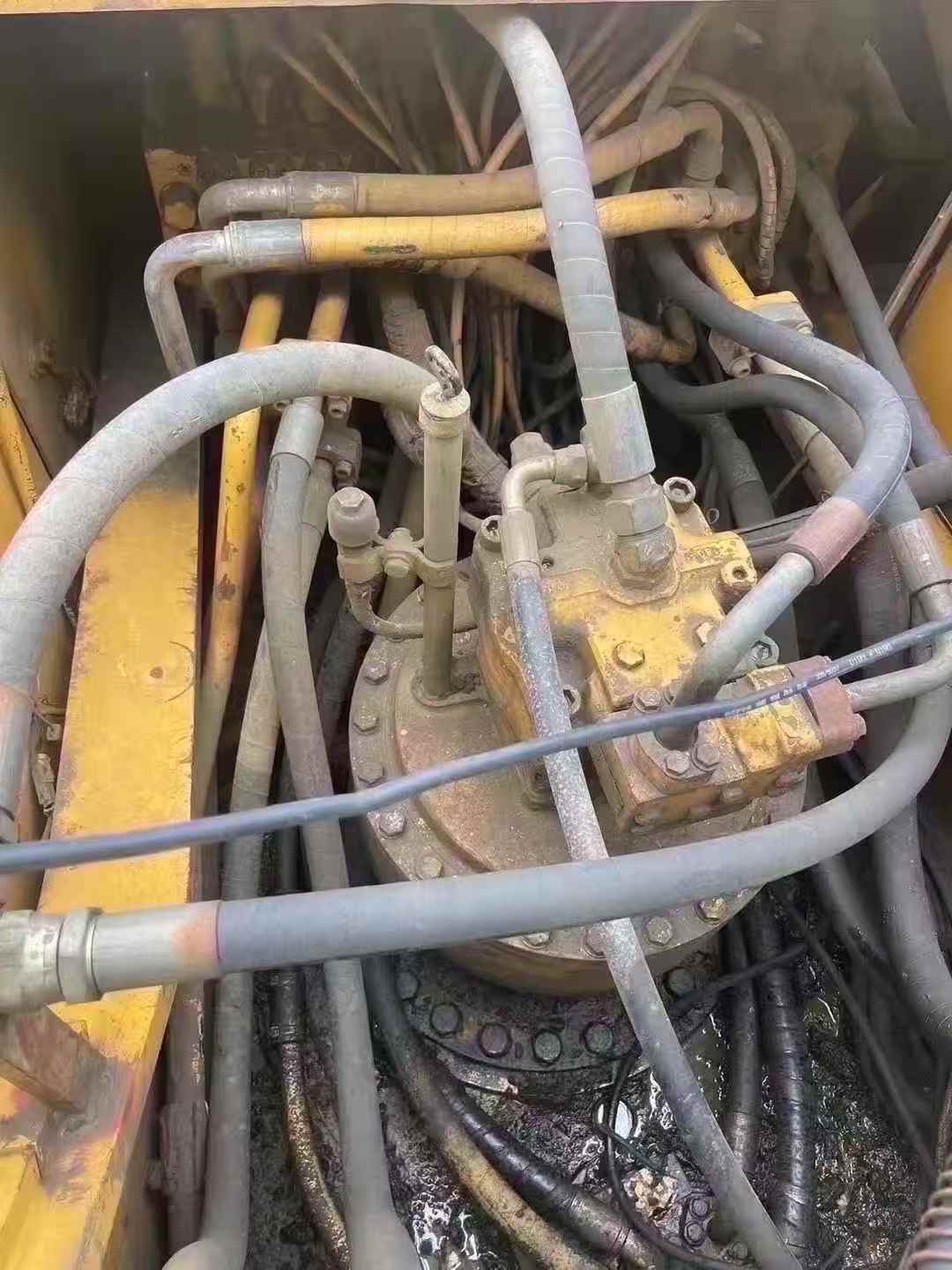

Used Caterpillar 336FLH Excavator 2012 Model / 4

Product Description

【 Premium Recommendation 】 The 2012 Caterpillar 336 long-arm excavator, with a working arm length of 24 meters, is your ideal choice for deep foundation pit excavation, river dredging and other projects. Since its manufacture, this machine has been in good maintenance condition, with a cumulative working time of 8,500 hours. It is within its optimal service life and has stable and reliable performance. In terms of the power system, this equipment is equipped with a Caterpillar C9 ACERT engine, with a maximum output power of up to 225kW (302 horsepower). It features excellent fuel economy and strong power performance, enabling it to handle complex and changeable construction environments with ease. In addition, the efficient cooling system ensures stable operation under long-term high-load operation, effectively extending the service life of the engine. The hydraulic system adopts advanced electrically controlled proportional valve technology, featuring high operational sensitivity and fast response speed. It can achieve precise control, enhancing work efficiency while reducing energy consumption. The large-capacity oil tank and filtration device equipped ensure the cleanliness and sufficient supply of hydraulic oil, further enhancing

SpecificationsValue
No.972062
Tonnage (tons)36
Working weight (kg)36570-39370
Bucket capacity (m³)2.28
Boom length (mm)2550/3200/3900
Rod length (mm)6180/6500
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar Cat C9.3(ATAAC)
Rated power (kw/rpm)224
Cooling modewater-cooling
Cylinder diameter × stroke (mm)115 x 149
Displacement (L)9.3
Working formAir-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards
Rotation speed (rpm)9.2
Maximum tractive force (kN)295
Travel speed (km/h)4.9
Maximum flow of main pump (l/min)578
Traveling Hydraulic Circuit (Mpa)|35
Rotary Hydraulic Circuit (Mpa)28
Pilot pump flow (L/min)4.1
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 1356
Fuel Tank (L)620
Coolant (L)56
Total transport length (mm)11170
Total transport width (mm)3290/3390/3440
Counterweight ground clearance (mm)5020
Minimum ground clearance (mm)510
Back end turning radius (mm)3500
Total track length (mm)|700/800/850
Maximum digging depth (mm)10740
Maximum excavation height (mm)7500
Maximum unloading height (mm)7610
see more

Overview

No.972062

Brand Name:

Caterpillar

Model Number:

336FLH

Year:

2012

Location:

Jiangsu China
