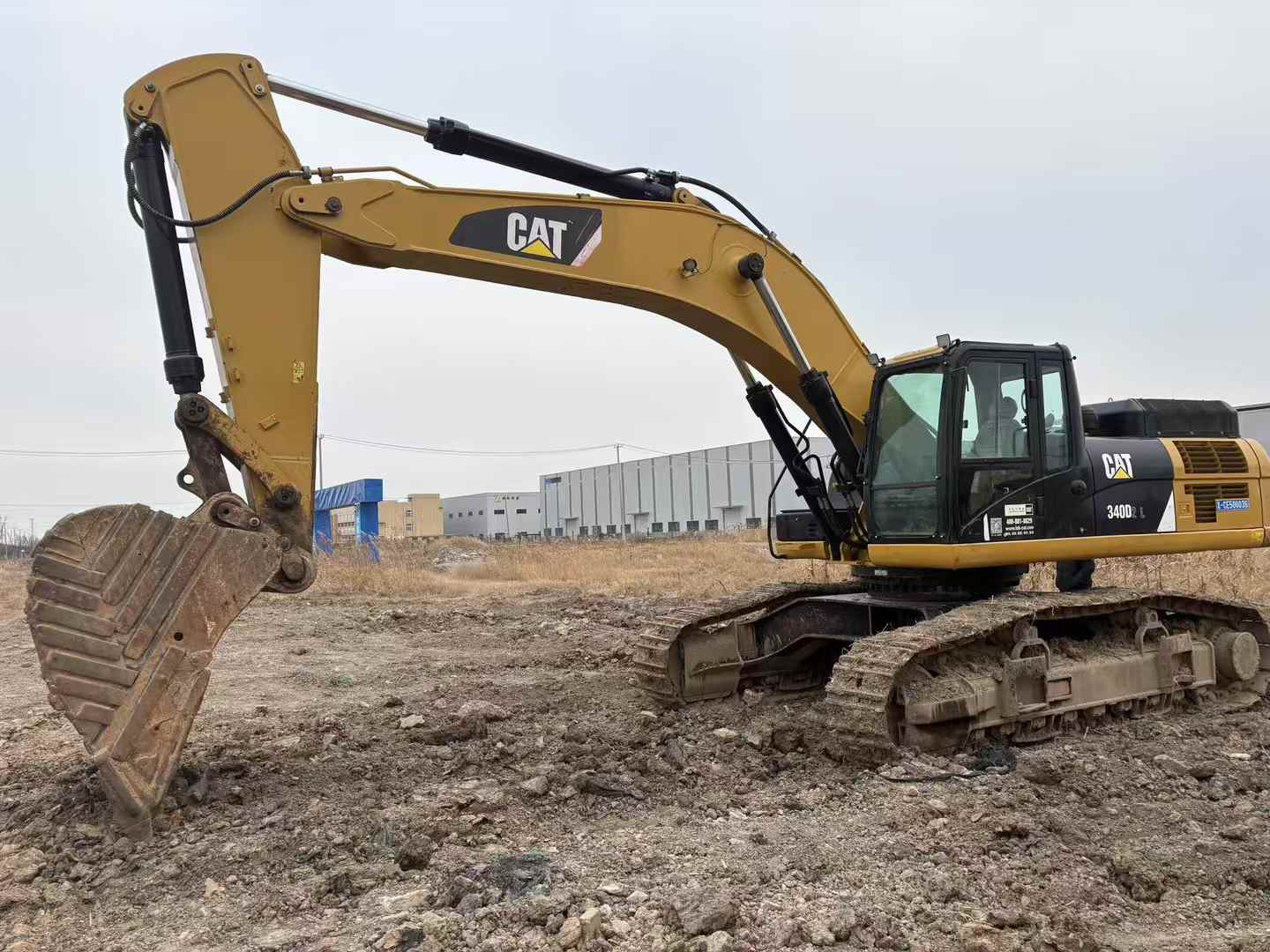

2016 Caterpillar 340D2L
| Specifications | Value |
|---|---|
| No. | 966252 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
Description

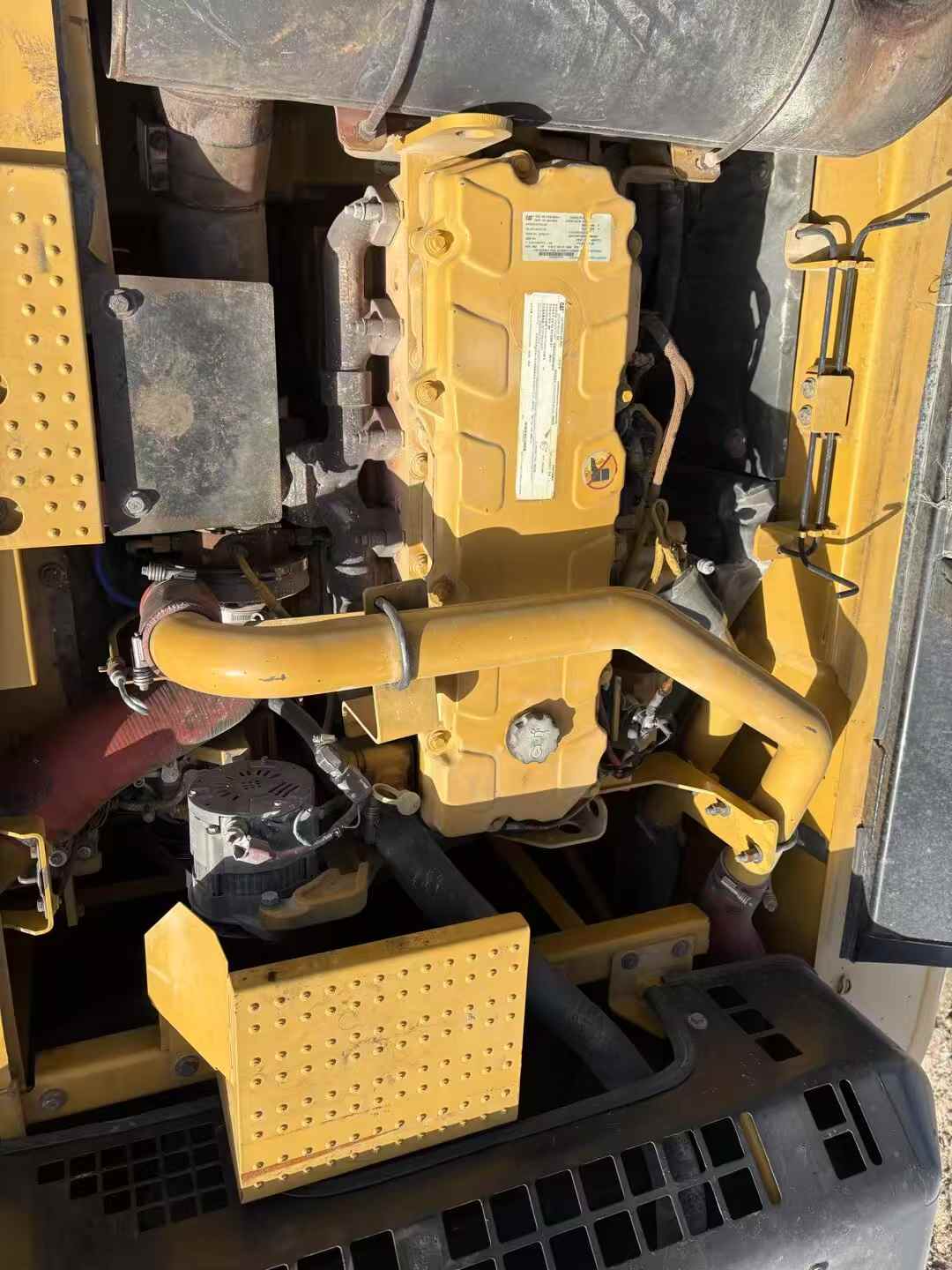

【 Premium Recommendation 】 The 2016 Caterpillar 340D2L excavator is now on hot sale! Since this machine was put into use in 2016, its total working hours have only been around 5,000 hours, making it a very high-quality second-hand device. It has a powerful power system and is equipped with the Cat C9.3 ACERT engine, which is renowned worldwide for its high efficiency, low fuel consumption and excellent reliability. In the actual operation process, whether it is digging hard soil or rocks, it can handle it with ease, demonstrating outstanding dynamic performance. In terms of the hydraulic system, the 340D2L adopts advanced high-pressure common rail technology, ensuring smooth operation and rapid response of the entire machine. The electronic control system it is equipped with can automatically adjust the hydraulic oil flow according to different operation requirements, thereby achieving the best working efficiency. In addition, this model also pays special attention to environmental protection and energy-saving design. While ensuring strong power output, it effectively reduces fuel consumption and emissions, meeting the requirements of today's society for green construction. As a medium-sized crawler excavator, the Caterpillar 340D2L
Overview
No.966252
Brand Name：
CaterpillarModel Number：
340D2LYear：
2016
Location：
Jiangsu China
