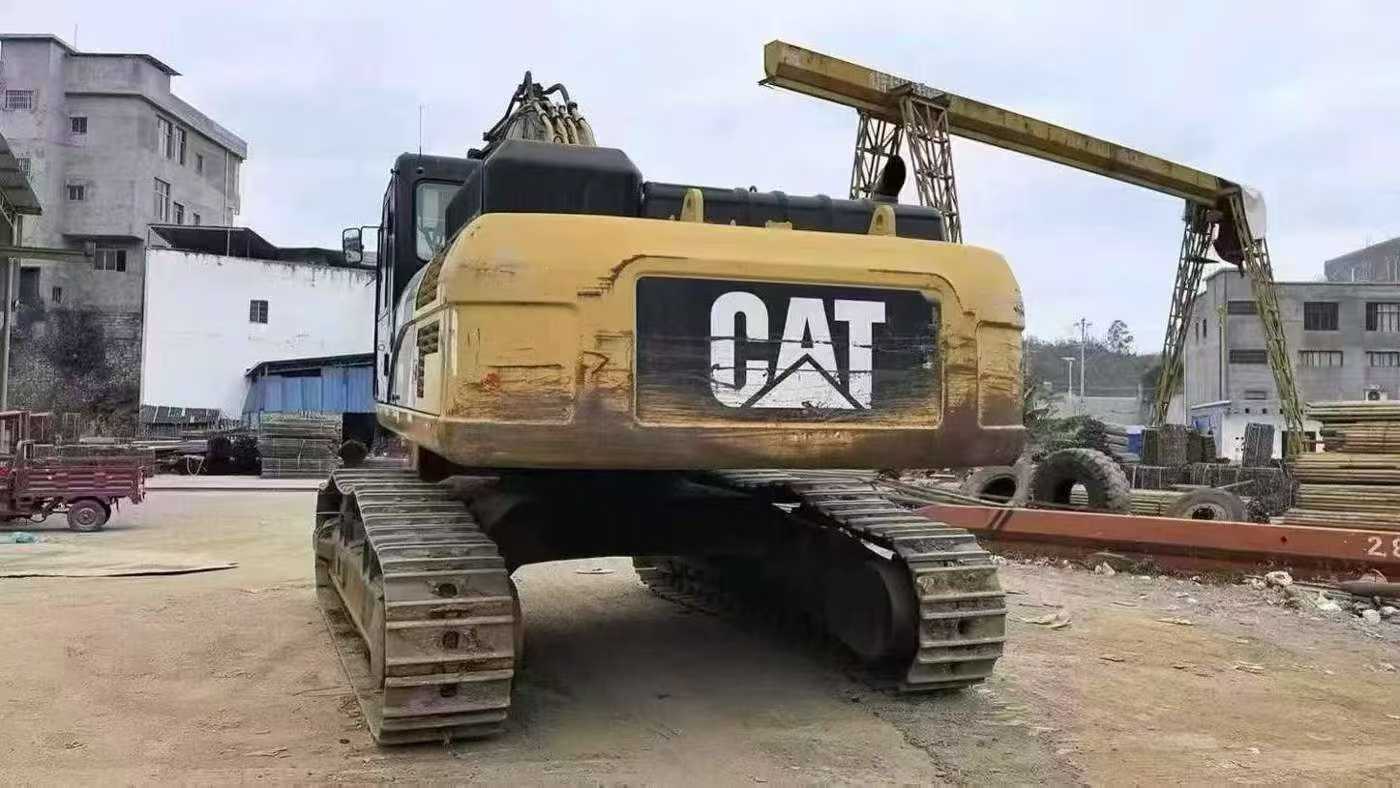

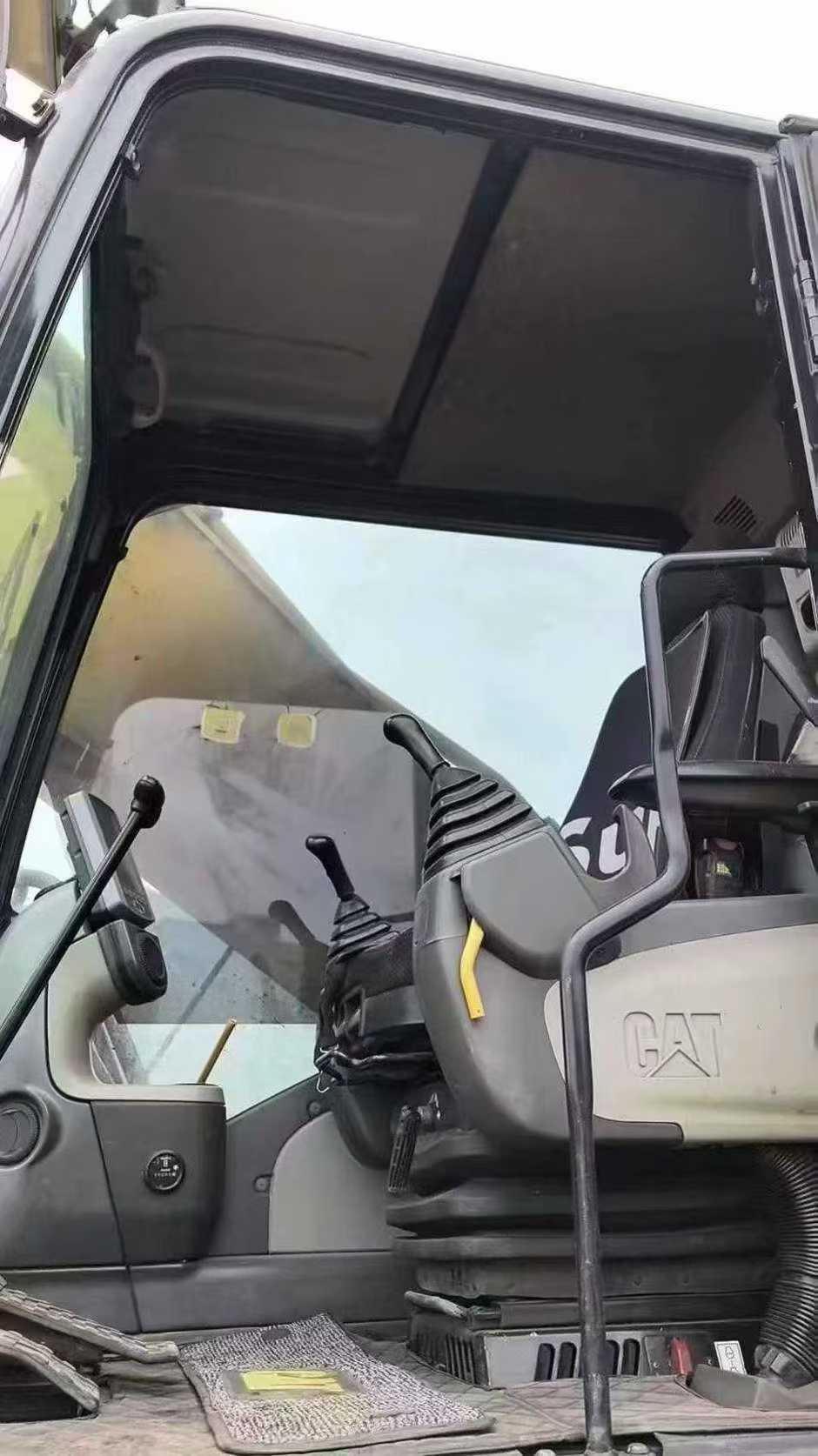

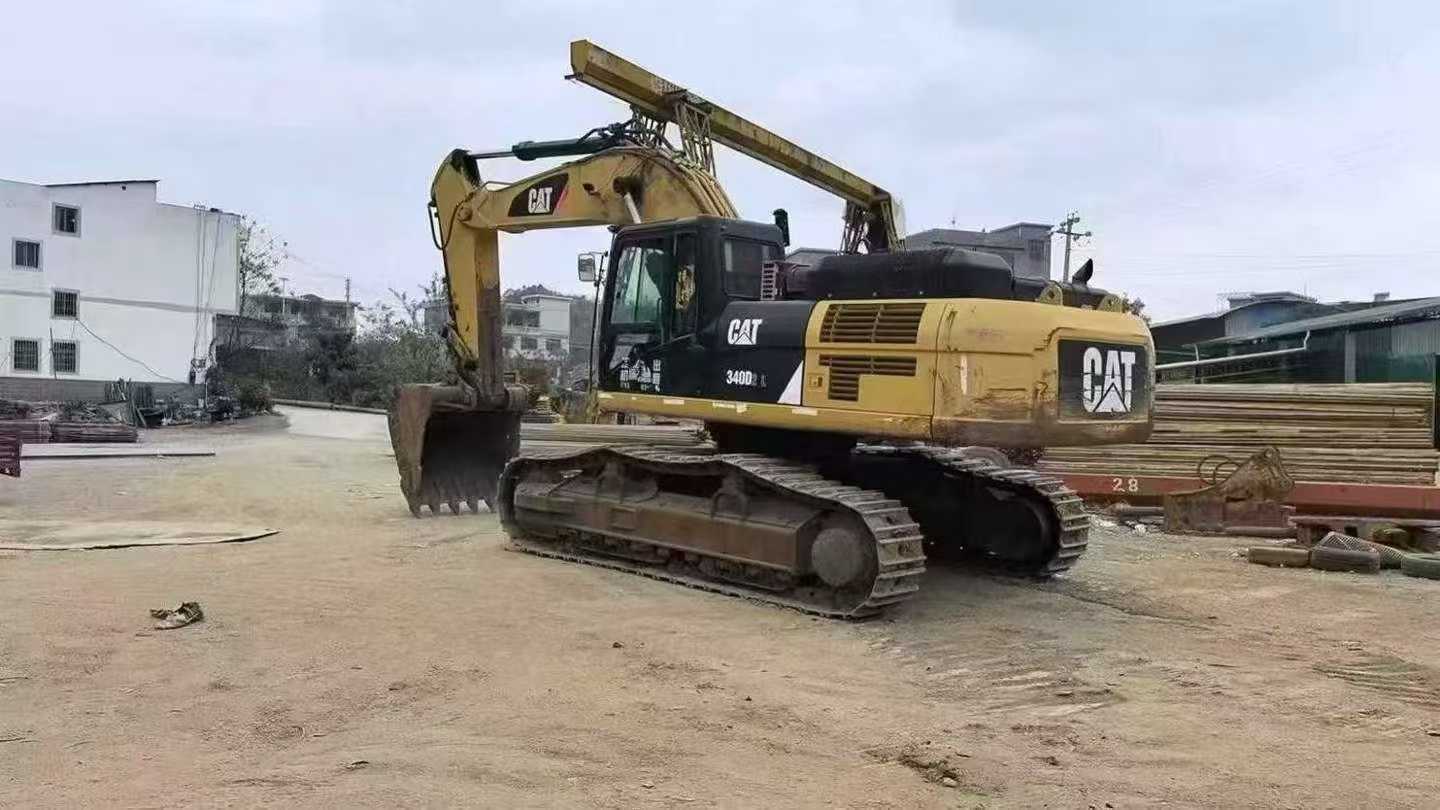

2018 Caterpillar 340D2L











| Specifications | Value |
|---|---|
| No. | 969022 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38900~41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

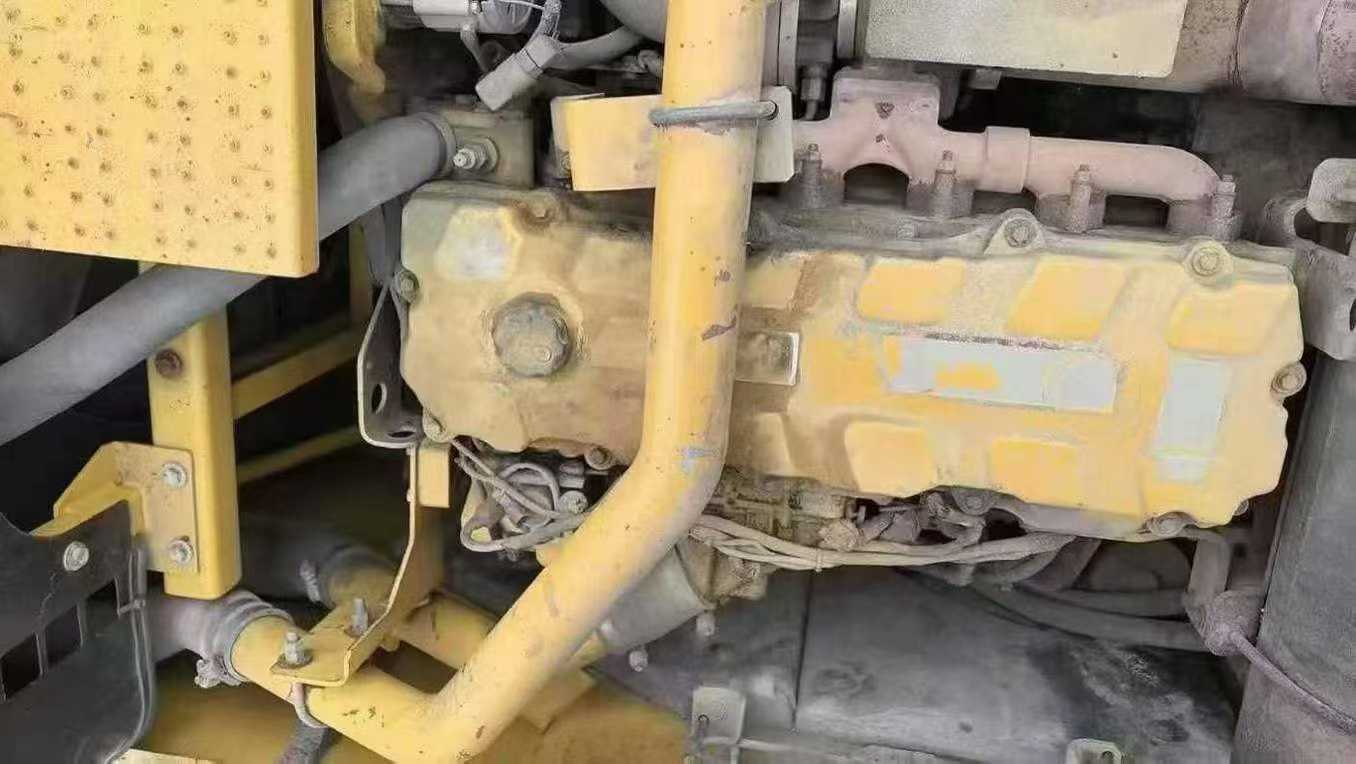

| Engine type | CatC9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Working form | Direct injection fuel system with turbocharger aftercooler |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 185 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 175 |
| Hydraulic Tank (L) | 620 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3630 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10830 |
| Maximum effective digging depth (mm) | 6370 |
Description
【 Premium Recommendation 】 A top-quality 18-year-old Caterpillar 340D2L pure earthmoving machine. We sincerely invite you to purchase it! This excavator is a Caterpillar 340D2L model produced in 2018, specially designed for earthwork operations. Up to now, its working hours are only over 3,000 hours. For a large excavator, this usage time is very short and can almost be regarded as nearly new. Its overall performance is extremely superior. In terms of power, this machine is equipped with a Caterpillar C9.3 ACERT engine, with a maximum output power of up to 225 kilowatts (approximately 302 horsepower). It not only has strong power but also excellent fuel economy, capable of meeting the operational requirements under various complex working conditions. In addition, this engine also adopts advanced emission control technology, meeting the latest environmental protection standards. This enables you to enjoy efficient work while actively responding to the national call for green construction. In terms of the hydraulic system, the 340D2L is equipped with a closed center load sensing hydraulic system independently developed by Caterpillar, ensuring the response speed and accuracy of the machine during operation. Whether it is tasks such as
Overview
No.969022
Brand Name:
CaterpillarModel Number:
340D2LYear:
2018
Location:
Guangdong China
