2018 Caterpillar 340DL
| Specifications | Value |
|---|---|
| No. | 962608 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
Description

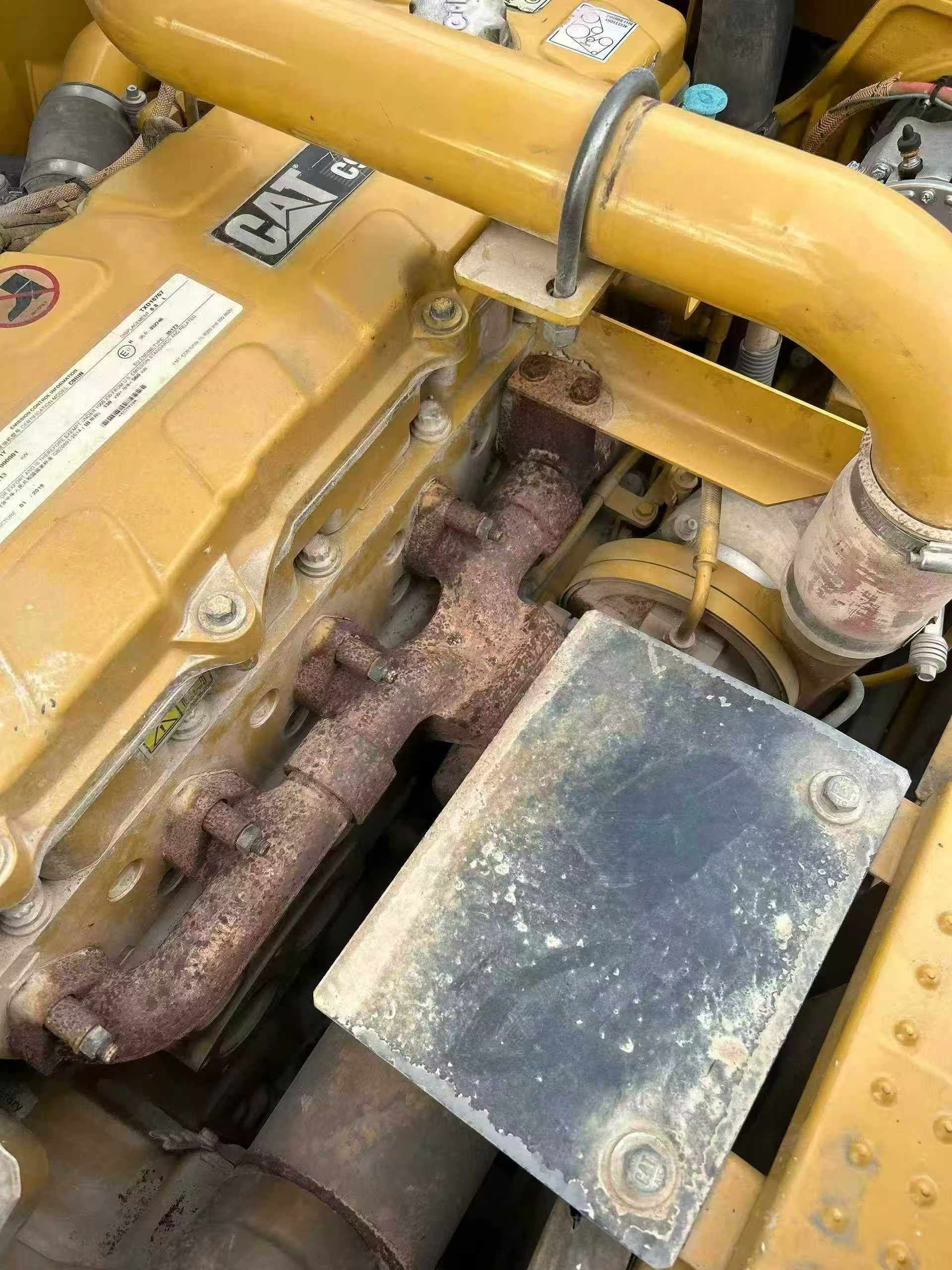

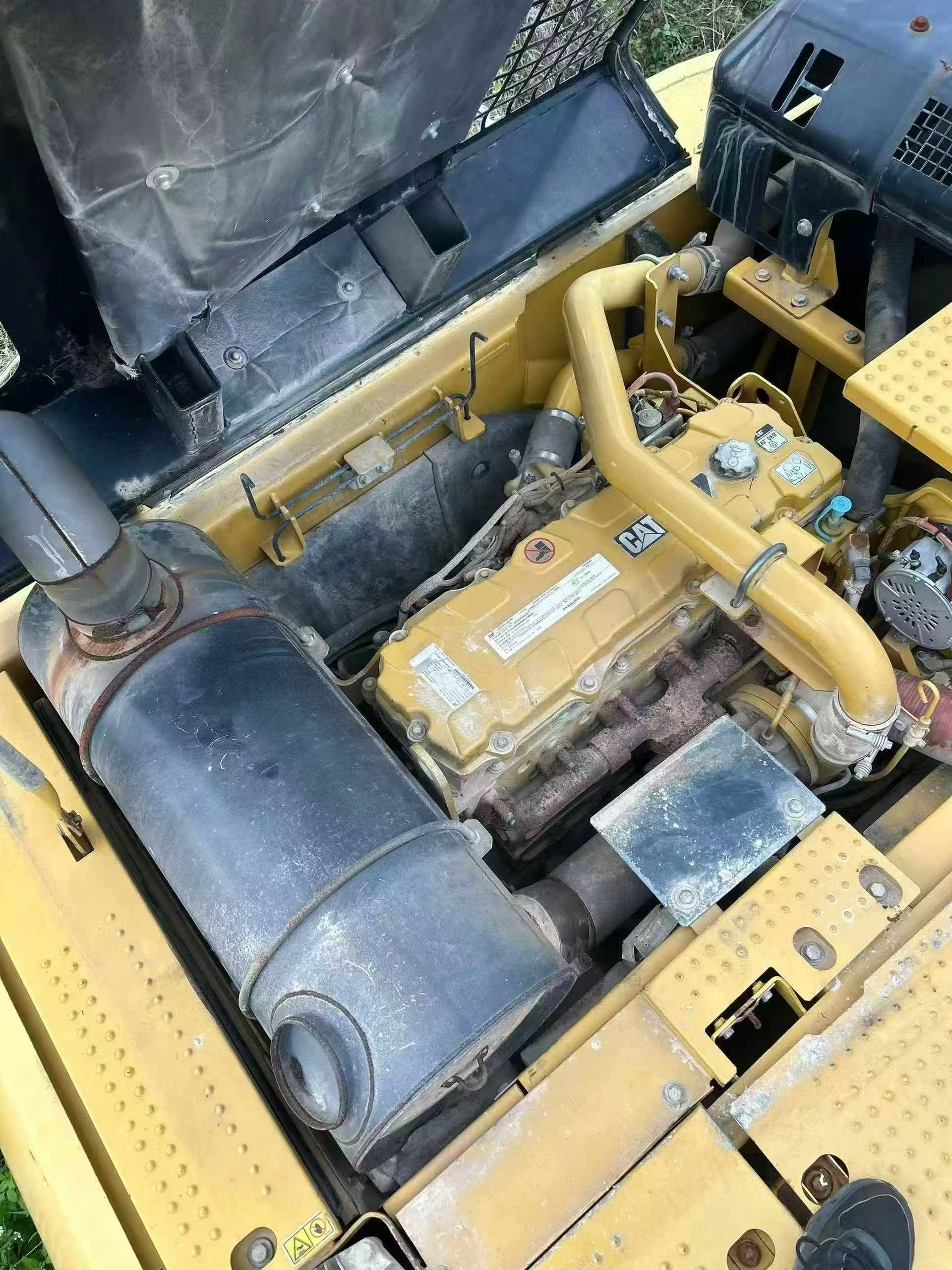

【 Premium Recommendation 】 Second-hand Caterpillar 340D2 excavator, first-hand source from 2018, with outstanding performance, now on sale for just over 300,000 yuan! Since it was put into use, this excavator has accumulated only 3,500 hours of working time and is in the best condition for use. Whether it is earthwork projects, road construction or mining, they can all be handled with ease, demonstrating outstanding work efficiency and stability. In terms of the power system, this equipment is equipped with an original imported C9.3 ACERT engine from Caterpillar, with a maximum output power of up to 224kW (approximately 300 horsepower). It not only has strong power but also good fuel economy, maintaining efficient operation even under harsh working conditions. In addition, advanced electronic control injection technology makes emissions more environmentally friendly and complies with the latest national emission standards for non-road mobile machinery. The hydraulic system adopts the high-pressure common rail technology independently developed by Caterpillar, which features fast response speed, high control accuracy and low maintenance cost. The main pump and the motor are precisely matched through an electronic control system, ensur
Overview
No.962608
Brand Name：
CaterpillarModel Number：
340DLYear：
2018
Location：
Fujian China
