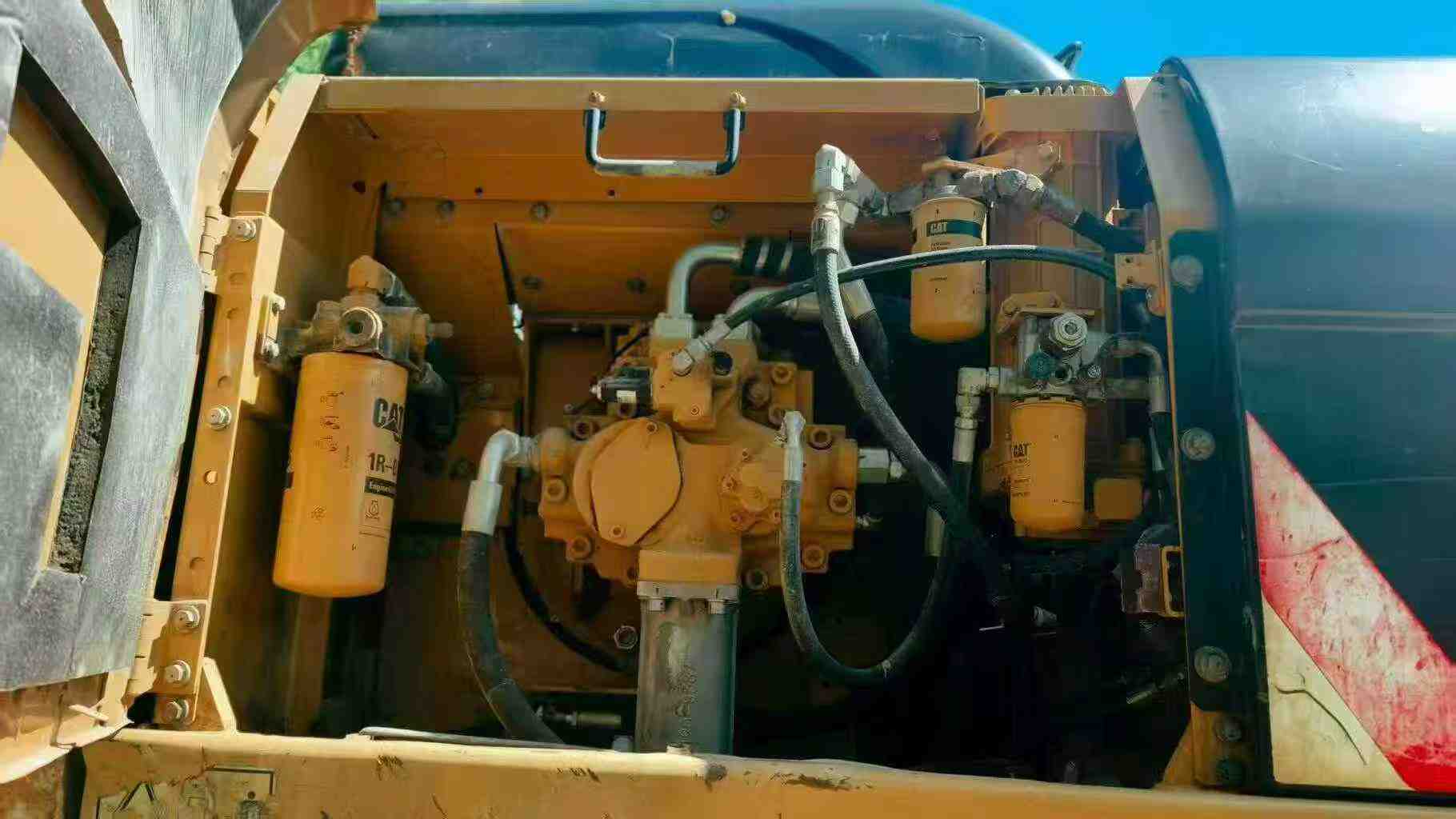

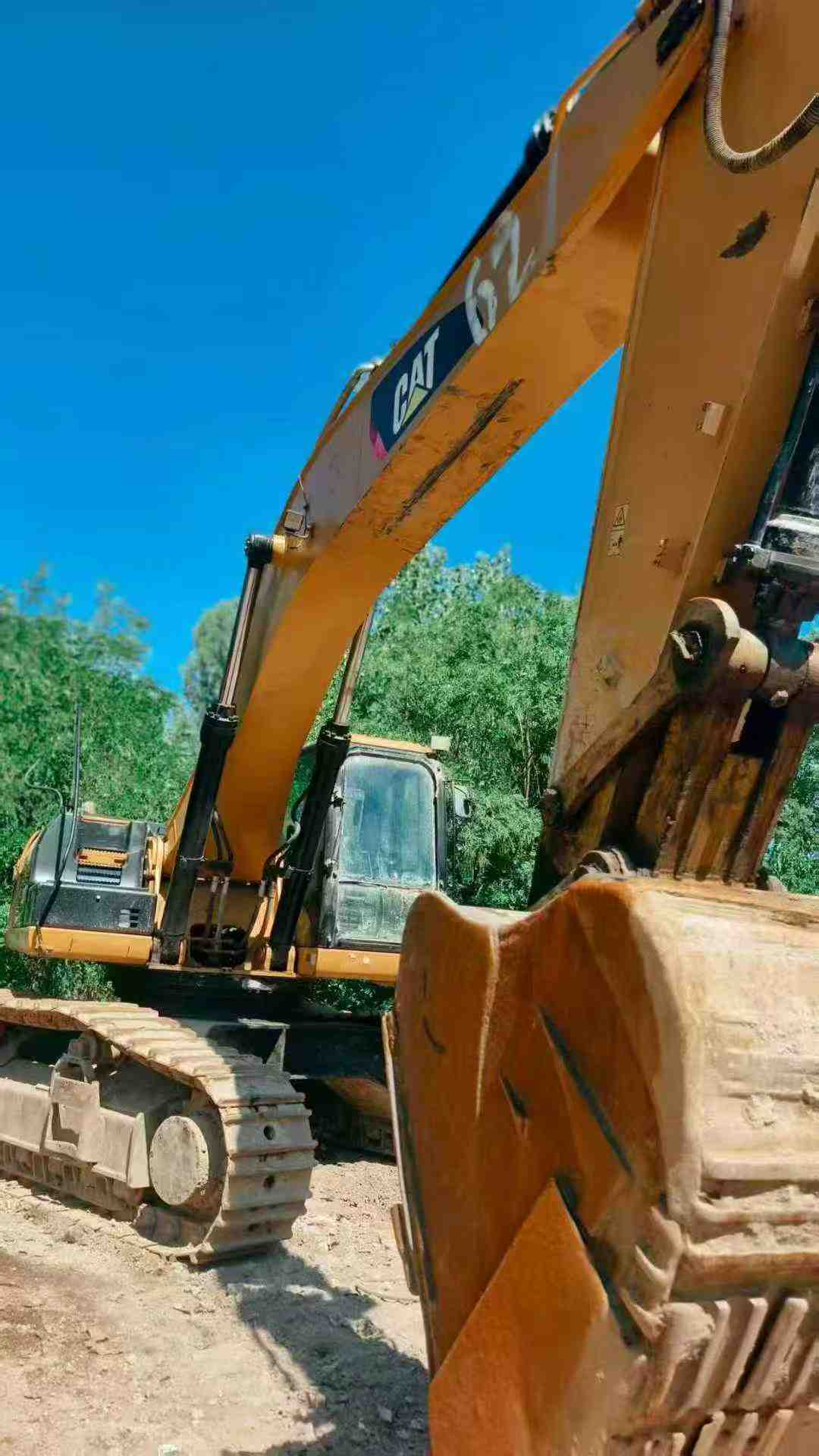

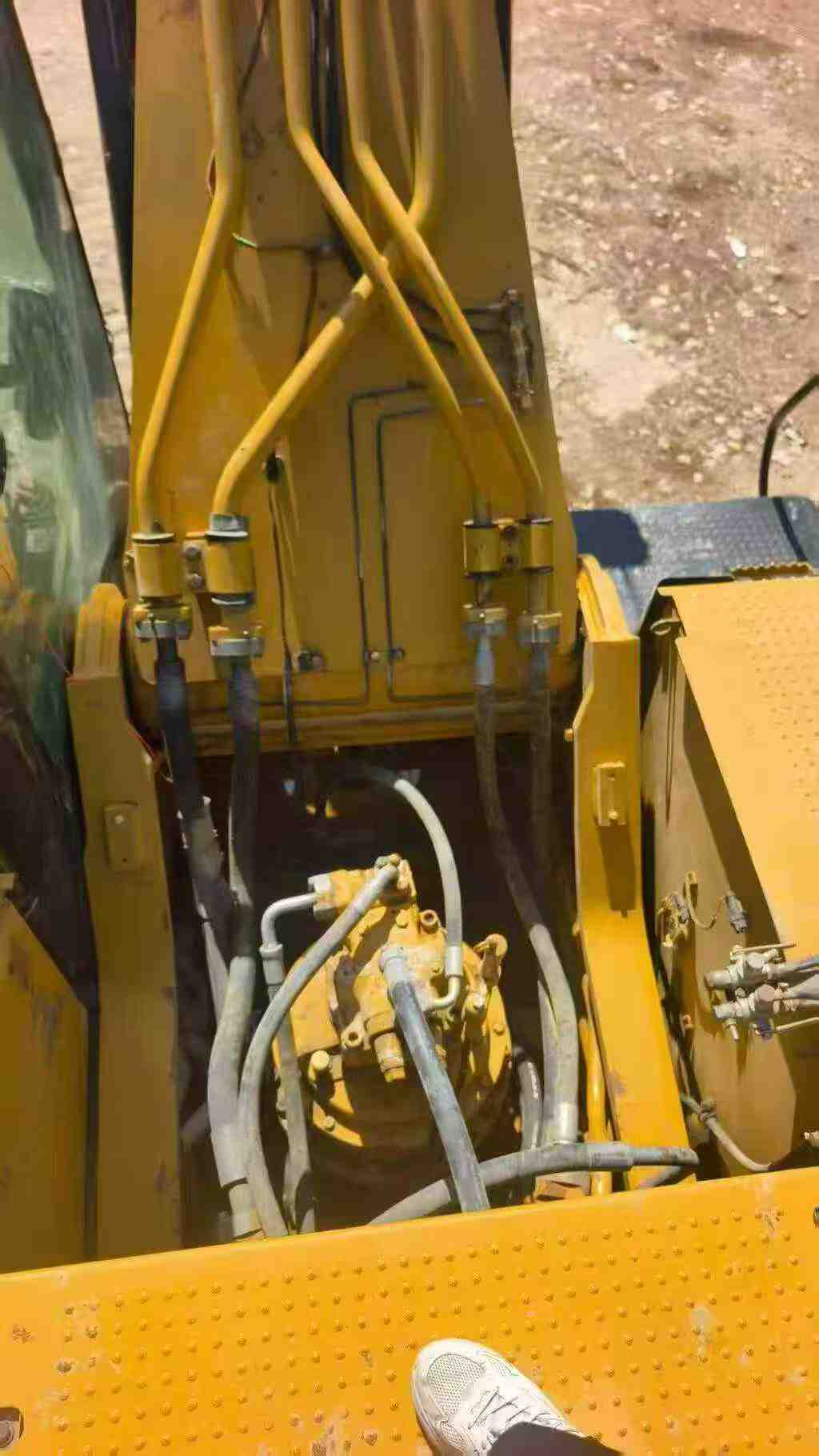

2018 Caterpillar 340DL
| Specifications | Value |
|---|---|
| No. | 965178 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
Description
【 Premium Recommendation 】 Second-hand Caterpillar 340D2L excavator from 2018, now priced at just over 290,000 yuan! Since its manufacture, this equipment has accumulated approximately 5,000 hours of working time and is in the best condition for use. It not only boasts outstanding performance but also offers an extremely high cost-performance ratio, making it an indispensable helper for you in construction projects. In terms of the power system, this machine is equipped with an original imported C7.1 engine from Caterpillar, with a maximum power output of 225 kilowatts. It can provide strong and stable power output, ensuring that it can handle various complex working conditions with ease. In addition, this engine also adopts advanced fuel injection technology, effectively reducing fuel consumption and emissions, making it more environmentally friendly and energy-efficient. The hydraulic system adopts Caterpillar's unique positive flow control technology, which responds quickly and operates flexibly. Whether it is excavation, loading or crushing operations, it can ensure the efficient and accurate completion of tasks. Meanwhile, it is equipped with a large-capacity fuel tank and an efficient cooling system, which can maintain a good c
Overview
No.965178
Brand Name：
CaterpillarModel Number：
340DLYear：
2018
Location：
Sichuan China
