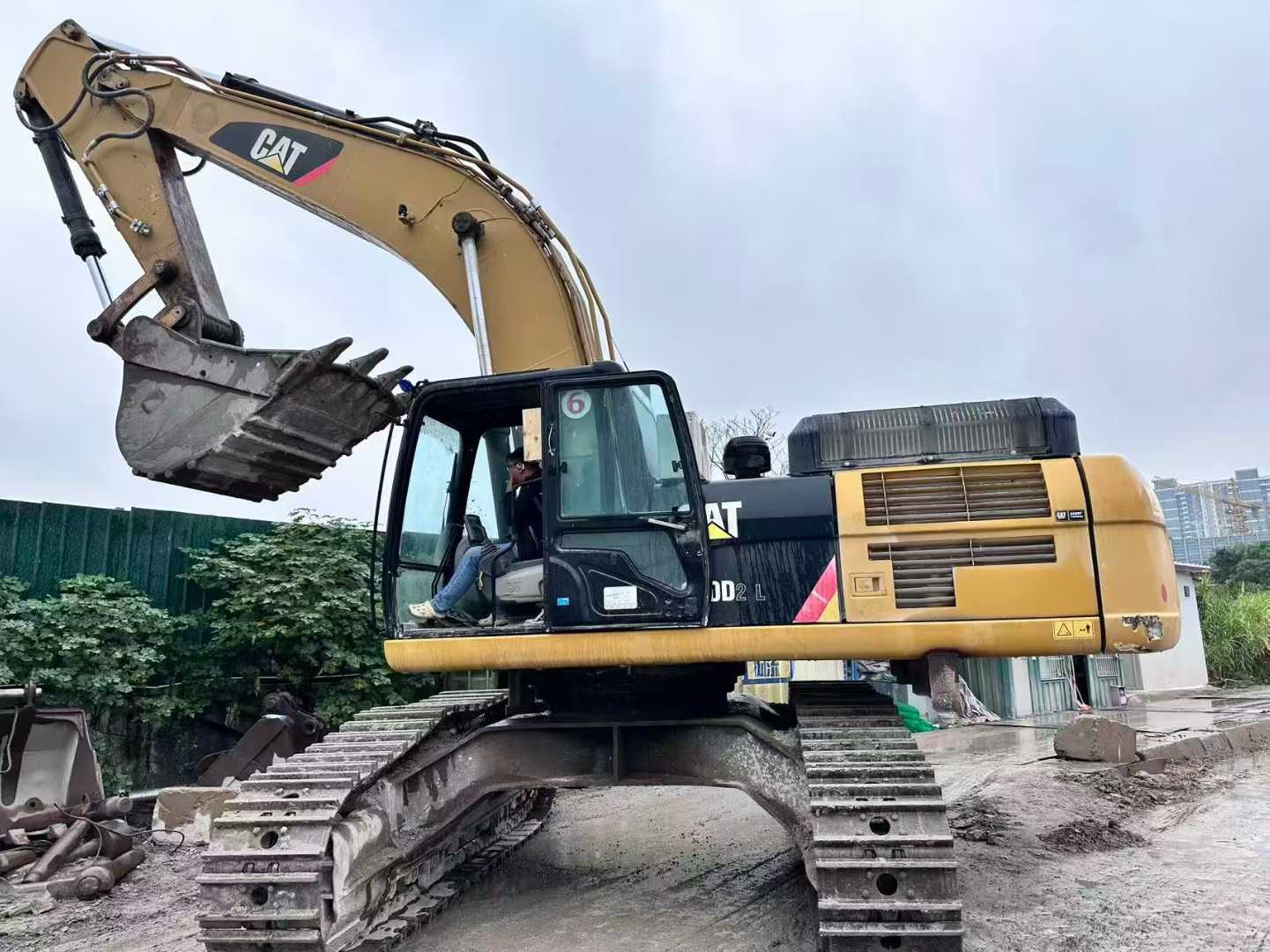

2018 Caterpillar 340DL







| Specifications | Value |
|---|---|
| No. | 967567 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
Description
【 Premium Recommendation 】 The top-quality Caterpillar 340 excavator of 2018 This 2018 Caterpillar 340 excavator is a high-quality second-hand device that is rarely seen in the market. Since its commissioning, the cumulative working hours have been only 3,500 hours, far lower than the average service life of similar equipment, and the overall performance remains in the best condition. The exterior paint is as smooth and shiny as new, the internal structure is intact and well-maintained, and it can almost rival a new car. In terms of the power system, this machine is equipped with an original imported Caterpillar C9.3 ACERT engine, which is powerful and stable, and has excellent fuel economy. Even under long-term high-intensity operation, it can ensure sufficient power output. Meanwhile, advanced electronic control technology makes operation more precise and smooth, significantly enhancing work efficiency and safety. The hydraulic system adopts the closed load sensitive system independently developed by Caterpillar, which responds quickly and controls precisely. It can handle both fine excavation and heavy load handling with ease. In addition, the efficient cooling device effectively prevents overheating, ensuring the reliability of
Overview
No.967567
Brand Name:
CaterpillarModel Number:
340DLYear:
2018
Location:
Hunan China
