Caterpillar 340DL

2018 Caterpillar 340DL

1/5

Used Caterpillar 340DL Excavator 2018 Model / 1

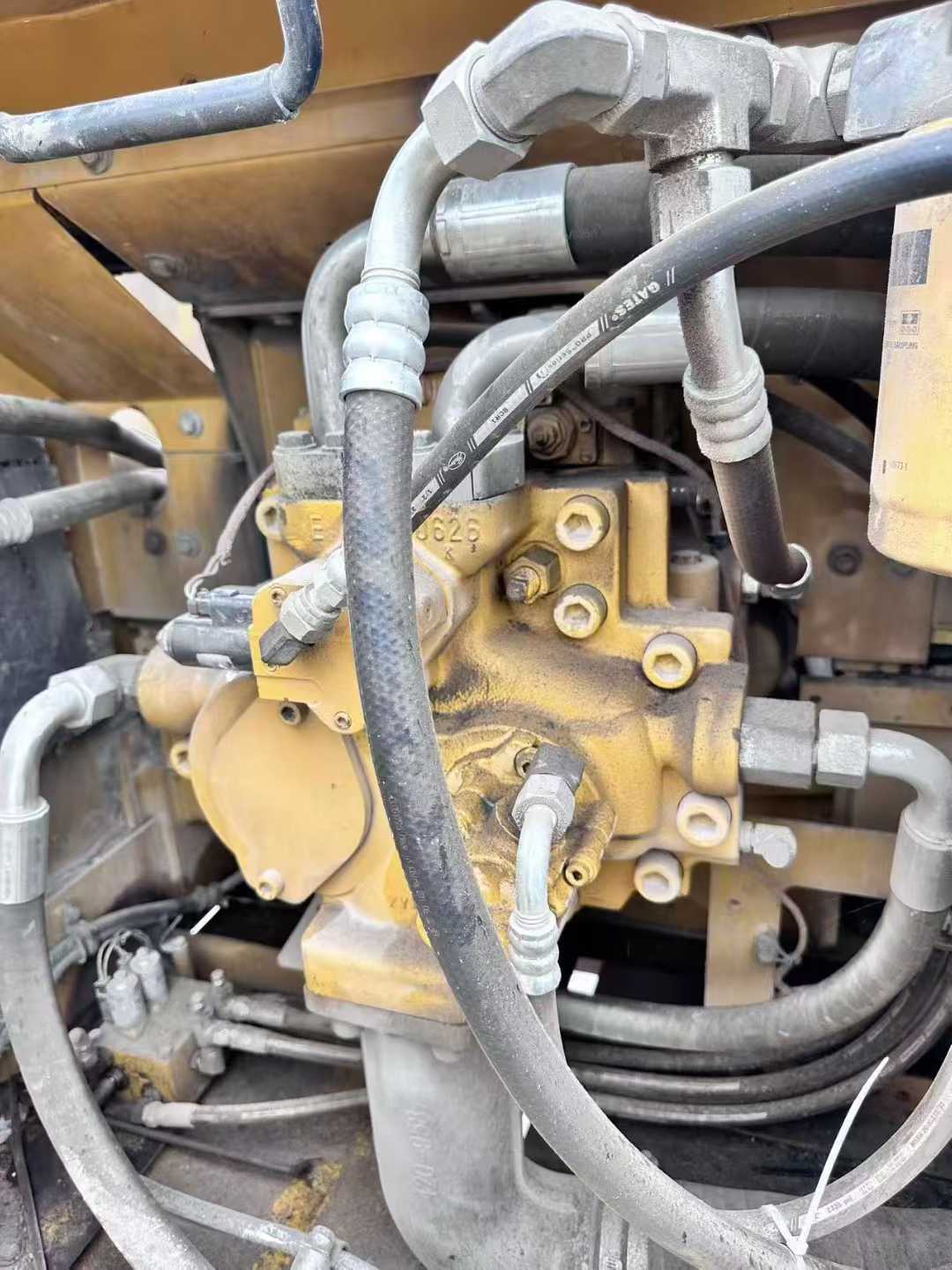

Used Caterpillar 340DL Excavator 2018 Model / 2

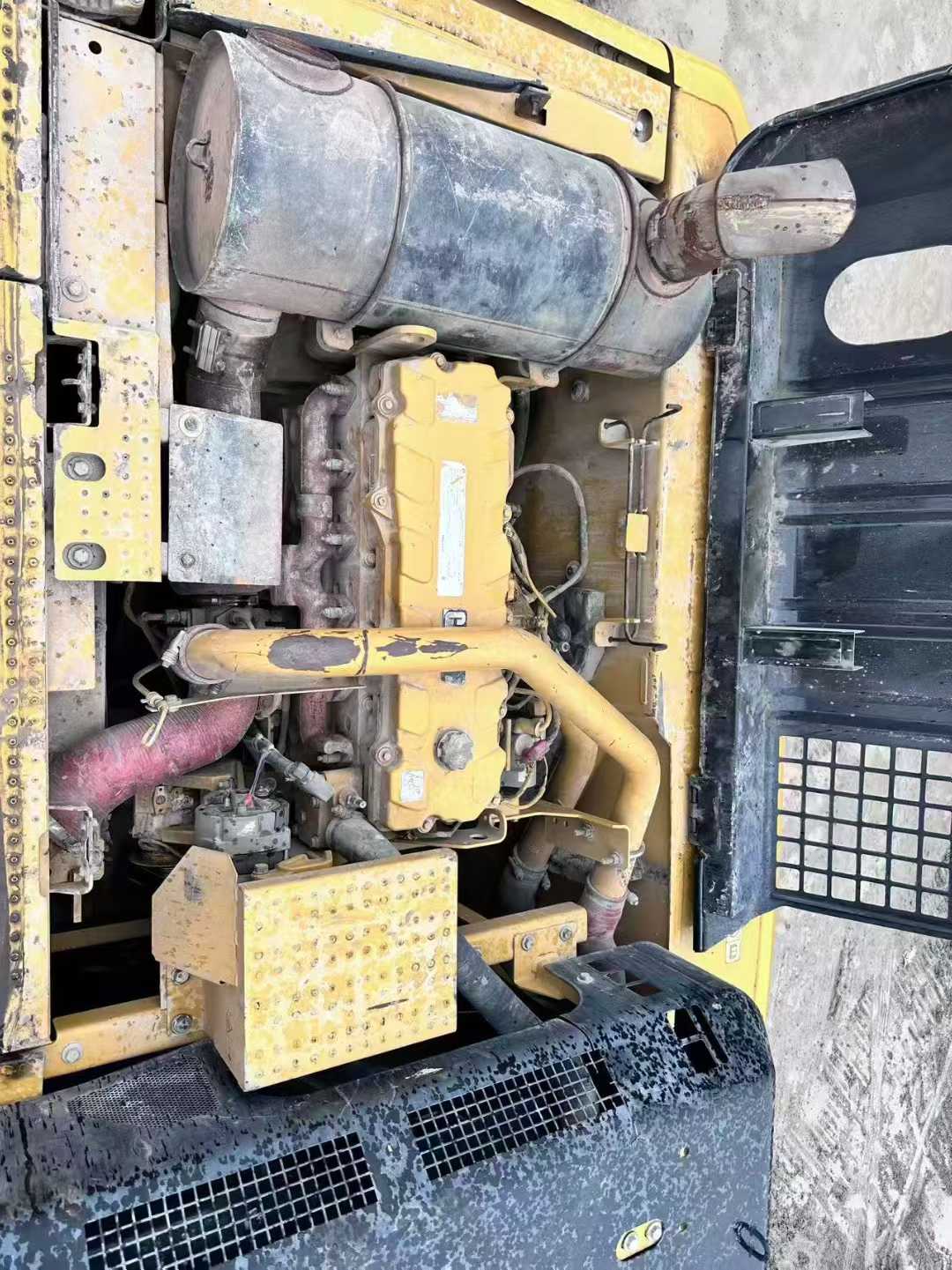

Used Caterpillar 340DL Excavator 2018 Model / 3

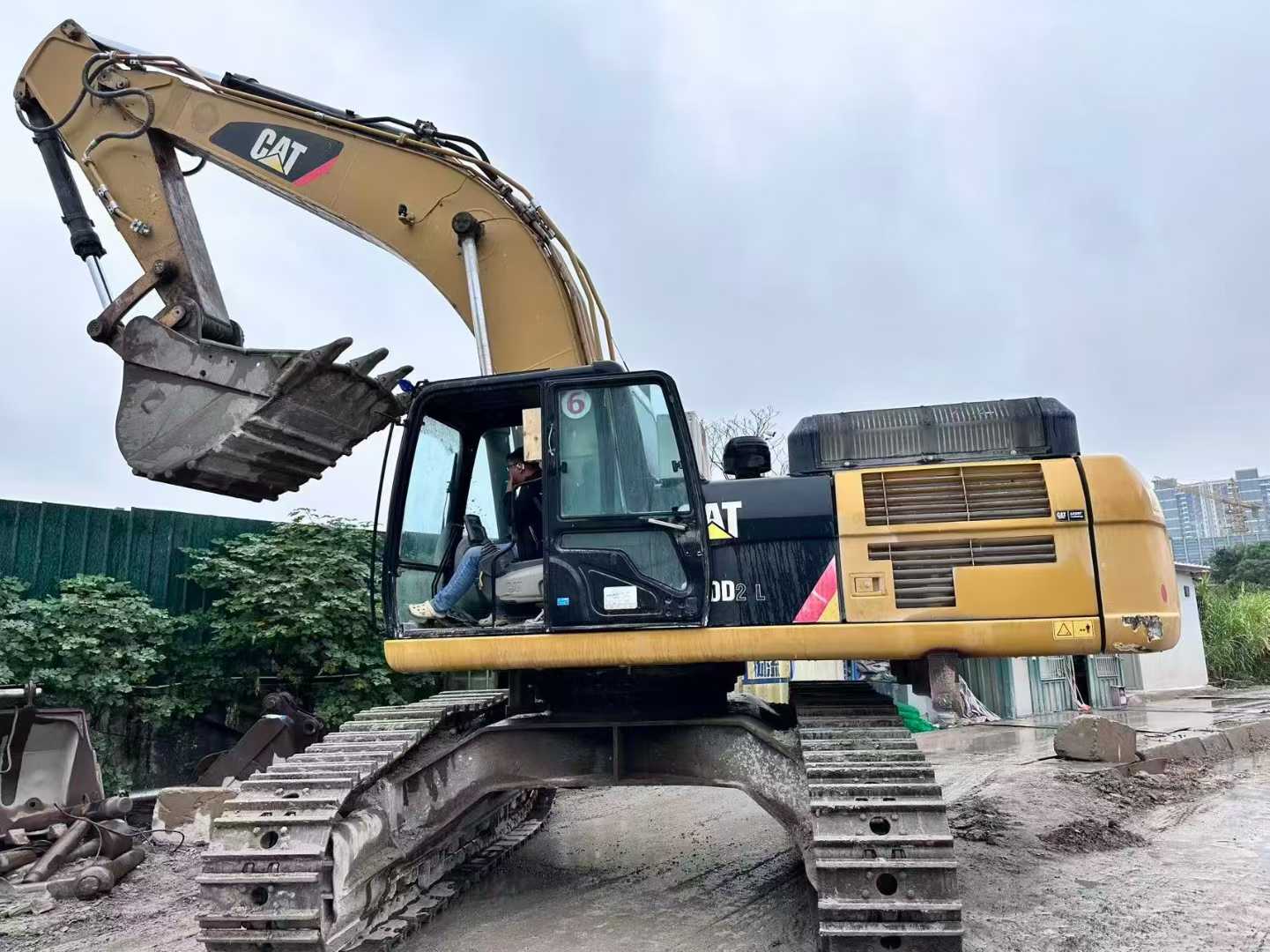

Used Caterpillar 340DL Excavator 2018 Model / 4

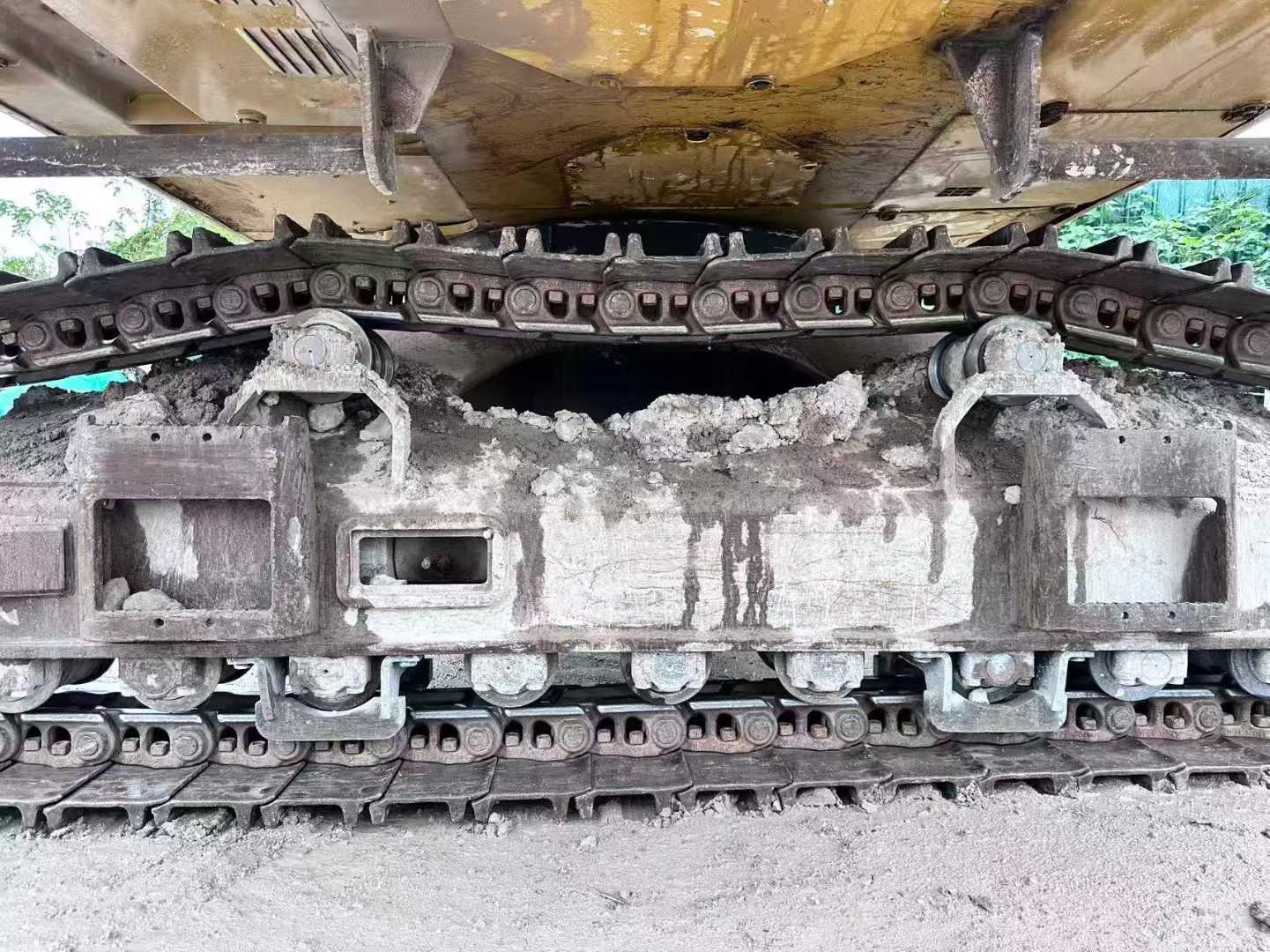

Used Caterpillar 340DL Excavator 2018 Model / 5

Product Description
Specifications	Value
No.	970416
Tonnage (tons)	40
Working weight (kg)	38100-38600
Bucket capacity (m³)	1.88/2.14
Boom length (mm)	6500/6180
Rod length (mm)	2550/2800/3200
Country of origin	Xuzhou, Jiangsu
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Caterpillar C9 ACERT
Rated power (kw/rpm)	209
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	112 x 149
Number of cylinders (PCS)	6
Displacement (L)	8.8
Rotation speed (rpm)	10
Bucket digging force (kN)	176
Rod digging force (kN)	158
Travel speed (km/h)	5
Maximum flow of main pump (l/min)	2 x 280
Traveling Hydraulic Circuit (Mpa)	35
Rotary Hydraulic Circuit (Mpa)	28
Working Hydraulic Circuit (Mpa)	35
Pilot Oil Circuit (MPa)	3.9
Bucket cylinders - Number × diameter × stroke (mm)	150 x 1151
Bucket rod cylinders - Number × diameter × stroke (mm)	170 x 1738
Boom cylinders - Number × diameter × stroke (mm)	150 x 1440
Fuel Tank (L)	620
Hydraulic Tank (L)	310
Engine Oil changes (L)	40
Coolant (L)	40
Hydraulic System (L)	410
Total transport length (mm)	11200
Total transport width (mm)	3520
Total transport height (mm)	3690
Full cab height (mm)	3420
Counterweight ground clearance (mm)	1500
Minimum ground clearance (mm)	743
Back end turning radius (mm)	3500
Total track length (mm)	5066
Track gauge (mm)	2920
Track plate width (mm)	600
Total track width (mm)	3520
Maximum digging depth (mm)	7322
Maximum excavation height (mm)	10550
Maximum unloading height (mm)	7277
Maximum vertical digging depth (mm)	5712
Bulldozer lift or depth (mm)	There is no
Dodging plate width × height (mm)	There is no
Maximum excavation radius of stop surface (mm)	11084
Boom turning Angle (left/right °)	There is no
Maximum effective digging depth (mm)	7035

Description

【 Premium Recommendation 】2018 Caterpillar 340 Excavator This 2018 Caterpillar 340 excavator is the ideal choice for you to find an efficient, reliable and economical construction partner. Since it was put into use, it has only worked for a cumulative total of 5,000 hours, which is far lower than the average usage time of similar equipment. This means that it is still in the best working condition, with an extremely long service life and excellent residual value. This model is equipped with a Caterpillar C9.3B engine, which can deliver a maximum power of 276 horsepower (206 kilowatts). While ensuring strong power output, it also features excellent fuel economy, effectively reducing operating costs. Its advanced ACERT technology not only enhances the machine's performance but also reduces emission pollution, meeting the latest environmental protection standards. In terms of the hydraulic system, the Carter 340 adopts the industry-leading closed center load sensing hydraulic control system, ensuring smoothness and accuracy during operation. Whether it is excavation, loading or crushing operations, it can handle them with ease, demonstrating outstanding work efficiency and stability. In addition, the spacious and comfortable cab design2025-12-21 16:56:20
