2018 Caterpillar 340DL








Product Description

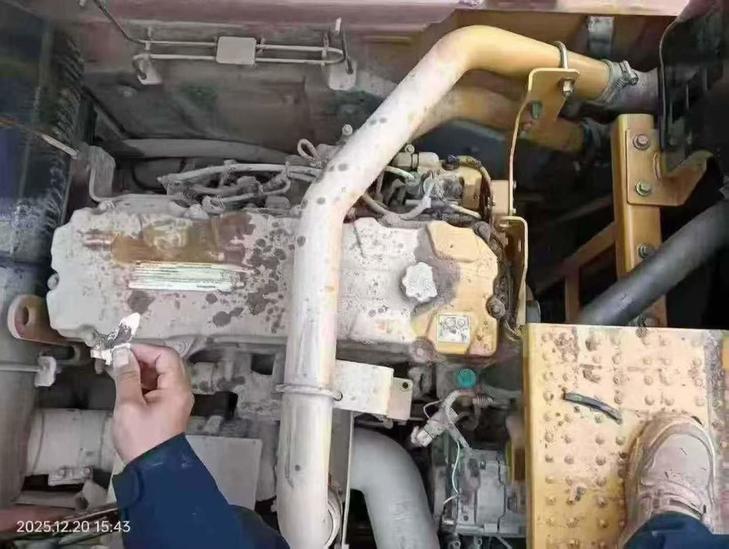

There is currently a Caterpillar 340 excavator produced in 2018. As a personal first-hand vehicle, this equipment has been parked for more than two years and its overall condition remains good. According to the records, the working time of this machine is approximately 5,000 hours (estimated), making it highly suitable for buyers seeking high-quality and cost-effective second-hand construction machinery. In terms of the power system, the Carter 340 is equipped with a powerful and reliable C13 ACERT engine with a rated power of 328 kilowatts, providing strong driving force while ensuring fuel economy. This engine is renowned for its outstanding performance and durability, capable of meeting the demands of various harsh working conditions. The hydraulic system adopts advanced negative flow control technology, is equipped with a high-performance dual-pump system and high-quality hydraulic motors, ensuring rapid response and smooth operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease, greatly improving work efficiency and reducing maintenance costs. In addition, this excavator also features a number of humanized designs: a spacious and comfortable cab, a multi-functional display screen,
| Specifications | Value |
|---|---|
| No. | 978738 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
Overview
No.978738
Brand Name:
CaterpillarModel Number:
340DLYear:
2018
Location:
Anhui China
