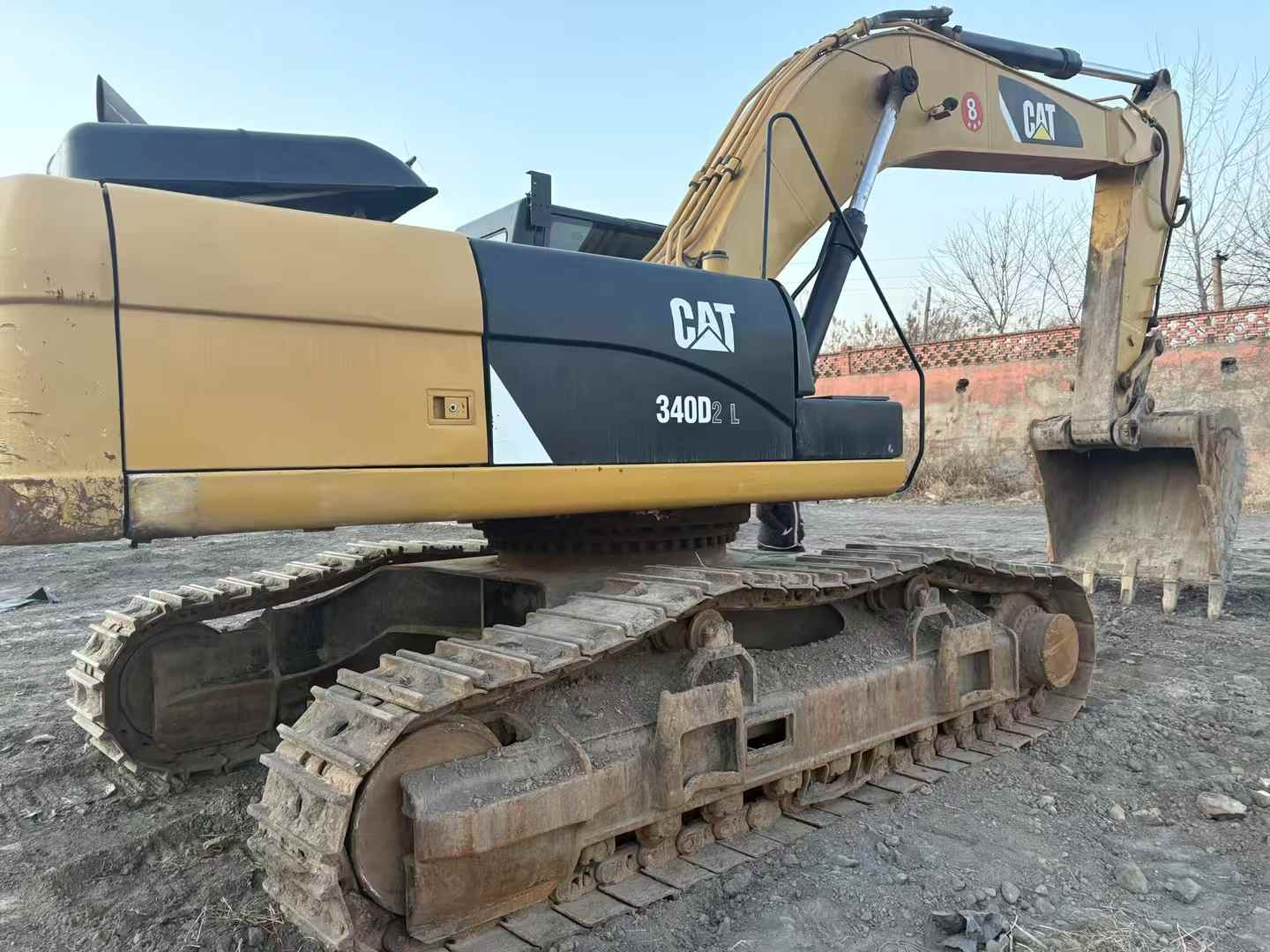

2017 Caterpillar 340DL
Product Description
Commanding precision and reliability define this 2017 Caterpillar 340DL hydraulic excavator, currently located in Xuzhou, Jiangsu. Built for demanding operations, this machine delivers exceptional operator comfort through its spacious, ergonomically designed cabin with panoramic visibility that ensures complete worksite awareness.
- Advanced hydraulic system provides smooth, responsive control for precise material handling
- Superior stability platform maintains balance during heavy lifting and extended reach operations
- Enhanced cabin design features reduced noise levels and intuitive control placement
- Proven Caterpillar engineering ensures consistent performance in challenging conditions

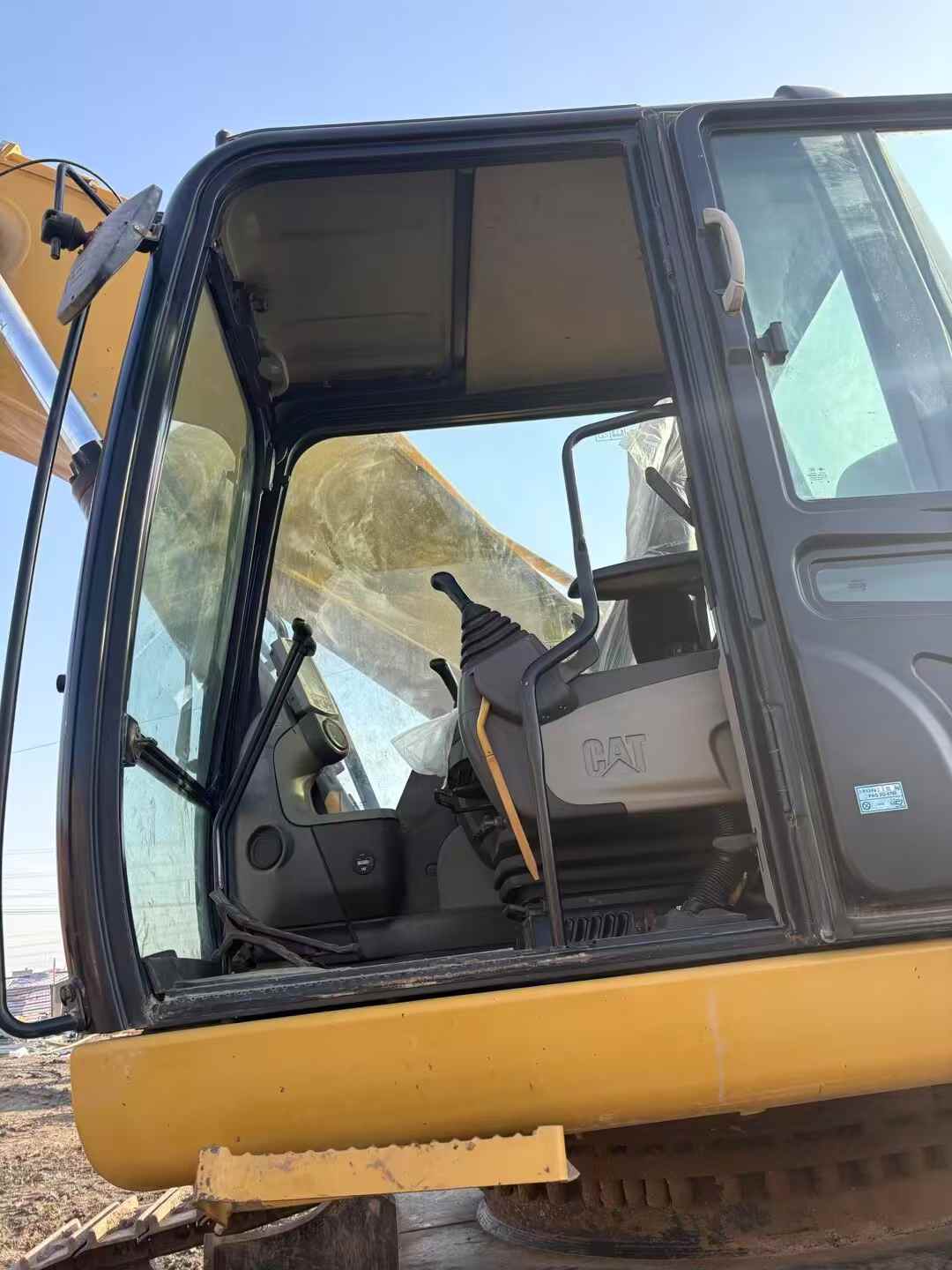

Operators benefit from the machine's low-effort joystick controls and excellent sight lines to attachment points, bucket cutting edge, and surrounding work areas. With its robust undercarriage and well-maintained hydraulic components, this 340DL offers the dependable performance contractors require for efficient project completion.
| Specifications | Value |
|---|---|
| No. | 985398 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |
| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
see more
Overview
No.985398
Brand Name：
CaterpillarModel Number：
340DLYear：
2017
Location：
Jiangsu China
