2016 Caterpillar CT16
| Specifications | Value |
|---|---|
| No. | 962698 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 17600 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.4 ACERT |
| Rated power (kw/rpm) | 89 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Working form | Meet EU Stage IIIB emission standards |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 111 |
| Rod digging force (kN) | 88 |
| Maximum tractive force (kN) | 156.2 |
| Travel speed (km/h) | 5.2 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 300 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 25.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 110 x 1039 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 13.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 190 |
| Total transport length (mm) | 8570 |
| Total transport width (mm) | 2520/2590/2690 (with different width tracks) |
| Total transport height (mm) | 3180 (to the top of the boom) |
| Full cab height (mm) | 2890 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500/600/700 |
| Total track width (mm) | 2520/2590/2690 |
| Maximum digging radius (mm) | 8910 |
| Maximum digging depth (mm) | 6090 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6280 |
| Maximum vertical digging depth (mm) | 4930 |
| Maximum excavation radius of stop surface (mm) | 8780 |
| Maximum effective digging depth (mm) | 5870 |
Description

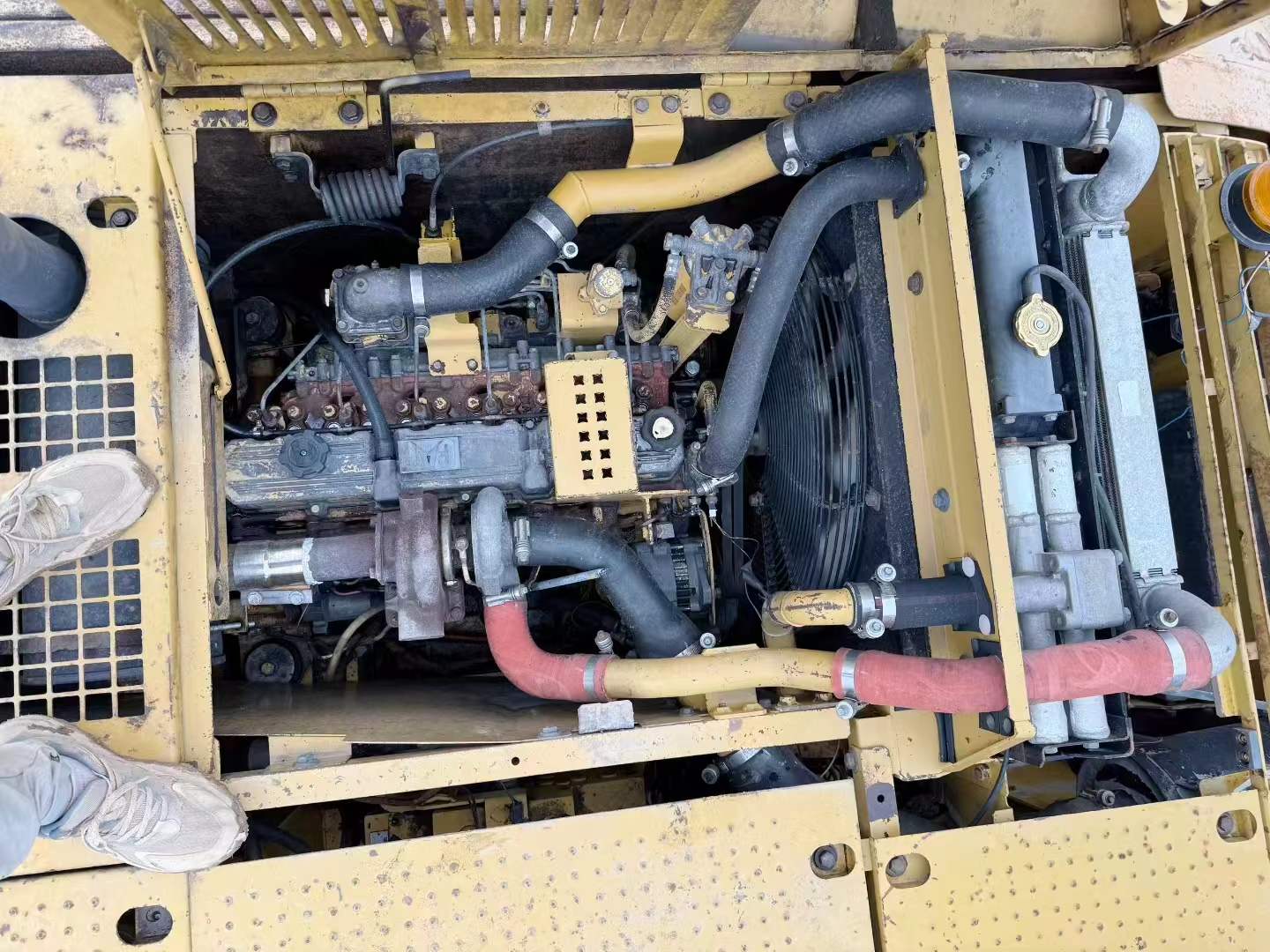

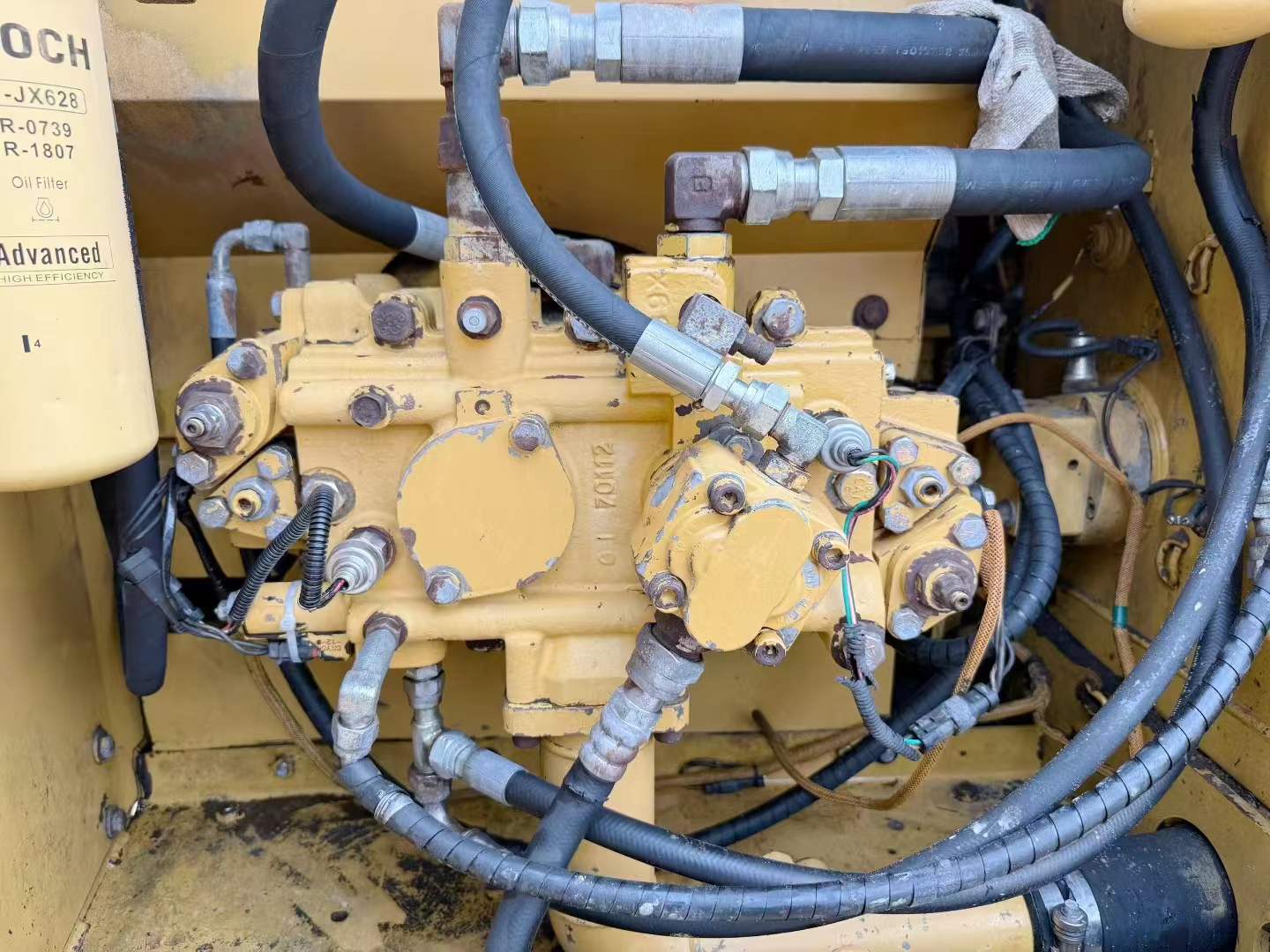

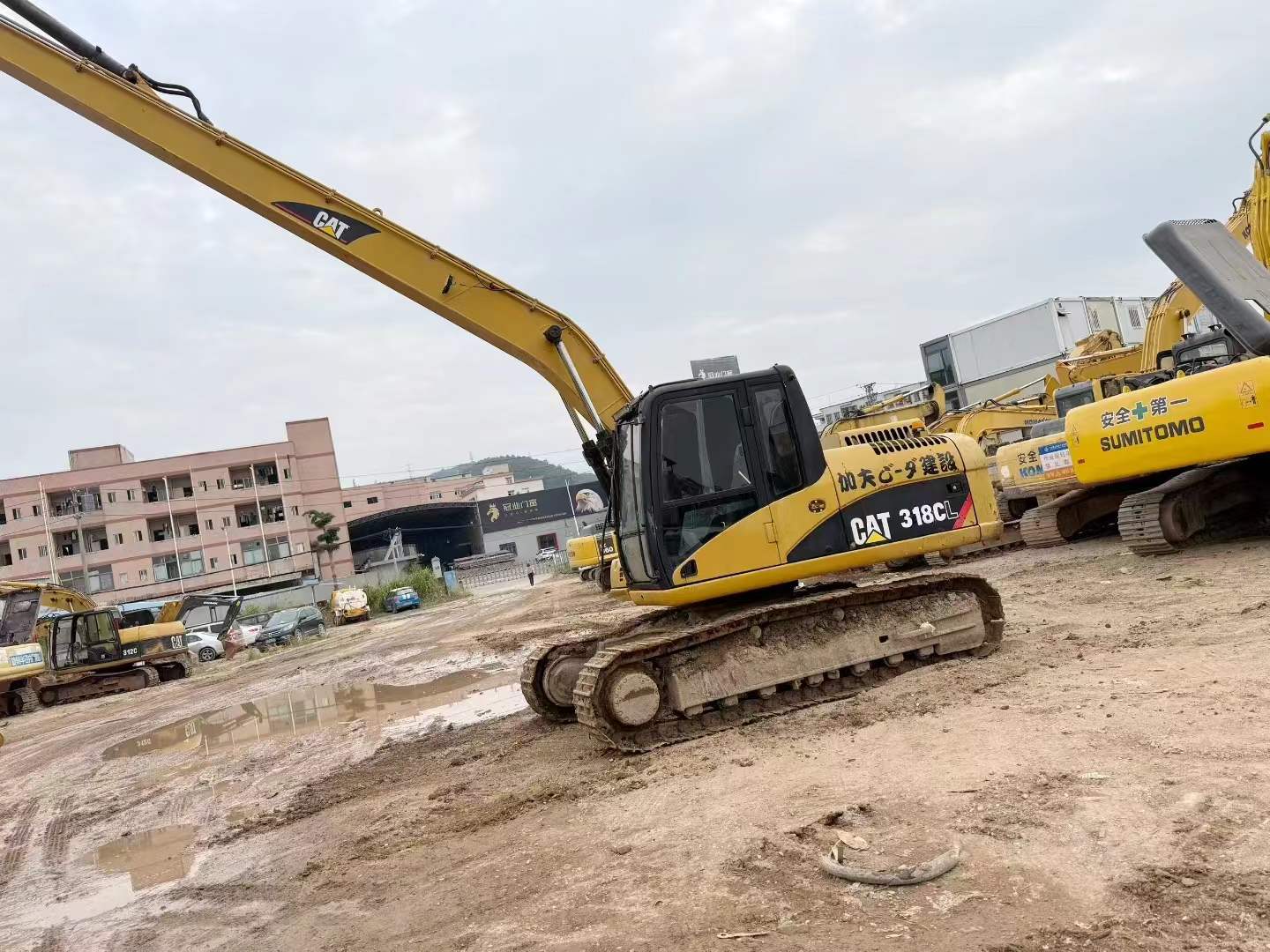

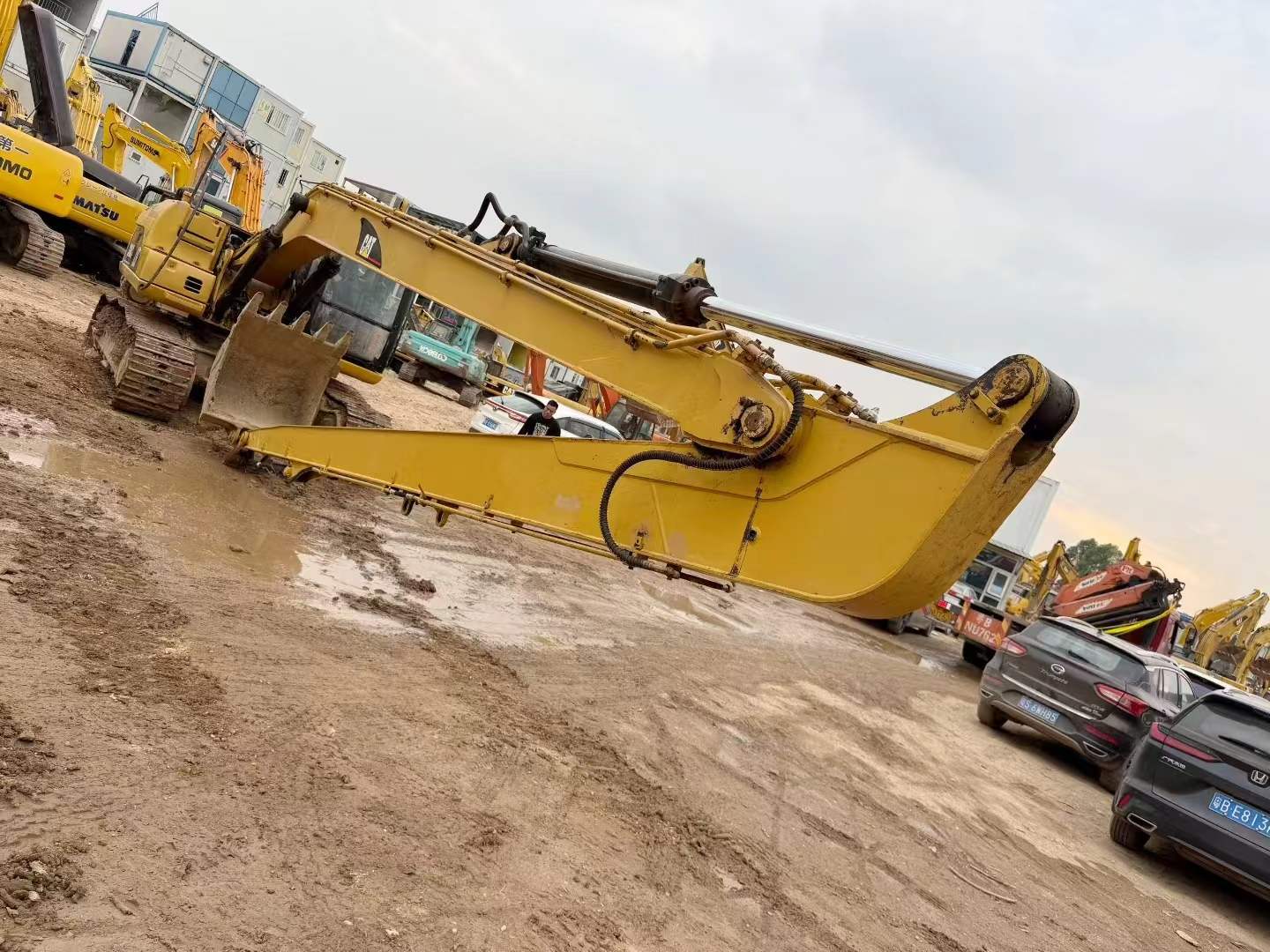

【 Premium Recommendation 】 Imported Caterpillar 315C excavator, equipped with a 16-meter long arm, has an extremely beautiful condition and is the ideal choice for your construction projects! This second-hand Caterpillar 315C excavator boasts outstanding performance and excellent stability. Its working time is only 4,000 hours, which is far shorter than the average service life of similar equipment. This means that it still has a long service life waiting for a new owner to discover. In terms of the power system, this excavator is equipped with an original imported C7 engine from Caterpillar, which features powerful output and smooth operation. It can handle both hard soil excavation and rock crushing with ease. Meanwhile, this engine also features excellent fuel economy, which can effectively reduce your operating costs. The hydraulic system adopts Caterpillar's latest hydraulic technology, ensuring high efficiency and accuracy during operation. Even when performing complex tasks, it can maintain stable and smooth movement performance, greatly enhancing work efficiency. In addition, the most outstanding feature of this machine lies in its rare 16-meter super-long boom, which gives it an incomparable advantage when handling special
Overview
No.962698
Brand Name：
CaterpillarModel Number：
CT16Year：
2016
Location：
Guangdong China
