2016 Caterpillar CT16











| Specifications | Value |
|---|---|
| No. | 969809 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 17600 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

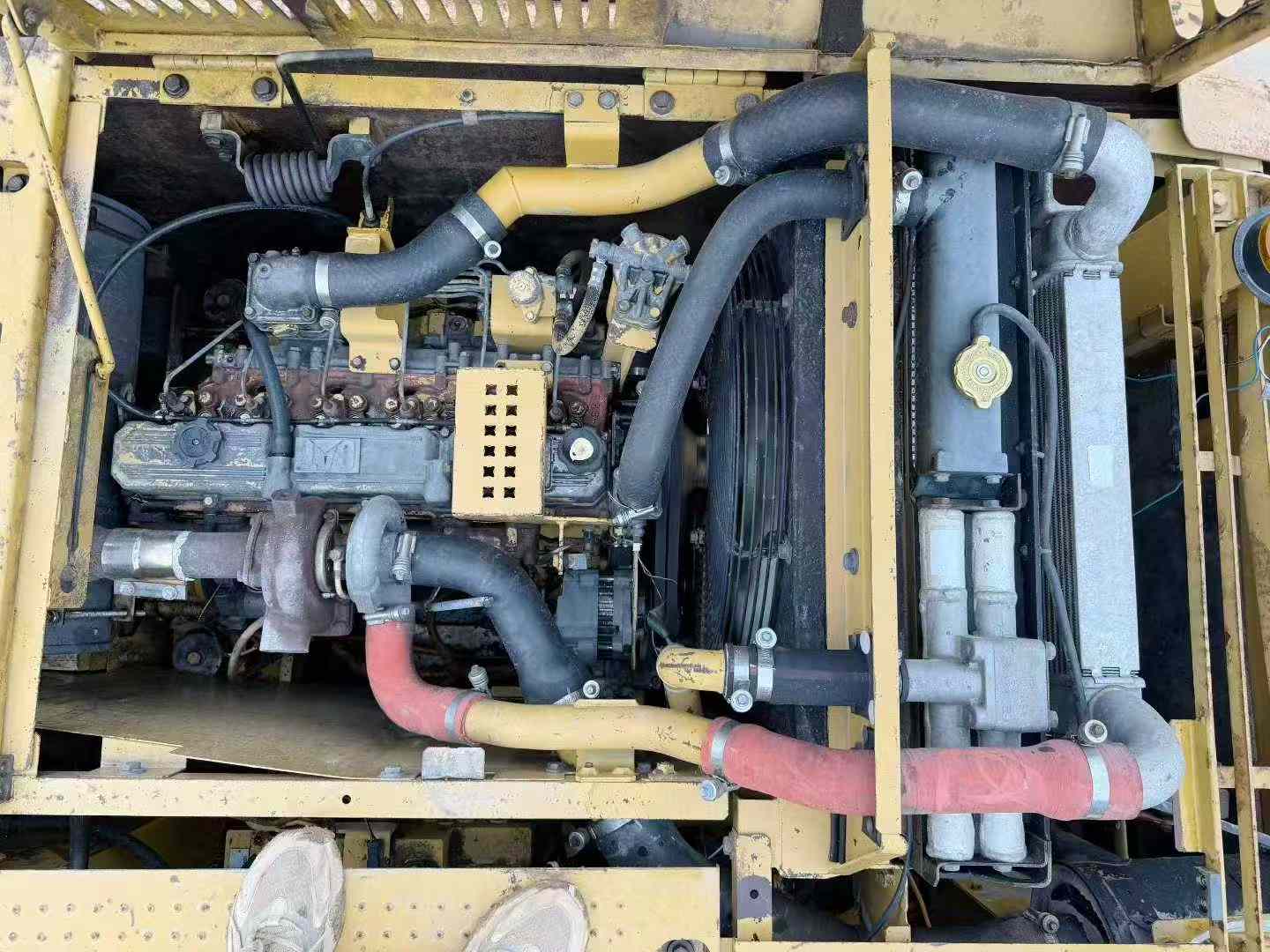

| Engine type | Caterpillar Cat C4.4 ACERT |
| Rated power (kw/rpm) | 89 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Working form | Meet EU Stage IIIB emission standards |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 111 |
| Rod digging force (kN) | 88 |
| Maximum tractive force (kN) | 156.2 |
| Travel speed (km/h) | 5.2 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 300 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 25.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 110 x 1039 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 13.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 190 |
| Total transport length (mm) | 8570 |
| Total transport width (mm) | 2520/2590/2690 (with different width tracks) |
| Total transport height (mm) | 3180 (to the top of the boom) |
| Full cab height (mm) | 2890 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500/600/700 |
| Total track width (mm) | 2520/2590/2690 |
| Maximum digging radius (mm) | 8910 |
| Maximum digging depth (mm) | 6090 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6280 |
| Maximum vertical digging depth (mm) | 4930 |
| Maximum excavation radius of stop surface (mm) | 8780 |
| Maximum effective digging depth (mm) | 5870 |
Description
Detailed Introduction of Carter 315C Second-hand Excavator Dear customer, hello! It is a great honor to recommend to you this second-hand Caterpillar 315C excavator with outstanding performance and extremely high cost performance. Since it was put into use in 2015, this equipment has accumulated a working time of only 4,000 hours, reaching the best state of mechanical life and is highly suitable for high-intensity operation requirements. This machine is equipped with a powerful Cat C7.1 ACERT engine, with a maximum power of up to 110kW (approximately 148 horsepower), which can maintain stable and efficient power output even under harsh working conditions. Advanced electronic fuel injection technology not only enhances fuel economy but also significantly reduces emission pollution, meeting the National III emission standards, achieving both environmental protection and energy conservation. In terms of the hydraulic system, Caterpillar's unique CLSS closed center load sensing system is adopted, which can automatically adjust the pumping volume according to the actual load, ensuring rapid response while reducing energy loss, and achieving precise control and smooth operation. In addition, this machine is specially equipped with a 16-me
Overview
No.969809
Brand Name:
CaterpillarModel Number:
CT16Year:
2016
Location:
Guangdong China
