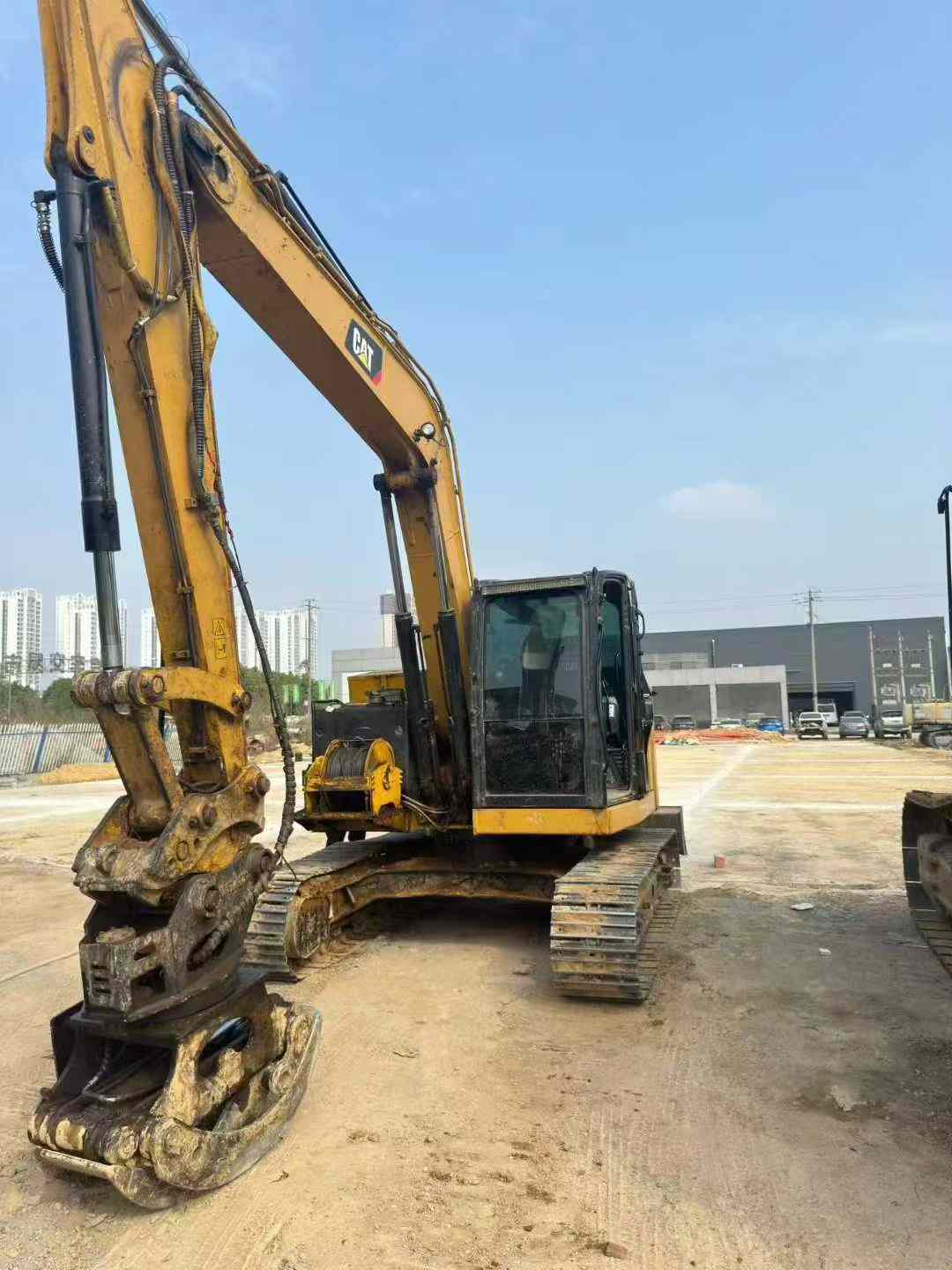

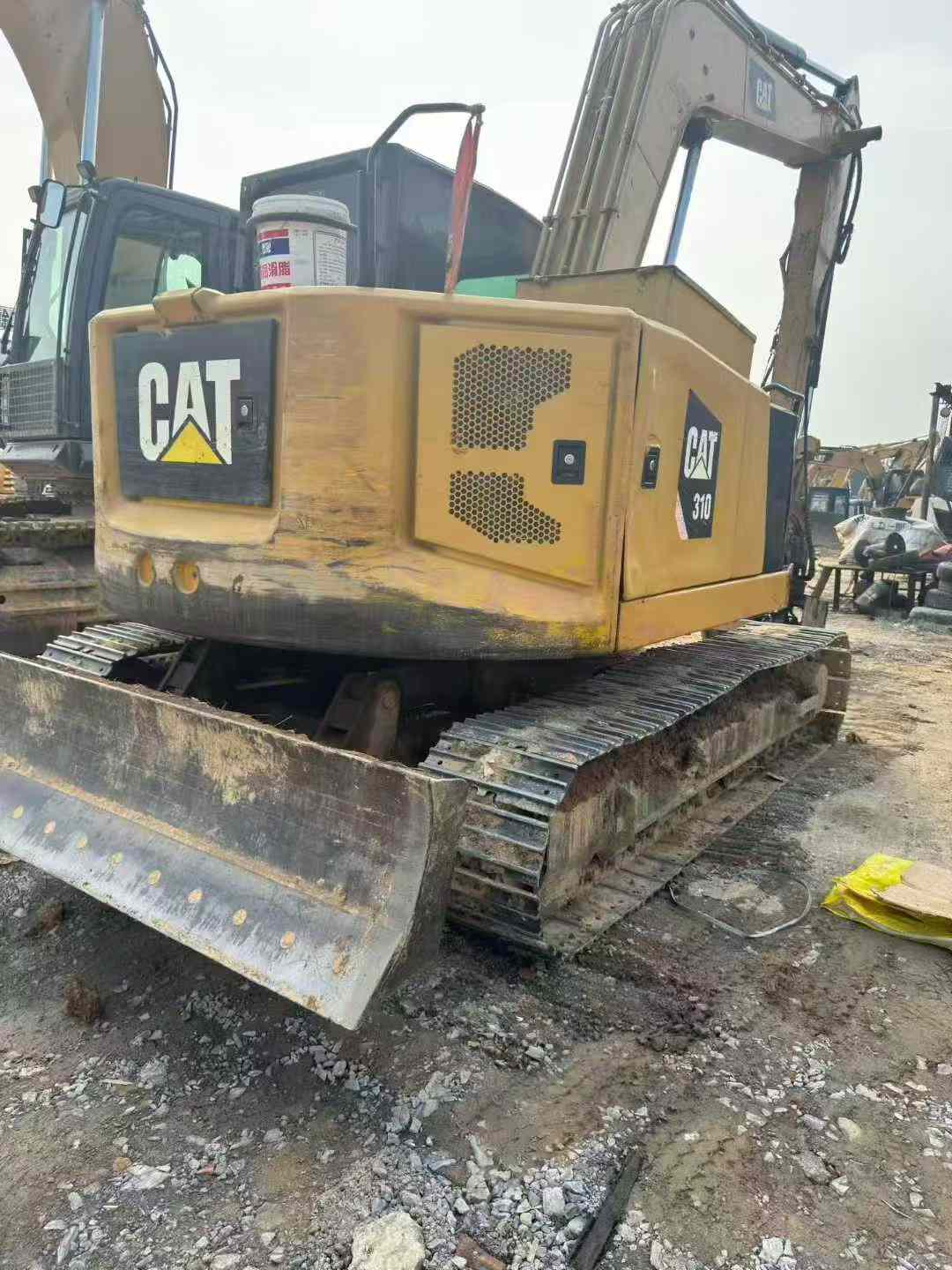

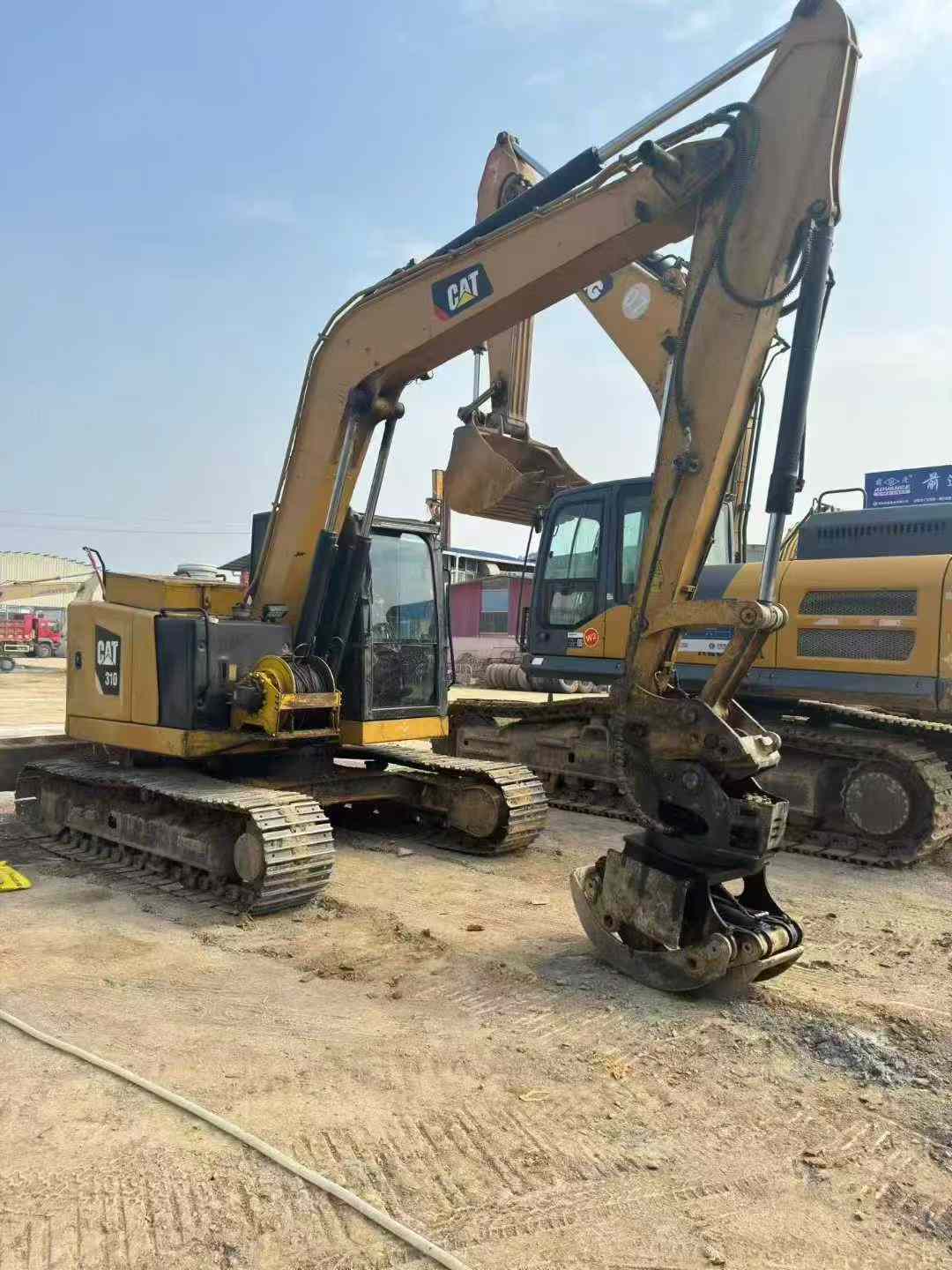

2019 Caterpillar CT16






Product Description

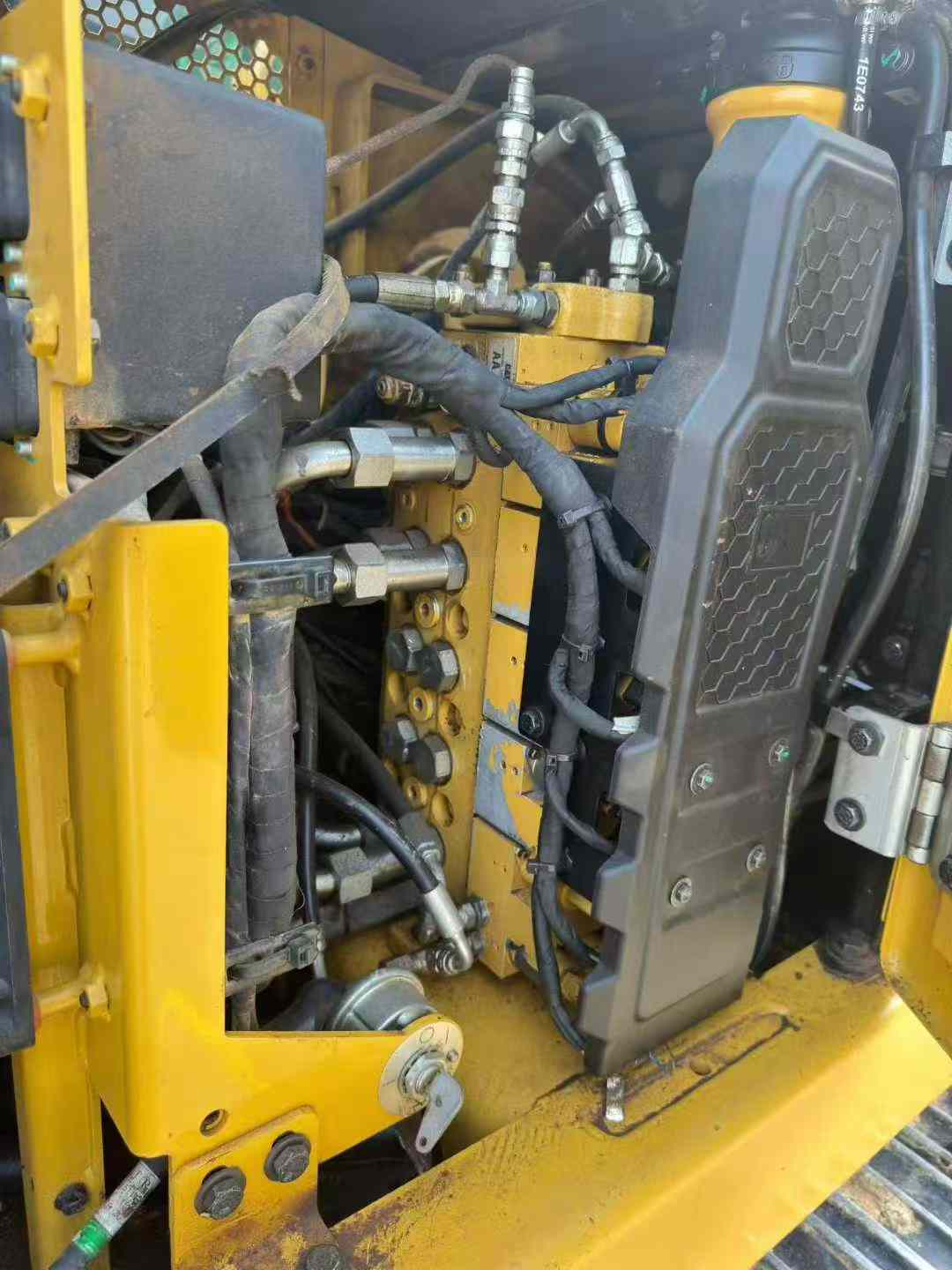

There is currently a second-hand Caterpillar 310 excavator produced in 2019, with a total working time of only 168,000 hours. This equipment not only features outstanding performance and reliability but is also equipped with multi-functional accessories such as a bulldozer shovel, a clip winch, etc., enabling it to handle various construction environments with ease. This excavator is equipped with a Caterpillar C4.4ACERT engine, with a maximum power output of up to 75 kilowatts (approximately 100 horsepower). It is powerful and has excellent fuel economy, capable of meeting the demands of various complex working conditions. In terms of the hydraulic system, this 310 excavator adopts an advanced load-sensing hydraulic system, equipped with high-efficiency hydraulic pumps and motors, ensuring smoothness and accuracy during operation. In addition, its unique hydraulic oil cooling technology further enhances the durability and stability of the system and reduces maintenance costs. As a multi-purpose construction machinery, this Caterpillar 310 excavator is not only suitable for infrastructure projects such as road construction and bridge building, but also performs well in fields like mining and material handling. Its compact design enab
| Specifications | Value |
|---|---|
| No. | 975445 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 17600 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.4 ACERT |
| Rated power (kw/rpm) | 89 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Working form | Meet EU Stage IIIB emission standards |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 111 |
| Rod digging force (kN) | 88 |
| Maximum tractive force (kN) | 156.2 |
| Travel speed (km/h) | 5.2 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 300 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 25.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 110 x 1039 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 13.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 190 |
| Total transport length (mm) | 8570 |
| Total transport width (mm) | 2520/2590/2690 (with different width tracks) |
| Total transport height (mm) | 3180 (to the top of the boom) |
| Full cab height (mm) | 2890 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500/600/700 |
| Total track width (mm) | 2520/2590/2690 |
| Maximum digging radius (mm) | 8910 |
| Maximum digging depth (mm) | 6090 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6280 |
| Maximum vertical digging depth (mm) | 4930 |
| Maximum excavation radius of stop surface (mm) | 8780 |
| Maximum effective digging depth (mm) | 5870 |
Overview
No.975445
Brand Name:
CaterpillarModel Number:
CT16Year:
2019
Location:
Guangxi China
