Product Description

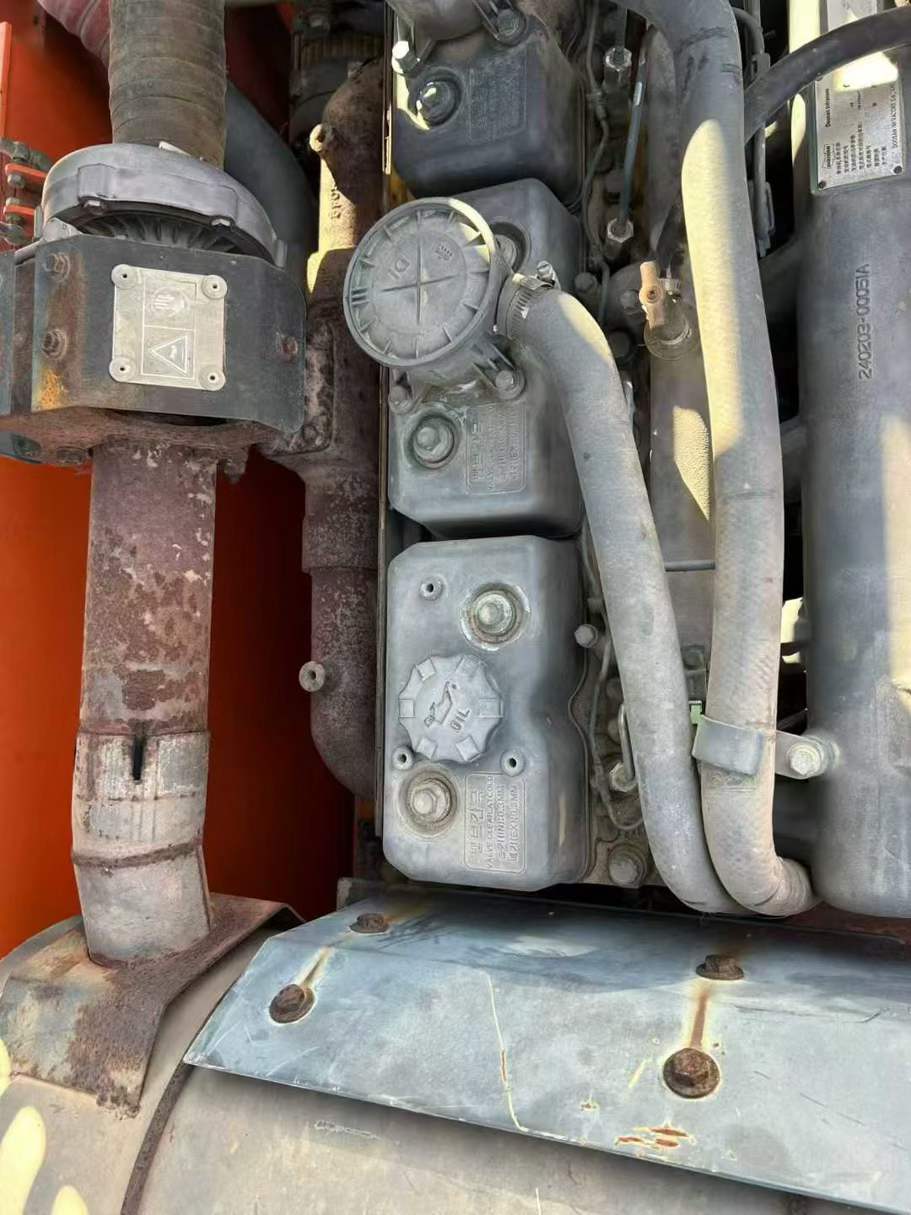

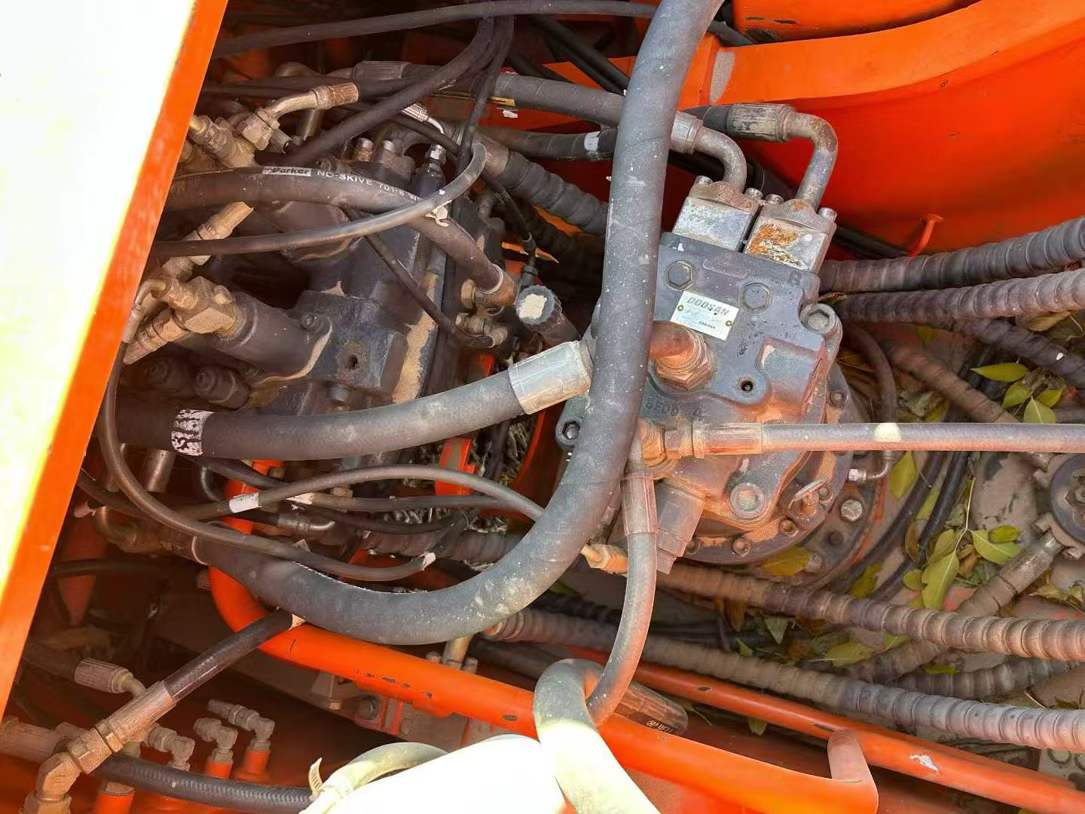

There is currently a second-hand Doosan 220-9E excavator purchased in 2014, with a total working time of approximately 6,000 hours. Its overall performance is stable and it is well maintained. This equipment adopts the well-tested DOOSAN DH220-9E model, equipped with a high-performance engine, which is expected to be the DOOSAN DB58TIS type, with a rated power of approximately 130 kilowatts. It ensures a perfect combination of strong power output and fuel economy, maintaining efficient operation even under heavy load. In terms of the hydraulic system, this excavator adopts an advanced combination of variable piston pumps and high-efficiency hydraulic motors, which can achieve precise control and smooth operation. Whether it is excavation, loading or crushing operations, it can handle them with ease. Its unique load sensing technology enables the machine to automatically adjust the flow rate according to the actual working requirements, thereby improving work efficiency while reducing energy consumption. The Doosan 220-9E also features a number of humanized designs: The spacious and comfortable cab provides a good view; The intelligent control system simplifies the operation process. The sturdy and durable structural design ensures th
| Specifications | Value |
|---|---|
| No. | 976393 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22000 |
| Bucket capacity (m³) | 0.93 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DB58TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Pilot pump flow (L/min) | 2 x 212 |
| Fuel Tank (L) | 310 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Hydraulic System (L) | 135 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 |
| Full cab height (mm) | 3025 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 4440 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 5885 |
