2016 Doosan DH70

1/9
Used Doosan DH70 Excavator 2016 Model / 1
Used Doosan DH70 Excavator 2016 Model / 2

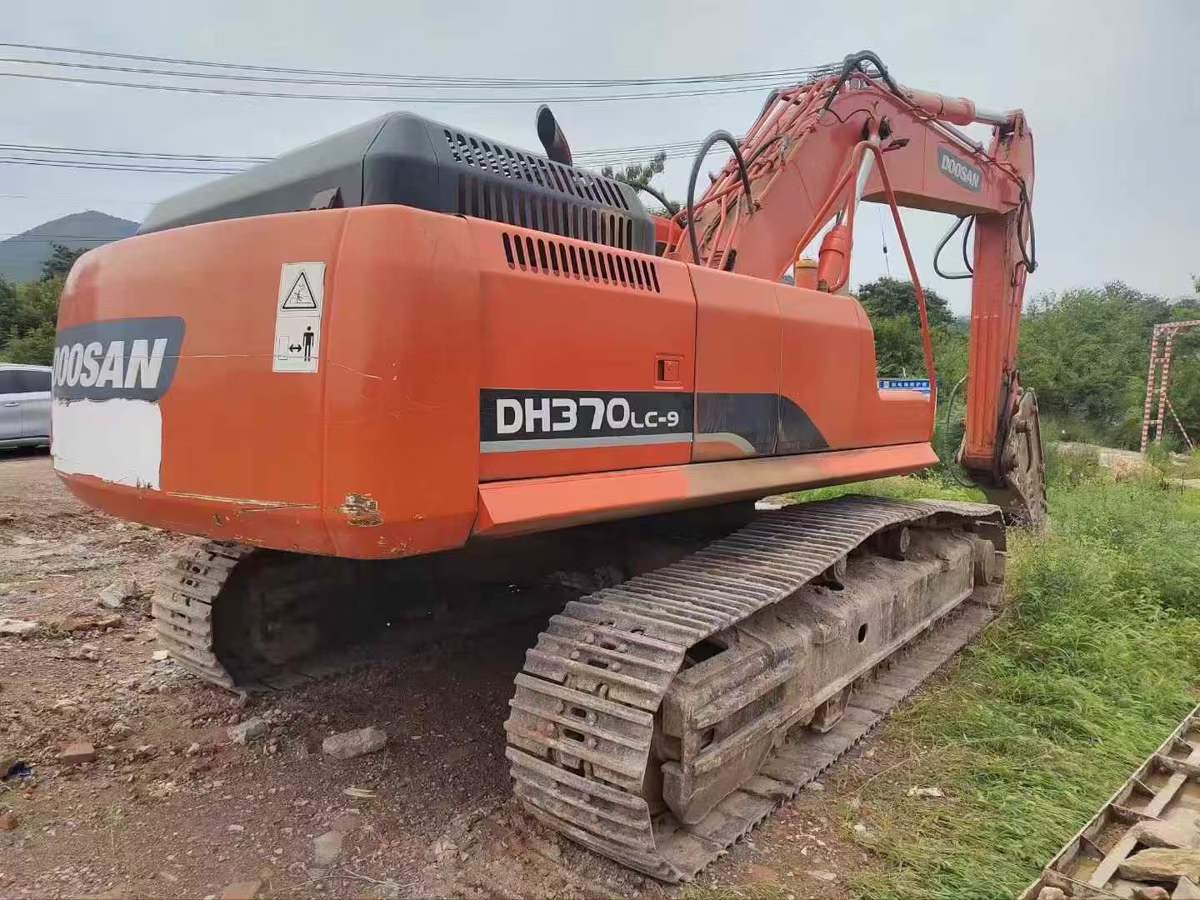

Used Doosan DH70 Excavator 2016 Model / 3

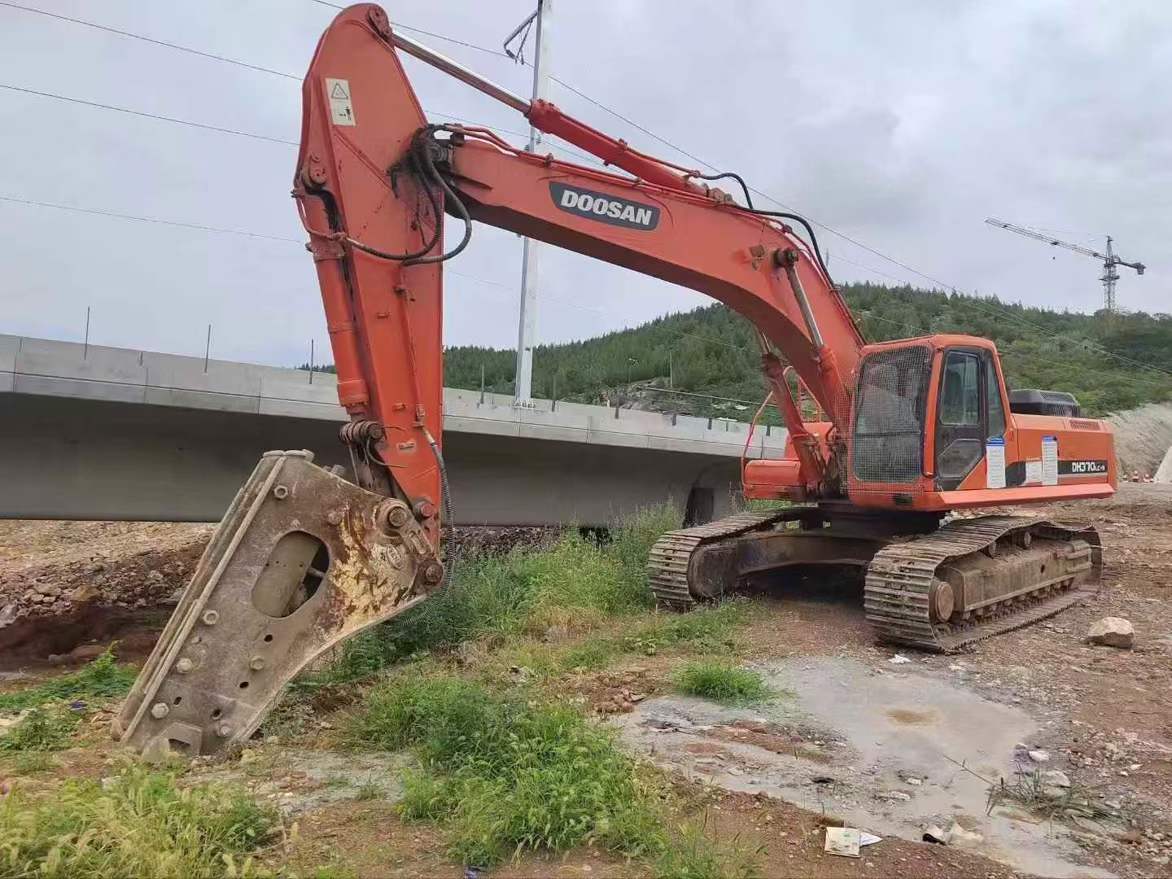

Used Doosan DH70 Excavator 2016 Model / 4

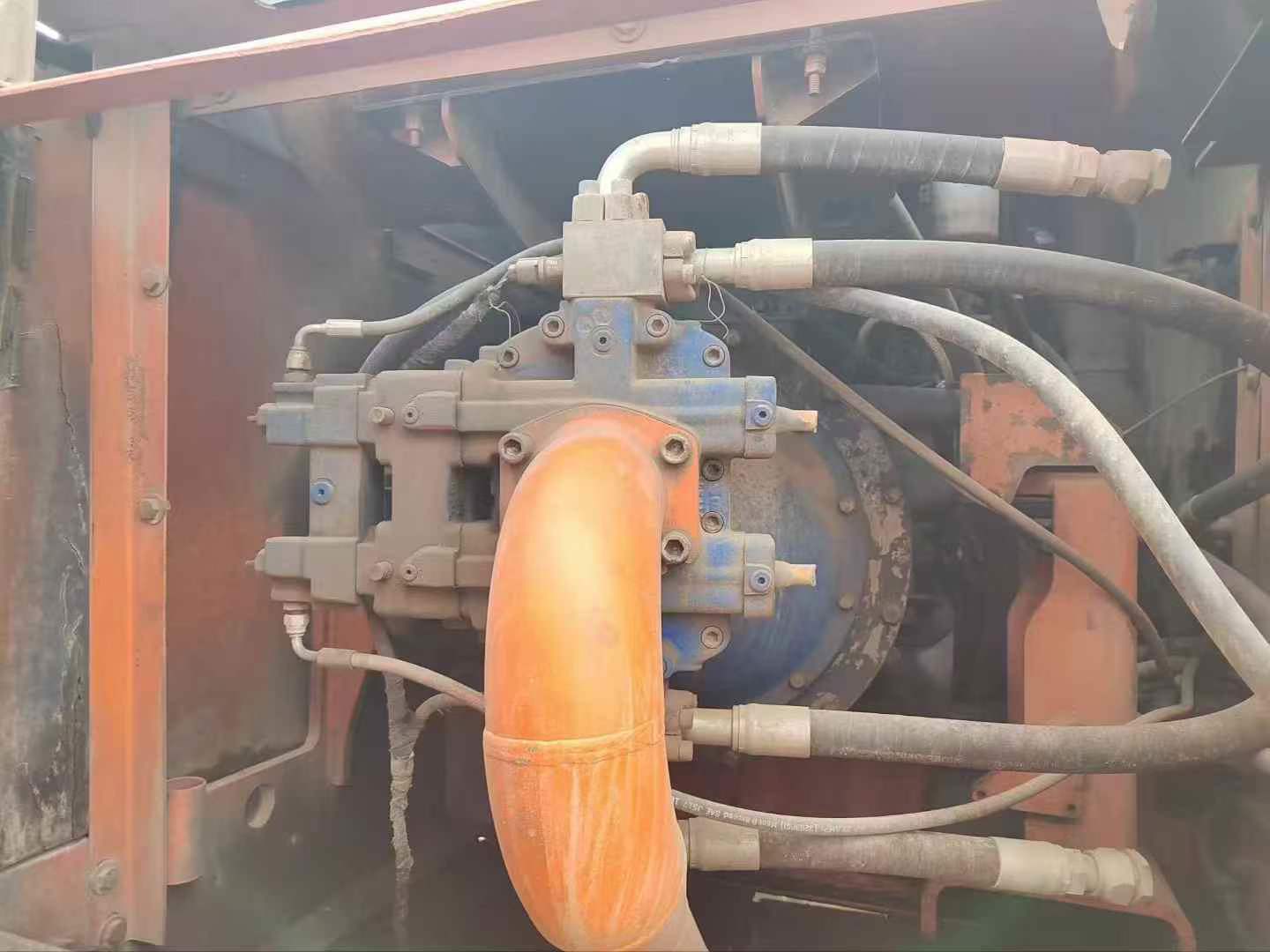

Used Doosan DH70 Excavator 2016 Model / 5

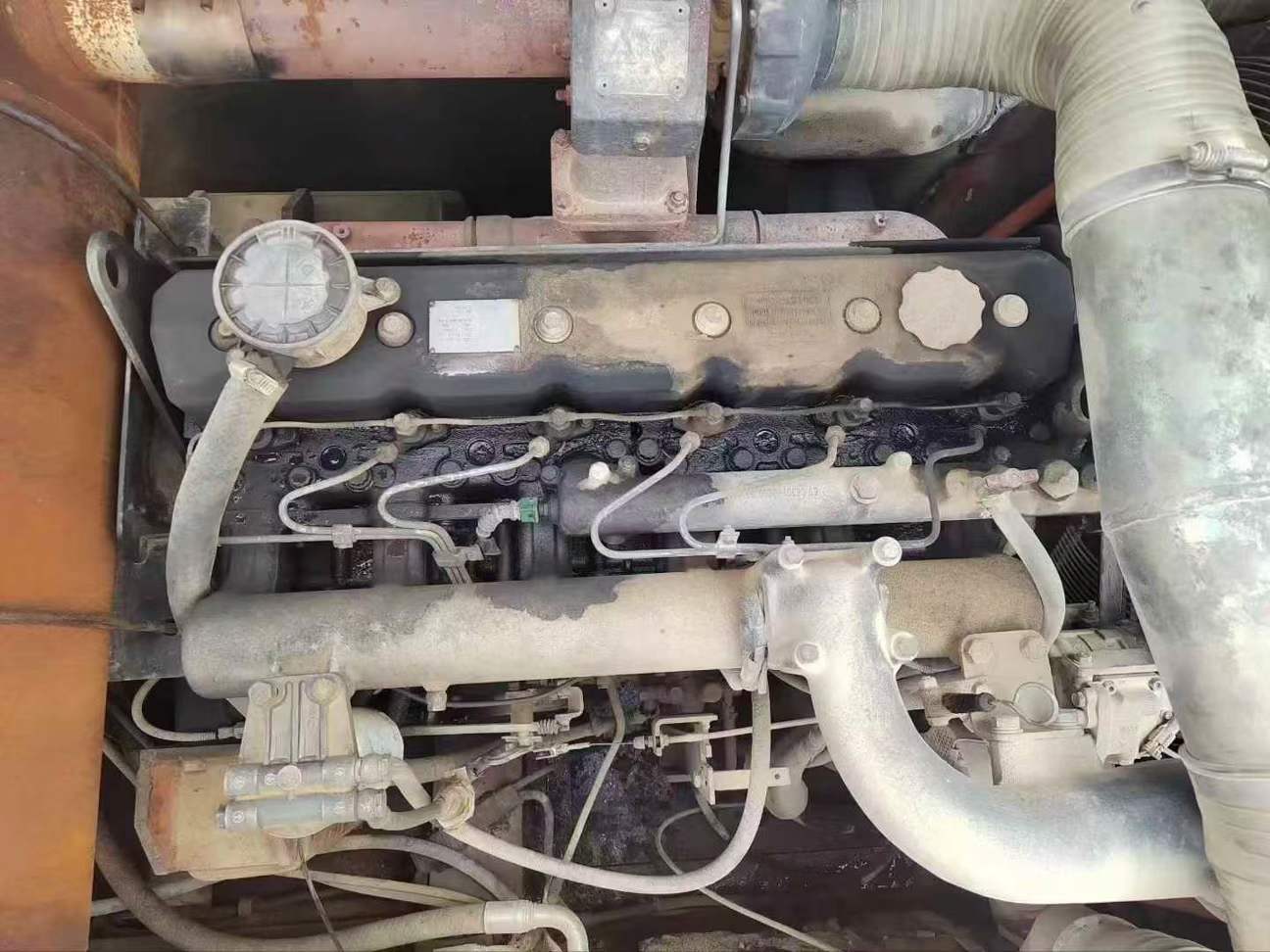

Used Doosan DH70 Excavator 2016 Model / 6
Used Doosan DH70 Excavator 2016 Model / 7

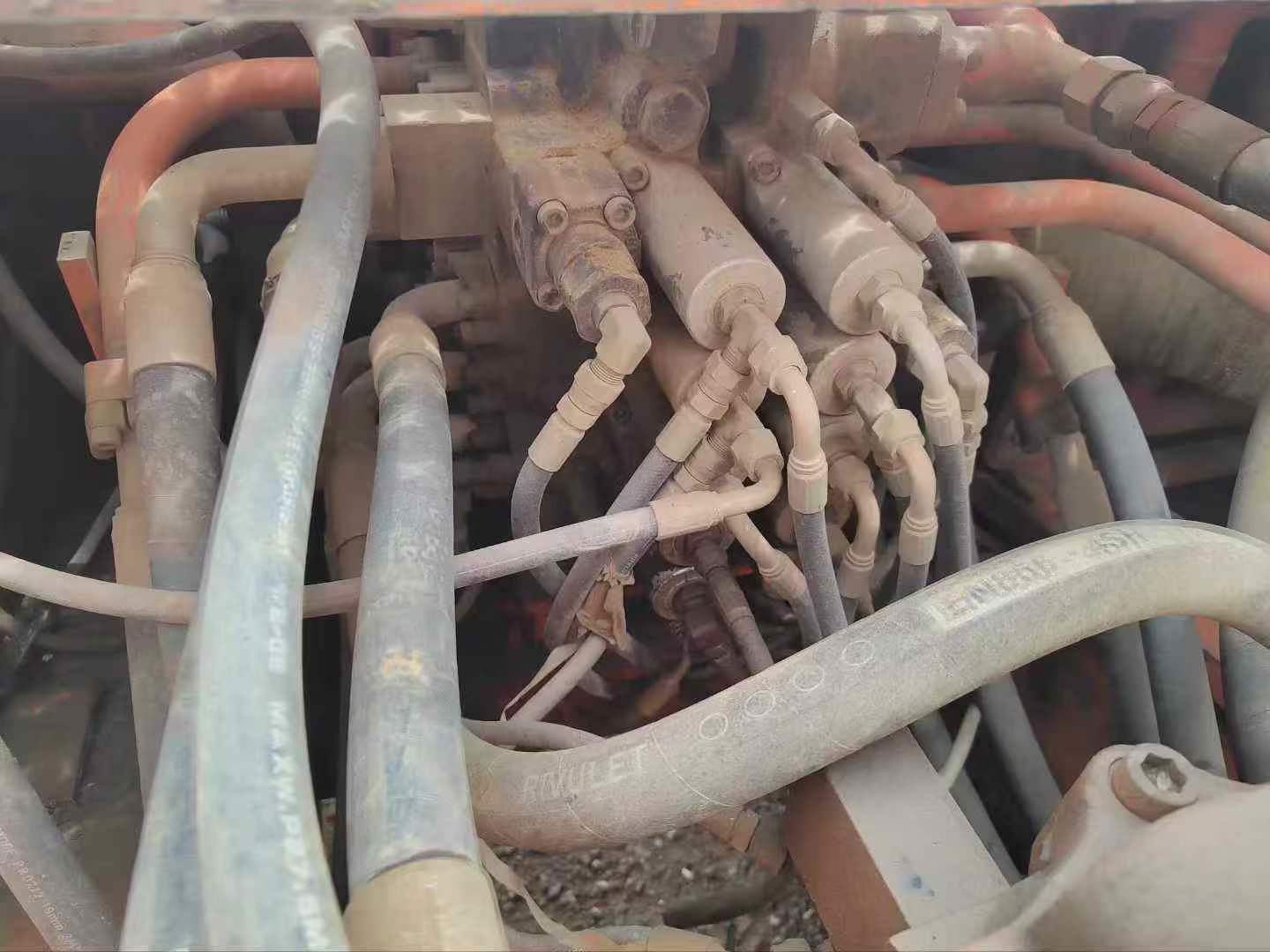

Used Doosan DH70 Excavator 2016 Model / 8

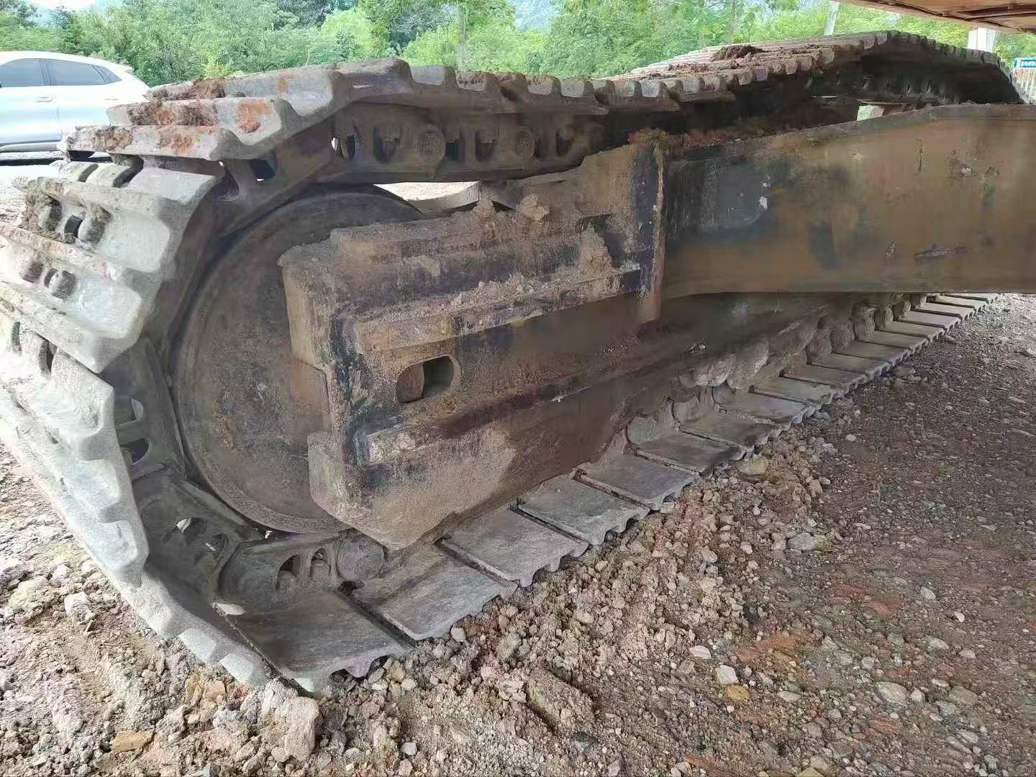

Used Doosan DH70 Excavator 2016 Model / 9

Product Description

The Doosan DH370 excavator, equipped with a breaker, is a heavy-duty construction machinery with outstanding performance, durability and reliability. This equipment has a cumulative working time of approximately 6,000 hours and is in good working condition, suitable for various complex working conditions. In terms of the power system, this excavator is equipped with an efficient Doosan DL08 engine, with a maximum output power of 210kW (approximately 282 horsepower), ensuring strong power support and excellent fuel economy. Whether it is digging hard soil or breaking rocks, it can handle it with ease and perform outstandingly. The hydraulic system is a major highlight of this excavator. It adopts an advanced variable piston pump combined with a high-torque hydraulic motor, ensuring efficient and stable energy conversion efficiency. Its precise control performance makes the operation more flexible and free, and can meet the requirements of fine work. In addition, the robust and durable design also significantly extends the service life of key components. The Doosan DH370 excavator has won wide recognition in the market for its outstanding working efficiency, reliable quality and relatively low maintenance cost. It is particularly wort

SpecificationsValue
No.976251
Tonnage (tons)7
Working weight (kg)6980
Bucket capacity (m³)0.28
Boom length (mm)3620
Rod length (mm)1600
Country of originYantai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKubota KubotaV3300-DI
Rated power (kw/rpm)45.8/2200
Cooling modewater-cooling
Displacement (L)3.318
Working formFuel consumption is 163g/ps.hr
Rotation speed (rpm)10.5
Bucket digging force (kN)5.3ton
Rod digging force (kN)3.7ton
Travel speed (km/h)2.8/4.5
Maximum flow of main pump (l/min)162.8
Traveling Hydraulic Circuit (Mpa)250
Rotary Hydraulic Circuit (Mpa)190
Hydraulic crushing pipeline is standardis
Bucket cylinders - Number × diameter × stroke (mm)85*55*715
Bucket rod cylinders - Number × diameter × stroke (mm)95*60*850
Boom cylinders - Number × diameter × stroke (mm)110*65*865
Total transport length (mm)5920
Total transport width (mm)2200
Total transport height (mm)2585
Full cab height (mm)2585
Counterweight ground clearance (mm)764
Back end turning radius (mm)1710
Total track length (mm)2568
Track gauge (mm)1650
Track plate width (mm)400
Total track width (mm)2050
Track ground length (mm)1990
Maximum digging radius (mm)6170
Maximum digging depth (mm)4060
Maximum excavation height (mm)6918
Maximum unloading height (mm)5032
see more

Overview

No.976251

Brand Name:

Doosan

Model Number:

DH70

Year:

2016

Location:

Zhejiang China
