2015 Doosan DX120

1/5
Used Doosan DX120 Excavator 2015 Model / 1

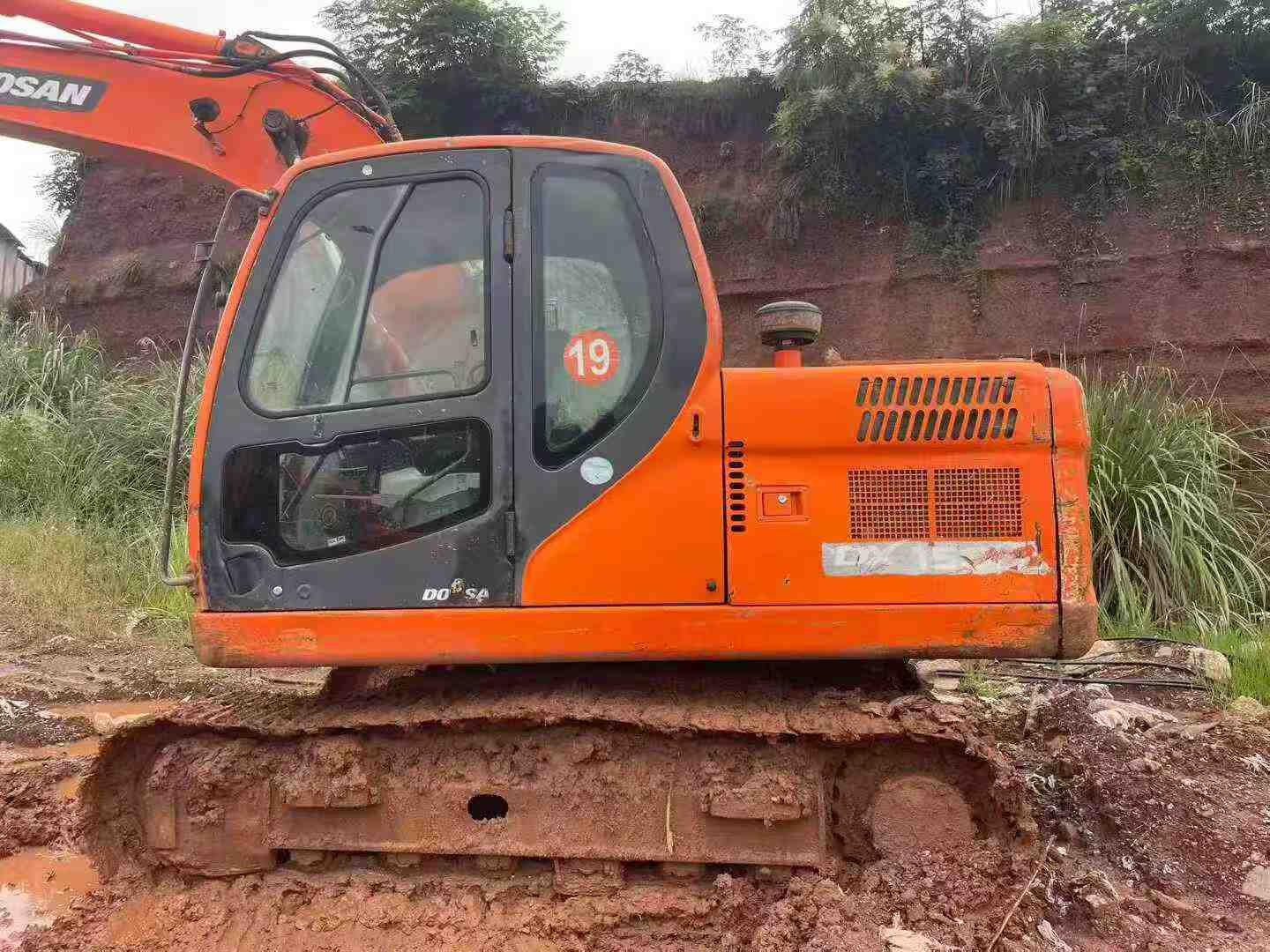

Used Doosan DX120 Excavator 2015 Model / 2

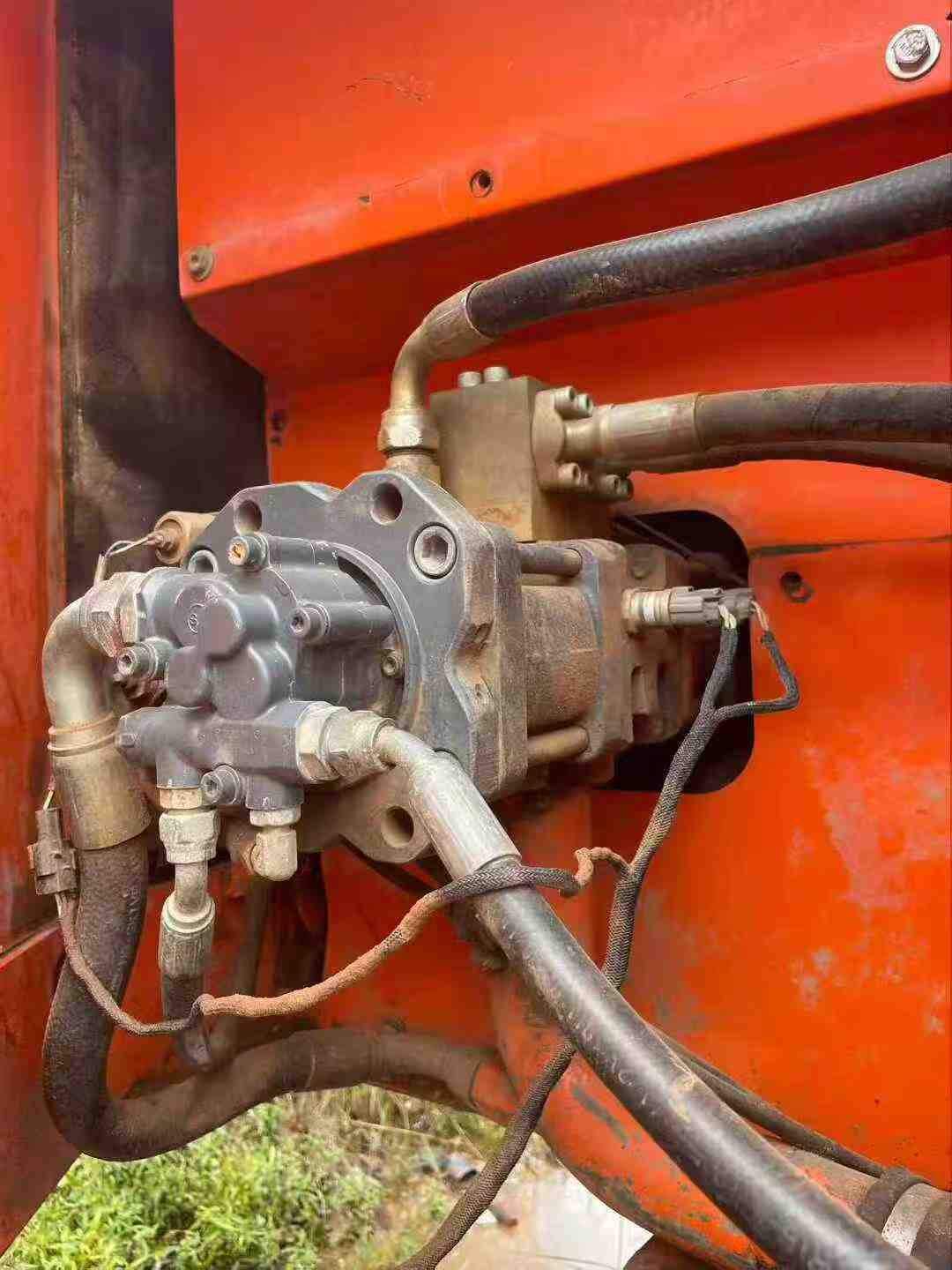

Used Doosan DX120 Excavator 2015 Model / 3

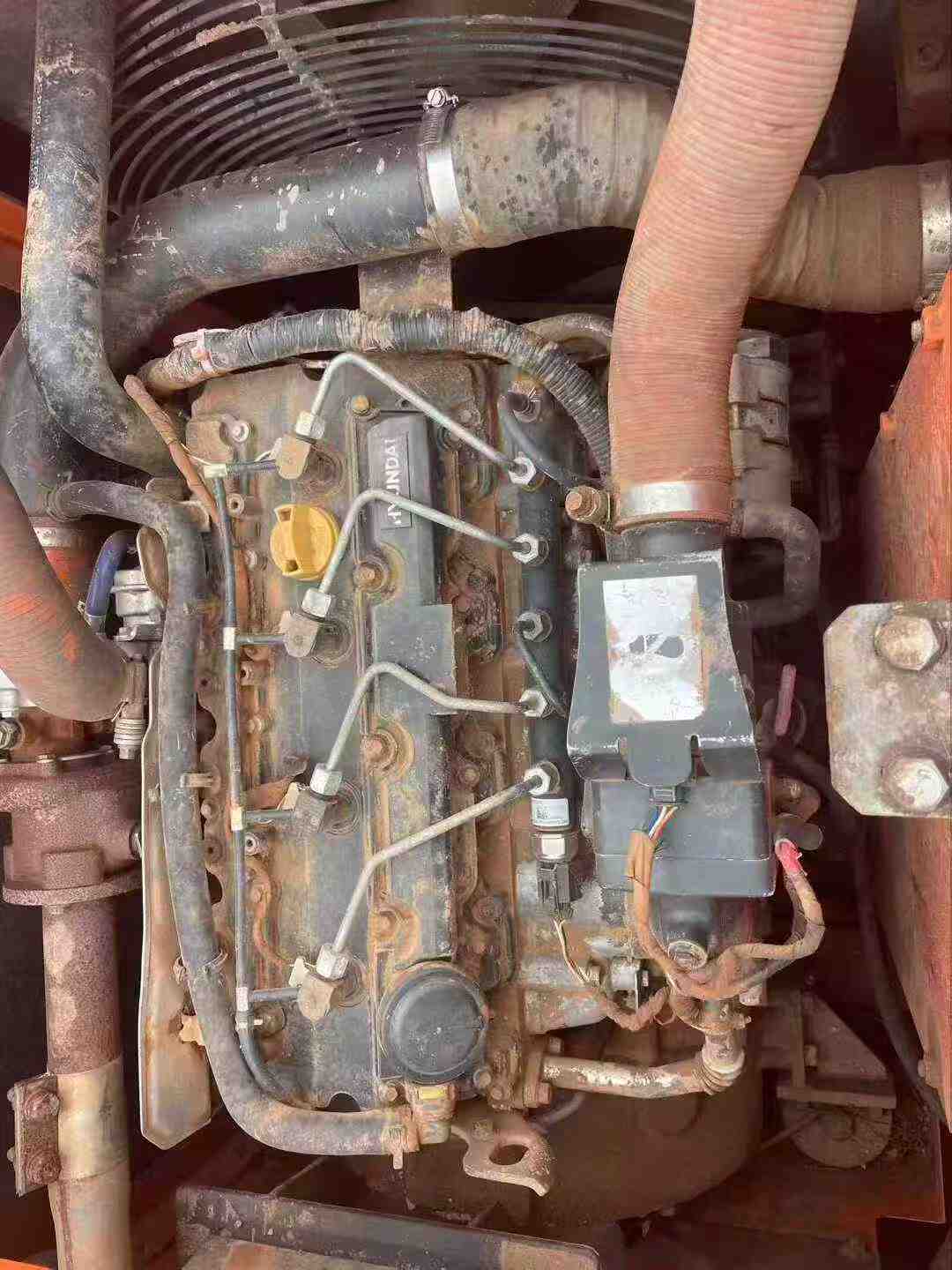

Used Doosan DX120 Excavator 2015 Model / 4

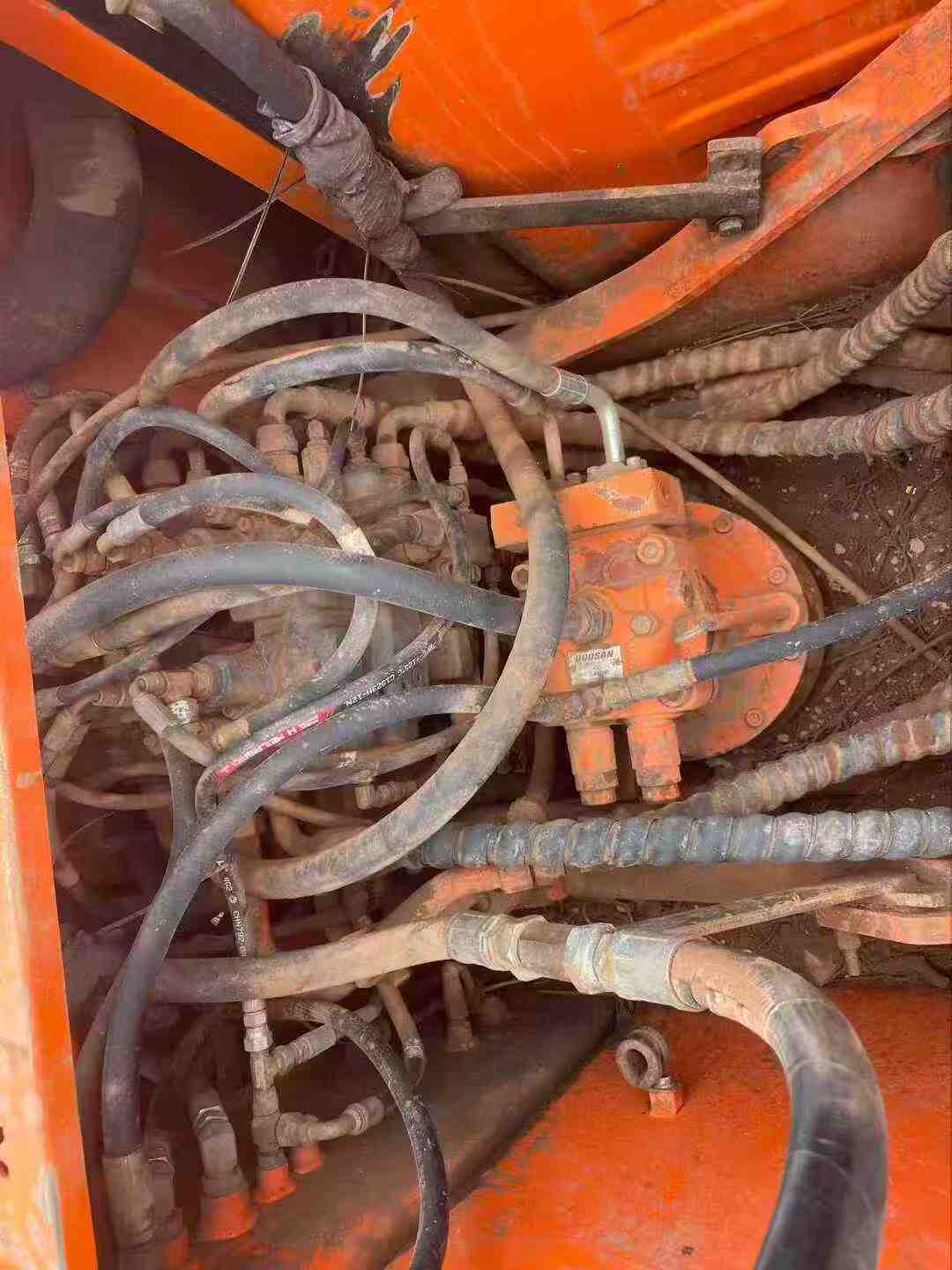

Used Doosan DX120 Excavator 2015 Model / 5

Product Description

"Recommendation of Premium Second-hand Excavators We are now recruiting agents for our first-hand supply. The 15-year-old Doosan 120 excavator is available for only 90,000 yuan! Since its factory release in 2015, this equipment has maintained a good operating condition, with a total working time of approximately 6,000 hours, which is far lower than the average service life of similar machines, indicating that it still has a long service life ahead of excavation. Doosan, as one of the world's renowned manufacturers of construction machinery, is famous for its products being highly efficient and having a low failure rate. In terms of the power system, this machine is equipped with an efficient and energy-saving engine, which can maintain stable output even under long-term high-intensity operation. At the same time, it has excellent fuel economy, significantly reducing operating costs. The hydraulic system adopts advanced control technology, ensuring the accuracy and sensitivity of operation. Whether it is digging or loading, it can be handled with ease, allowing the driver to experience an unprecedentedly smooth control feeling. It is particularly worth mentioning that the "big top" configuration makes the spatial layout of this excava

SpecificationsValue
No.971487
Tonnage (tons)12
Working weight (kg)12200
Bucket capacity (m³)0.51
Boom length (mm)4300
Rod length (mm)2260
Country of originYantai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeD34D
Rated power (kw/rpm)71 / 1850
Cylinder diameter × stroke (mm)98 x 113
Number of cylinders (PCS)4
Ground specific pressure (Kpa)43
Rotation speed (rpm)11.5
Climbing ability (%)35 °
Bucket digging force (kN)99 / 105
Rod digging force (kN)63.2 / 67
Maximum tractive force (kN)11.9
Travel speed (km/h)4.5 / 2.8
Turning torque (Nm)40
Type of walking hydraulic motorAxial piston hydraulic motor
Fuel Tank (L)260
Hydraulic Tank (L)152
Total transport length (mm)7315
Total transport width (mm)2540
Total transport height (mm)2775
Full cab height (mm)835
Counterweight ground clearance (mm)895
Minimum ground clearance (mm)410
Minimum turning radius of front working device (mm)2445
Back end turning radius (mm)2130
Total track length (mm)3315
Track plate width (mm)500
Total track width (mm)2490
Maximum digging radius (mm)7620
Maximum digging depth (mm)5150
Maximum excavation height (mm)7955
Maximum unloading height (mm)5640
Maximum vertical digging depth (mm)3605
Maximum excavation radius of stop surface (mm)7465
Maximum effective digging depth (mm)3605
see more

Overview

No.971487

Brand Name:

Doosan

Model Number:

DX120

Year:

2015

Location:

Sichuan China
