| Specifications | Value |
|---|---|
| No. | 964643 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 14000 |
| Bucket capacity (m³) | 0.58 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 71 / 1850 |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Number of cylinders (PCS) | 6 |
| Working form | Direct injection; Turbocharged, air-cooled |
| Ground specific pressure (Kpa) | 34.3 |
| Rotation speed (rpm) | 12.2 |
| Bucket digging force (kN) | 106 |
| Rod digging force (kN) | 65 |
| Travel speed (km/h) | 4.9 / 3.0 |
| Turning torque (Nm) | 40 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 114 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 x 900 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 x 1180 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 75 x 1085 |
| Fuel Tank (L) | 267 |
| Hydraulic Tank (L) | 147 |
| Coolant (L) | 24 |
| Total transport length (mm) | 7680 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2755(to top of cab) |
| Full cab height (mm) | 2750 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2325 |
| Back end turning radius (mm) | 2200 |
| Onboard width (mm) | 2540 |
| Total track length (mm) | 3750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 8305 |
| Maximum digging depth (mm) | 5655 |
| Maximum excavation height (mm) | 8750 |
| Maximum unloading height (mm) | 6300 |
| Maximum vertical digging depth (mm) | 4450 |
| Maximum excavation radius of stop surface (mm) | 8160 |
| Maximum effective digging depth (mm) | 5430 |
Description

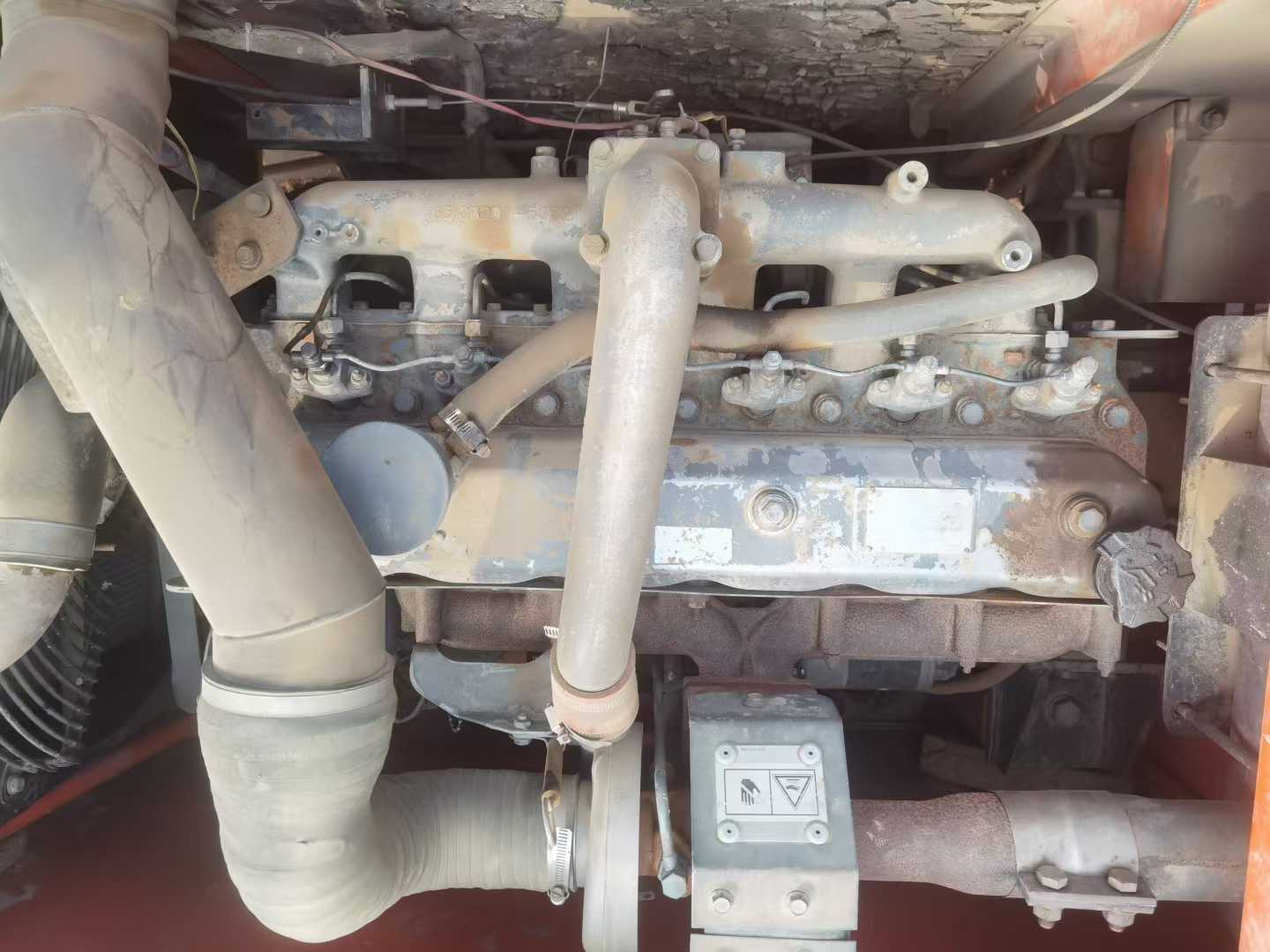

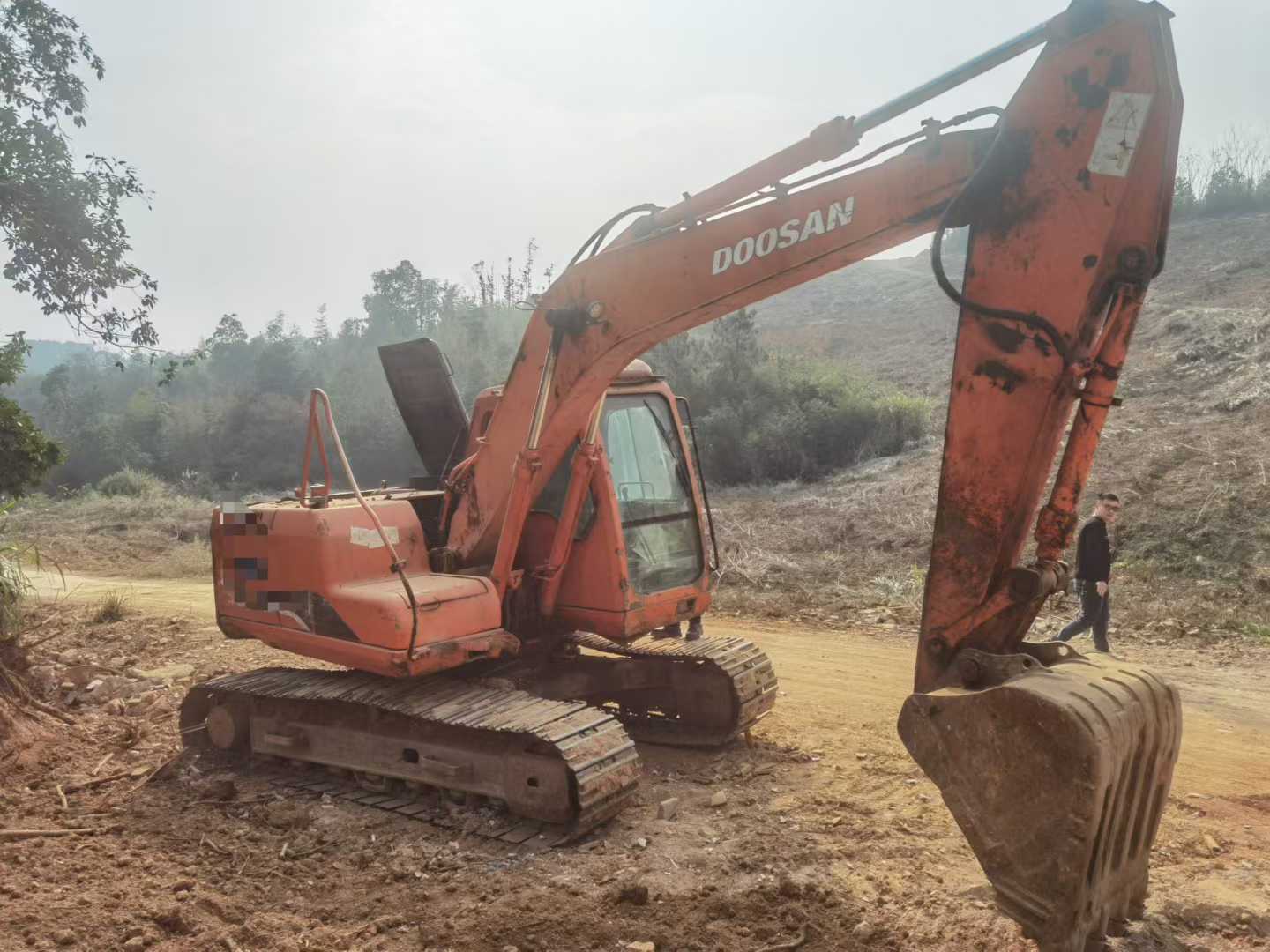

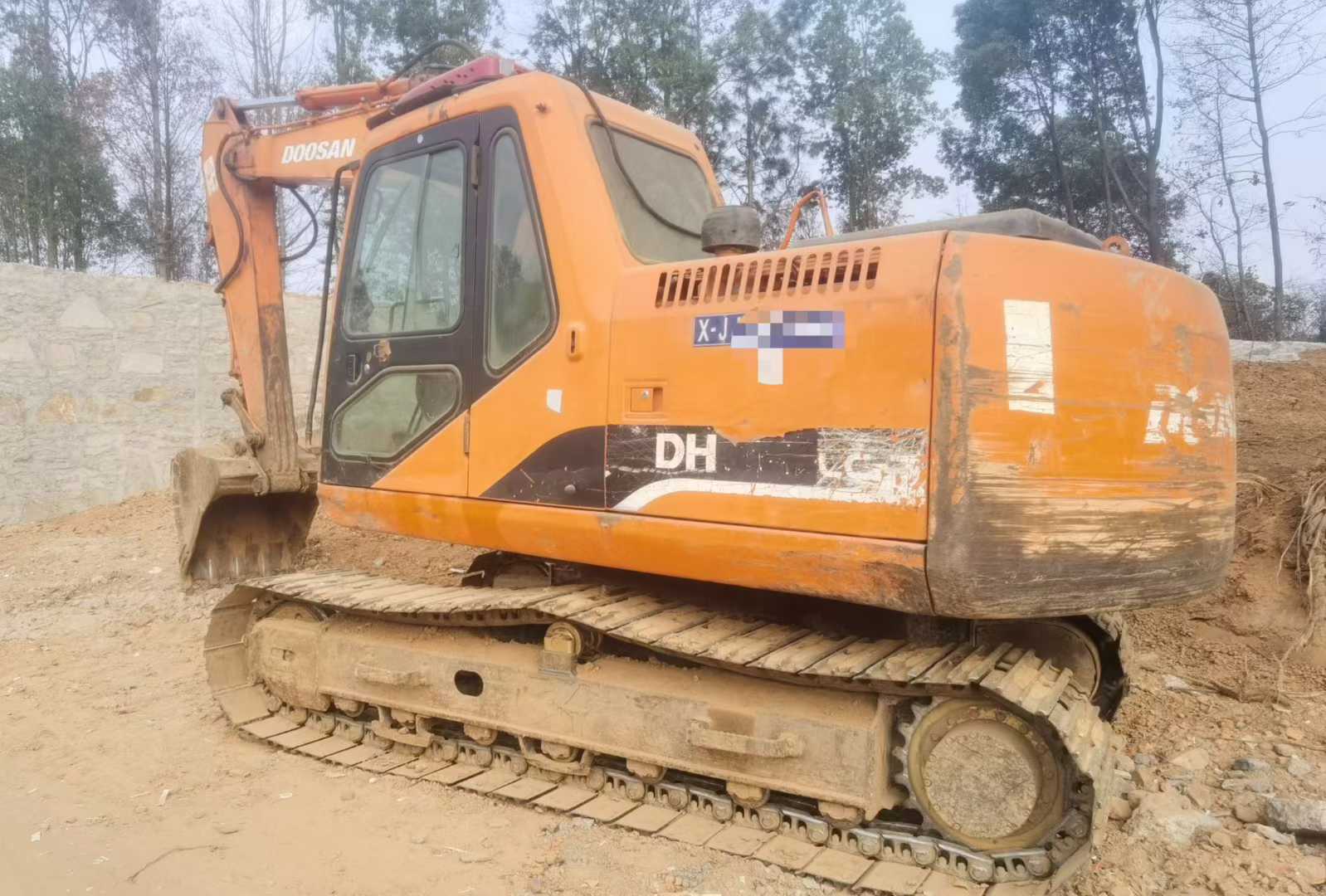

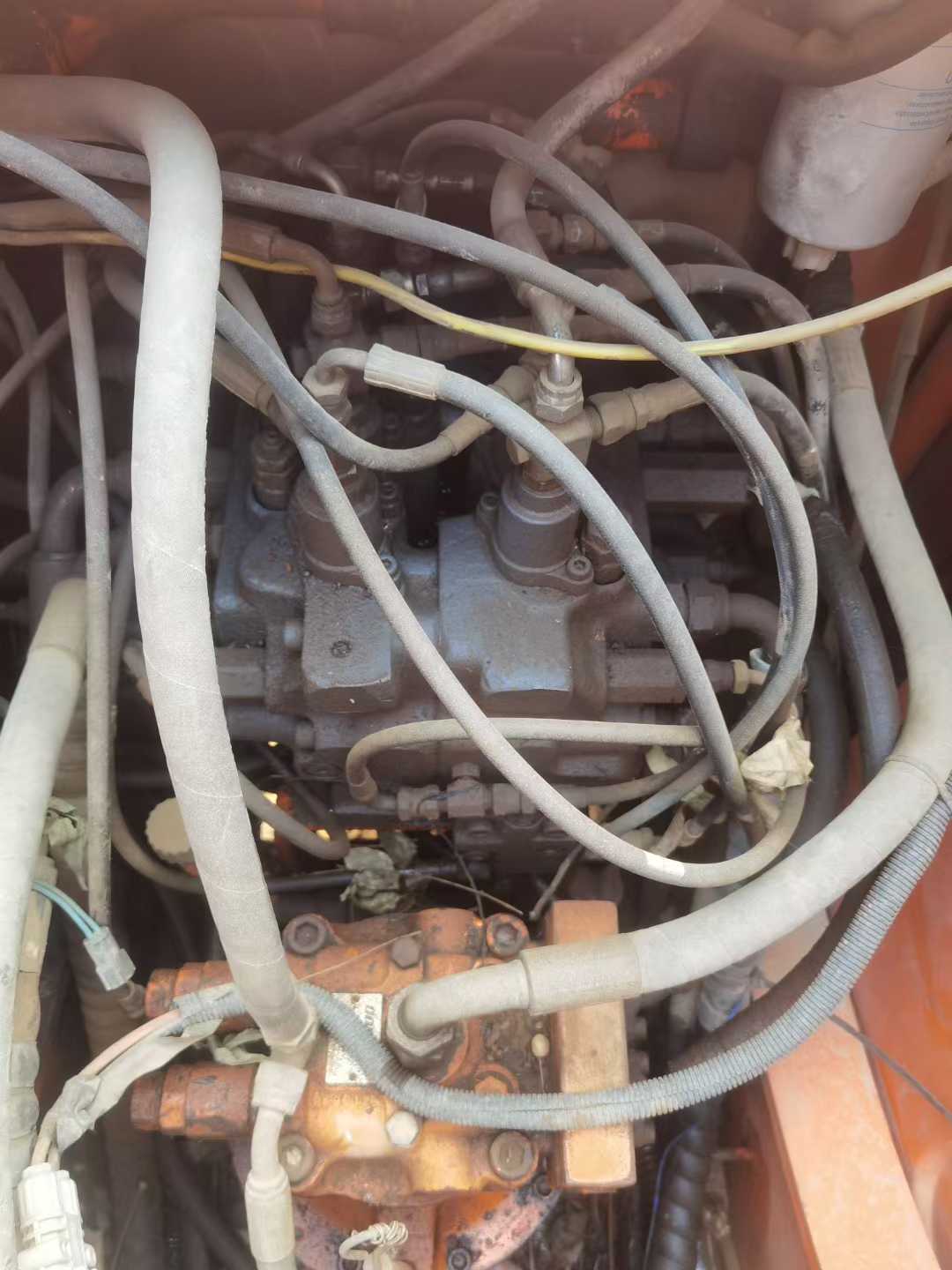

【 Doosan 150LC-7 Second-hand Excavator 】 This Doosan 150LC-7 second-hand excavator is one of the most favored medium-sized excavators in the market, featuring outstanding working performance and durability. Since its first use, the total working time of this equipment has only been 4,200 hours, and it is in good operating condition. It is equipped with an efficient diesel engine, model DE08TIS, which features powerful output and smooth operation characteristics, ensuring stable and reliable power support under various working conditions. In addition, its advanced hydraulic system design makes operation more flexible and precise, enabling it to easily handle complex and ever-changing working environments. Whether it is tasks such as excavation, loading, or land leveling, they can all be completed efficiently. The appearance of this machine is well maintained, with no obvious damage or rust. The internal structure is intact and all components are operating normally. The vehicle comes with detailed picture materials and real shooting videos, which can visually display its current condition and various function demonstrations, allowing buyers to have a comprehensive and real understanding of the machine. For those users who are seeking s
