| Specifications | Value |
|---|---|
| No. | 967674 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 115/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 45.8 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 136.2 |
| Rod digging force (kN) | 98 |
| Travel speed (km/h) | 5.3 / 2.9 |
| Maximum flow of main pump (l/min) | 2 x 191 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115*80*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135*95*1450 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120*85*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 9506 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2891 |
| Full cab height (mm) | 2985 |
| Counterweight ground clearance (mm) | 1096 |
| Minimum ground clearance (mm) | 475 |
| Minimum turning radius of front working device (mm) | 3560 |
| Back end turning radius (mm) | 2794 |
| Onboard width (mm) | 2709 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3610 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9873 |
| Maximum digging depth (mm) | 6592 |
| Maximum excavation height (mm) | 9616 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 3929 |
| Maximum excavation radius of stop surface (mm) | 9699 |
| Maximum effective digging depth (mm) | 6411 |
Description

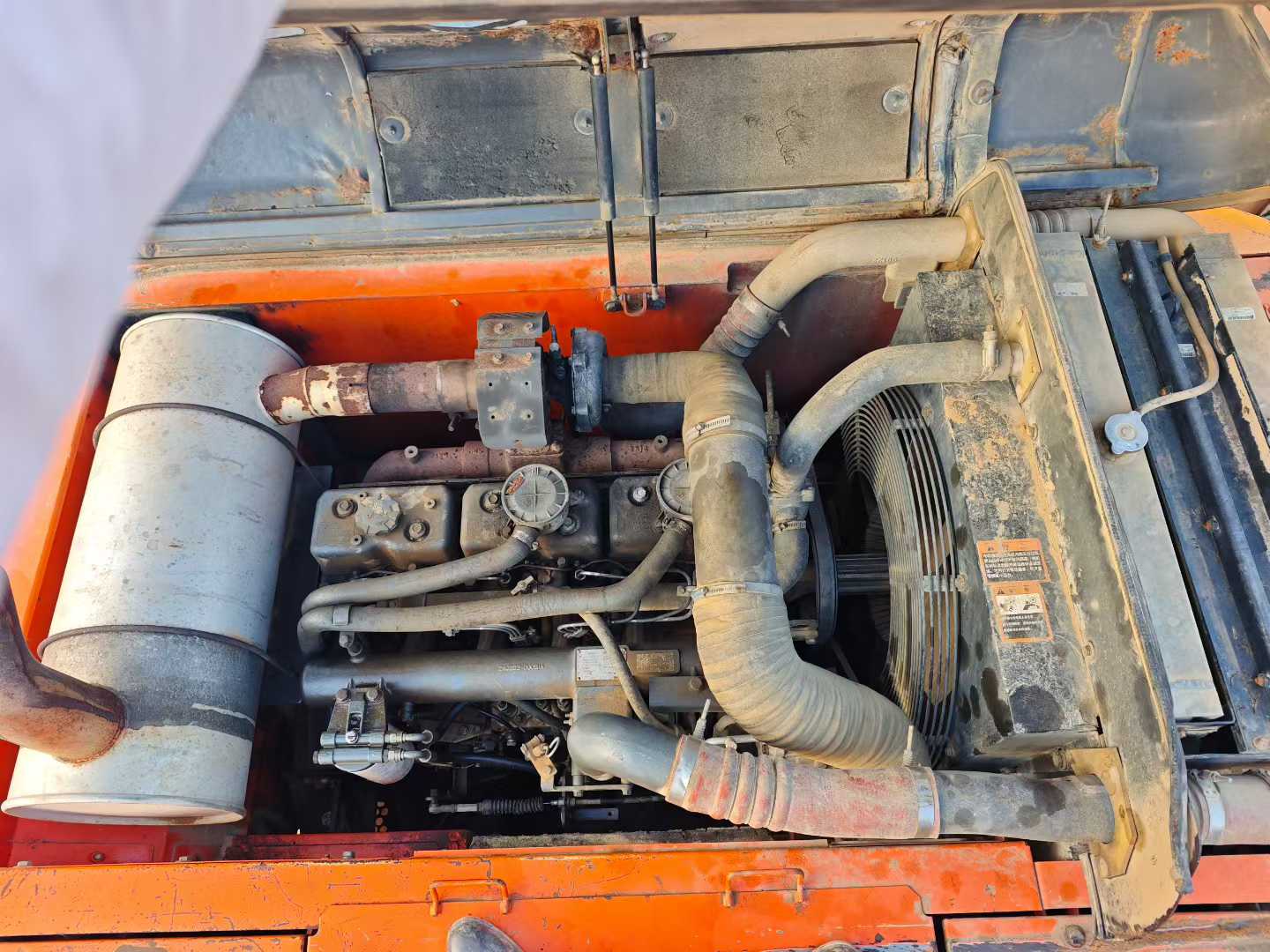

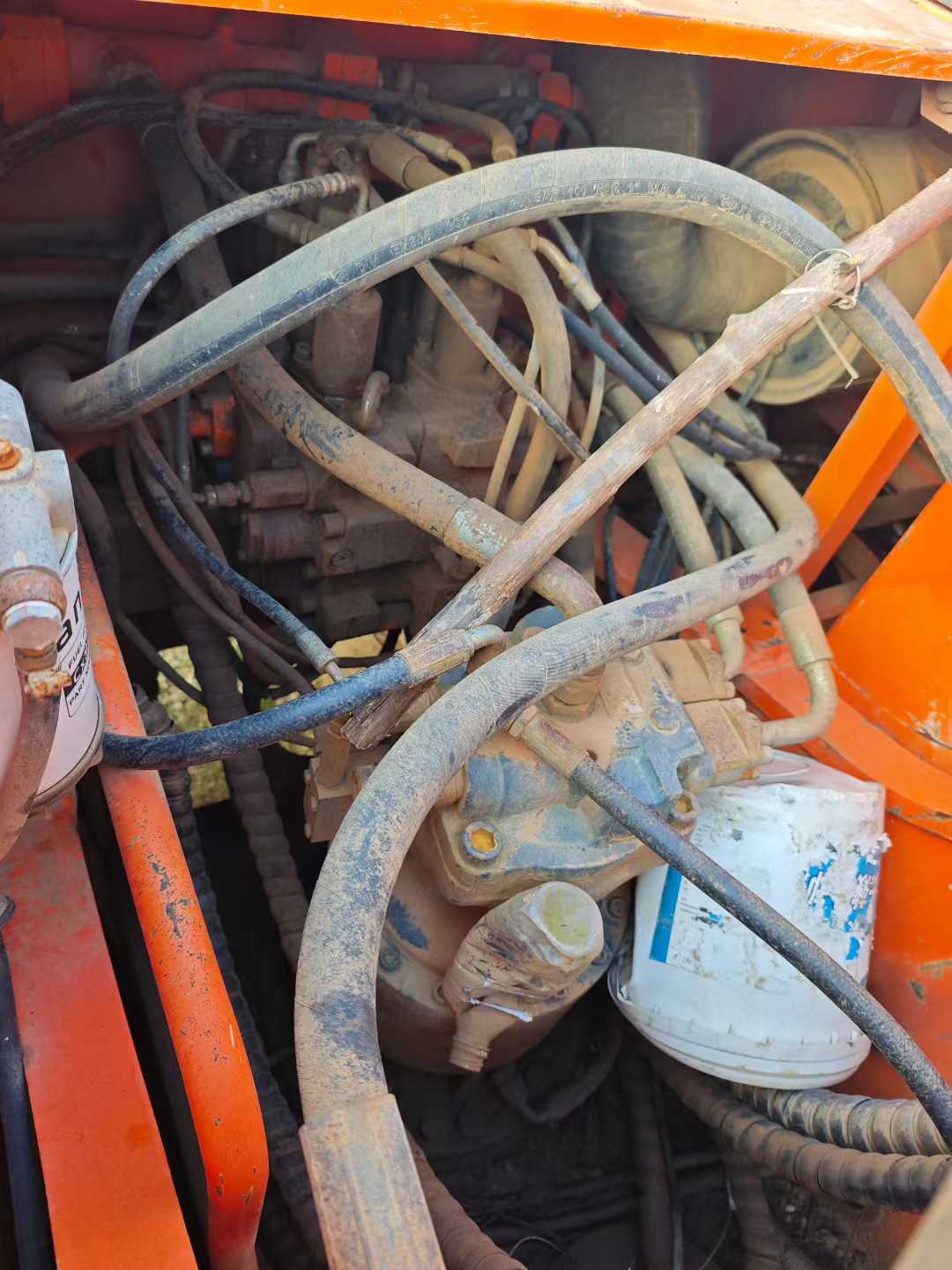

【 Premium Recommendation 】 Doosan DH215-9C second-hand excavator from 2014, the Best choice for Value for money! This Doosan DH215-9C excavator has been working hard at the construction site since 2014, with a cumulative working time of approximately 6,000 hours. It is equipped with a powerful power system and an efficient hydraulic system, ensuring stability and reliability under various complex working conditions. The engine adopts the well-tested Doosan brand, which not only has strong power and low fuel consumption, but also has relatively low maintenance costs, making it very suitable for long-term high-intensity operations. In terms of the hydraulic system, this machine is equipped with an advanced load sensing control system, which can automatically adjust the oil volume according to the actual working load, thereby achieving the purpose of energy conservation and consumption reduction. Meanwhile, its precise operation response and smooth movement transition enable operators to easily complete fine excavation tasks and improve work efficiency. The appearance of this machine is well preserved. The main components such as the engine, pump and valve are all in good condition, with no obvious wear or damage. After professional te
