Product Description

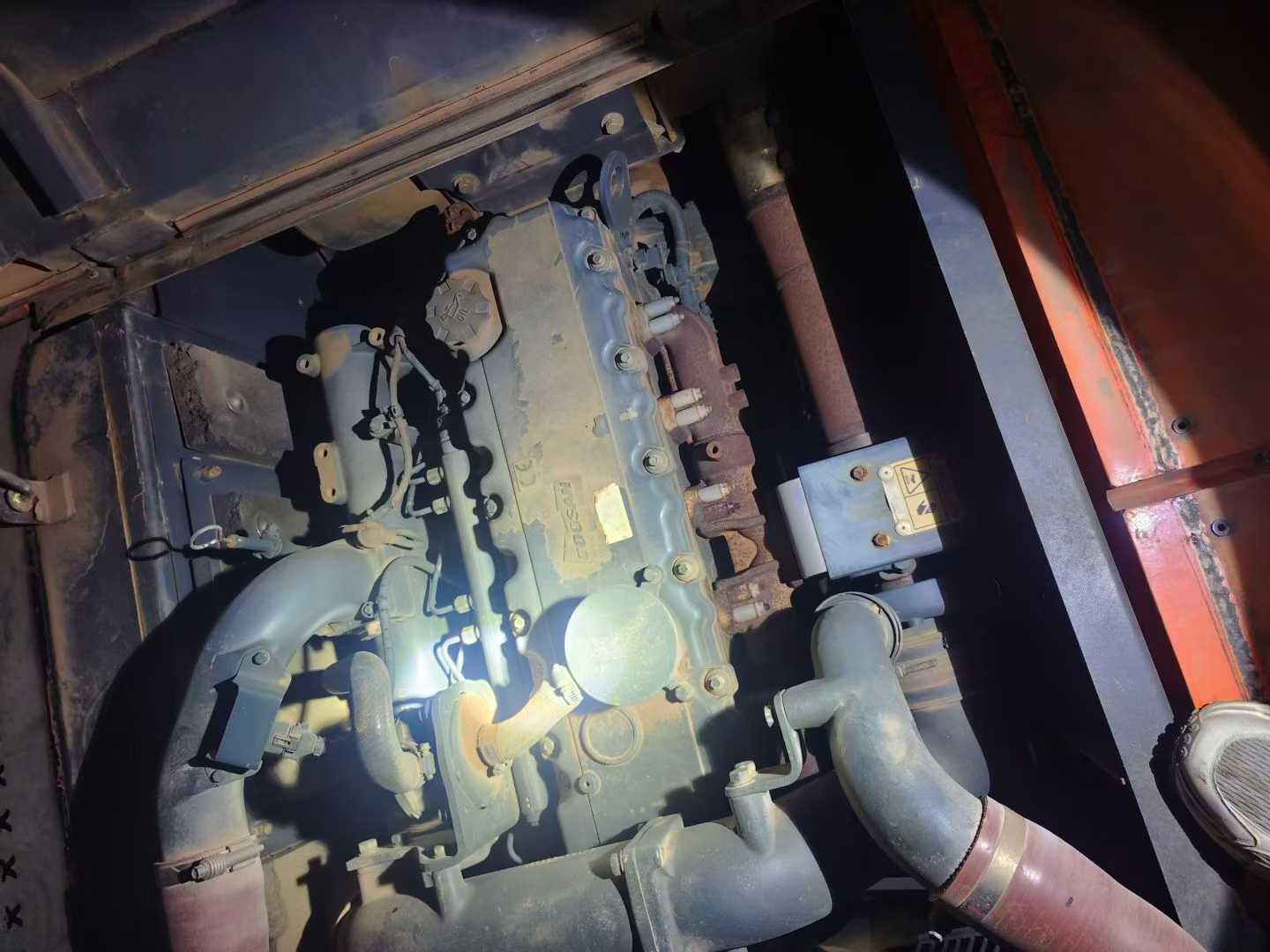

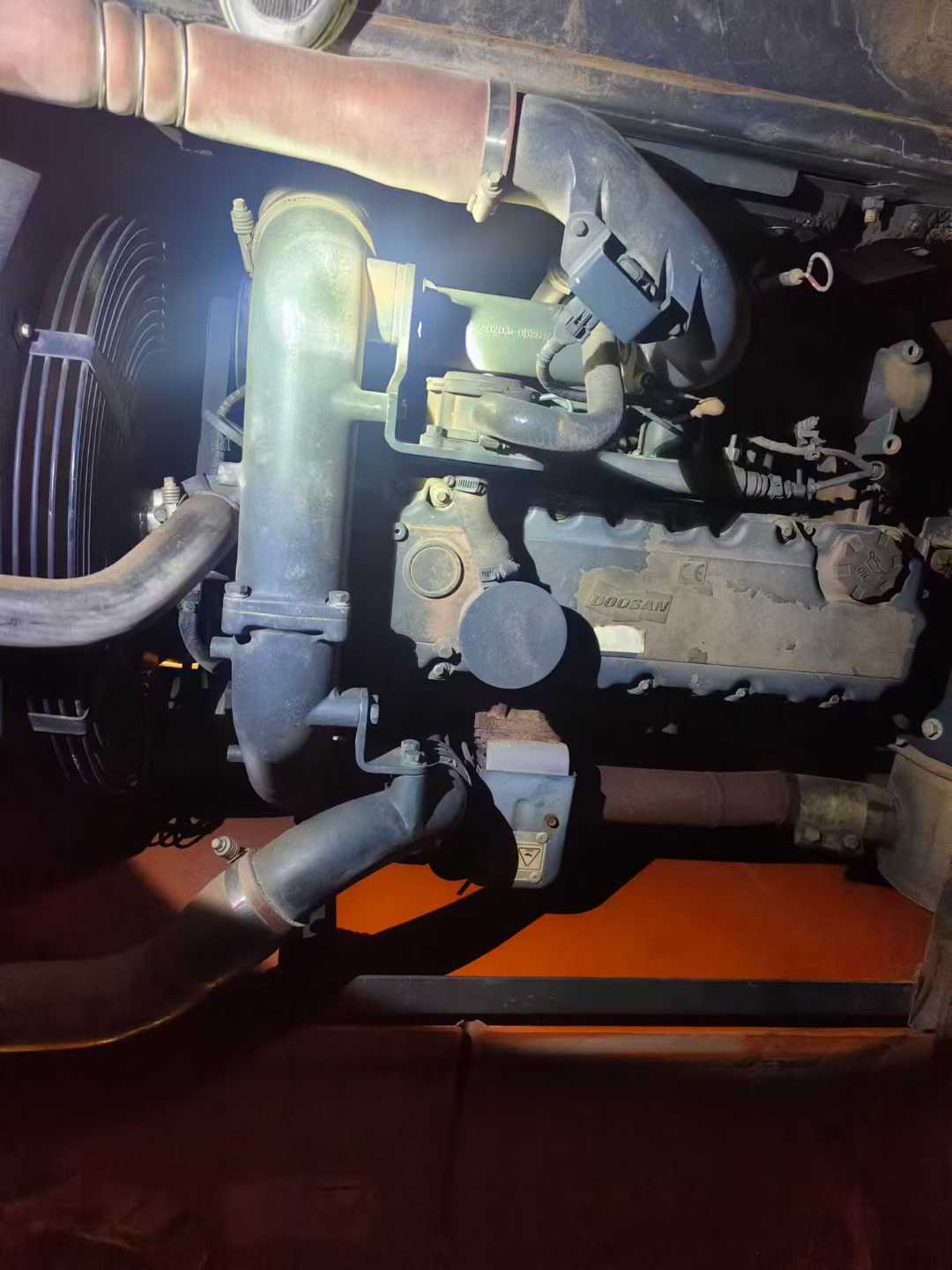

【 Premium Recommendation 】 The Doosan 215-9C excavator purchased in 2018 is a second-hand construction machinery with outstanding performance and superior quality. Since its purchase, the cumulative working time of this excavator has only been 4,000 hours, which means it is still in the best working condition with minimal mechanical wear and tear, meeting your demand for efficient operation. In terms of the power system, this excavator is equipped with a high-performance six-cylinder in-line water-cooled turbocharged engine, which not only offers strong power but also has excellent fuel economy, maintaining stable output even under complex working conditions. In addition, advanced electronic control technology ensures a perfect match between the engine and the hydraulic system, making the operation smoother and more fluid. The hydraulic system is another highlight of this excavator. It adopts a closed center load sensitive control system, which responds quickly and accurately, and can handle both excavation and loading with ease. More importantly, this design significantly enhances work efficiency while reducing energy consumption, making your return on investment higher. Last but not least, it is necessary to mention that this exca
| Specifications | Value |
|---|---|
| No. | 971137 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 115/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 45.8 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 136.2 |
| Rod digging force (kN) | 98 |
| Travel speed (km/h) | 5.3 / 2.9 |
| Maximum flow of main pump (l/min) | 2 x 191 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115*80*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135*95*1450 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120*85*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 9506 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2891 |
| Full cab height (mm) | 2985 |
| Counterweight ground clearance (mm) | 1096 |
| Minimum ground clearance (mm) | 475 |
| Minimum turning radius of front working device (mm) | 3560 |
| Back end turning radius (mm) | 2794 |
| Onboard width (mm) | 2709 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3610 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9873 |
| Maximum digging depth (mm) | 6592 |
| Maximum excavation height (mm) | 9616 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 3929 |
| Maximum excavation radius of stop surface (mm) | 9699 |
| Maximum effective digging depth (mm) | 6411 |
