Product Description

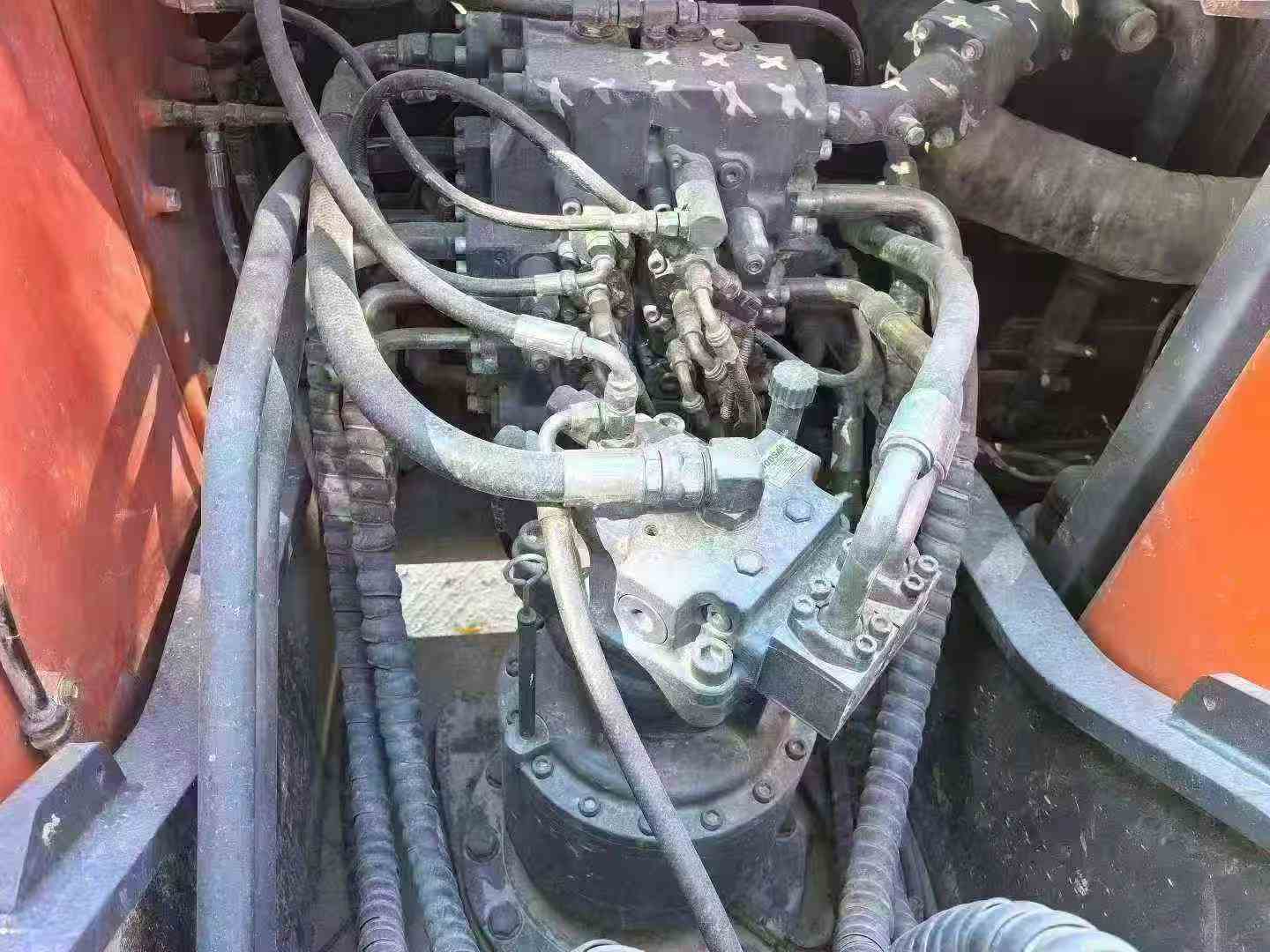

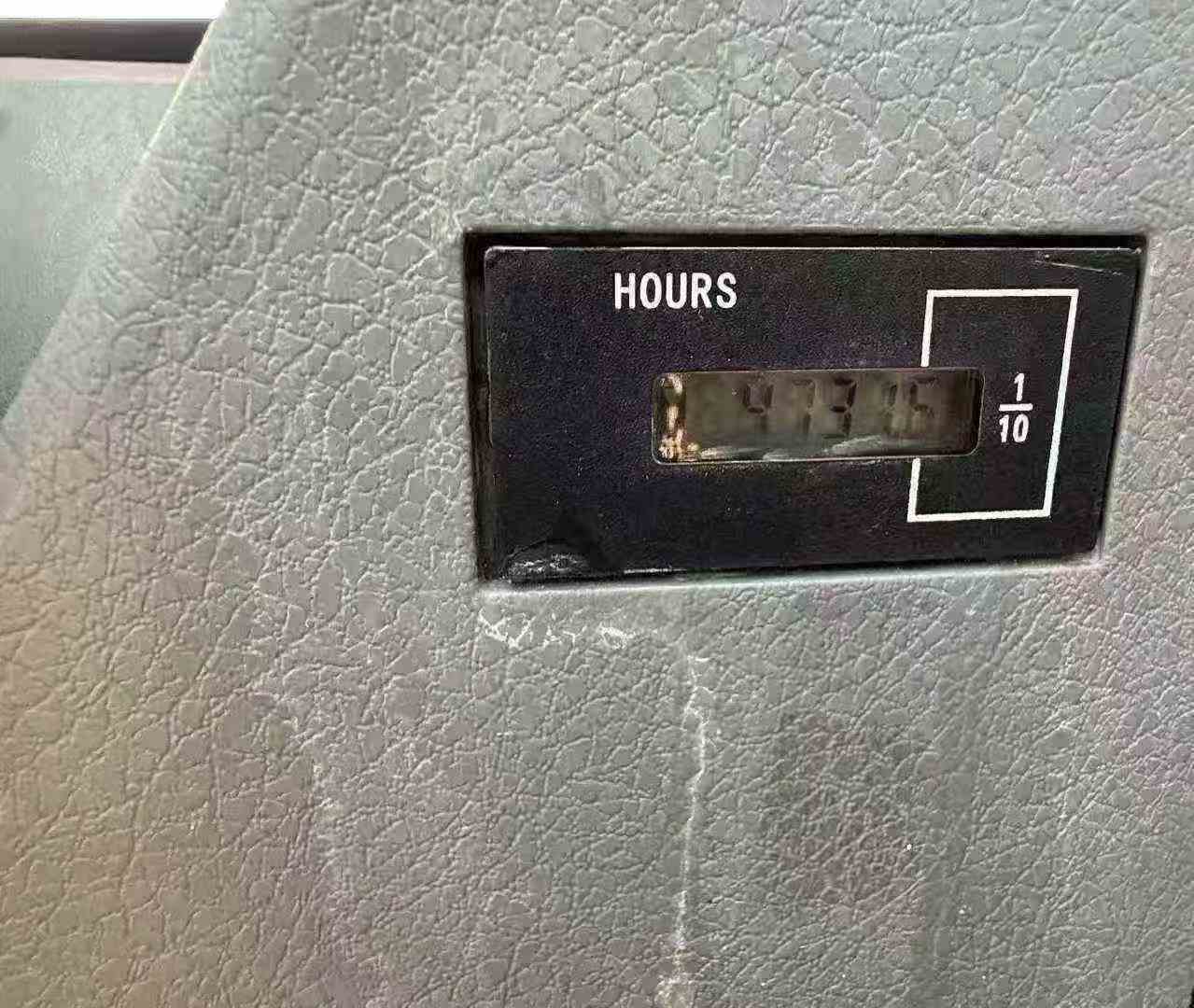

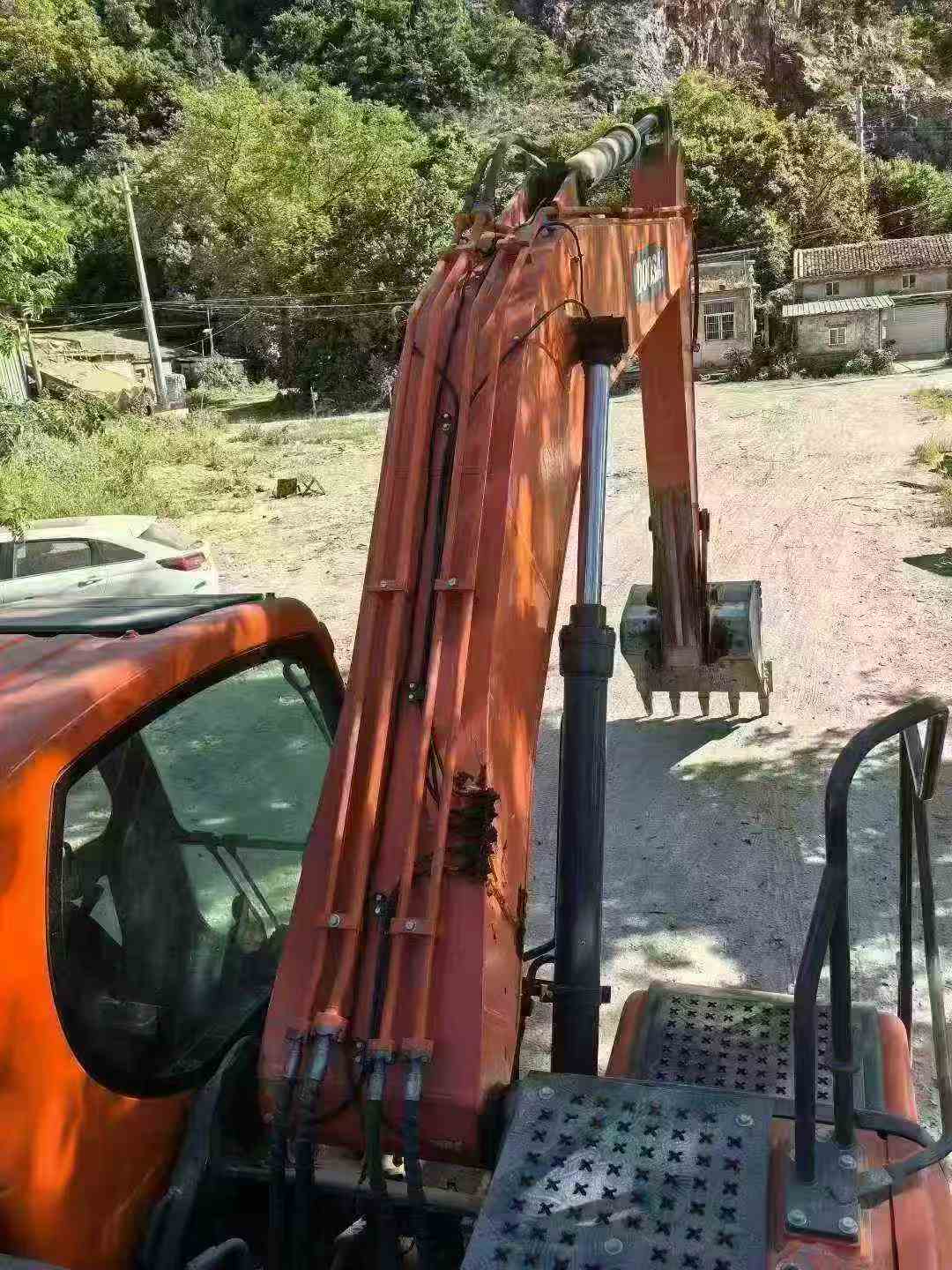

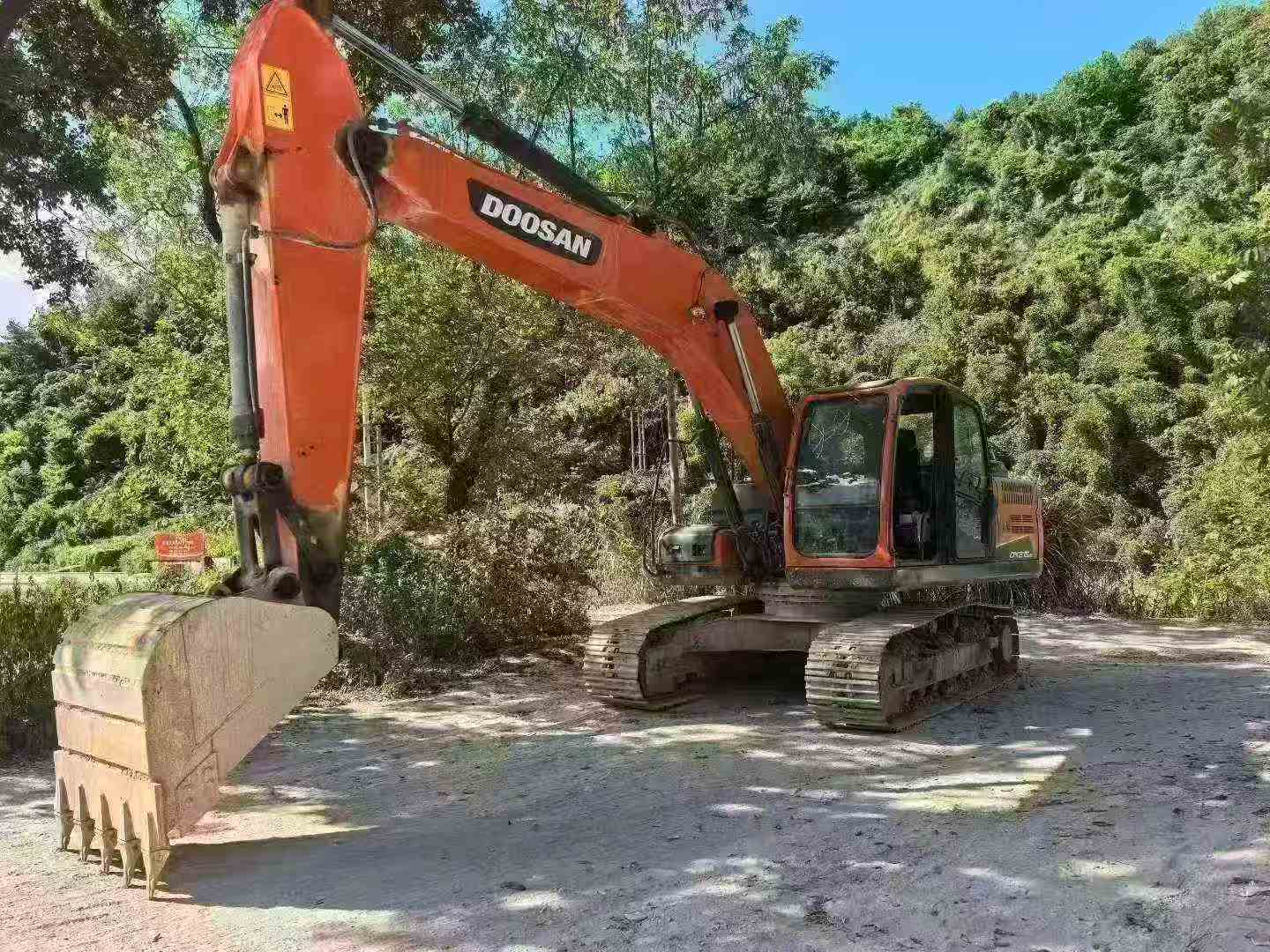

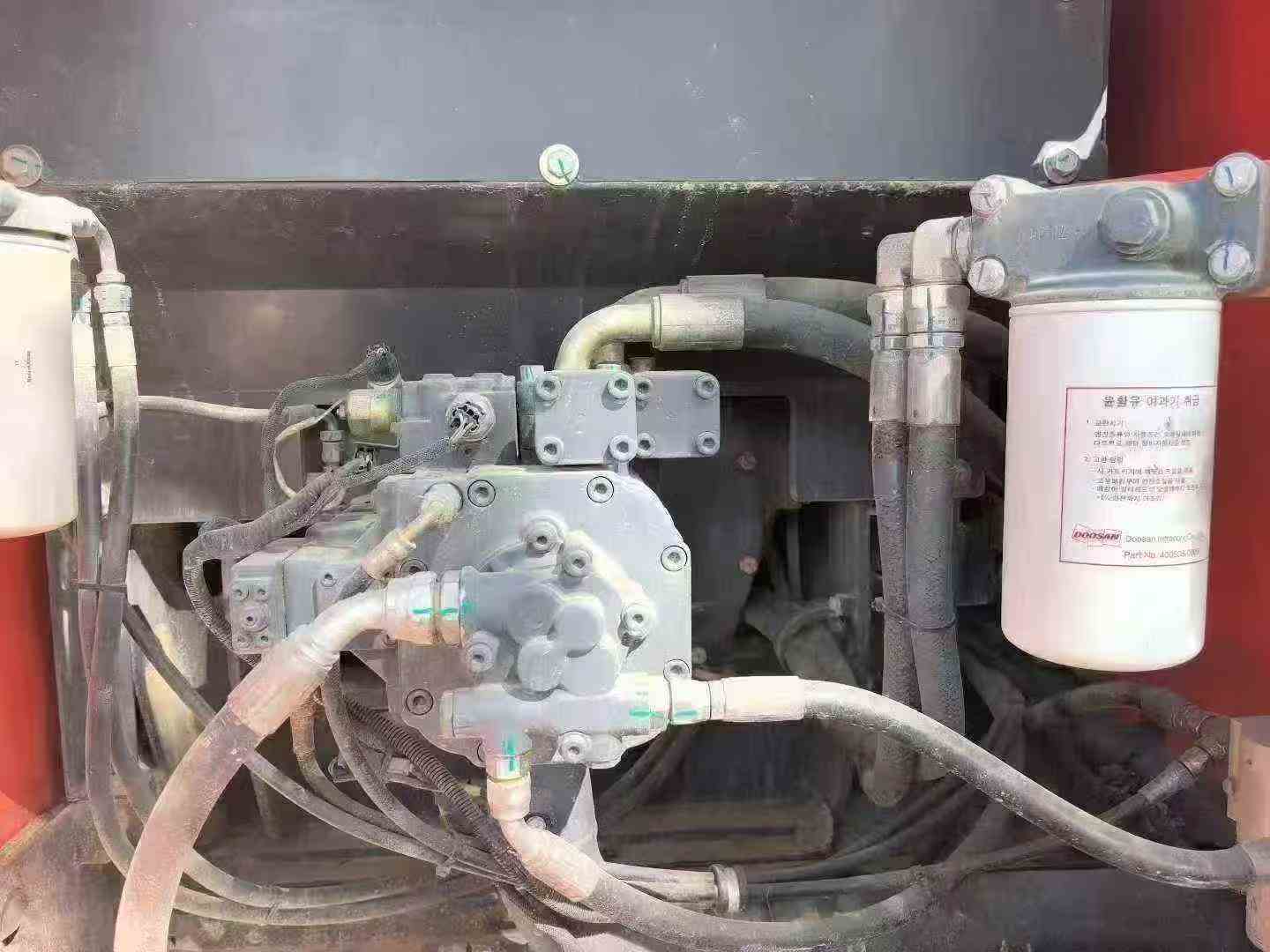

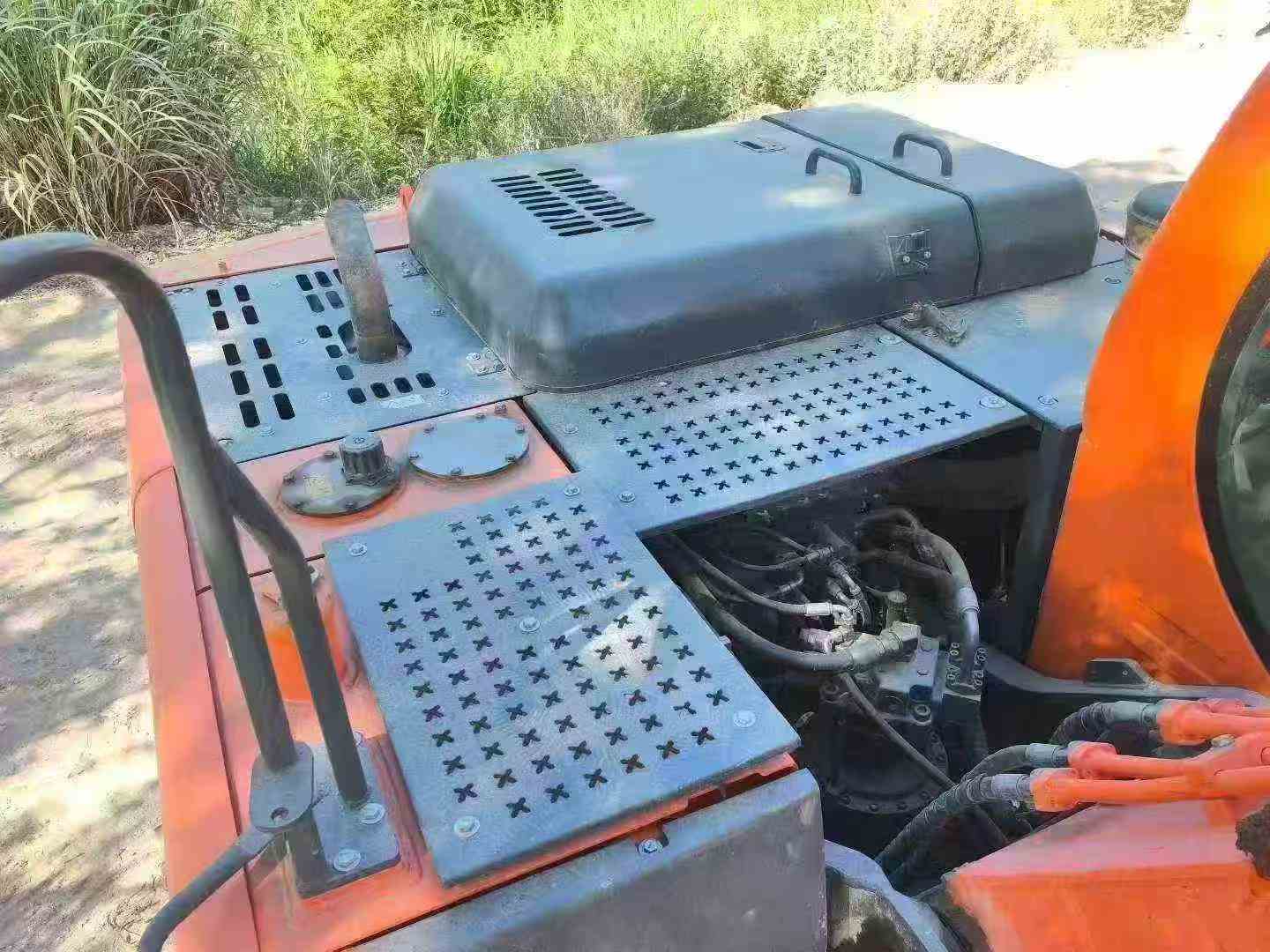

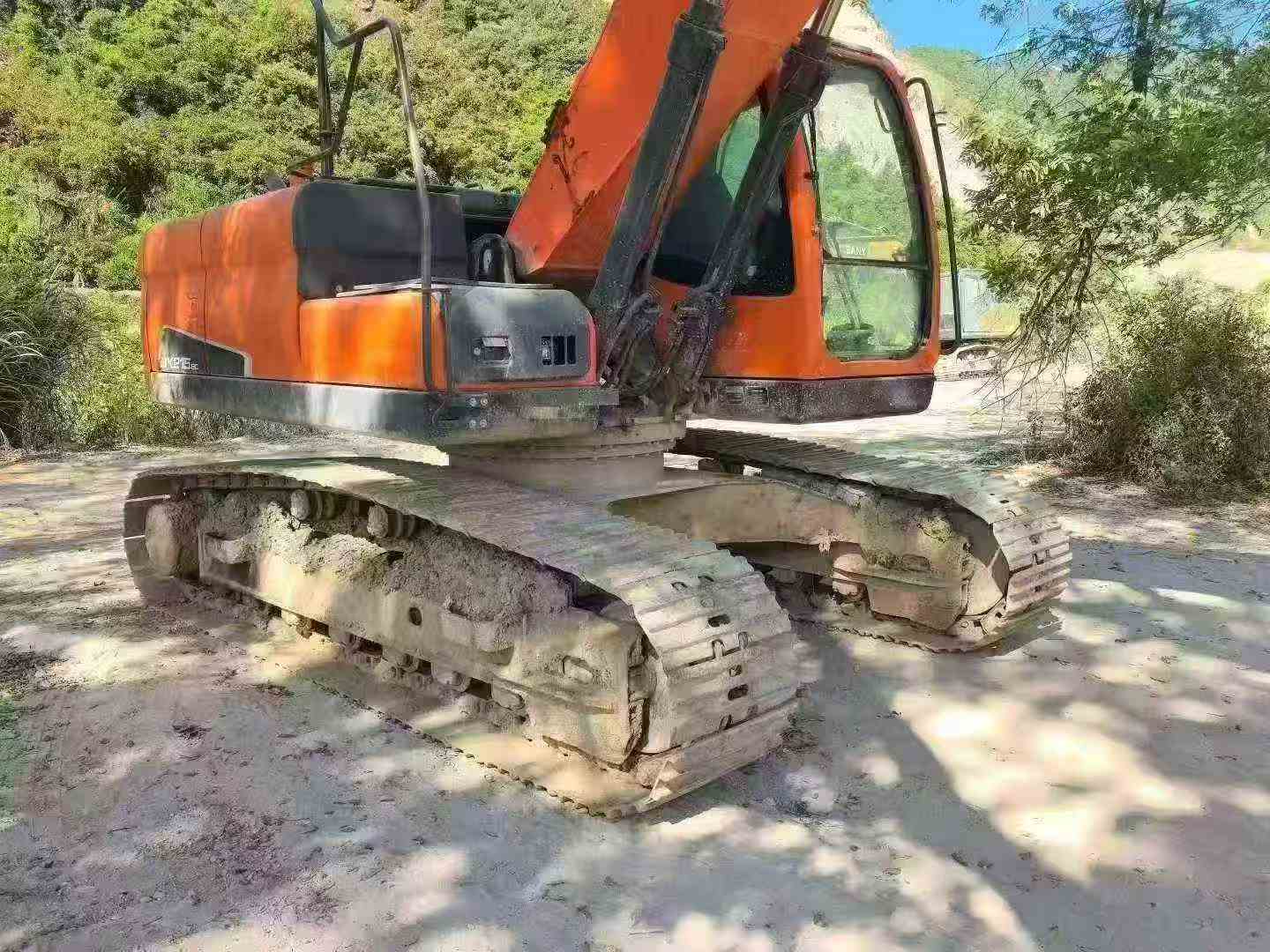

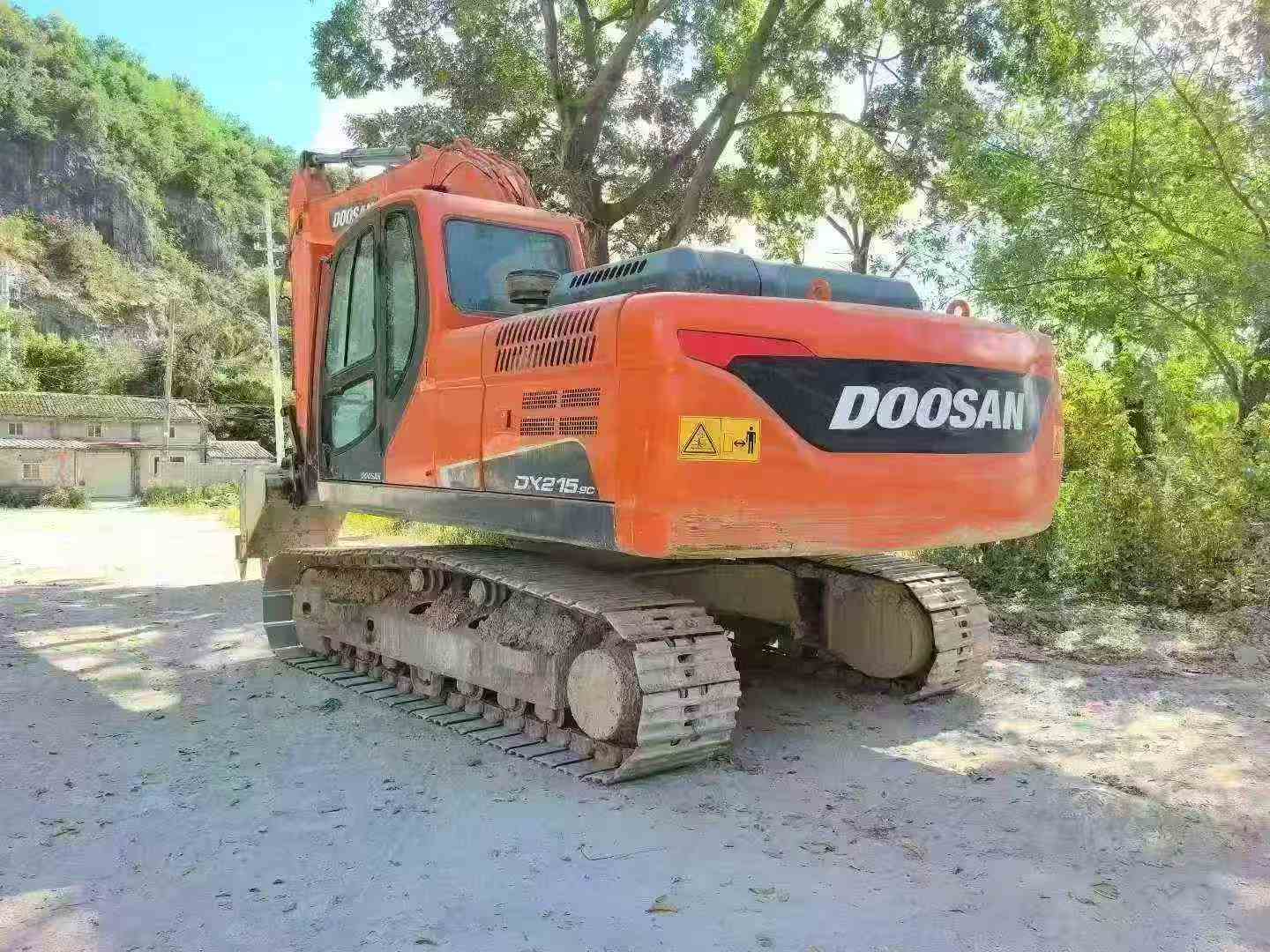

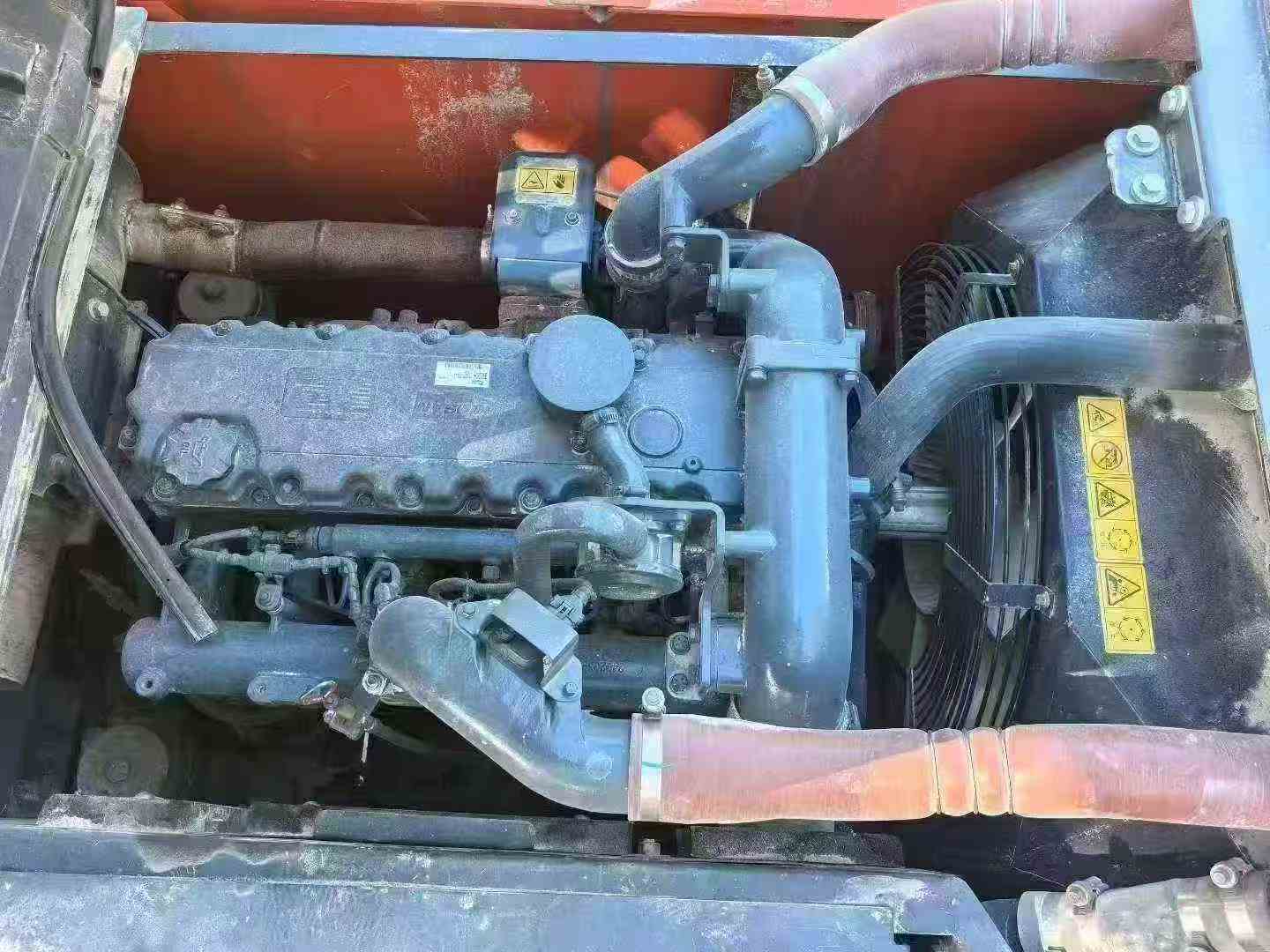

We are selling a second-hand Doosan 215-9C excavator purchased in 2021. The equipment is in good condition and has a working time of approximately 3,000 hours. This excavator is equipped with a high-performance Yanmar engine with a rated power of 127 kilowatts, ensuring stable and powerful power output in various working environments. In terms of the hydraulic system, it is equipped with an advanced variable piston pump and an efficient hydraulic motor combination, which can achieve rapid response and smooth operation, greatly enhancing work efficiency and accuracy. One of the highlights of Doosan 215-9C lies in its excellent fuel economy and low maintenance cost design, which is attributed to the optimized combustion technology and the application of reinforced structural components. In addition, the spacious and comfortable cab, intuitive and user-friendly operation interface, as well as comprehensive safety protection measures have also made this model one of the most favored choices in the market. At present, the vehicle has been placed at the designated location for sale and the deposit lock transaction has been accepted. For friends who are interested, please contact us as soon as possible to discuss specific matters. This is a
| Specifications | Value |
|---|---|
| No. | 972939 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06 |
| Rated power (kw/rpm) | 115/1900 |
| Cylinder diameter × stroke (mm) | 100 x 125 |
| Number of cylinders (PCS) | 6 |
| Ground specific pressure (Kpa) | 45.8 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 136.2 |
| Rod digging force (kN) | 98 |
| Travel speed (km/h) | 5.3 / 2.9 |
| Maximum flow of main pump (l/min) | 2 x 191 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump flow (L/min) | 32 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115*80*1060 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135*95*1450 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120*85*1263 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 27 |
| Total transport length (mm) | 9506 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2891 |
| Full cab height (mm) | 2985 |
| Counterweight ground clearance (mm) | 1096 |
| Minimum ground clearance (mm) | 475 |
| Minimum turning radius of front working device (mm) | 3560 |
| Back end turning radius (mm) | 2794 |
| Onboard width (mm) | 2709 |
| Total track length (mm) | 4060 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3610 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 9873 |
| Maximum digging depth (mm) | 6592 |
| Maximum excavation height (mm) | 9616 |
| Maximum unloading height (mm) | 6830 |
| Maximum vertical digging depth (mm) | 3929 |
| Maximum excavation radius of stop surface (mm) | 9699 |
| Maximum effective digging depth (mm) | 6411 |
