Doosan DX230LC-9C

2018 Doosan DX230LC-9C

1/9

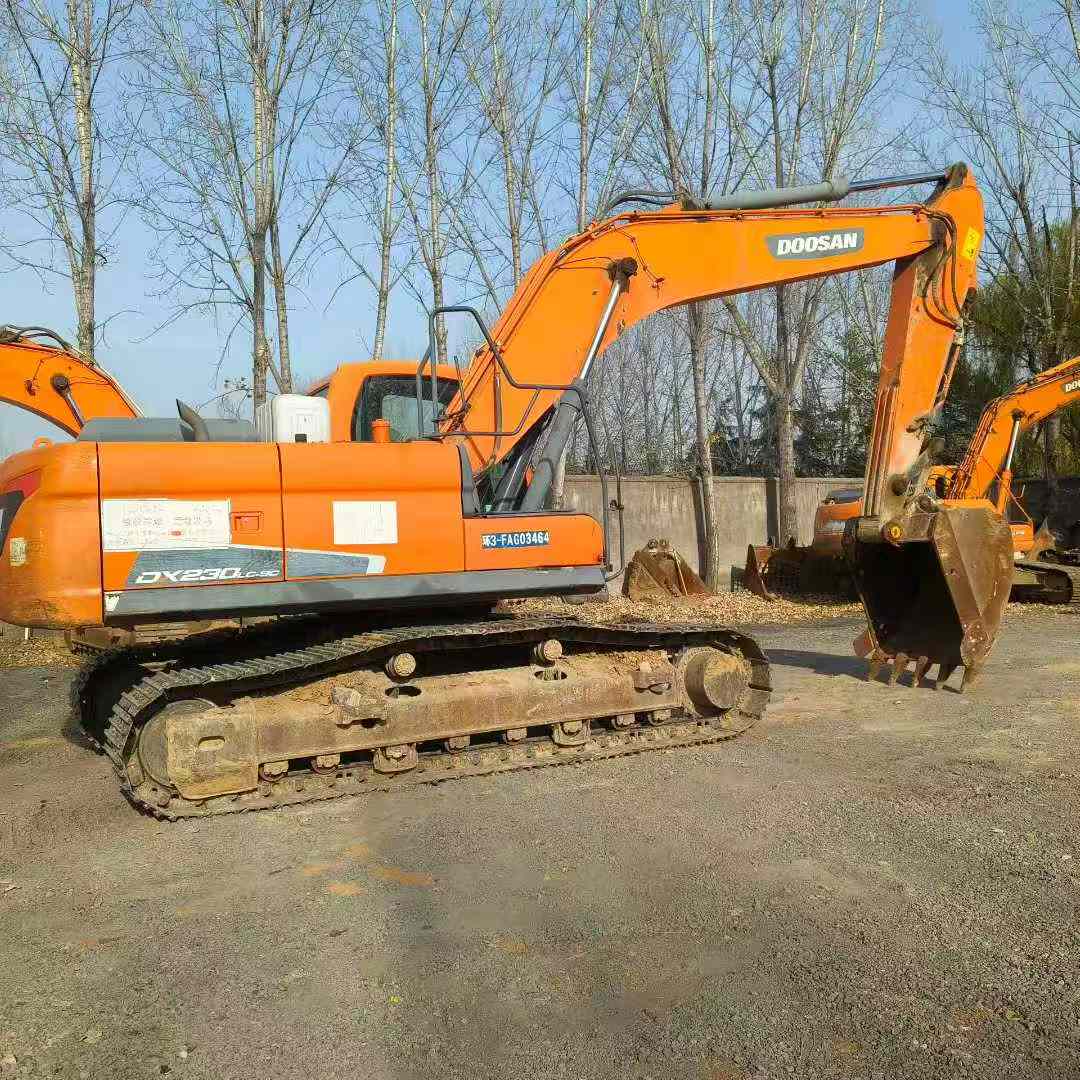

Used Doosan DX230LC-9C Excavator 2018 Model / 1

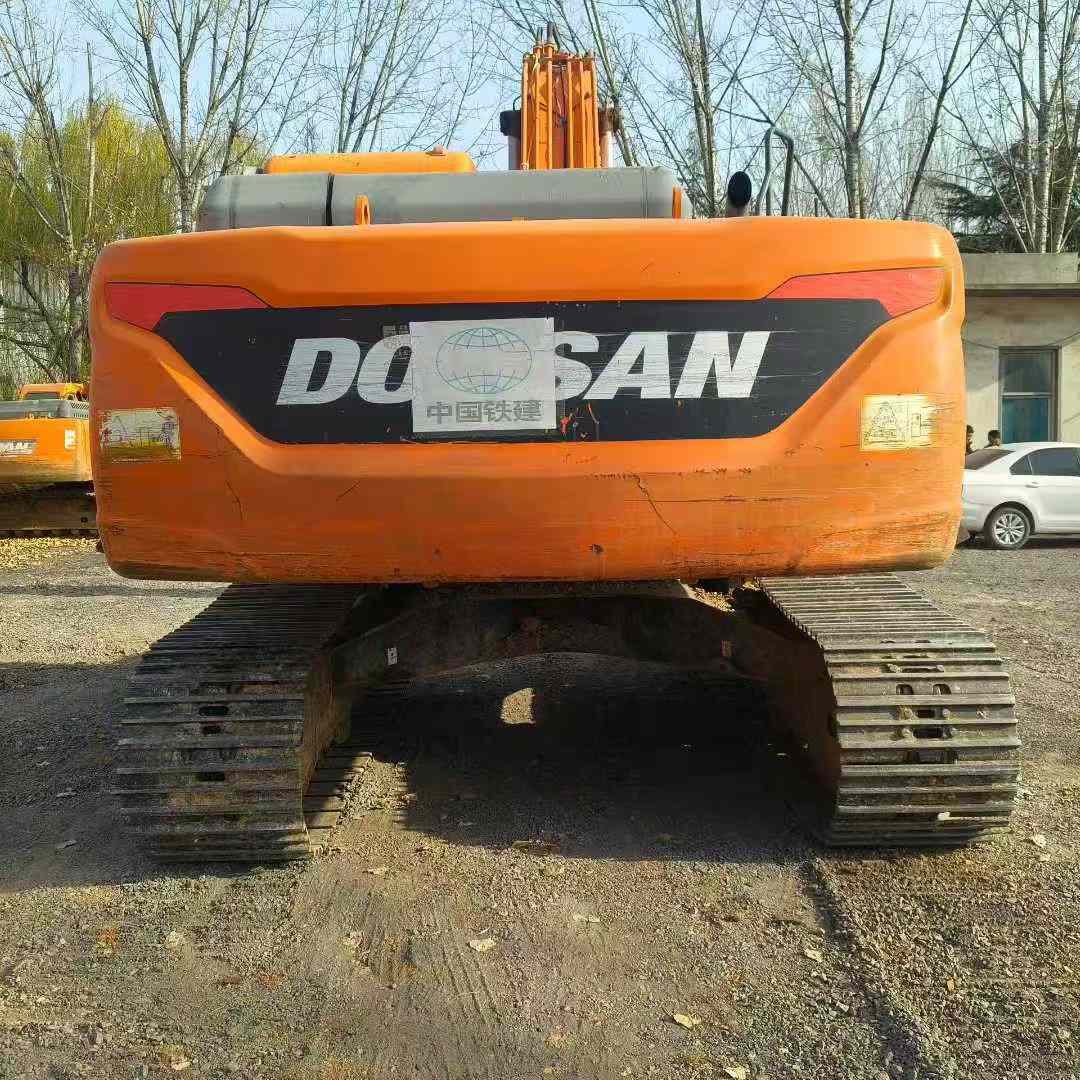

Used Doosan DX230LC-9C Excavator 2018 Model / 2

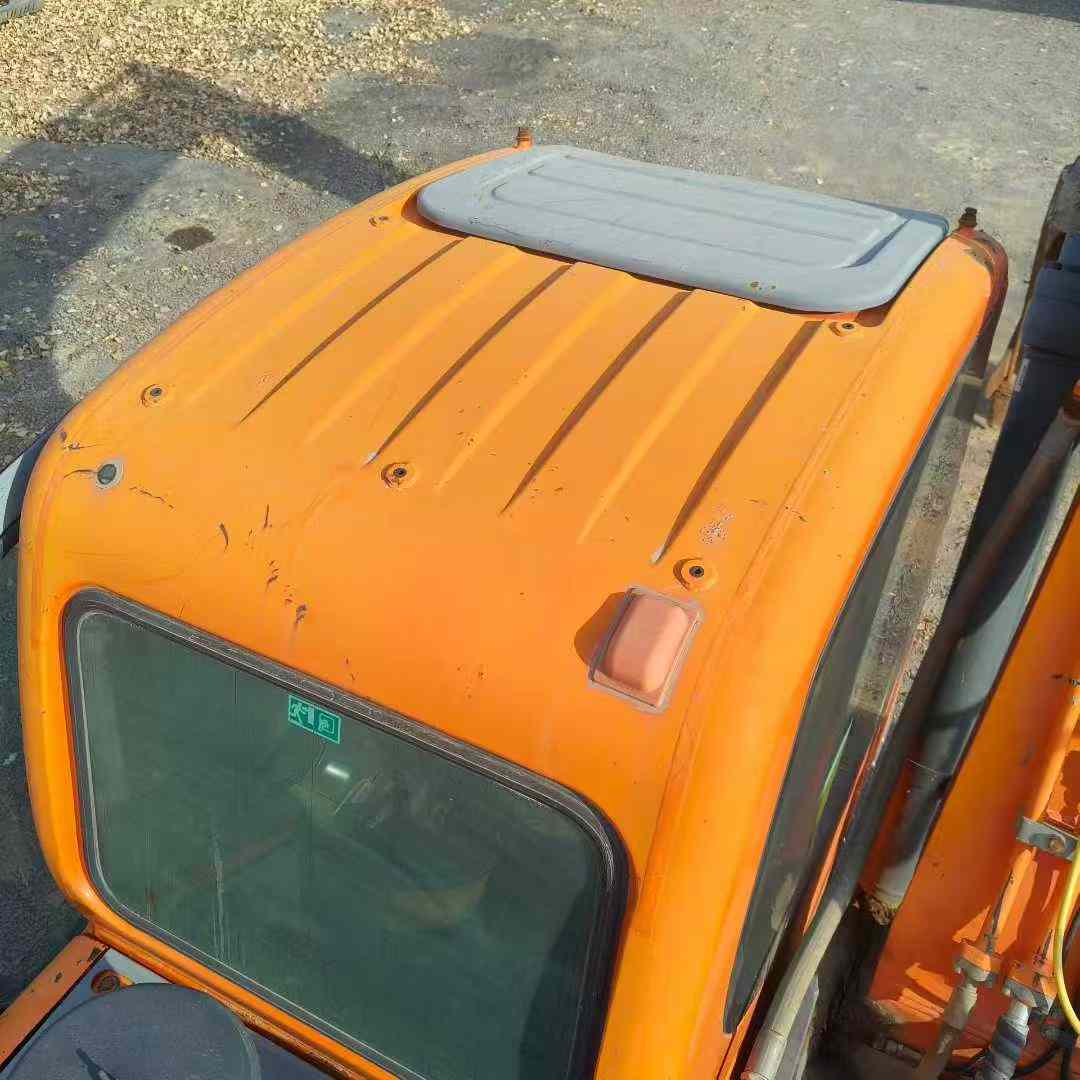

Used Doosan DX230LC-9C Excavator 2018 Model / 3

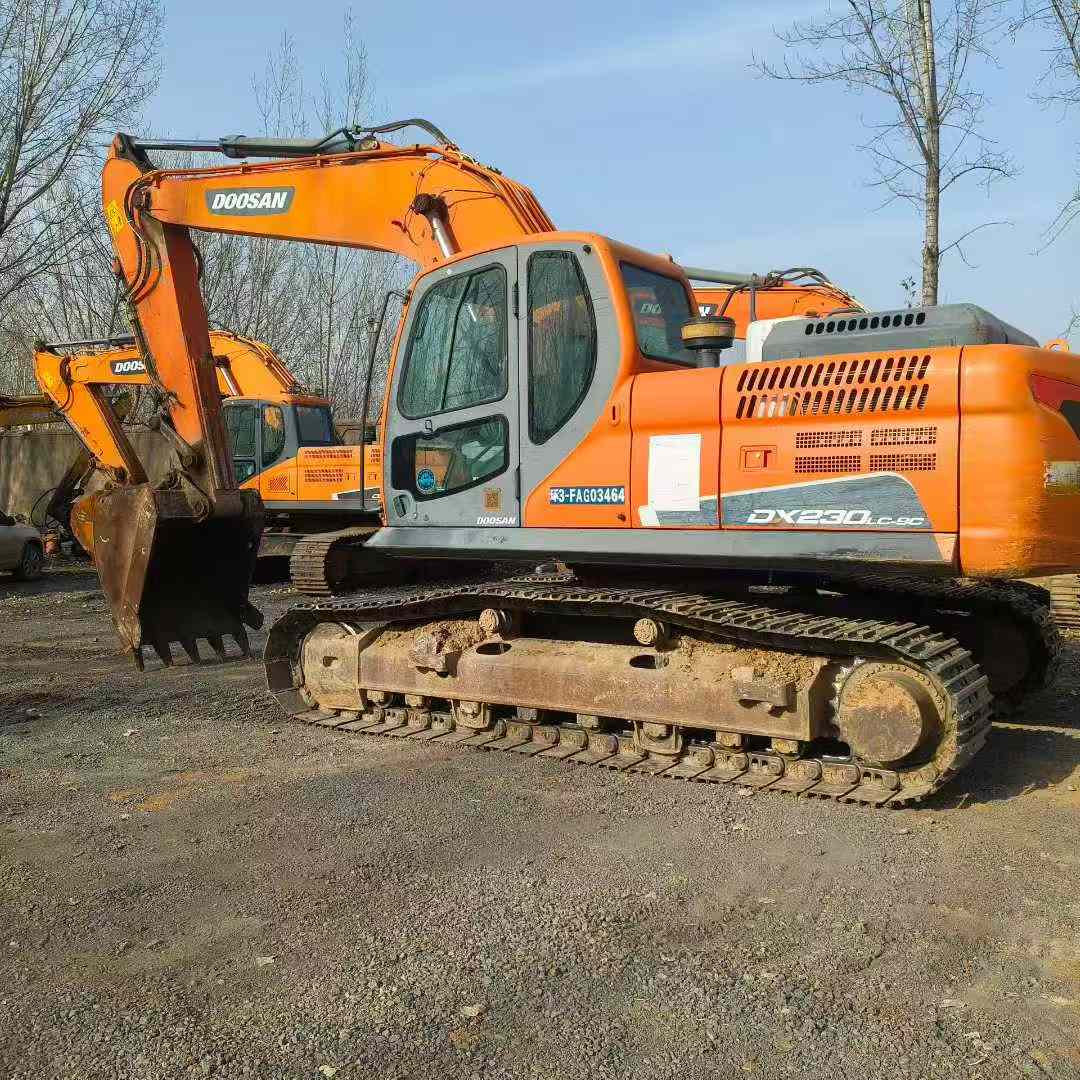

Used Doosan DX230LC-9C Excavator 2018 Model / 4

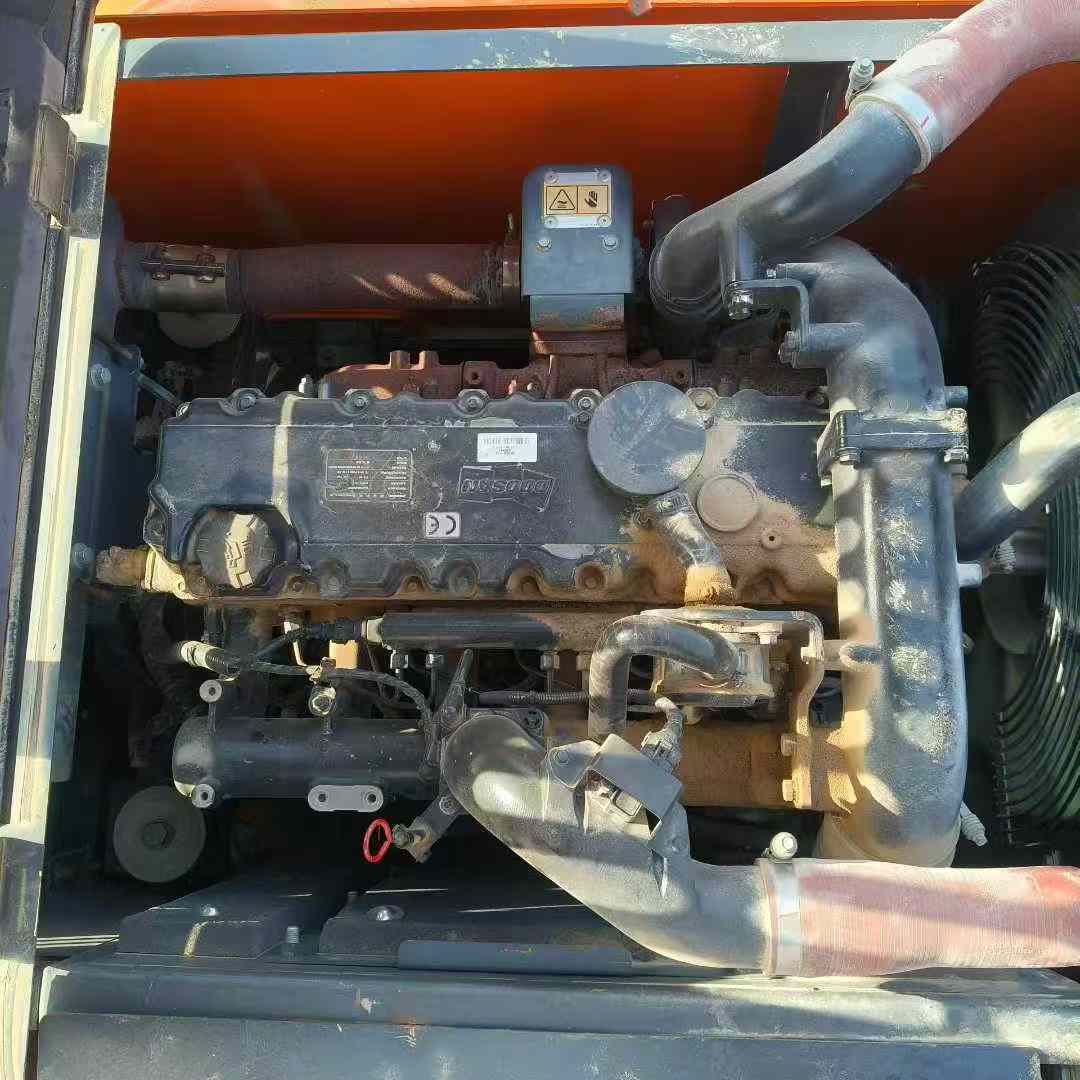

Used Doosan DX230LC-9C Excavator 2018 Model / 5

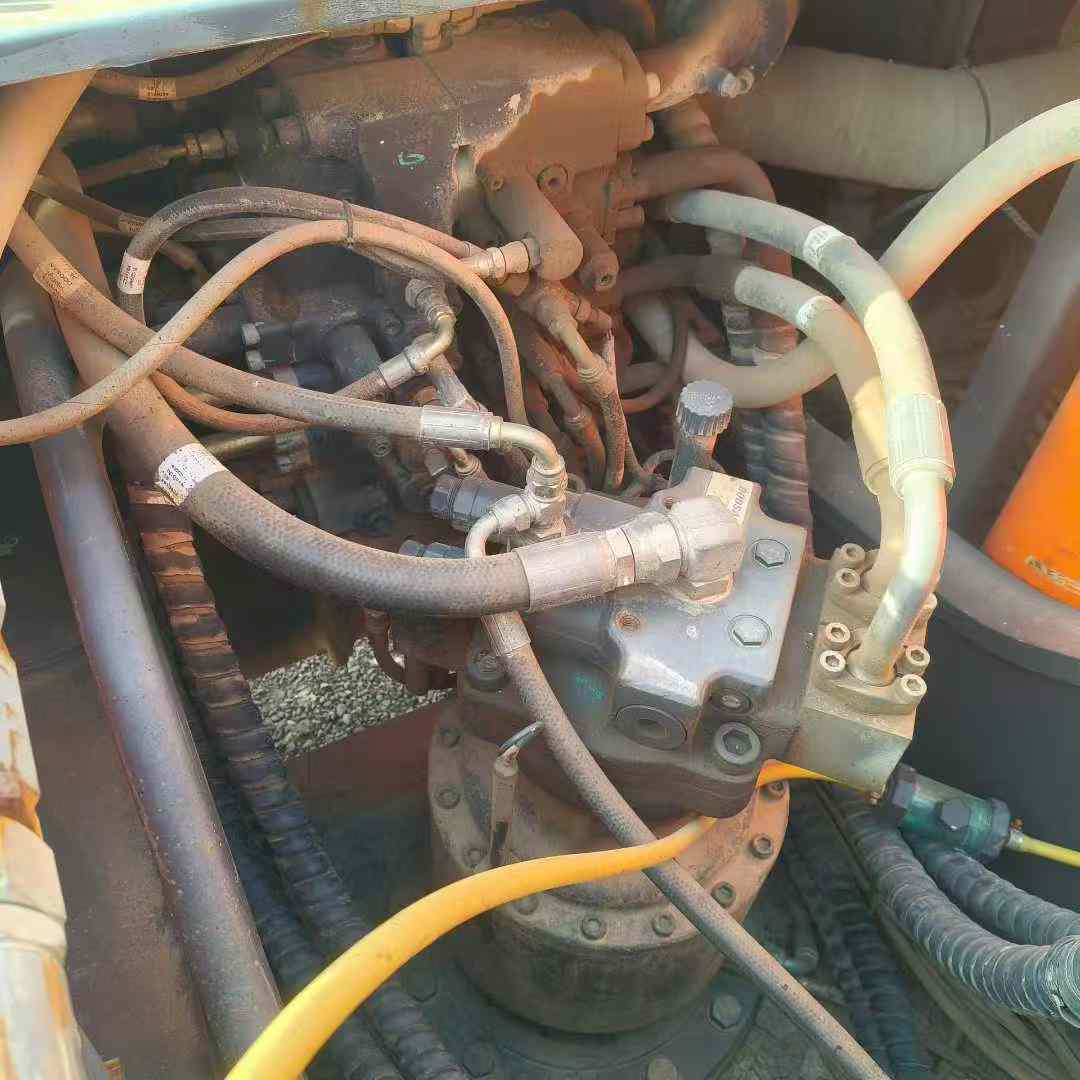

Used Doosan DX230LC-9C Excavator 2018 Model / 6

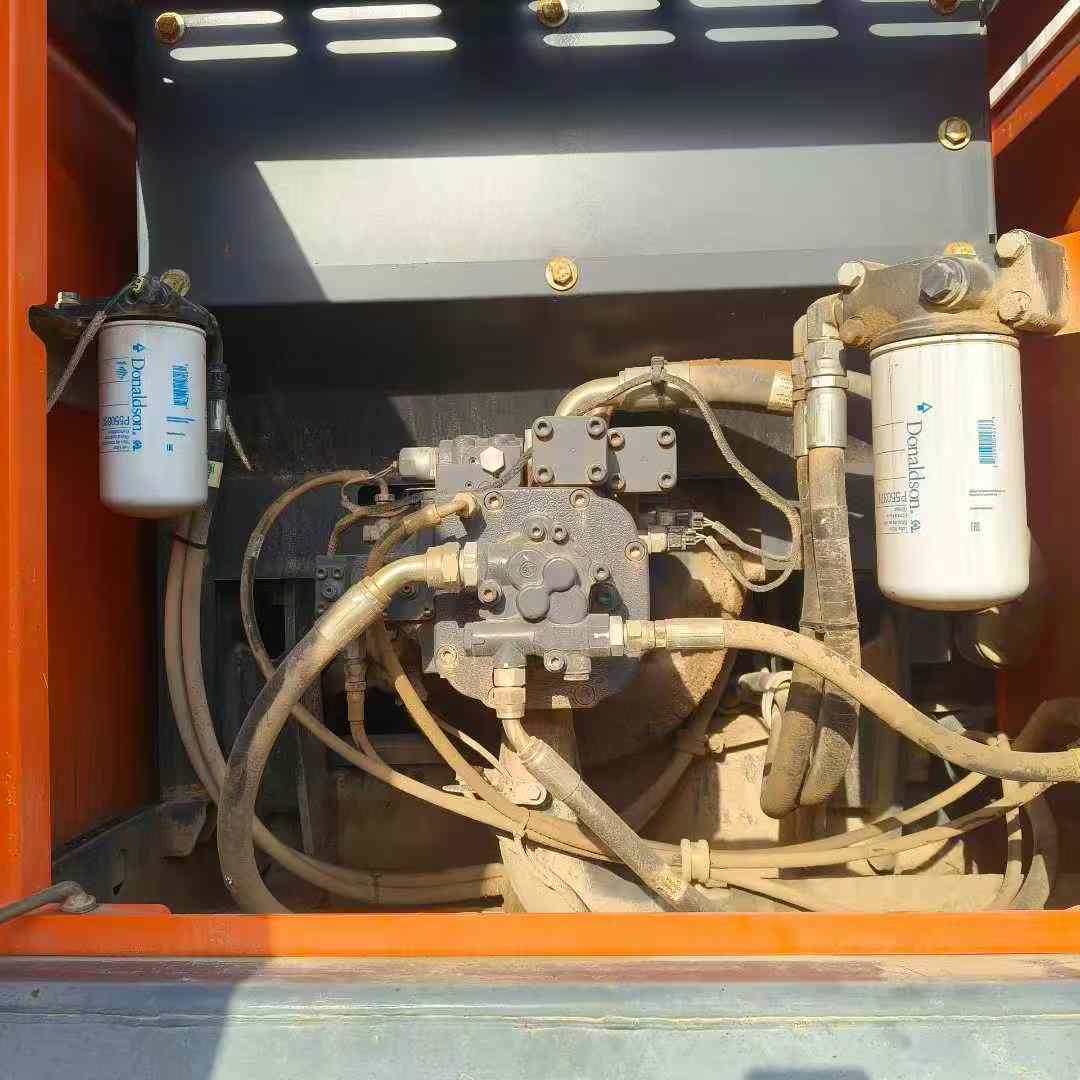

Used Doosan DX230LC-9C Excavator 2018 Model / 7

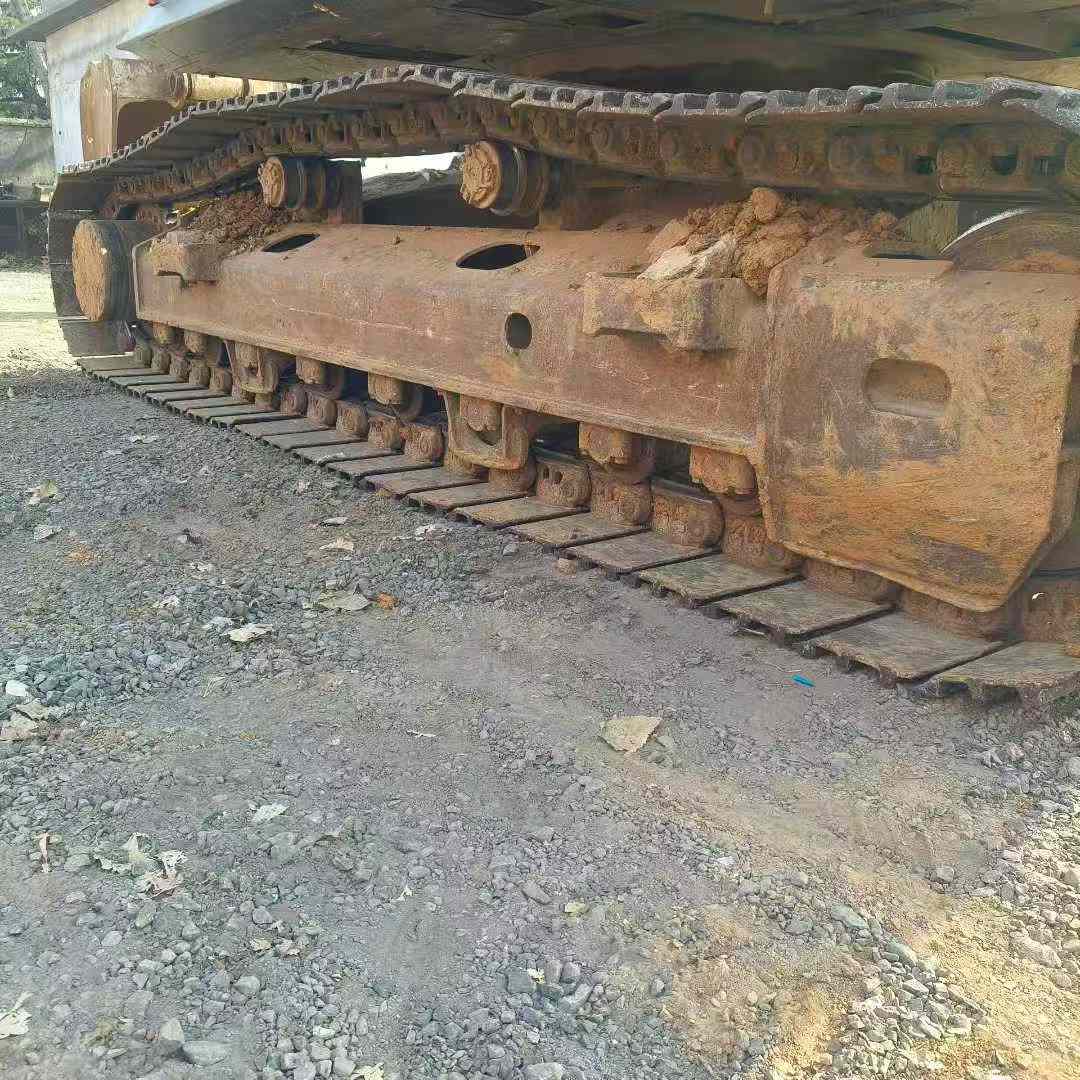

Used Doosan DX230LC-9C Excavator 2018 Model / 8

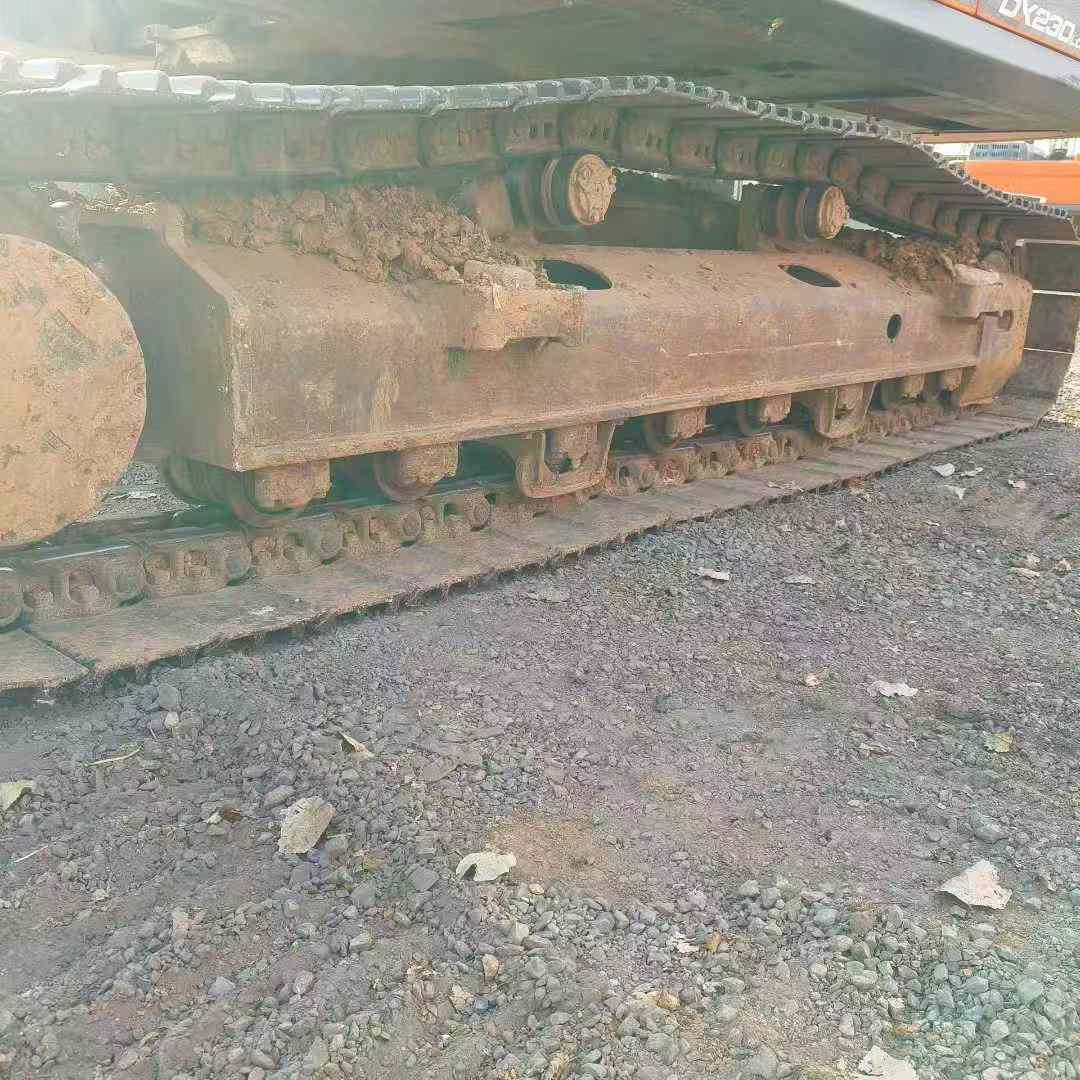

Used Doosan DX230LC-9C Excavator 2018 Model / 9
Product Description
SpecificationsValue
No.963316
Tonnage (tons)22
Working weight (kg)22020
Bucket capacity (m³)1.2
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDL06
Rated power (kw/rpm)115/1900
Cylinder diameter × stroke (mm)100*125
Number of cylinders (PCS)6
Ground specific pressure (Kpa)45
Rotation speed (rpm)10.5
Bucket digging force (kN)149
Rod digging force (kN)105
Travel speed (km/h)5.7/3.1
Maximum flow of main pump (l/min)2*212
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)1-120*80*1060
Bucket rod cylinders - Number × diameter × stroke (mm)1-135*95*1443
Boom cylinders - Number × diameter × stroke (mm)2-125*85*1263
Fuel Tank (L)400
Hydraulic Tank (L)195
Engine Oil changes (L)27
Total transport length (mm)9506
Total transport width (mm)2990
Total transport height (mm)2950
Full cab height (mm)2985
Counterweight ground clearance (mm)1096
Minimum ground clearance (mm)475
Back end turning radius (mm)2794
Total track length (mm)4440
Track plate width (mm)600
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)9873
Maximum digging depth (mm)6592
Maximum excavation height (mm)9616
Maximum unloading height (mm)6830
Maximum vertical digging depth (mm)3929
Maximum excavation radius of stop surface (mm)9699
see more

Description

【 Premium Recommendation 】2018 Doosan 230-9C second-hand excavator, full vehicle original paint, excellent quality! Since its commissioning in 2018, this Doosan 230-9C excavator has only worked for a total of 3,500 hours, which is far shorter than the average service life of similar equipment and is in the best condition for use. In terms of appearance, the entire machine retains its original paint from the factory, with no signs of refurbishment, highlighting its excellent maintenance and upkeep record. In terms of the power system, this aircraft is equipped with a high-performance Doosan exclusive engine, which not only offers strong power and rapid response but also has excellent fuel economy, effectively reducing operating costs. After professional testing, the engine runs smoothly without any abnormal noise or oil leakage, ensuring its ability to operate stably for a long time. The hydraulic system is a major highlight of this excavator. It is equipped with advanced electronic control hydraulic technology, which makes operation more precise and smooth, and significantly improves work efficiency at the same time. Whether it is heavy-duty operations such as excavation, loading or crushing, it can handle them with ease, demonstrat

Overview

No.963316

Brand Name:

Doosan

Model Number:

DX230LC-9C

Year:

2018

Location:

Shandong China
