| Specifications | Value |
|---|---|
| No. | 970393 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38100 |
| Bucket capacity (m³) | 1.4 ~ 1.9 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DE12TIA C2A |
| Rated power (kw/rpm) | 202(274) / 1800 |
| Cylinder diameter × stroke (mm) | 123 x 155 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.05 |
| Working form | Direct injection; Turbocharged, air-cooled |
| Ground specific pressure (Kpa) | 71.59 |
| Bucket digging force (kN) | 249 |
| Rod digging force (kN) | 199 |
| Travel speed (km/h) | 5.1 / 3.0 |
| Turning torque (Nm) | 120 |

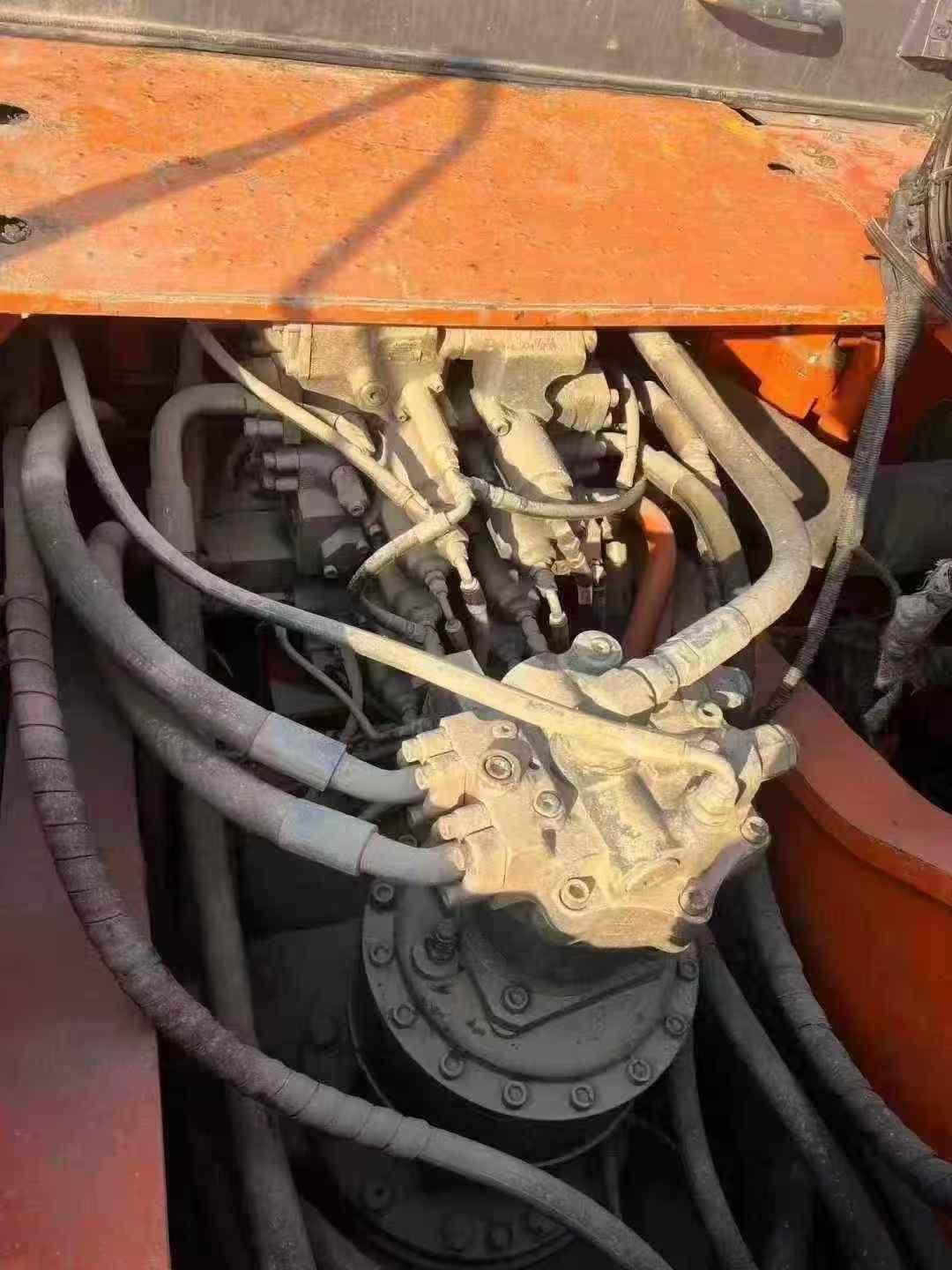

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 279 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.4 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1290 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1812 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1430 |
| Fuel Tank (L) | 610 |
| Hydraulic Tank (L) | 206 |
| Engine Oil changes (L) | 28 |
| Total transport length (mm) | 11380 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3740(to top of arm) |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1265 |
| Minimum ground clearance (mm) | 545 |
| Minimum turning radius of front working device (mm) | 4485 |
| Back end turning radius (mm) | 3530 |
| Total track length (mm) | 4975 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10850 |
| Maximum digging depth (mm) | 7120 |
| Maximum excavation height (mm) | 10150 |
| Maximum unloading height (mm) | 7195 |
| Maximum vertical digging depth (mm) | 3755 |
| Maximum excavation radius of stop surface (mm) | 10635 |
| Maximum effective digging depth (mm) | 6925 |
Description

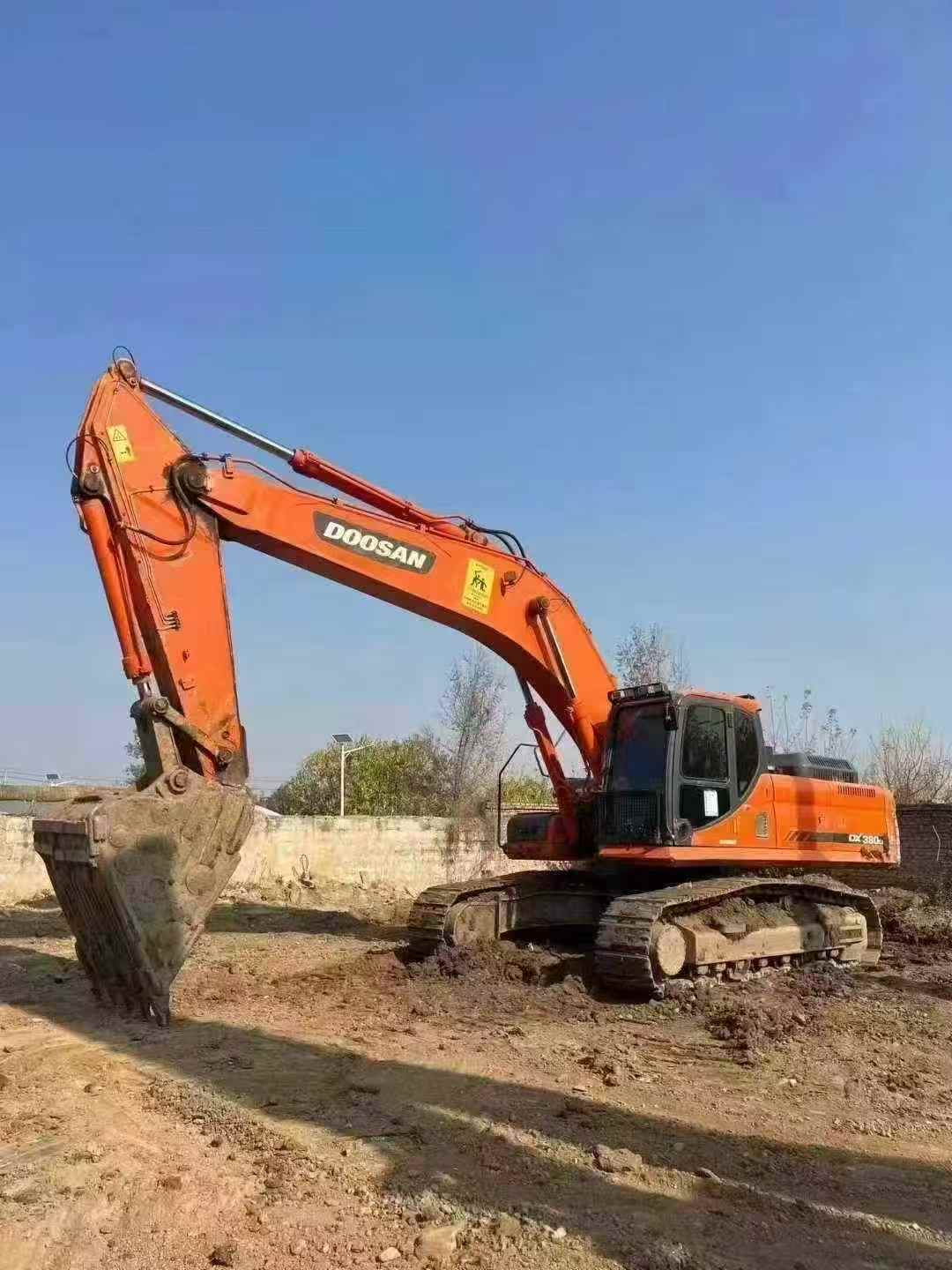

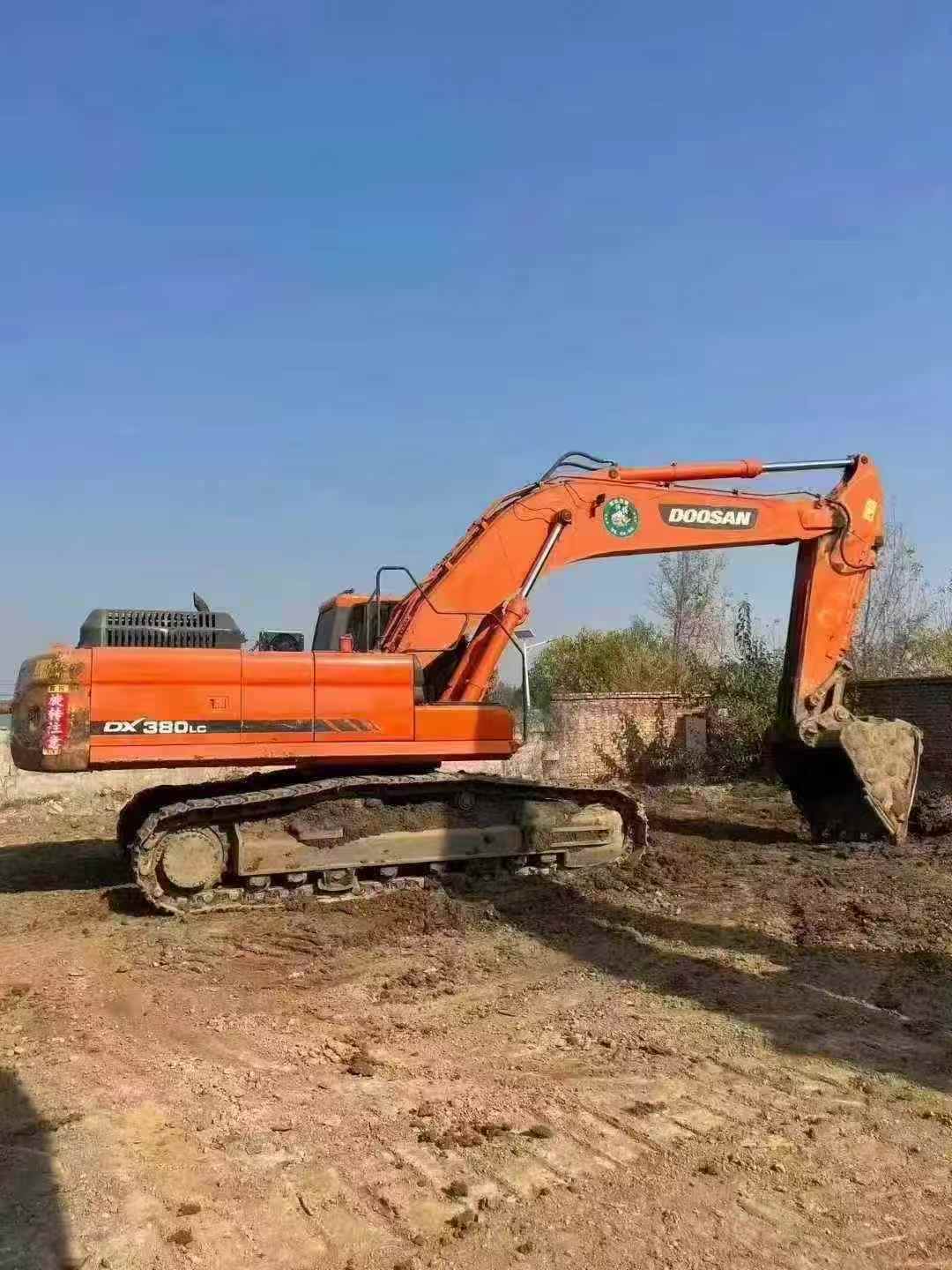

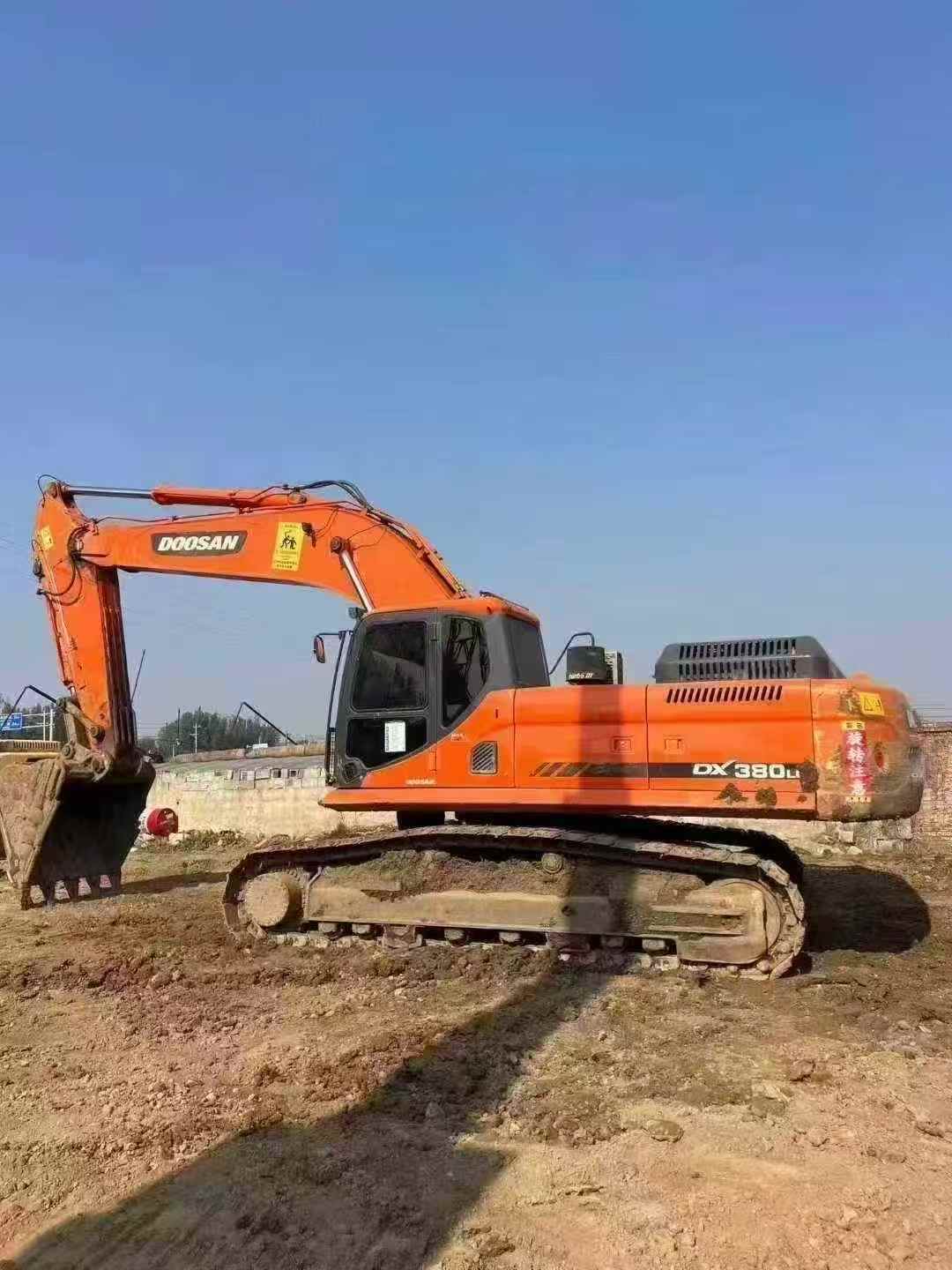

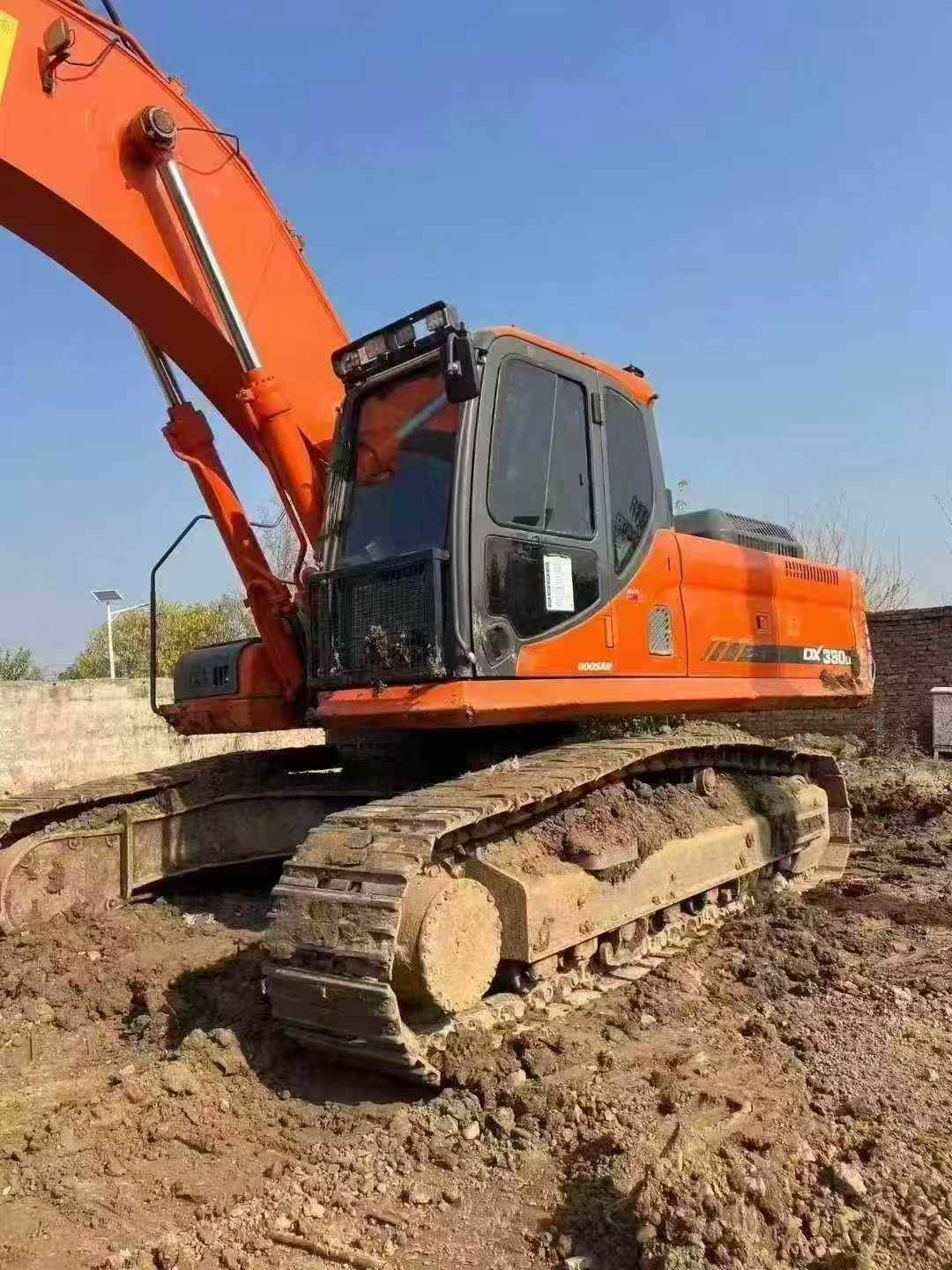

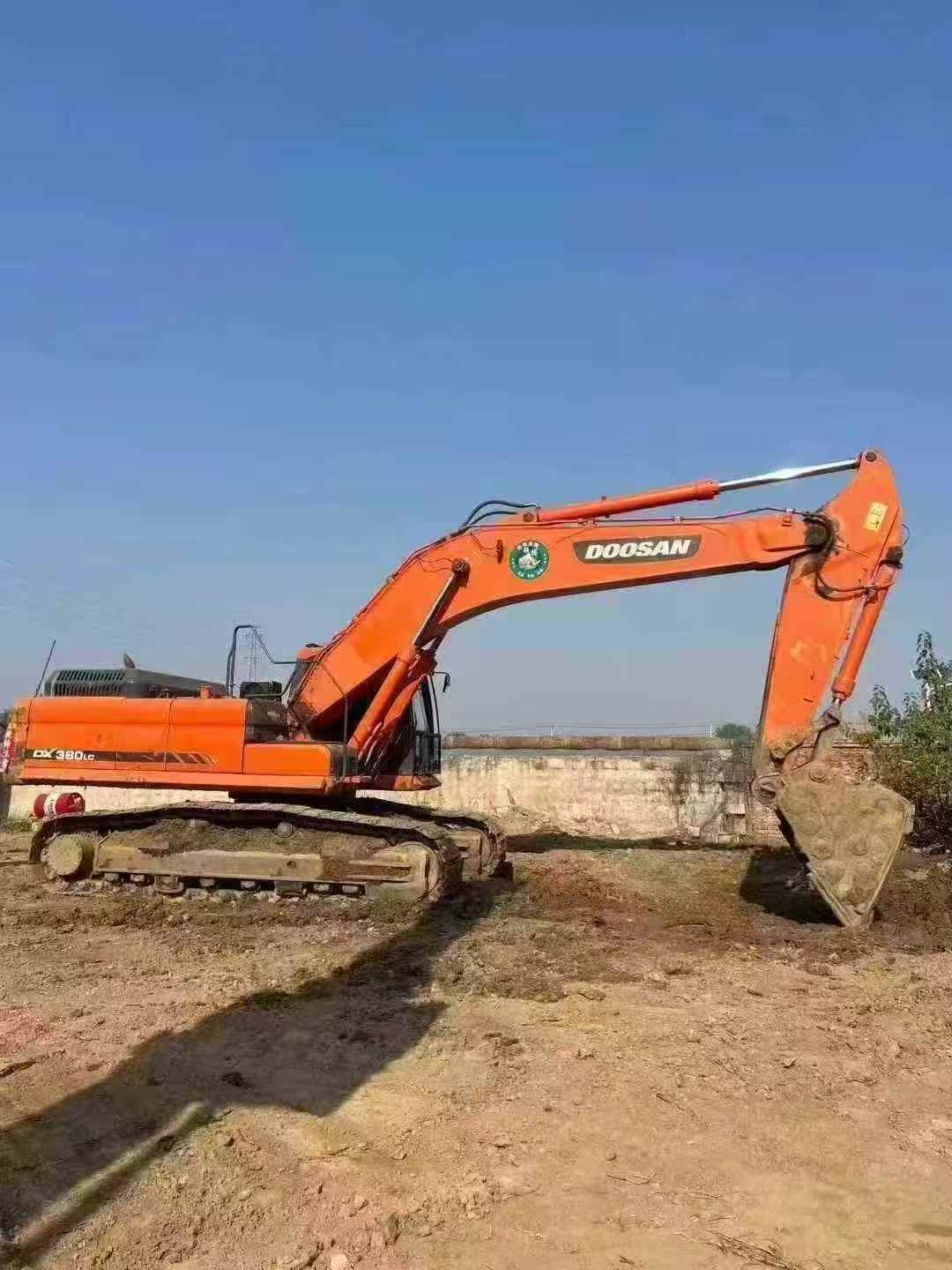

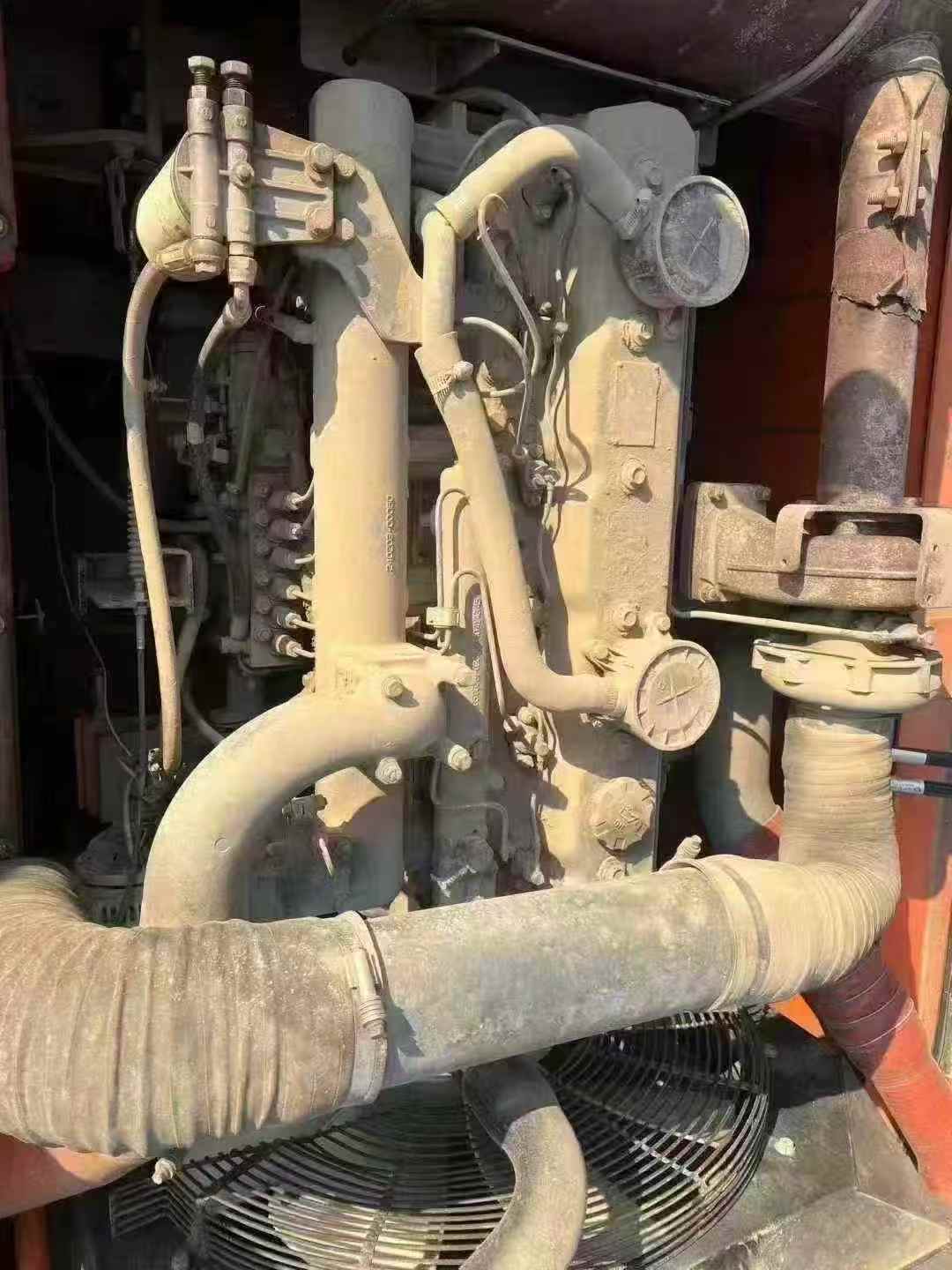

【 Premium Recommendation 】 This Doosan DX380LC excavator from 2014 is a rare and high-quality second-hand device in the market. Not only is its lifespan guaranteed, but its overall condition is also excellent, making it highly suitable for users who pursue high cost performance and reliable performance. Since its purchase, this excavator has mainly been used in personal engineering projects, with a working time of only about 6,000 hours, which is far lower than the average usage time of similar models. This means that its main components are still in the best working condition. In terms of the power system, this DX380LC is equipped with an efficient and reliable engine, ensuring strong and stable power output. It can handle both hard rocks and soft soil with ease. More importantly, when maintained properly on a daily basis, its fuel efficiency is also quite excellent, which can effectively reduce operating costs. The hydraulic system also performs exceptionally well, adopting advanced hydraulic technology, with rapid response and precise control, making the operation more smooth and effortless. In addition, thanks to regular professional maintenance, there is almost no leakage in the entire hydraulic system, ensuring the long-term st
